Here you will find all available parts and drawings of the 'Fein 72251700230 ( LG24-230 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

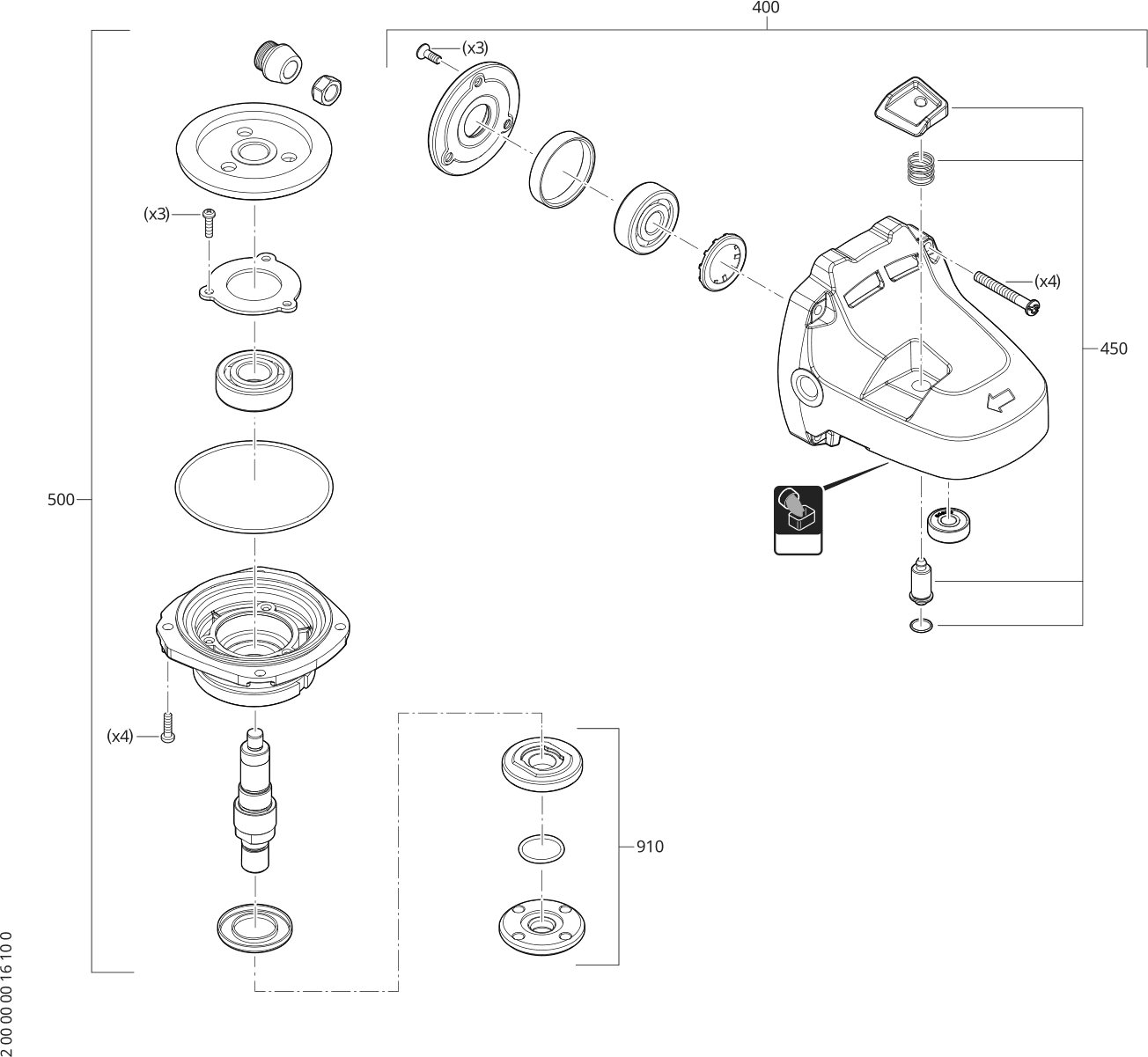

Technical drawing of model Fein 72251700230 ( LG24-230 )

Spare parts list of model Fein 72251700230 ( LG24-230 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Motor housing with stat (EU, 230 V, SET)
15 99100002586 79.20 95.83
Electronics (EU, 230 V)
30 99100002584 26.40 31.94
Switch
40 99100002595 13.20 15.97
Cover (2 Pcs, SET)
80 99100002589 5.40 6.53
Carbon brush (EU, 230 V, SET)
100 99100002580 26.40 31.94
Handle (EU, 230 V, SET)
140 99100002599 26.40 31.94
Gearbox housing (SET)
400 99100002567 26.40 31.94
Stop button (SET)
450 99100002443 5.40 6.53
Bearing plate (M14, 230 MM, SET)
500 99100002569 26.40 31.94
Armature (EU, 230 V)
700 99100002577 52.80 63.89
Safety hood (EU, 230 MM / 9", A)
900 99100002213 46.20 55.90
Safety hood (EU, 230 MM / 9", B)
900 99100002216 35.20 42.59
Grinding disc flange (M14)
910 99100002572 8.64 10.45
Handle (AV)
940 99100002221 19.80 23.96
Handle half shell (SET)
1150 99100002591 10.80 13.07
Type plate (EU)
2000 99100002610 5.40 6.53
RFID Transponder
2500 32217517000 1.56 1.89
No information available, not orderable
5000 62000000001
dust filter (EU, LG22/24/26, 2 Pcs, SET)
5200 99100002222 11.88 14.37
No information available, not orderable
6000 99100001162
