Here you will find all available parts and drawings of the 'Fein 72708900230 ( KBU35-2QW )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

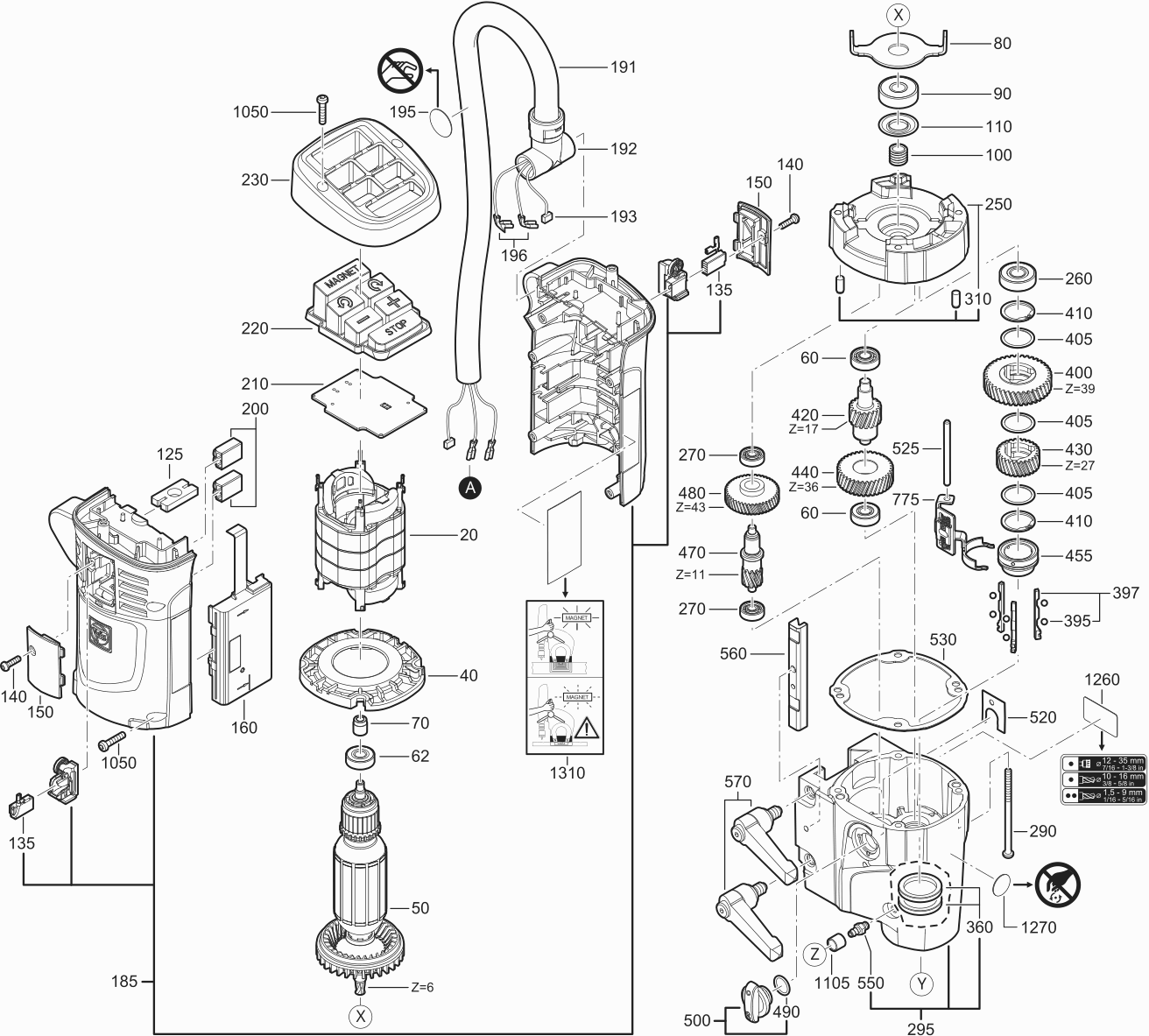

Technical drawing of model Fein 72708900230 ( KBU35-2QW )

Spare parts list of model Fein 72708900230 ( KBU35-2QW )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Stator
20 51282002230 70.18 84.92
Air guide ring
40 31428196000 6.61 8.00
Armature
50 53281007230 136.53 165.20
Grooved ball bearing
60 41701001172 8.21 9.93
Grooved ball bearing
62 41701001260 5.77 6.98
Magnet
70 32172014010 7.66 9.27
Plate
80 32416098005 1.67 2.02
Grooved ball bearing
90 41701207260 6.19 7.49
Sealing ring
100 32612135000 5.57 6.74
Sealing ring
110 42639028003 5.15 6.23
Cover
125 32411089000 2.29 2.77
Carbon brush
135 30711158000 7.38 8.93
Screw
140 43072000000 1.04 1.26
Cover
150 32427157000 5.57 6.74
Electronics
160 30762562990 140.36 169.84
Motor housing
185 31901202030 47.85 57.90
Protective hose
191 31414072000 20.74 25.10
Connecting piece
192 32429146010 17.86 21.61
Connecting cable
193 30719936010 9.32 11.28
STICKER
195 32217468060 3.90 4.72
Cable harness
196 30719943010 8.90 10.77
Terminal
200 30728445000 3.34 4.04
Electronics
210 30762560990 61.89 74.89
Switch insert
220 32816078000 37.64 45.54
Cover
230 32429141000 13.08 15.83
Intermediate gear box
250 31506412010 84.22 101.91
Intermediate gear box
250 31506428010 41.80 50.58
Grooved ball bearing
260 41701006034 7.38 8.93
Grooved ball bearing
270 41701202018 5.77 6.98
Screw
290 43072006001 1.04 1.26
Gearbox housing
295 31508312020 151.84 183.73
Pin
310 40242058004 1.04 1.26
Grooved ball bearing
340 41701000015 14.67 17.75
Circlip
350 42616014009 1.04 1.26
sealing ring
360 40608000005 5.57 6.74
Circlip
370 42644019001 4.32 5.23
Shaft
385 33403131000 135.26 163.66
Draw key
390 30109230010 29.35 35.51
Roller
395 30216174000 3.34 4.04
Draw key
397 30109230010 29.35 35.51
Gear-wheel
400 33663177000 39.56 47.87
Disc
405 32408435000 1.46 1.77
Circlip
410 42643011006 1.25 1.51
Shaft, toothed
420 33763064000 29.03 35.13
Wheel
430 33661003000 38.92 47.09
Gear-wheel
440 33661002000 15.95 19.30
Sleeve
455 30504112010 65.08 78.75
Shaft, toothed
470 33761002000 43.38 52.49
Gear-wheel
480 33657190000 33.81 40.91
Sealing ring
490 40612125002 1.04 1.26
Switch pushbutton
500 32805233020 17.54 21.22
Plate
520 30235024000 1.88 2.27
Pin
525 30216154000 5.77 6.98
Seal
530 30610048000 6.19 7.49
Hose socket
550 41138025006 6.82 8.25
Pressure piece
560 33218134000 38.28 46.32
Lever
570 32170025000 20.42 24.71
Spring
580 30901404000 5.99 7.25
Plunger
590 30216154010 20.42 24.71
Disc
600 32408389000 1.25 1.51
Circlip
615 42616033009 1.04 1.26
Pin
625 30240330000 11.10 13.43
Clamping sleeve
635 30501371000 31.26 37.82
Bush
645 30501373000 27.43 33.19
Spring
655 30901401000 5.36 6.49
Sleeve
665 30501372000 18.18 22.00
Circlip
670 42616076000 1.04 1.26
Housing
705 31207320020 299.86 362.83
Bush
720 31602089009 4.10 4.96
Leaf spring
730 30904047000 5.57 6.74
Screw
740 43076001030 1.04 1.26
Pressure piece
750 33216047000 4.73 5.72
Sealing ring
753 40612125002 1.04 1.26
Guide strip
760 34300000002 52.32 63.31
Cylinder head screw
770 43035076041 1.04 1.26
Shift fork
775 30229350010 50.40 60.98
Set screw
780 43058008051 2.51 3.04
Gear rack
790 33812007004 91.87 111.16
Cylinder head screw (SW0030, HEX 4, M 5, L 20 MM)
810 43035017057 1.04 1.26
Guide
820 34300000003 81.66 98.81
Fillister head screw
830 43041041053 1.88 2.27
Shaft, toothed
840 33713073000 103.36 125.07
Disc
850 42446003009 1.25 1.51
Circlip
860 42616065008 1.25 1.51
Connecting piece
870 30109201010 55.51 67.17
Handle
890 32119114014 15.63 18.91
Scale
900 32636046000 7.24 8.76
Cylinder head screw
910 43035084062 1.04 1.26
Sealing ring
920 40612171000 1.25 1.51
Button
926 30701223005 13.40 16.21
Cap
927 30701224003 5.36 6.49
Cover
930 32424032000 19.78 23.93
Connecting cable
935 30719935010 8.50 10.28
Protective hose
940 31413237000 2.29 2.77
Cable
950 30707579010 85.49 103.44
Cable clamping piece
960 32431043002 1.04 1.26
Screw
970 43074010000 1.04 1.26
Cover
980 32424031000 11.10 13.43
Electronics 110-230V 50/60Hz
990 30762641980 274.34 331.95
Screw
1000 43074013000 1.04 1.26
Fillister head screw
1030 43064023045 0.90 1.09
Cover
1040 32424033000 19.78 23.93
Screw
1050 43074008000 1.04 1.26
Cylinder head screw
1060 43035013058 1.04 1.26
Cylinder head screw
1070 43033064066 1.04 1.26
Magnetic foot
1080 32172030000 502.74 608.32
Magnetic foot
1080 32172041020 459.80 556.36
Container
1090 32132035010 40.83 49.40
Sealing ring
1091 40612112007 1.04 1.26
Sealing ring
1092 40612087004 1.04 1.26
Ball cock
1095 30240357010 25.20 30.49
FLEXIBELE SLANG
1096 31414070010 18.98 22.97
Hose
1100 31414073000 2.93 3.55
Sleeve
1105 30501377000 3.48 4.21
Nut
1110 42015000000 6.19 7.49
Information sign
1260 32217513000 7.10 8.59
Sticker
1270 32217406002 1.25 1.51
Information sign
1290 32217507060 4.73 5.72
Information sign
1310 32217466060 4.10 4.96
Information sign
1350 32217552000 1.04 1.26
RFID Transponder
2500 32217517000 1.25 1.51
KOFFER KBU35
5000 33901174060 124.30 150.40
Wire clamp
5010 30232050000 8.63 10.44
Case insert
5020 33904576000 24.88 30.10
Chip grille
5100 31810298000 27.12 32.82
CENTREERSTIFT 100MM
5110 63134998310 17.88 21.63
Swarf hook
5120 64201001000 55.00 66.55
Belt
5130 32174008007 24.20 29.28
Lubricant can (SM0019)
6000 32132041000 85.23 103.13
