Here you will find all available parts and drawings of the 'Fein 72710300230 (KBH25-2U)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

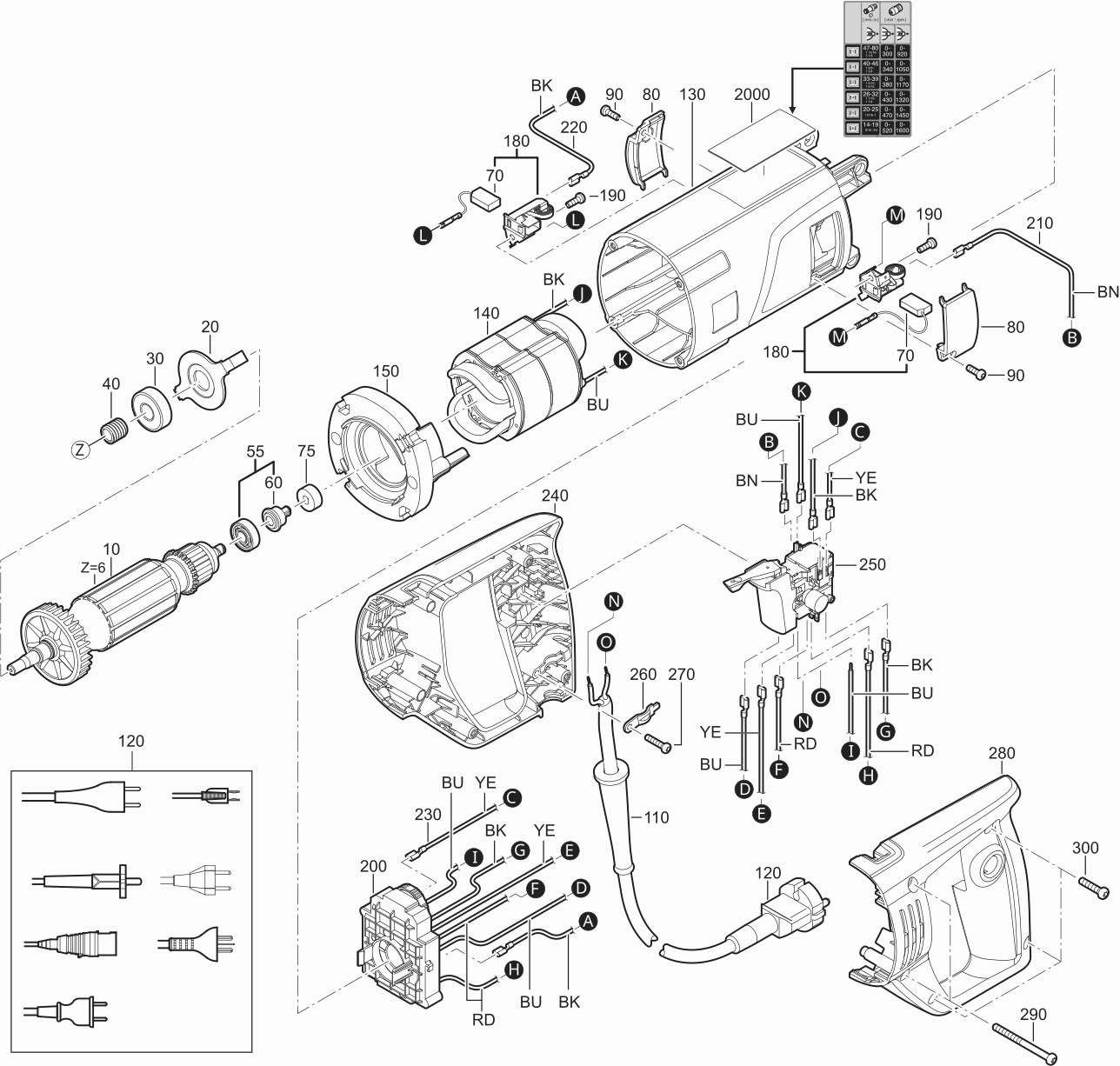

Technical drawing of model Fein 72710300230 (KBH25-2U)
Spare parts list of model Fein 72710300230 (KBH25-2U)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Armature | ||||
| 10 | 53273010230 | 136.53 | 165.20 | |
| Plate | ||||
| 20 | 32416098005 | 1.67 | 2.02 | |
| Grooved ball bearing | ||||
| 30 | 41701007050 | 11.35 | 13.73 | |
| Sealing ring | ||||
| 40 | 32612135000 | 5.57 | 6.74 | |
| Grooved ball bearing | ||||
| 50 | 41701001260 | 5.77 | 6.98 | |
| Sleeve | ||||
| 55 | 31406053010 | 14.99 | 18.14 | |
| Sleeve | ||||
| 60 | 31406053007 | 3.13 | 3.79 | |
| Carbon brush | ||||
| 70 | 30711132003 | 9.47 | 11.46 | |
| Ring magnet | ||||
| 75 | 32172010005 | 11.82 | 14.30 | |
| Cover | ||||
| 80 | 32424029000 | 2.93 | 3.55 | |
| Screw | ||||
| 90 | 43074013000 | 1.56 | 1.89 | |
| Screw | ||||
| 100 | 43072006001 | 1.56 | 1.89 | |
| Cable grommet | ||||
| 110 | 31413233000 | 2.71 | 3.28 | |
| Assembled cables | ||||
| 120 | 30707419010 | 19.14 | 23.16 | |
| Motor Housing | ||||
| 130 | 31903219000 | 52.95 | 64.07 | |
| Stator | ||||
| 140 | 51273006230 | 117.39 | 142.04 | |
| Air guide ring | ||||
| 150 | 31428168000 | 4.52 | 5.47 | |
| Brush holder | ||||
| 180 | 30712088013 | 13.40 | 16.21 | |
| Screw | ||||
| 190 | 43074013000 | 1.56 | 1.89 | |
| Electronics | ||||
| 200 | 30762519990 | 148.02 | 179.10 | |
| Connecting cable | ||||
| 210 | 30719815010 | 2.29 | 2.77 | |
| Connecting cable | ||||
| 220 | 30719816010 | 2.29 | 2.77 | |
| Connecting cable | ||||
| 230 | 30719814010 | 2.29 | 2.77 | |
| Handle half shell | ||||
| 240 | 31204187000 | 12.51 | 15.14 | |
| Switch | ||||
| 250 | 30701292010 | 49.13 | 59.45 | |
| Cable clamping piece | ||||
| 260 | 32431043002 | 1.56 | 1.89 | |
| Screw (16 MM, 3.5 MM, TX15, EJOT) | ||||
| 270 | 43074010000 | 1.56 | 1.89 | |
| Handle half shell | ||||
| 280 | 31204188000 | 12.51 | 15.14 | |
| Screw | ||||
| 290 | 43072013005 | 1.56 | 1.89 | |
| Screw | ||||
| 300 | 43074008000 | 1.56 | 1.89 | |
| Clutch | ||||
| 315 | 33761001010 | 168.43 | 203.80 | |
| Bearing | ||||
| 380 | 31508292000 | 56.14 | 67.93 | |
| Grooved ball bearing | ||||
| 390 | 41701001172 | 8.21 | 9.93 | |
| Grooved ball bearing | ||||
| 400 | 41701202018 | 5.77 | 6.98 | |
| Shaft | ||||
| 405 | 33403124010 | 190.12 | 230.05 | |
| Roller | ||||
| 415 | 41709039003 | 1.88 | 2.27 | |
| Spiral Spring | ||||
| 420 | 30901382000 | 4.94 | 5.98 | |
| Bolt | ||||
| 430 | 30216150000 | 16.59 | 20.07 | |
| Bolt | ||||
| 440 | 30217361000 | 13.08 | 15.83 | |
| Grooved ball bearing | ||||
| 450 | 41701109051 | 19.78 | 23.93 | |
| Circlip | ||||
| 460 | 42616009003 | 1.56 | 1.89 | |
| Ball | ||||
| 470 | 41708019004 | 1.56 | 1.89 | |
| Bolt | ||||
| 480 | 30216152000 | 5.77 | 6.98 | |
| Circlip | ||||
| 490 | 30235025000 | 1.56 | 1.89 | |
| Shaft, toothed | ||||
| 510 | 33763064000 | 29.03 | 35.13 | |
| Gear-wheel | ||||
| 520 | 33661002000 | 15.95 | 19.30 | |
| Gear-wheel | ||||
| 540 | 33663177000 | 39.56 | 47.87 | |
| Grooved ball bearing | ||||
| 560 | 41701006034 | 7.38 | 8.93 | |
| Circlip | ||||
| 570 | 42644013000 | 2.09 | 2.53 | |
| Ball | ||||
| 580 | 41708025004 | 1.56 | 1.89 | |
| Ring | ||||
| 590 | 32602091000 | 9.74 | 11.79 | |
| Spiral Spring | ||||
| 600 | 30901383000 | 5.57 | 6.74 | |
| Sleeve | ||||
| 610 | 30503165000 | 44.66 | 54.04 | |
| Disc | ||||
| 620 | 30504114000 | 20.42 | 24.71 | |
| Circlip | ||||
| 630 | 42616076000 | 1.56 | 1.89 | |
| Intermediate gear box | ||||
| 645 | 31506400010 | 59.33 | 71.79 | |
| Pin | ||||
| 670 | 40242058004 | 1.56 | 1.89 | |
| Seal | ||||
| 680 | 30610048000 | 6.19 | 7.49 | |
| Wheel | ||||
| 700 | 33661003000 | 38.92 | 47.09 | |
| Draw key | ||||
| 710 | 30109230010 | 29.35 | 35.51 | |
| Draw key | ||||
| 715 | 30109230010 | 29.35 | 35.51 | |
| Roller | ||||
| 720 | 30216174000 | 3.34 | 4.04 | |
| Disc | ||||
| 730 | 32408435000 | 1.56 | 1.89 | |
| Circlip | ||||
| 740 | 42643011006 | 1.56 | 1.89 | |
| Switch pushbutton | ||||
| 750 | 32805233020 | 17.54 | 21.22 | |
| Sealing ring | ||||
| 753 | 40612125002 | 1.56 | 1.89 | |
| Shift fork | ||||
| 770 | 30229350010 | 50.40 | 60.98 | |
| Plate | ||||
| 780 | 30235024000 | 1.88 | 2.27 | |
| Pin | ||||
| 790 | 30216154000 | 5.77 | 6.98 | |
| Sleeve | ||||
| 820 | 30109206000 | 30.30 | 36.66 | |
| Sleeve | ||||
| 830 | 30109207000 | 56.78 | 68.70 | |
| Disc | ||||
| 840 | 30504113010 | 54.87 | 66.39 | |
| Ball | ||||
| 860 | 41708017002 | 1.56 | 1.89 | |
| Sticker | ||||
| 2000 | 32217475060 | 6.12 | 7.41 | |
| Information sign | ||||
| 2010 | 32217521000 | 4.74 | 5.74 | |
| RFID Transponder | ||||
| 2500 | 32217517000 | 1.56 | 1.89 | |
| Case | ||||
| 5000 | 33901122120 | 102.74 | 124.32 | |
| Centring drill bit | ||||
| 5010 | 63114038010 | 24.88 | 30.10 | |
| Drill bit | ||||
| 5010 | 63114050010 | 19.52 | 23.62 | |
| Adapter | ||||
| 5030 | 63901054000 | 29.70 | 35.94 | |
| Quick-action chuck | ||||
| 5060 | 63205038010 | 142.34 | 172.23 | |
| No information available, not orderable | ||||
| 5070 | 63901054010 | |||
| Wrench | ||||
| 5080 | 62908015000 | 24.09 | 29.15 | |
| Wrench | ||||
| 5090 | 62903002009 | 8.76 | 10.60 | |
| Handle | ||||
| 5200 | 32119122000 | 7.66 | 9.27 | |
| Wire clamp | ||||
| 5210 | 30232050000 | 8.63 | 10.44 | |
| EPP insert KBH25 | ||||
| 5300 | 33904428010 | 47.21 | 57.12 | |
| Handle | ||||
| 5400 | 32119078030 | 25.52 | 30.88 | |
| No longer available, no replacement | ||||
| 6000 | 32160003135 | |||
| Pipe (SW0002, L 110 MM, OD 130 MM, ID 120 MM) | ||||
| 7002 | 64101002004 | 61.89 | 74.89 | |
| Drawing-off plate (SW0008) | ||||
| 7008 | 64102061009 | 65.34 | 79.06 | |
| Extractor tool (SW0016, L 130 MM, M 12) | ||||
| 7016 | 64104150008 | 116.75 | 141.27 | |
| Assembly aid (SW0049) | ||||
| 7049 | 64122132010 | 42.75 | 51.73 | |
| Chuck cone (SW0081, ID 19 MM, M 6) | ||||
| 7081 | 64107019007 | 96.98 | 117.35 | |
| Chuck cone (SW0084, ID 26 MM, M 6) | ||||
| 7084 | 64107026000 | 111.01 | 134.32 | |
| Operating instructions KBH25.... | ||||
| 9000 | 34101199060 | 6.23 | 7.54 | |
| Safety instruction | ||||
| 9020 | 34130054061 | 1.87 | 2.26 | |
