Here you will find all available parts and drawings of the 'Fein 72709100230 ( KBE30 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

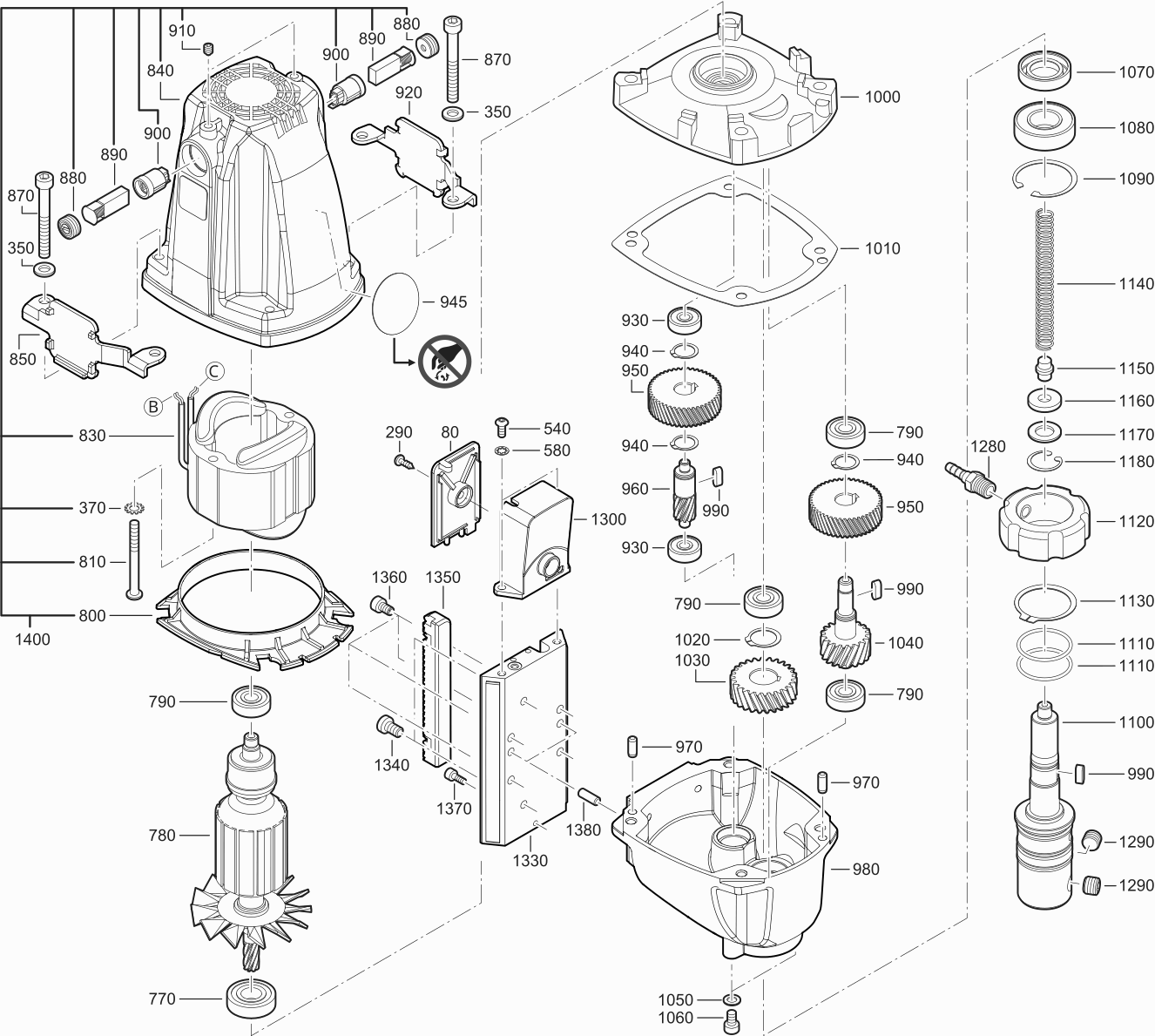

Technical drawing of model Fein 72709100230 ( KBE30 )
Spare parts list of model Fein 72709100230 ( KBE30 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Terminal | ||||
| 20 | 31412064000 | 2.71 | 3.28 | |
| Cable | ||||
| 70 | 30798591130 | 47.85 | 57.90 | |
| Cover | ||||
| 80 | 31998630020 | 1.67 | 2.02 | |
| Cable tie | ||||
| 85 | 30798757100 | 1.04 | 1.26 | |
| Screw | ||||
| 110 | 43098705585 | 1.46 | 1.77 | |
| Screw | ||||
| 120 | 43098703230 | 1.04 | 1.26 | |
| Cable | ||||
| 130 | 30707592010 | 130.15 | 157.48 | |
| Belt | ||||
| 140 | 32174008007 | 24.20 | 29.28 | |
| Magnetic foot | ||||
| 150 | 32172043010 | 487.43 | 589.79 | |
| Sticker | ||||
| 160 | 32217407000 | 3.13 | 3.79 | |
| Chip grille | ||||
| 230 | 31810313000 | 30.30 | 36.66 | |
| Screw | ||||
| 240 | 43098706020 | 1.04 | 1.26 | |
| Screw | ||||
| 290 | 43098710070 | 1.88 | 2.27 | |
| Connecting Cable | ||||
| 300 | 30798591095 | 11.28 | 13.65 | |
| Screw | ||||
| 310 | 43098706480 | 1.04 | 1.26 | |
| Guide | ||||
| 320 | 31298332820 | 11.74 | 14.21 | |
| Stop button | ||||
| 325 | 31298331050 | 2.71 | 3.28 | |
| Disc | ||||
| 340 | 42498720630 | 1.67 | 2.02 | |
| Disc | ||||
| 350 | 42498720600 | 1.04 | 1.26 | |
| Lock washer | ||||
| 360 | 42498720500 | 1.04 | 1.26 | |
| Disc | ||||
| 370 | 42498720540 | 1.04 | 1.26 | |
| Screw | ||||
| 380 | 43098705060 | 1.04 | 1.26 | |
| Screw | ||||
| 390 | 43098705370 | 1.04 | 1.26 | |
| Housing | ||||
| 400 | 31298392600 | 82.94 | 100.36 | |
| Cover | ||||
| 410 | 30798510130 | 9.89 | 11.97 | |
| Screw | ||||
| 420 | 43098708100 | 1.25 | 1.51 | |
| Handle | ||||
| 430 | 31298330020 | 17.54 | 21.22 | |
| Circlip | ||||
| 440 | 42616023000 | 1.04 | 1.26 | |
| Disc | ||||
| 450 | 31698320055 | 4.10 | 4.96 | |
| Bush | ||||
| 460 | 31698320040 | 3.48 | 4.21 | |
| Shaft | ||||
| 480 | 33298320040 | 33.81 | 40.91 | |
| Feather key | ||||
| 490 | 40298745000 | 2.09 | 2.53 | |
| Gear-wheel | ||||
| 500 | 33698682000 | 34.45 | 41.68 | |
| Screw | ||||
| 510 | 43098705055 | 1.04 | 1.26 | |
| Guide | ||||
| 520 | 31298332540 | 2.93 | 3.55 | |
| Housing | ||||
| 530 | 31298330140 | 209.26 | 253.20 | |
| Screw | ||||
| 540 | 43098704060 | 1.04 | 1.26 | |
| Cable harness | ||||
| 550 | 30719977010 | 7.10 | 8.59 | |
| Electronics | ||||
| 560 | 30798550090 | 148.02 | 179.10 | |
| Hex nut | ||||
| 570 | 42001027045 | 1.04 | 1.26 | |
| Disc | ||||
| 580 | 42498720440 | 1.04 | 1.26 | |
| Plate | ||||
| 590 | 32424050040 | 22.01 | 26.63 | |
| Cover | ||||
| 600 | 31201150000 | 3.68 | 4.45 | |
| Button | ||||
| 610 | 30701223005 | 13.40 | 16.21 | |
| Button | ||||
| 620 | 30701311000 | 11.10 | 13.43 | |
| Protective cap | ||||
| 630 | 30219058000 | 5.77 | 6.98 | |
| Switch | ||||
| 640 | 30701281000 | 29.67 | 35.90 | |
| Screw | ||||
| 650 | 43098704330 | 2.51 | 3.04 | |
| Cap | ||||
| 660 | 30701224003 | 5.36 | 6.49 | |
| Seal | ||||
| 670 | 30610034008 | 1.67 | 2.02 | |
| RFID Transponder | ||||
| 680 | 32217517000 | 1.25 | 1.51 | |
| Nut | ||||
| 690 | 30798757544 | 2.71 | 3.28 | |
| Cable | ||||
| 700 | 30798591085 | 27.43 | 33.19 | |
| Grooved ball bearing | ||||
| 770 | 41798730390 | 20.42 | 24.71 | |
| Armature | ||||
| 780 | 53298653030 | 142.91 | 172.92 | |
| Grooved ball bearing | ||||
| 790 | 41798730200 | 16.59 | 20.07 | |
| Air guide ring | ||||
| 800 | 31998633060 | 3.90 | 4.72 | |
| Screw | ||||
| 810 | 43098705600 | 1.25 | 1.51 | |
| Stator | ||||
| 830 | 51298653060 | 54.23 | 65.62 | |
| Motor housing | ||||
| 840 | 31998633010 | 66.35 | 80.28 | |
| Adapter | ||||
| 850 | 32498610180 | 7.24 | 8.76 | |
| Screw | ||||
| 870 | 43098706660 | 1.67 | 2.02 | |
| Cap | ||||
| 880 | 30798653080 | 1.67 | 2.02 | |
| Carbon brush | ||||
| 890 | 30798653100 | 5.99 | 7.25 | |
| Brush holder | ||||
| 900 | 30798653120 | 9.47 | 11.46 | |
| Screw | ||||
| 910 | 43098705010 | 6.82 | 8.25 | |
| Adapter | ||||
| 920 | 32498610160 | 7.24 | 8.76 | |
| Grooved ball bearing | ||||
| 930 | 41798730120 | 13.72 | 16.60 | |
| Ring | ||||
| 940 | 42698740120 | 1.67 | 2.02 | |
| Sticker | ||||
| 945 | 32217406002 | 1.25 | 1.51 | |
| Gear-wheel | ||||
| 950 | 33698681030 | 41.47 | 50.18 | |
| Cable | ||||
| 955 | 30707586010 | 74.80 | 90.51 | |
| Screw connection | ||||
| 956 | 30723044003 | 22.97 | 27.79 | |
| Cable grommet | ||||
| 957 | 31413007007 | 2.51 | 3.04 | |
| Protective cap | ||||
| 958 | 31413177009 | 1.04 | 1.26 | |
| Pinion | ||||
| 960 | 33698681040 | 21.37 | 25.86 | |
| Pin | ||||
| 970 | 40298742003 | 2.29 | 2.77 | |
| Gearbox housing | ||||
| 980 | 31508319000 | 56.14 | 67.93 | |
| Feather key | ||||
| 990 | 40298745040 | 3.13 | 3.79 | |
| Intermediate gear box | ||||
| 1000 | 31506416000 | 56.10 | 67.88 | |
| Seal | ||||
| 1010 | 32498613000 | 8.50 | 10.28 | |
| Circlip | ||||
| 1020 | 42616023000 | 1.04 | 1.26 | |
| Pinion | ||||
| 1030 | 33698681050 | 29.67 | 35.90 | |
| Shaft, toothed | ||||
| 1040 | 33698681020 | 33.81 | 40.91 | |
| Disc | ||||
| 1050 | 42498720560 | 1.04 | 1.26 | |
| Screw | ||||
| 1060 | 43098705040 | 1.04 | 1.26 | |
| Sealing ring | ||||
| 1070 | 40698763020 | 5.99 | 7.25 | |
| Grooved ball bearing | ||||
| 1080 | 41798730450 | 16.59 | 20.07 | |
| Ring | ||||
| 1090 | 42698741350 | 2.09 | 2.53 | |
| Pressure spindle | ||||
| 1100 | 33498621020 | 111.01 | 134.32 | |
| Ring | ||||
| 1110 | 40698763560 | 3.48 | 4.21 | |
| Ring | ||||
| 1120 | 31998633080 | 77.84 | 94.19 | |
| Circlip | ||||
| 1130 | 42616000002 | 1.04 | 1.26 | |
| Spring | ||||
| 1140 | 30998744240 | 4.32 | 5.23 | |
| Plunger | ||||
| 1150 | 33498223340 | 3.48 | 4.21 | |
| Disc | ||||
| 1160 | 42498726030 | 1.46 | 1.77 | |
| Disc | ||||
| 1170 | 42498726060 | 2.09 | 2.53 | |
| Circlip | ||||
| 1180 | 42698741190 | 1.88 | 2.27 | |
| Hose socket | ||||
| 1280 | 31498761020 | 6.61 | 8.00 | |
| Screw | ||||
| 1290 | 43098709000 | 1.50 | 1.82 | |
| Cover | ||||
| 1300 | 31998630010 | 4.32 | 5.23 | |
| Guide | ||||
| 1330 | 31998631130 | 59.33 | 71.79 | |
| Screw | ||||
| 1340 | 43098706050 | 1.04 | 1.26 | |
| Gear rack | ||||
| 1350 | 33698680020 | 41.47 | 50.18 | |
| Screw | ||||
| 1360 | 43098705220 | 1.04 | 1.26 | |
| Screw | ||||
| 1370 | 43098704120 | 1.25 | 1.51 | |
| Pin | ||||
| 1380 | 40298742020 | 1.46 | 1.77 | |
| Stator unit | ||||
| 1400 | 52298690340 | 210.54 | 254.75 | |
| Connecting piece | ||||
| 1410 | 31698391000 | 40.83 | 49.40 | |
| Handle | ||||
| 1420 | 32198114000 | 14.36 | 17.38 | |
| Container | ||||
| 1440 | 32198190010 | 22.97 | 27.79 | |
| Hose | ||||
| 1450 | 31498760060 | 4.10 | 4.96 | |
| Clamping unit | ||||
| 2010 | 64298120140 | 9.05 | 10.95 | |
| Connecting piece | ||||
| 2020 | 31698321000 | 35.73 | 43.23 | |
| Disc | ||||
| 2030 | 42098746000 | 1.04 | 1.26 | |
| Information sign | ||||
| 2350 | 32217552000 | 1.04 | 1.26 | |
| KOFFER KBE30 | ||||
| 5000 | 33998140130 | 90.20 | 109.14 | |
| CENTREERSTIFT 100MM | ||||
| 5350 | 63134998310 | 17.88 | 21.63 | |
| Wrench | ||||
| 5380 | 62998780030 | 3.13 | 3.79 | |
| Swarf hook | ||||
| 5390 | 64298160400 | 23.29 | 28.18 | |
| No longer available, no replacement | ||||
| 6000 | 32198766050 | |||
| No longer available, no replacement | ||||
| 7000 | 64107037003 | |||
| Extractor tool (SW0016, L 130 MM, M 12) | ||||
| 7010 | 64104150008 | 116.75 | 141.27 | |
| Chuck cone (SW0019, ID 22 MM, M 6) | ||||
| 7020 | 64107022001 | 111.01 | 134.32 | |
| Chuck cone (SW0019, ID 19 MM, M 6) | ||||
| 7090 | 64107019007 | 96.98 | 117.35 | |
