Here you will find all available parts and drawings of the 'Fein 72709300230 ( KBB40 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

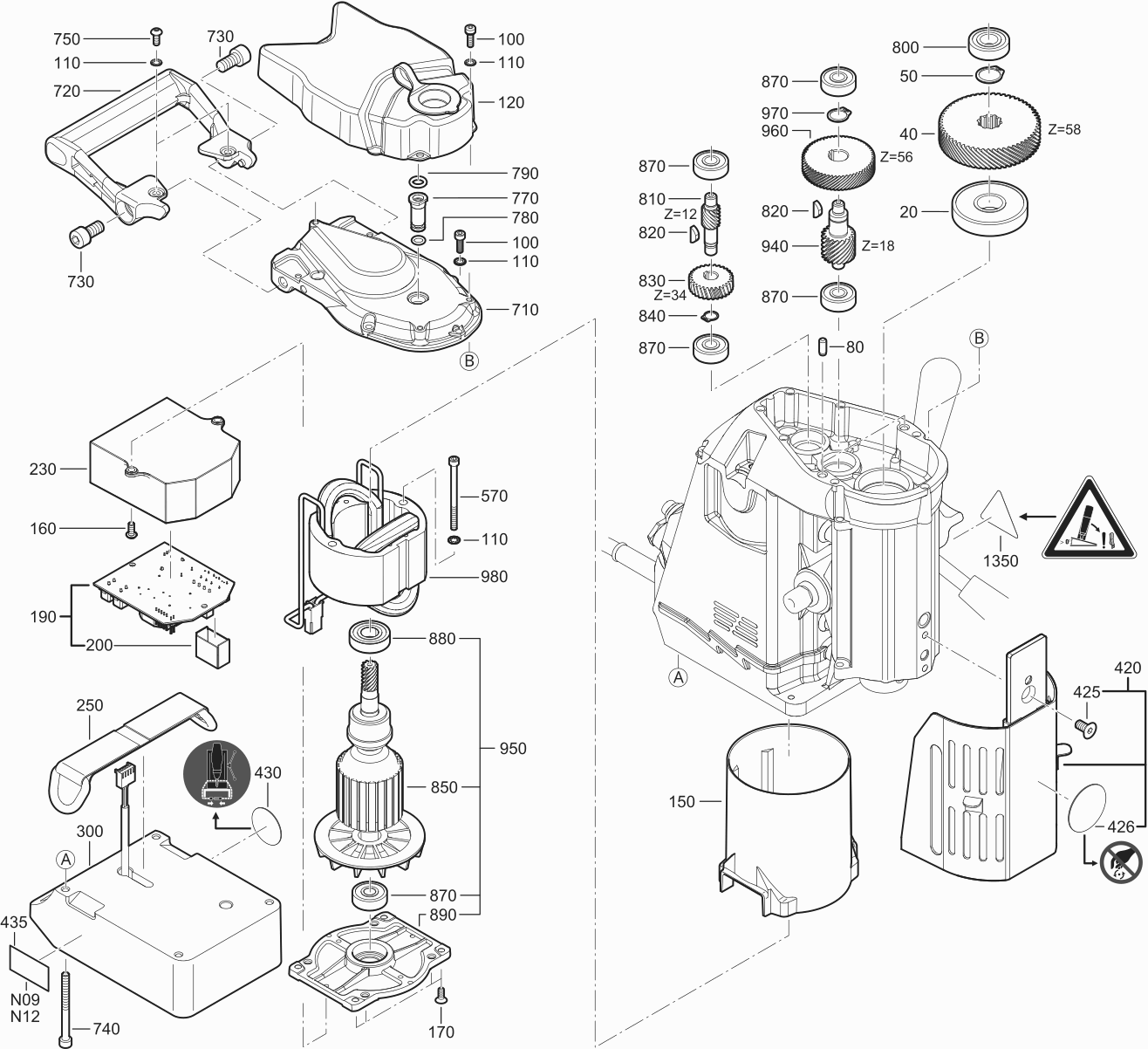

Technical drawing of model Fein 72709300230 ( KBB40 )
Spare parts list of model Fein 72709300230 ( KBB40 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Grooved ball bearing | ||||
| 20 | 41798730450 | 16.59 | 20.07 | |
| Gear-wheel | ||||
| 40 | 33698681200 | 85.49 | 103.44 | |
| Ring | ||||
| 50 | 42698740160 | 1.04 | 1.26 | |
| Pin | ||||
| 80 | 40298742003 | 2.29 | 2.77 | |
| Screw | ||||
| 100 | 43098704220 | 1.04 | 1.26 | |
| Disc | ||||
| 110 | 42498720440 | 1.04 | 1.26 | |
| Container | ||||
| 120 | 32198190030 | 22.01 | 26.63 | |
| Shaft, toothed | ||||
| 130 | 33298320110 | 127.60 | 154.40 | |
| Ring | ||||
| 140 | 42698740180 | 1.04 | 1.26 | |
| Insulating ring | ||||
| 150 | 31998631058 | 0.90 | 1.09 | |
| Screw | ||||
| 160 | 43098704060 | 1.04 | 1.26 | |
| Screw | ||||
| 170 | 43098704100 | 1.04 | 1.26 | |
| Electronics | ||||
| 190 | 30798550075 | 232.23 | 281.00 | |
| Electronics | ||||
| 200 | 30798550070 | 167.16 | 202.26 | |
| Housing | ||||
| 230 | 31498530100 | 9.05 | 10.95 | |
| Belt | ||||
| 250 | 32198121000 | 21.69 | 26.24 | |
| Switch | ||||
| 280 | 30798755410 | 26.48 | 32.04 | |
| Nut | ||||
| 290 | 30798757544 | 2.71 | 3.28 | |
| Magnetic foot | ||||
| 300 | 33298492060 | 511.68 | 619.13 | |
| Cable with plug | ||||
| 320 | 30798592770 | 12.10 | 14.64 | |
| Cable | ||||
| 340 | 30707592010 | 130.15 | 157.48 | |
| Carbon brush | ||||
| 380 | 30798651120 | 20.42 | 24.71 | |
| Cap | ||||
| 390 | 30798651160 | 6.19 | 7.49 | |
| Connecting piece | ||||
| 400 | 31698391000 | 40.83 | 49.40 | |
| Handle | ||||
| 410 | 32198114000 | 14.36 | 17.38 | |
| Chip grille | ||||
| 420 | 63998611030 | 41.25 | 49.91 | |
| Screw | ||||
| 425 | 43098706040 | 1.04 | 1.26 | |
| Sticker | ||||
| 426 | 32217406002 | 1.25 | 1.51 | |
| Sticker | ||||
| 430 | 32217407000 | 3.13 | 3.79 | |
| Bush | ||||
| 545 | 41798733100 | 9.74 | 11.79 | |
| Bush | ||||
| 546 | 41798733200 | 9.74 | 11.79 | |
| Sleeve | ||||
| 550 | 31598231500 | 98.25 | 118.88 | |
| Circlip | ||||
| 560 | 42698740620 | 1.46 | 1.77 | |
| Screw | ||||
| 570 | 43098704370 | 1.25 | 1.51 | |
| No information available, not orderable | ||||
| 575 | 40298742310 | |||
| Screw | ||||
| 580 | 43098709020 | 6.61 | 8.00 | |
| Housing | ||||
| 600 | 31298391110 | 470.84 | 569.72 | |
| Brush holder | ||||
| 610 | 30798651140 | 14.04 | 16.99 | |
| Ball | ||||
| 620 | 42498748005 | 1.04 | 1.26 | |
| Screw | ||||
| 630 | 43098705000 | 1.04 | 1.26 | |
| Cover | ||||
| 640 | 32498611030 | 8.50 | 10.28 | |
| Screw | ||||
| 650 | 43098703230 | 1.04 | 1.26 | |
| Cover | ||||
| 660 | 30798591140 | 16.91 | 20.46 | |
| Seal | ||||
| 670 | 30610034008 | 1.67 | 2.02 | |
| Switch | ||||
| 675 | 30798591068 | 61.89 | 74.89 | |
| Protective cap | ||||
| 680 | 32498520090 | 3.48 | 4.21 | |
| Pushbutton | ||||
| 690 | 30798755270 | 7.38 | 8.93 | |
| Pushbutton | ||||
| 700 | 30798755275 | 7.38 | 8.93 | |
| Cover | ||||
| 710 | 31342621182 | 102.08 | 123.52 | |
| Handle | ||||
| 720 | 31298330020 | 17.54 | 21.22 | |
| Screw | ||||
| 730 | 43098708100 | 1.25 | 1.51 | |
| Screw | ||||
| 740 | 43098705640 | 1.25 | 1.51 | |
| Screw | ||||
| 750 | 43098704060 | 1.04 | 1.26 | |
| Connecting piece | ||||
| 770 | 31498761065 | 17.88 | 21.63 | |
| Ring | ||||
| 780 | 40698763680 | 1.04 | 1.26 | |
| Ring | ||||
| 790 | 40698763660 | 1.04 | 1.26 | |
| Grooved ball bearing | ||||
| 800 | 41798730390 | 20.42 | 24.71 | |
| Pinion | ||||
| 810 | 33698681260 | 47.21 | 57.12 | |
| Feather key | ||||
| 820 | 40298745840 | 3.13 | 3.79 | |
| Gear-wheel | ||||
| 830 | 33698681280 | 65.08 | 78.75 | |
| Circlip | ||||
| 840 | 42698740090 | 1.25 | 1.51 | |
| Armature | ||||
| 850 | 53298651060 | 141.64 | 171.38 | |
| Grooved ball bearing | ||||
| 870 | 41798730240 | 25.20 | 30.49 | |
| Grooved ball bearing | ||||
| 880 | 41798730390 | 20.42 | 24.71 | |
| Bearing plate | ||||
| 890 | 33298333030 | 16.91 | 20.46 | |
| Sleeve | ||||
| 900 | 33498223000 | 224.58 | 271.74 | |
| Needle bearing | ||||
| 910 | 41798730630 | 37.64 | 45.54 | |
| Grooved ball bearing | ||||
| 920 | 41798730570 | 28.39 | 34.35 | |
| Circlip | ||||
| 930 | 42698741520 | 1.67 | 2.02 | |
| Pinion | ||||
| 940 | 33698681220 | 102.08 | 123.52 | |
| Armature | ||||
| 950 | 52298694410 | 191.40 | 231.59 | |
| Cable | ||||
| 955 | 30707586010 | 74.80 | 90.51 | |
| Screw connection | ||||
| 956 | 30723044003 | 22.97 | 27.79 | |
| Cable grommet | ||||
| 957 | 31413007007 | 2.51 | 3.04 | |
| Protective cap | ||||
| 958 | 31413177009 | 1.04 | 1.26 | |
| Gear-wheel | ||||
| 960 | 33698681240 | 80.39 | 97.27 | |
| Circlip | ||||
| 970 | 42698740130 | 1.25 | 1.51 | |
| Stator | ||||
| 980 | 51298651060 | 145.46 | 176.01 | |
| Shaft | ||||
| 990 | 33498223040 | 164.60 | 199.17 | |
| Seal | ||||
| 1000 | 40698763080 | 23.29 | 28.18 | |
| Shaft | ||||
| 1010 | 33498223020 | 170.98 | 206.89 | |
| Spring | ||||
| 1030 | 30998744020 | 6.61 | 8.00 | |
| Plunger | ||||
| 1040 | 33498223060 | 4.32 | 5.23 | |
| Seal | ||||
| 1050 | 40698763100 | 17.86 | 21.61 | |
| Circlip | ||||
| 1060 | 42698741190 | 1.88 | 2.27 | |
| Circlip | ||||
| 1080 | 42698740250 | 1.04 | 1.26 | |
| Screw | ||||
| 1090 | 43098709000 | 1.50 | 1.82 | |
| Information sign | ||||
| 1350 | 32217552000 | 1.04 | 1.26 | |
| Clamping unit | ||||
| 2010 | 64298120140 | 9.05 | 10.95 | |
| Connecting piece | ||||
| 2020 | 31698321000 | 35.73 | 43.23 | |
| Disc | ||||
| 2030 | 42098746000 | 1.04 | 1.26 | |
| RFID Transponder | ||||
| 2500 | 32217517000 | 1.25 | 1.51 | |
| No longer available, no replacement | ||||
| 5000 | 33998140062 | |||
| CENTREERSTIFT 100MM | ||||
| 5010 | 63134998310 | 17.88 | 21.63 | |
| Centring pin (UNIVERSAL, L 82 MM, OD 6.35 MM) | ||||
| 5020 | 63134998300 | 21.05 | 25.47 | |
| Wrench | ||||
| 5030 | 62998780030 | 3.13 | 3.79 | |
| Belt | ||||
| 5040 | 32198131000 | 49.13 | 59.45 | |
| Swarf hook | ||||
| 5050 | 64298160400 | 23.29 | 28.18 | |
| No longer available, no replacement | ||||
| 6000 | 32198766040 | |||
| Safety instruction | ||||
| 9020 | 34130465060 | 4.02 | 4.86 | |
