Here you will find all available parts and drawings of the 'Fein 72721200230 (KBB38_JHM101_)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

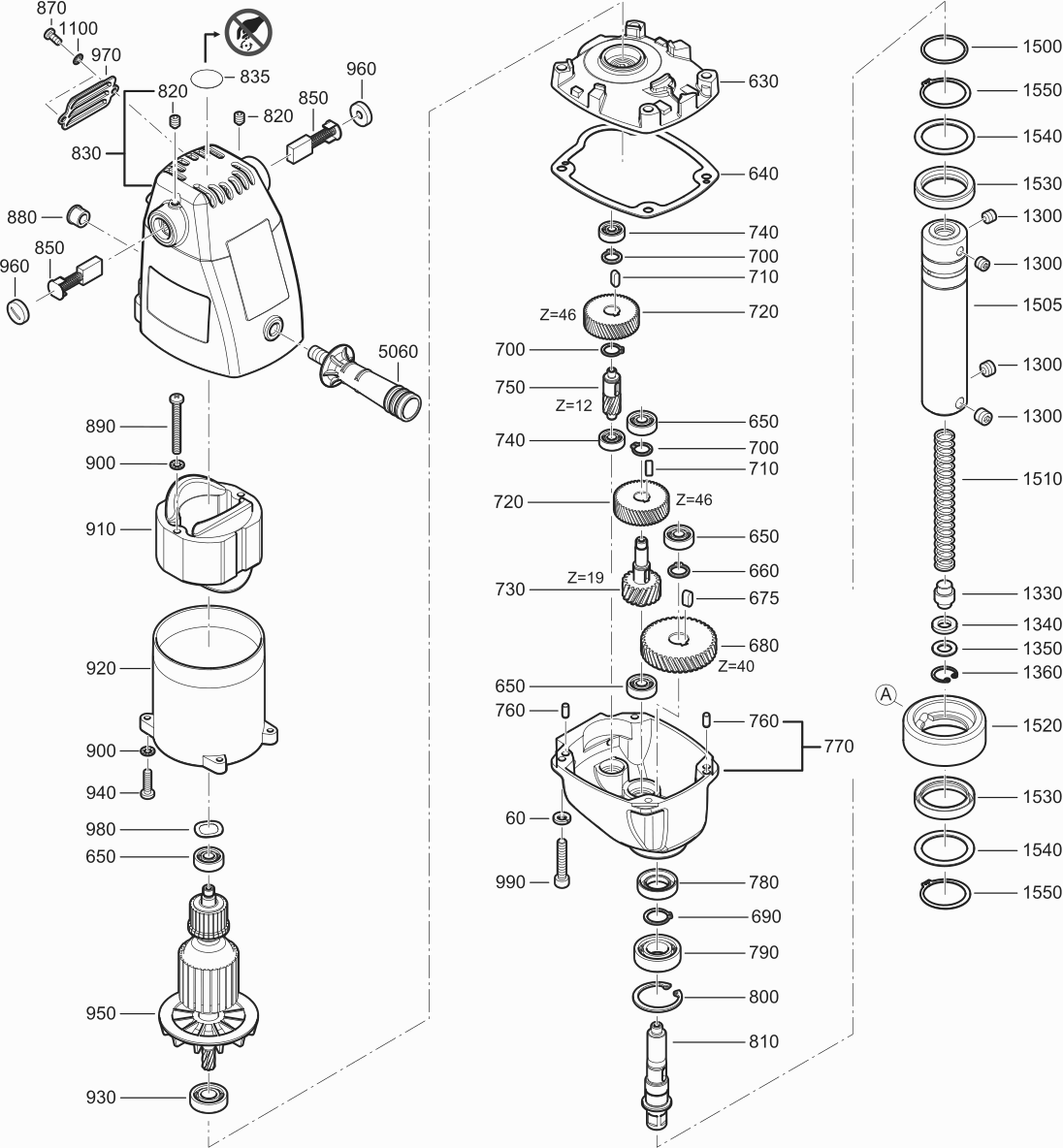

Technical drawing of model Fein 72721200230 (KBB38_JHM101_)
Spare parts list of model Fein 72721200230 (KBB38_JHM101_)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw | ||||
| 50 | 43098706045 | 3.48 | 4.21 | |
| Disc | ||||
| 60 | 42498727210 | 1.04 | 1.26 | |
| Screw | ||||
| 140 | 43098703230 | 1.56 | 1.89 | |
| Cable with plug EU | ||||
| 150 | 30798592050 | 82.94 | 100.36 | |
| Assembled cables | ||||
| 150 | 30707562010 | 40.83 | 49.40 | |
| Belt | ||||
| 160 | 32198121000 | 21.69 | 26.24 | |
| Magnetic foot 50/60Hz 230V | ||||
| 170 | 33298492040 | 489.98 | 592.88 | |
| Magnetic foot | ||||
| 170 | 32172043010 | 487.43 | 589.79 | |
| Sticker | ||||
| 180 | 32217407000 | 3.13 | 3.79 | |
| Handle | ||||
| 190 | 32198114010 | 15.95 | 19.30 | |
| Connecting piece | ||||
| 200 | 31698391000 | 40.83 | 49.40 | |
| Hose socket | ||||
| 235 | 31498761020 | 6.61 | 8.00 | |
| Screw | ||||
| 240 | 43098706400 | 1.04 | 1.26 | |
| Stop button | ||||
| 325 | 31298331050 | 2.71 | 3.28 | |
| Nut | ||||
| 360 | 30798757544 | 2.71 | 3.28 | |
| Circlip | ||||
| 530 | 42616023000 | 1.56 | 1.89 | |
| Disc | ||||
| 540 | 31698320055 | 4.10 | 4.96 | |
| Bush | ||||
| 550 | 31698320040 | 3.48 | 4.21 | |
| Shaft | ||||
| 560 | 33298320040 | 33.81 | 40.91 | |
| Feather key | ||||
| 570 | 40298745000 | 2.09 | 2.53 | |
| Housing insert | ||||
| 580 | 33298331020 | 2.71 | 3.28 | |
| Screw | ||||
| 590 | 43098705120 | 1.56 | 1.89 | |
| Gear-wheel | ||||
| 600 | 33698682000 | 34.45 | 41.68 | |
| Handle | ||||
| 620 | 31298330020 | 17.54 | 21.22 | |
| Screw | ||||
| 625 | 43098708100 | 1.56 | 1.89 | |
| Screw | ||||
| 626 | 43098704060 | 1.56 | 1.89 | |
| Cover | ||||
| 630 | 31998631020 | 47.21 | 57.12 | |
| Seal | ||||
| 640 | 32498611000 | 11.28 | 13.65 | |
| Grooved ball bearing | ||||
| 650 | 41798730200 | 16.59 | 20.07 | |
| Circlip | ||||
| 660 | 42698740140 | 1.46 | 1.77 | |
| Seal | ||||
| 670 | 30610034008 | 1.67 | 2.02 | |
| Feather key | ||||
| 675 | 40298745020 | 3.13 | 3.79 | |
| Gear-wheel | ||||
| 680 | 33698681010 | 33.18 | 40.15 | |
| Circlip | ||||
| 690 | 42698740170 | 4.94 | 5.98 | |
| Ring | ||||
| 700 | 42698740120 | 1.67 | 2.02 | |
| Feather key | ||||
| 710 | 40298745040 | 3.13 | 3.79 | |
| Gear-wheel | ||||
| 720 | 33698681030 | 41.47 | 50.18 | |
| Shaft, toothed | ||||
| 730 | 33698681020 | 33.81 | 40.91 | |
| Grooved ball bearing | ||||
| 740 | 41798730120 | 13.72 | 16.60 | |
| Pinion | ||||
| 750 | 33698681040 | 21.37 | 25.86 | |
| Pin | ||||
| 760 | 40298742003 | 2.29 | 2.77 | |
| Gearbox housing | ||||
| 770 | 52298691070 | 185.02 | 223.87 | |
| Sealing ring | ||||
| 780 | 40698763020 | 5.99 | 7.25 | |
| Grooved ball bearing | ||||
| 790 | 41798730450 | 16.59 | 20.07 | |
| Ring | ||||
| 800 | 42698741350 | 2.09 | 2.53 | |
| Shaft | ||||
| 810 | 33498621000 | 105.91 | 128.15 | |
| Screw | ||||
| 820 | 43098705000 | 1.56 | 1.89 | |
| Motor housing | ||||
| 830 | 31998631080 | 131.43 | 159.03 | |
| Sticker | ||||
| 835 | 32217406002 | 1.56 | 1.89 | |
| Carbon brush | ||||
| 850 | 30798651060 | 13.72 | 16.60 | |
| Screw | ||||
| 870 | 43098704200 | 1.04 | 1.26 | |
| Sleeve | ||||
| 880 | 30798757000 | 1.04 | 1.26 | |
| Screw | ||||
| 890 | 43098705600 | 1.56 | 1.89 | |
| Disc | ||||
| 900 | 42498720540 | 1.56 | 1.89 | |
| Stator | ||||
| 910 | 51298651040 | 75.28 | 91.09 | |
| Sleeve | ||||
| 920 | 31998631040 | 16.91 | 20.46 | |
| Grooved ball bearing | ||||
| 930 | 41798730390 | 20.42 | 24.71 | |
| Screw | ||||
| 940 | 43098705440 | 1.04 | 1.26 | |
| Armature | ||||
| 950 | 53298651020 | 158.22 | 191.45 | |
| Cover | ||||
| 960 | 30798651080 | 9.05 | 10.95 | |
| Chip grille | ||||
| 970 | 32498611020 | 1.88 | 2.27 | |
| Disc | ||||
| 980 | 42498726140 | 4.52 | 5.47 | |
| Screw | ||||
| 990 | 43098706635 | 1.46 | 1.77 | |
| Pushbutton | ||||
| 1050 | 30798755275 | 7.38 | 8.93 | |
| Pushbutton | ||||
| 1060 | 30798755270 | 7.38 | 8.93 | |
| Switch | ||||
| 1070 | 30798755410 | 26.48 | 32.04 | |
| Disc | ||||
| 1100 | 42498720440 | 1.56 | 1.89 | |
| Hex nut | ||||
| 1110 | 42001027045 | 1.56 | 1.89 | |
| Connecting cable | ||||
| 1120 | 30798591075 | 15.63 | 18.91 | |
| Switch module | ||||
| 1130 | 30798591058 | 63.80 | 77.20 | |
| Electronics | ||||
| 1140 | 30762463990 | 94.42 | 114.25 | |
| Protective cap | ||||
| 1150 | 32498520090 | 3.48 | 4.21 | |
| Plug | ||||
| 1170 | 30798753140 | 2.93 | 3.55 | |
| Set screw | ||||
| 1300 | 43098709000 | 1.56 | 1.89 | |
| Plunger | ||||
| 1330 | 33498220080 | 31.26 | 37.82 | |
| Sealing ring | ||||
| 1340 | 42498726040 | 5.15 | 6.23 | |
| Disc | ||||
| 1350 | 42498726060 | 2.09 | 2.53 | |
| Circlip | ||||
| 1360 | 42698741190 | 1.88 | 2.27 | |
| Guide | ||||
| 1380 | 33298310010 | 11.56 | 13.99 | |
| Pin | ||||
| 1390 | 40298742020 | 1.56 | 1.89 | |
| Flange | ||||
| 1400 | 31998631120 | 19.78 | 23.93 | |
| Screw | ||||
| 1420 | 43098705120 | 1.56 | 1.89 | |
| Guide | ||||
| 1440 | 31998631100 | 88.04 | 106.53 | |
| Screw | ||||
| 1450 | 43098706050 | 1.56 | 1.89 | |
| Screw | ||||
| 1460 | 43098706540 | 1.25 | 1.51 | |
| Gear rack | ||||
| 1470 | 33698680020 | 41.47 | 50.18 | |
| Screw | ||||
| 1480 | 43098706580 | 1.04 | 1.26 | |
| Connecting Cable | ||||
| 1490 | 30798591026 | 35.73 | 43.23 | |
| Terminal | ||||
| 1495 | 31412064000 | 2.71 | 3.28 | |
| Ring | ||||
| 1500 | 40698763670 | 2.29 | 2.77 | |
| Shaft | ||||
| 1505 | 33498222010 | 116.12 | 140.51 | |
| Spring | ||||
| 1510 | 30998744040 | 3.90 | 4.72 | |
| Distributor | ||||
| 1520 | 33498220100 | 52.32 | 63.31 | |
| Sealing ring | ||||
| 1530 | 40608012001 | 27.43 | 33.19 | |
| Disc | ||||
| 1540 | 42498726670 | 3.34 | 4.04 | |
| Ring | ||||
| 1550 | 42698740350 | 1.67 | 2.02 | |
| Disc | ||||
| 1560 | 42498720630 | 1.67 | 2.02 | |
| Disc | ||||
| 1570 | 42498720600 | 1.56 | 1.89 | |
| Guide | ||||
| 1580 | 31298332830 | 12.51 | 15.14 | |
| Screw | ||||
| 1590 | 43098706480 | 1.56 | 1.89 | |
| Holder | ||||
| 1600 | 31598291030 | 72.73 | 88.00 | |
| Screw | ||||
| 1610 | 43098705585 | 1.56 | 1.89 | |
| Screw | ||||
| 1620 | 43098704300 | 1.25 | 1.51 | |
| Disc | ||||
| 1630 | 42498720540 | 1.56 | 1.89 | |
| Screw | ||||
| 1640 | 43098705060 | 1.56 | 1.89 | |
| Cover | ||||
| 1650 | 31298335180 | 4.94 | 5.98 | |
| Holder | ||||
| 1660 | 30298210050 | 10.58 | 12.80 | |
| Container | ||||
| 1670 | 32198190200 | 94.42 | 114.25 | |
| Cover | ||||
| 1680 | 30798591140 | 16.91 | 20.46 | |
| Holder | ||||
| 1690 | 31298332580 | 2.51 | 3.04 | |
| Housing | ||||
| 1700 | 31298391090 | 265.41 | 321.15 | |
| Holder | ||||
| 1710 | 31498531500 | 4.73 | 5.72 | |
| Hose | ||||
| 1720 | 31498760100 | 4.32 | 5.23 | |
| Chip grille | ||||
| 1730 | 63998611060 | 30.03 | 36.34 | |
| Clamping unit | ||||
| 2010 | 64298120140 | 9.05 | 10.95 | |
| Connecting piece | ||||
| 2020 | 31698321000 | 35.73 | 43.23 | |
| Disc | ||||
| 2030 | 42098746000 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 5000 | 33998140092 | |||
| Centring pin (L 100 MM, OD 6.35 MM, UNIVERSAL) | ||||
| 5010 | 63134998310 | 18.04 | 21.83 | |
| Centring pin (L 82 MM, OD 6.35 MM, UNIVERSAL) | ||||
| 5020 | 63134998300 | 21.05 | 25.47 | |
| Wrench (HEX 5) | ||||
| 5030 | 62998780030 | 3.13 | 3.79 | |
| Belt | ||||
| 5040 | 32198131000 | 49.13 | 59.45 | |
| Swarf hook | ||||
| 5050 | 64298160400 | 23.29 | 28.18 | |
| Handle | ||||
| 5060 | 32198114100 | 11.56 | 13.99 | |
| No longer available, no replacement | ||||
| 6000 | 32198766050 | |||
| Safety instruction | ||||
| 9020 | 34130054061 | 1.87 | 2.26 | |
