Here you will find all available parts and drawings of the 'Fein 72721100230 ( KBB30Rev.X )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

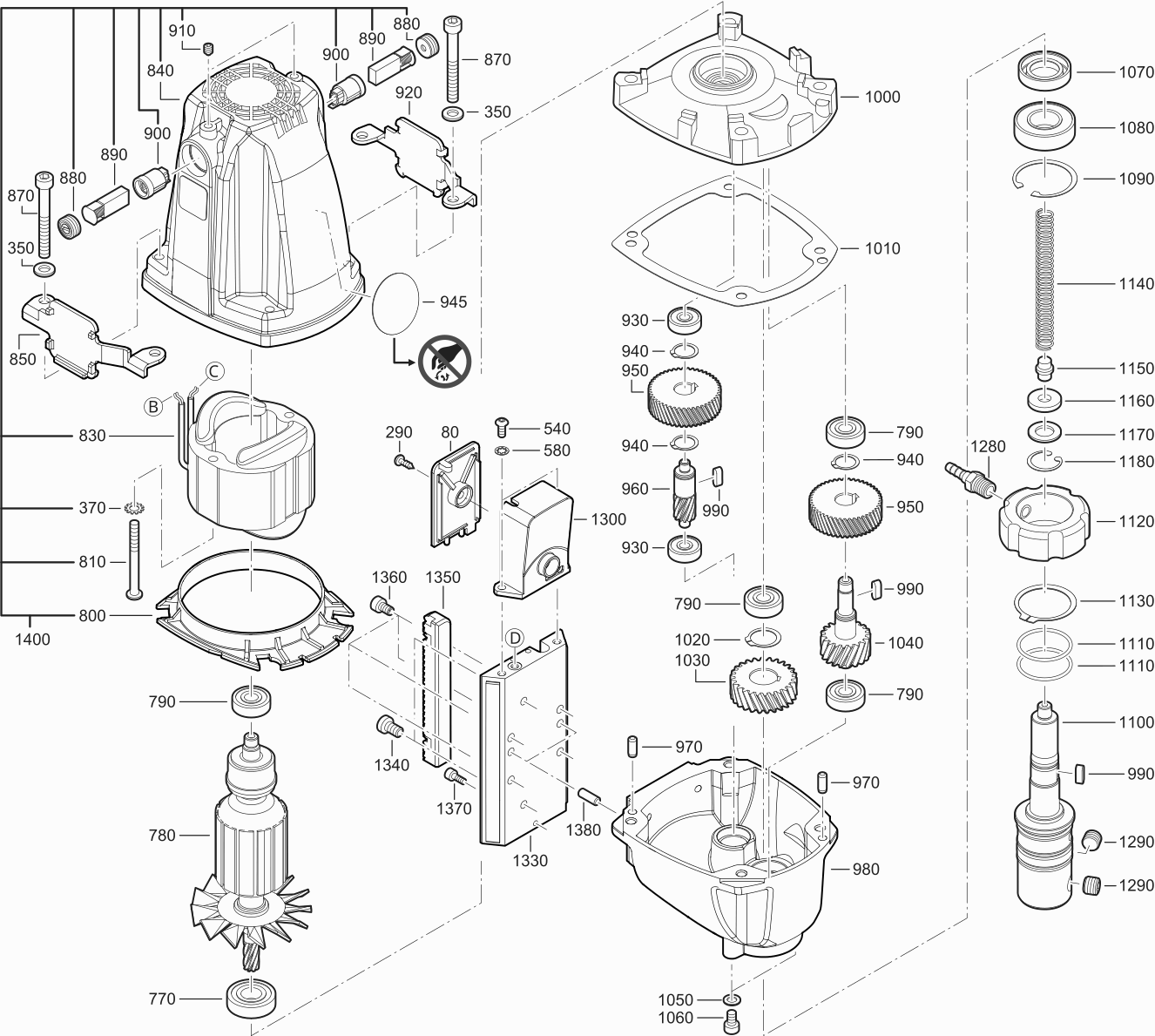

Technical drawing of model Fein 72721100230 ( KBB30Rev.X )
Spare parts list of model Fein 72721100230 ( KBB30Rev.X )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Terminal | ||||
| 20 | 31412064000 | 2.71 | 3.28 | |
| Container | ||||
| 30 | 32198190010 | 22.97 | 27.79 | |
| Hose | ||||
| 40 | 31498760060 | 4.10 | 4.96 | |
| Cable | ||||
| 70 | 30798591130 | 47.85 | 57.90 | |
| Cover | ||||
| 80 | 31998630020 | 1.67 | 2.02 | |
| Cable tie | ||||
| 85 | 30798757100 | 1.04 | 1.26 | |
| Screw | ||||
| 110 | 43098705585 | 1.46 | 1.77 | |
| Screw | ||||
| 120 | 43098703230 | 1.04 | 1.26 | |
| Cable with plug EU | ||||
| 130 | 30798592050 | 82.94 | 100.36 | |
| Cable with plug | ||||
| 130 | 30707562010 | 40.83 | 49.40 | |
| Belt | ||||
| 140 | 32198121000 | 21.69 | 26.24 | |
| Magnetic foot 50/60Hz 230V | ||||
| 150 | 33298492040 | 489.98 | 592.88 | |
| Magnetic foot | ||||
| 150 | 32172043010 | 487.43 | 589.79 | |
| Sticker | ||||
| 160 | 32217407000 | 3.13 | 3.79 | |
| Handle | ||||
| 190 | 32198114000 | 14.36 | 17.38 | |
| Connecting piece | ||||
| 200 | 31698391000 | 40.83 | 49.40 | |
| Screw | ||||
| 220 | 43098705120 | 1.04 | 1.26 | |
| Chip grille | ||||
| 230 | 63998611060 | 31.35 | 37.93 | |
| Screw | ||||
| 290 | 43098710070 | 1.88 | 2.27 | |
| Connecting Cable | ||||
| 300 | 30798591095 | 11.28 | 13.65 | |
| Screw | ||||
| 310 | 43098706480 | 1.04 | 1.26 | |
| Guide | ||||
| 320 | 31298332820 | 11.74 | 14.21 | |
| Stop button | ||||
| 325 | 31298331050 | 2.71 | 3.28 | |
| Disc | ||||
| 340 | 42498720630 | 1.67 | 2.02 | |
| Disc | ||||
| 350 | 42498720600 | 1.04 | 1.26 | |
| Lock washer | ||||
| 360 | 42498720500 | 1.04 | 1.26 | |
| Disc | ||||
| 370 | 42498720540 | 1.04 | 1.26 | |
| Screw | ||||
| 380 | 43098705060 | 1.04 | 1.26 | |
| Screw | ||||
| 390 | 43098705370 | 1.04 | 1.26 | |
| Housing | ||||
| 400 | 31298392600 | 82.94 | 100.36 | |
| Cover | ||||
| 410 | 30798510130 | 9.89 | 11.97 | |
| Screw | ||||
| 420 | 43098708100 | 1.25 | 1.51 | |
| Handle | ||||
| 430 | 31298330020 | 17.54 | 21.22 | |
| Circlip | ||||
| 440 | 42616023000 | 1.04 | 1.26 | |
| Disc | ||||
| 450 | 31698320055 | 4.10 | 4.96 | |
| Bush | ||||
| 460 | 31698320040 | 3.48 | 4.21 | |
| Shaft | ||||
| 480 | 33298320040 | 33.81 | 40.91 | |
| Feather key | ||||
| 490 | 40298745000 | 2.09 | 2.53 | |
| Gear-wheel | ||||
| 500 | 33698682000 | 34.45 | 41.68 | |
| Screw | ||||
| 510 | 43098705055 | 1.04 | 1.26 | |
| Guide | ||||
| 520 | 31298332540 | 2.93 | 3.55 | |
| Housing | ||||
| 530 | 31298330140 | 209.26 | 253.20 | |
| Screw | ||||
| 540 | 43098704060 | 1.04 | 1.26 | |
| Switch module | ||||
| 550 | 30798591058 | 63.80 | 77.20 | |
| Electronics | ||||
| 560 | 30798550090 | 148.02 | 179.10 | |
| Hex nut | ||||
| 570 | 42001027045 | 1.04 | 1.26 | |
| Disc | ||||
| 580 | 42498720440 | 1.04 | 1.26 | |
| Plate | ||||
| 590 | 30798591110 | 26.80 | 32.43 | |
| Protective cap | ||||
| 600 | 32498520090 | 3.48 | 4.21 | |
| Pushbutton | ||||
| 610 | 30798755270 | 7.38 | 8.93 | |
| Pushbutton | ||||
| 620 | 30798755275 | 7.38 | 8.93 | |
| Cover | ||||
| 630 | 31498531020 | 5.36 | 6.49 | |
| Switch | ||||
| 640 | 30798755410 | 26.48 | 32.04 | |
| Screw | ||||
| 650 | 43098704330 | 2.51 | 3.04 | |
| Seal | ||||
| 670 | 30610034008 | 1.67 | 2.02 | |
| Nut | ||||
| 690 | 30798757544 | 2.71 | 3.28 | |
| Cable | ||||
| 700 | 30798591085 | 27.43 | 33.19 | |
| Grooved ball bearing | ||||
| 770 | 41798730390 | 20.42 | 24.71 | |
| Armature | ||||
| 780 | 53298653030 | 142.91 | 172.92 | |
| Grooved ball bearing | ||||
| 790 | 41798730200 | 16.59 | 20.07 | |
| Air guide ring | ||||
| 800 | 31998633060 | 3.90 | 4.72 | |
| Screw | ||||
| 810 | 43098705600 | 1.25 | 1.51 | |
| Stator | ||||
| 830 | 51298653060 | 54.23 | 65.62 | |
| Motor housing | ||||
| 840 | 31998633010 | 66.35 | 80.28 | |
| Adapter | ||||
| 850 | 32498610180 | 7.24 | 8.76 | |
| Screw | ||||
| 870 | 43098706660 | 1.67 | 2.02 | |
| Cap | ||||
| 880 | 30798653080 | 1.67 | 2.02 | |
| Carbon brush | ||||
| 890 | 30798653100 | 5.99 | 7.25 | |
| Brush holder | ||||
| 900 | 30798653120 | 9.47 | 11.46 | |
| Screw | ||||
| 910 | 43098705010 | 6.82 | 8.25 | |
| Adapter | ||||
| 920 | 32498610160 | 7.24 | 8.76 | |
| Grooved ball bearing | ||||
| 930 | 41798730120 | 13.72 | 16.60 | |
| Ring | ||||
| 940 | 42698740120 | 1.67 | 2.02 | |
| Sticker | ||||
| 945 | 32217406002 | 1.25 | 1.51 | |
| Gear-wheel | ||||
| 950 | 33698681030 | 41.47 | 50.18 | |
| Pinion | ||||
| 960 | 33698681040 | 21.37 | 25.86 | |
| Pin | ||||
| 970 | 40298742003 | 2.29 | 2.77 | |
| Gearbox housing | ||||
| 980 | 31508319000 | 56.14 | 67.93 | |
| Feather key | ||||
| 990 | 40298745040 | 3.13 | 3.79 | |
| Intermediate gear box | ||||
| 1000 | 31506416000 | 56.10 | 67.88 | |
| Seal | ||||
| 1010 | 32498613000 | 8.50 | 10.28 | |
| Circlip | ||||
| 1020 | 42616023000 | 1.04 | 1.26 | |
| Pinion | ||||
| 1030 | 33698681050 | 29.67 | 35.90 | |
| Shaft, toothed | ||||
| 1040 | 33698681020 | 33.81 | 40.91 | |
| Disc | ||||
| 1050 | 42498720560 | 1.04 | 1.26 | |
| Screw | ||||
| 1060 | 43098705040 | 1.04 | 1.26 | |
| Sealing ring | ||||
| 1070 | 40698763020 | 5.99 | 7.25 | |
| Grooved ball bearing | ||||
| 1080 | 41798730450 | 16.59 | 20.07 | |
| Ring | ||||
| 1090 | 42698741350 | 2.09 | 2.53 | |
| Pressure spindle | ||||
| 1100 | 33498621020 | 111.01 | 134.32 | |
| Ring | ||||
| 1110 | 40698763560 | 3.48 | 4.21 | |
| Ring | ||||
| 1120 | 31998633080 | 77.84 | 94.19 | |
| Circlip | ||||
| 1130 | 42616000002 | 1.04 | 1.26 | |
| Spring | ||||
| 1140 | 30998744240 | 4.32 | 5.23 | |
| Plunger | ||||
| 1150 | 33498223340 | 3.48 | 4.21 | |
| Disc | ||||
| 1160 | 42498726030 | 1.46 | 1.77 | |
| Disc | ||||
| 1170 | 42498726060 | 2.09 | 2.53 | |
| Circlip | ||||
| 1180 | 42698741190 | 1.88 | 2.27 | |
| Hose socket | ||||
| 1280 | 31498761020 | 6.61 | 8.00 | |
| Screw | ||||
| 1290 | 43098709000 | 1.50 | 1.82 | |
| Cover | ||||
| 1300 | 31998630010 | 4.32 | 5.23 | |
| Guide | ||||
| 1330 | 31998631130 | 59.33 | 71.79 | |
| Screw | ||||
| 1340 | 43098706050 | 1.04 | 1.26 | |
| Gear rack | ||||
| 1350 | 33698680020 | 41.47 | 50.18 | |
| Screw | ||||
| 1360 | 43098705220 | 1.04 | 1.26 | |
| Screw | ||||
| 1370 | 43098704120 | 1.25 | 1.51 | |
| Pin | ||||
| 1380 | 40298742020 | 1.46 | 1.77 | |
| Stator unit | ||||
| 1400 | 52298690340 | 210.54 | 254.75 | |
| Clamping unit | ||||
| 2010 | 64298120140 | 9.05 | 10.95 | |
| Connecting piece | ||||
| 2020 | 31698321000 | 35.73 | 43.23 | |
| Disc | ||||
| 2030 | 42098746000 | 1.04 | 1.26 | |
| Case | ||||
| 5000 | 33998140022 | 111.10 | 134.43 | |
| CENTREERSTIFT 100MM | ||||
| 5350 | 63134998310 | 17.88 | 21.63 | |
| Centring pin (UNIVERSAL, L 82 MM, OD 6.35 MM) | ||||
| 5360 | 63134998300 | 21.05 | 25.47 | |
| Belt | ||||
| 5370 | 32198131000 | 49.13 | 59.45 | |
| Wrench | ||||
| 5380 | 62998780030 | 3.13 | 3.79 | |
| Swarf hook | ||||
| 5390 | 64298160400 | 23.29 | 28.18 | |
| No longer available, no replacement | ||||
| 6000 | 32198766050 | |||
| RFID Transponder | ||||
| 9000 | 32217517000 | 1.25 | 1.51 | |
