Here you will find all available parts and drawings of the 'Fein 78208600260 (HFW9-125)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

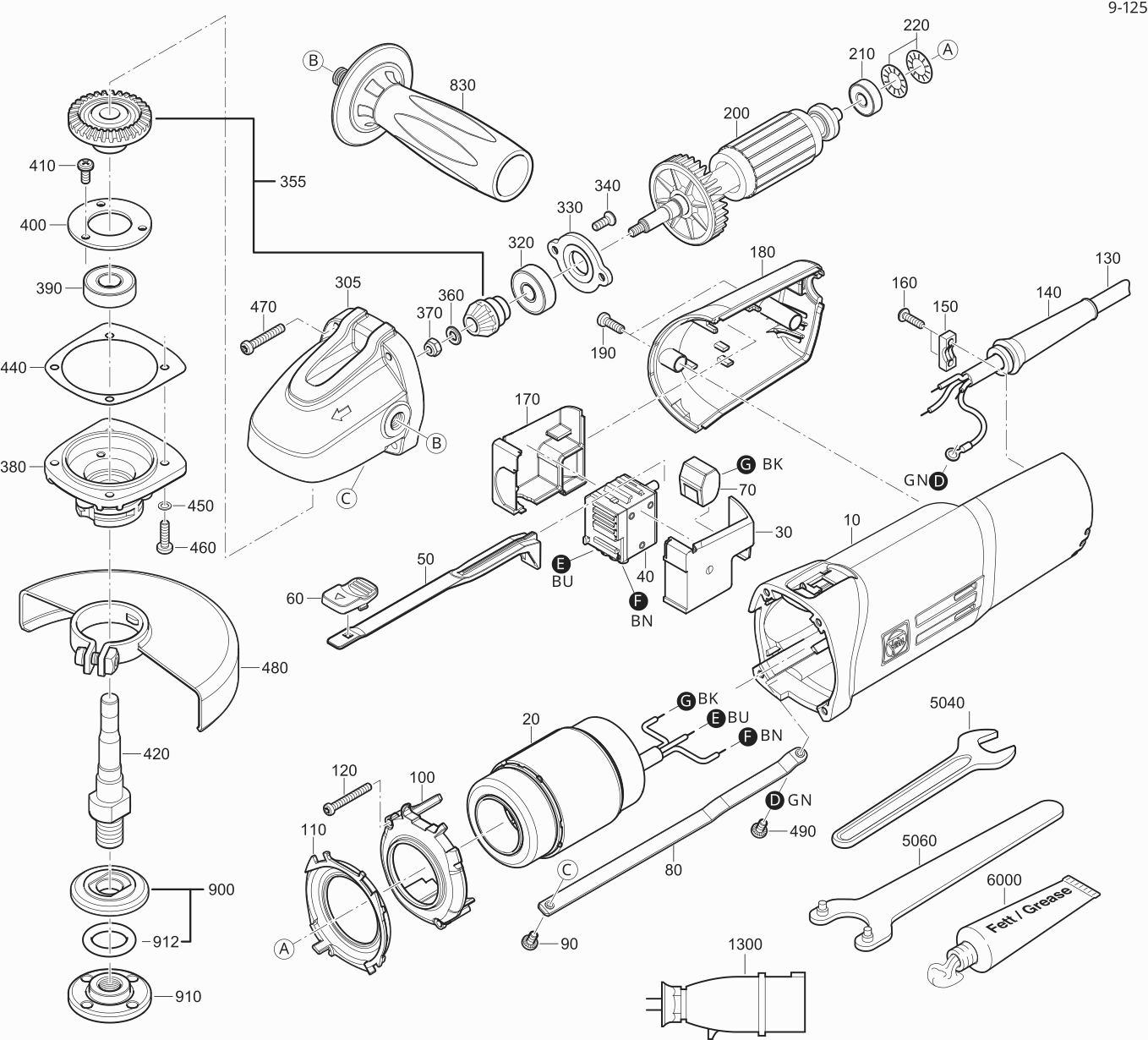

Technical drawing of model Fein 78208600260 (HFW9-125)
Spare parts list of model Fein 78208600260 (HFW9-125)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor housing | ||||
| 10 | 31901168000 | 71.46 | 86.47 | |
| Stator | ||||
| 20 | 51829003160 | 438.94 | 531.12 | |
| Cover | ||||
| 30 | 31201146000 | 6.41 | 7.76 | |
| Switch | ||||
| 40 | 30701296000 | 48.49 | 58.67 | |
| Control rod | ||||
| 50 | 32816073000 | 6.61 | 8.00 | |
| Slide switch | ||||
| 60 | 32805306000 | 4.10 | 4.96 | |
| Terminal | ||||
| 70 | 31412063000 | 3.48 | 4.21 | |
| earth terminal | ||||
| 80 | 30229334010 | 17.54 | 21.22 | |
| Flat headed screw | ||||
| 90 | 43064026040 | 1.56 | 1.89 | |
| Air guide ring UT | ||||
| 100 | 31428173000 | 8.90 | 10.77 | |
| Air guide ring OT | ||||
| 110 | 31428174000 | 8.90 | 10.77 | |
| Screw | ||||
| 120 | 43074004000 | 1.56 | 1.89 | |
| Cable | ||||
| 130 | 30706351010 | 59.33 | 71.79 | |
| Cable grommet | ||||
| 140 | 31413164009 | 2.51 | 3.04 | |
| Cable clamping piece | ||||
| 150 | 32431026009 | 1.87 | 2.26 | |
| Screw | ||||
| 160 | 43070006008 | 1.56 | 1.89 | |
| Cover | ||||
| 170 | 31201147000 | 6.41 | 7.76 | |
| Cover | ||||
| 180 | 32427141000 | 13.72 | 16.60 | |
| Screw | ||||
| 190 | 43074007000 | 1.56 | 1.89 | |
| Rotor | ||||
| 200 | 33502054010 | 246.27 | 297.99 | |
| Grooved ball bearing | ||||
| 210 | 41701001260 | 5.77 | 6.98 | |
| Cup spring | ||||
| 220 | 30905080000 | 1.04 | 1.26 | |
| Gearbox housing | ||||
| 305 | 31206144020 | 84.22 | 101.91 | |
| Grooved ball bearing | ||||
| 320 | 41701207055 | 13.72 | 16.60 | |
| Plate | ||||
| 330 | 32416113000 | 11.98 | 14.50 | |
| Countersunk screw | ||||
| 340 | 43069001045 | 1.56 | 1.89 | |
| Bevel gear Z=13/33 | ||||
| 355 | 33809240010 | 174.81 | 211.52 | |
| Disc | ||||
| 360 | 42401002056 | 1.04 | 1.26 | |
| Nut | ||||
| 370 | 42019009051 | 1.04 | 1.26 | |
| Bearing plate | ||||
| 380 | 32419149000 | 47.21 | 57.12 | |
| Grooved ball bearing | ||||
| 390 | 41701010054 | 7.24 | 8.76 | |
| Plate | ||||
| 400 | 32416081002 | 11.14 | 13.48 | |
| Fillister head screw | ||||
| 410 | 43064008044 | 1.04 | 1.26 | |
| Shaft | ||||
| 420 | 33406312000 | 57.42 | 69.48 | |
| Disc | ||||
| 440 | 32624121020 | 4.73 | 5.72 | |
| Circlip | ||||
| 450 | 42443003043 | 1.56 | 1.89 | |
| Screw | ||||
| 460 | 43064024043 | 1.56 | 1.89 | |
| Screw | ||||
| 470 | 43074012000 | 1.56 | 1.89 | |
| Safety hood | ||||
| 480 | 31810278020 | 67.63 | 81.83 | |
| Flat headed screw | ||||
| 490 | 43064026040 | 1.56 | 1.89 | |
| Handle | ||||
| 830 | 32119124010 | 12.54 | 15.17 | |
| Grinding disc flange | ||||
| 900 | 63801182010 | 12.25 | 14.82 | |
| Grinding disc flange | ||||
| 910 | 63802052000 | 11.52 | 13.94 | |
| Sealing ring | ||||
| 912 | 40612000007 | 1.56 | 1.89 | |
| RFID Transponder | ||||
| 2500 | 32217517000 | 1.56 | 1.89 | |
| Wrench | ||||
| 5040 | 62903002009 | 8.76 | 10.60 | |
| Pin-type face spanner | ||||
| 5060 | 62910022002 | 5.40 | 6.53 | |
| No longer available, no replacement | ||||
| 6000 | 32160003014 | |||
| Safety instruction | ||||
| 9020 | 34130054061 | 1.87 | 2.26 | |
