Here you will find all available parts and drawings of the 'Fein 99001001051 ( GXR_ )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

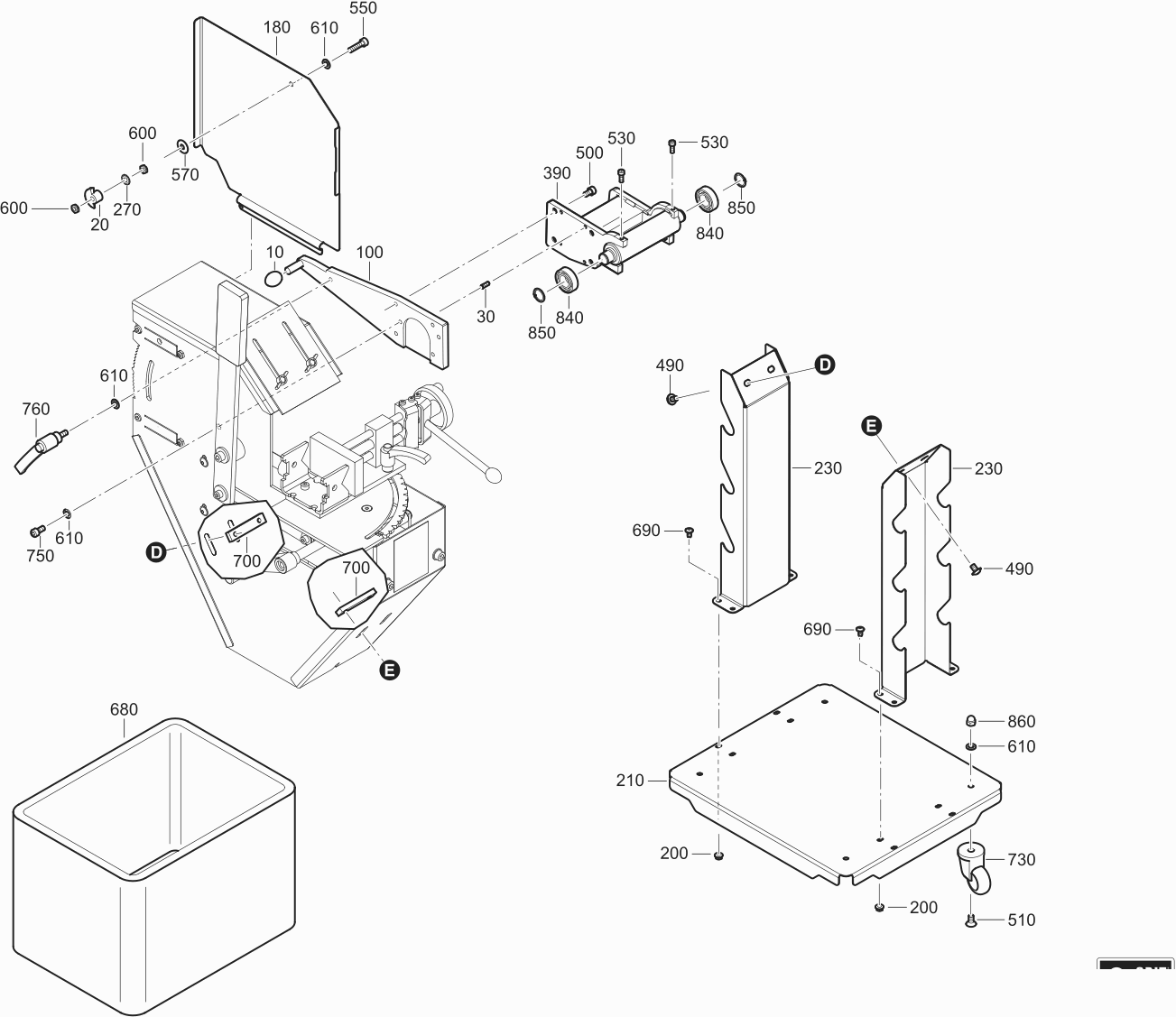

Technical drawing of model Fein 99001001051 ( GXR_ )
Spare parts list of model Fein 99001001051 ( GXR_ )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Handle | ||||
| 10 | 39000000097 | 6.19 | 7.49 | |
| Locking bar | ||||
| 20 | 39000000087 | 28.07 | 33.96 | |
| Screw | ||||
| 30 | 39000000441 | 2.71 | 3.28 | |
| Block | ||||
| 50 | 39000004610 | 170.98 | 206.89 | |
| Guide | ||||
| 60 | 39000004616 | 128.88 | 155.94 | |
| Block | ||||
| 70 | 39000000580 | 99.53 | 120.43 | |
| Clamping jaw | ||||
| 80 | 69902004000 | 250.10 | 302.62 | |
| Set screw | ||||
| 90 | 39000004609 | 57.42 | 69.48 | |
| Spacer | ||||
| 95 | 39000004608 | 13.72 | 16.60 | |
| Tensioning arm | ||||
| 100 | 39000000577 | 172.26 | 208.43 | |
| Spacer | ||||
| 110 | 39000004674 | 52.95 | 64.07 | |
| Set screw | ||||
| 120 | 39000006467 | 1.04 | 1.26 | |
| Rod | ||||
| 140 | 39000000562 | 26.48 | 32.04 | |
| Spacer | ||||
| 150 | 39000000564 | 20.42 | 24.71 | |
| Plate | ||||
| 160 | 39000000566 | 68.90 | 83.37 | |
| Guide | ||||
| 170 | 39000000570 | 118.67 | 143.59 | |
| Cover | ||||
| 180 | 39000000578 | 141.64 | 171.38 | |
| Clamping jaw | ||||
| 190 | 39000000581 | 56.14 | 67.93 | |
| Nut | ||||
| 200 | 39000005955 | 1.25 | 1.51 | |
| Base plate | ||||
| 210 | 39000004668 | 315.17 | 381.36 | |
| Handle | ||||
| 220 | 39000000563 | 45.30 | 54.81 | |
| Handle | ||||
| 225 | 39000000246 | 8.90 | 10.77 | |
| Adjustable foot | ||||
| 230 | 39000004669 | 52.32 | 63.31 | |
| Screw | ||||
| 240 | 39000000582 | 4.10 | 4.96 | |
| Crank | ||||
| 250 | 39000000583 | 45.94 | 55.59 | |
| Set screw | ||||
| 260 | 39000000427 | 1.88 | 2.27 | |
| Disc | ||||
| 270 | 39000006362 | 1.67 | 2.02 | |
| Disc | ||||
| 280 | 39000000435 | 2.71 | 3.28 | |
| Rod | ||||
| 290 | 39000000588 | 43.38 | 52.49 | |
| Block | ||||
| 300 | 39000000589 | 63.80 | 77.20 | |
| Block | ||||
| 310 | 39000000584 | 48.49 | 58.67 | |
| Clamp | ||||
| 320 | 39000000586 | 59.33 | 71.79 | |
| Scale | ||||
| 330 | 39000000572 | 130.15 | 157.48 | |
| Clamp | ||||
| 340 | 39000000585 | 43.38 | 52.49 | |
| Plate | ||||
| 350 | 39000000579 | 98.25 | 118.88 | |
| Nut | ||||
| 370 | 39000000062 | 2.71 | 3.28 | |
| Nut | ||||
| 370 | 42019007105 | 1.04 | 1.26 | |
| Screw | ||||
| 380 | 39000000527 | 2.71 | 3.28 | |
| Fitting | ||||
| 390 | 39000000573 | 407.04 | 492.52 | |
| Stop | ||||
| 400 | 39000000565 | 37.64 | 45.54 | |
| Screw | ||||
| 410 | 39000000191 | 2.29 | 2.77 | |
| Shaft D20 H6x421 mm | ||||
| 440 | 39000000243 | 195.23 | 236.23 | |
| Guide | ||||
| 450 | 39000000571 | 30.62 | 37.05 | |
| Crank | ||||
| 460 | 39000000475 | 71.46 | 86.47 | |
| Disc | ||||
| 470 | 39000000199 | 2.51 | 3.04 | |
| Screw | ||||
| 480 | 39000000432 | 2.71 | 3.28 | |
| Screw | ||||
| 490 | 39000000048 | 2.71 | 3.28 | |
| Screw | ||||
| 500 | 39000000595 | 2.51 | 3.04 | |
| Cylinder head screw | ||||
| 500 | 43035119083 | 1.04 | 1.26 | |
| Flat headed screw | ||||
| 510 | 39000000040 | 2.71 | 3.28 | |
| Disc | ||||
| 520 | 39000004270 | 6.12 | 7.41 | |
| Screw | ||||
| 530 | 39000000594 | 2.51 | 3.04 | |
| Nut | ||||
| 540 | 39000000061 | 2.71 | 3.28 | |
| Screw | ||||
| 550 | 39000000111 | 2.71 | 3.28 | |
| Disc | ||||
| 560 | 39000004269 | 4.10 | 4.96 | |
| Disc | ||||
| 570 | 39000000148 | 2.29 | 2.77 | |
| Screw | ||||
| 580 | 39000000596 | 3.34 | 4.04 | |
| Cup spring | ||||
| 590 | 39000000089 | 2.71 | 3.28 | |
| Nut | ||||
| 600 | 39000000047 | 2.51 | 3.04 | |
| Disc | ||||
| 610 | 39000000090 | 1.67 | 2.02 | |
| Eye guard | ||||
| 620 | 39000005623 | 54.87 | 66.39 | |
| Handle | ||||
| 630 | 39000005826 | 6.82 | 8.25 | |
| Screw | ||||
| 640 | 39000000529 | 1.88 | 2.27 | |
| Bush | ||||
| 650 | 39000000461 | 112.29 | 135.87 | |
| Ring | ||||
| 670 | 39000000462 | 29.99 | 36.29 | |
| Container | ||||
| 680 | 39000000385 | 113.56 | 137.41 | |
| Screw | ||||
| 690 | 39000000193 | 2.51 | 3.04 | |
| Fitting | ||||
| 700 | 39000000167 | 26.16 | 31.65 | |
| Screw | ||||
| 710 | 39000000147 | 3.68 | 4.45 | |
| Nut | ||||
| 720 | 39000000528 | 2.51 | 3.04 | |
| Wheel | ||||
| 730 | 39000006353 | 14.04 | 16.99 | |
| Nut | ||||
| 740 | 39000000459 | 18.82 | 22.77 | |
| Screw | ||||
| 750 | 39000000165 | 2.09 | 2.53 | |
| Handle | ||||
| 760 | 39000000474 | 32.54 | 39.37 | |
| Countersunk screw | ||||
| 770 | 39000000597 | 3.34 | 4.04 | |
| Handle | ||||
| 780 | 39000000598 | 35.73 | 43.23 | |
| Housing | ||||
| 790 | 39000004662 | 500.19 | 605.23 | |
| Fitting | ||||
| 800 | 39000000592 | 22.65 | 27.41 | |
| Screw | ||||
| 810 | 39000000599 | 2.71 | 3.28 | |
| Screw | ||||
| 820 | 39000000099 | 2.93 | 3.55 | |
| Nut | ||||
| 830 | 39000000059 | 2.51 | 3.04 | |
| Bearing | ||||
| 840 | 39000000108 | 23.29 | 28.18 | |
| Circlip | ||||
| 850 | 39000000058 | 2.71 | 3.28 | |
| Nut | ||||
| 860 | 39000000044 | 2.71 | 3.28 | |
| Sign | ||||
| 910 | 39000006100 | 2.93 | 3.55 | |
| Thread spindle | ||||
| 920 | 39000000587 | 67.63 | 81.83 | |
| Screw | ||||
| 930 | 39000000434 | 3.68 | 4.45 | |
