Here you will find all available parts and drawings of the 'Fein 79020300403 ( GI100_ )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

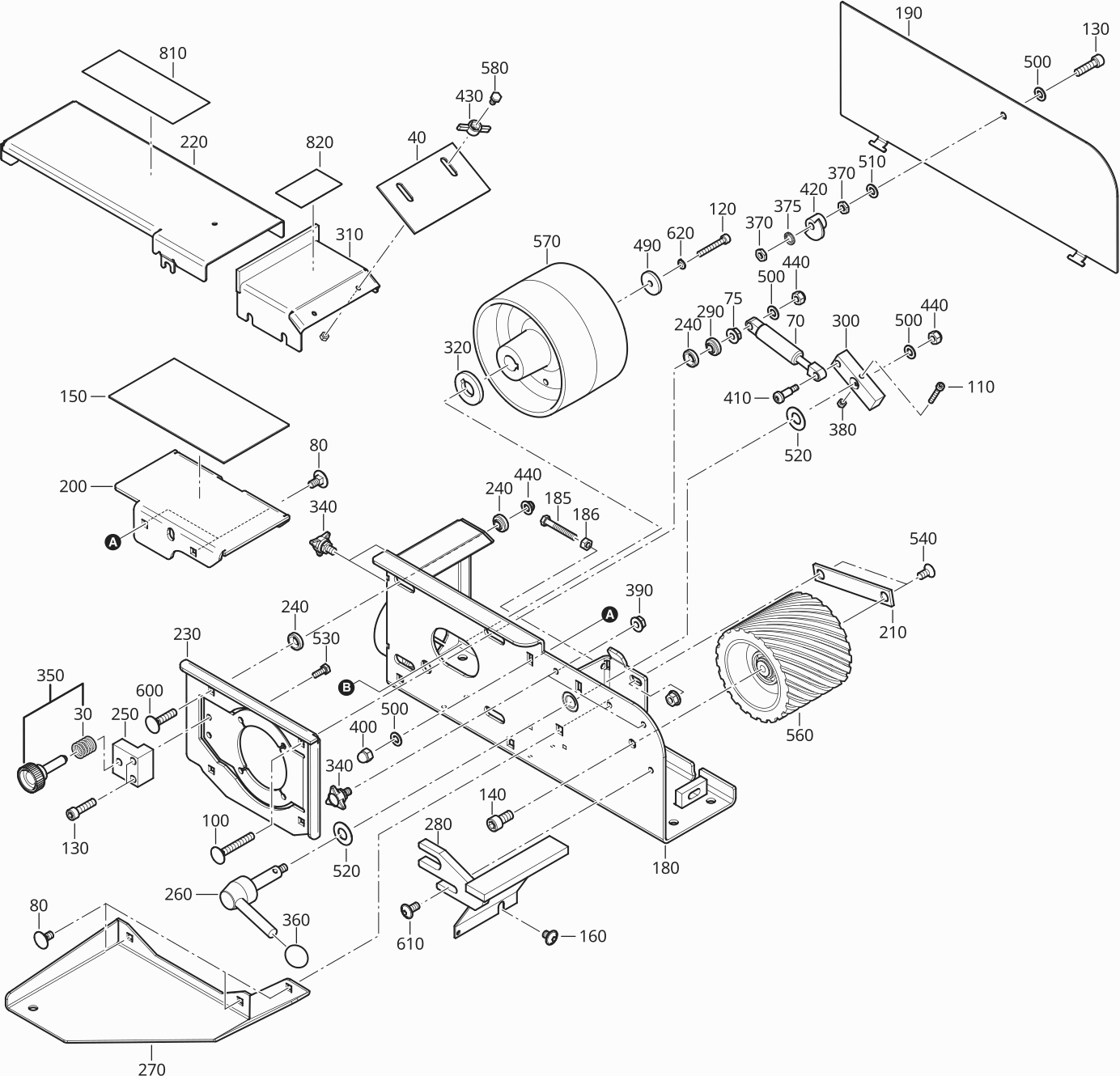

Technical drawing of model Fein 79020300403 ( GI100_ )

Spare parts list of model Fein 79020300403 ( GI100_ )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT

Switch
10 39000000116 266.68 322.68

Motor
20 39000000113 481.05 582.07

Fillister head screw
25 43041040048 1.04 1.26

Spring
30 39000000080 8.50 10.28

Eye guard
40 39000005130 29.67 35.90

Blade
50 39000000121 54.87 66.39

Hood
60 39000000122 65.08 78.75

Gas compression spring
70 39000000055 107.18 129.69

Bolt
80 39000000054 2.93 3.55

Bolt
100 39000000052 6.61 8.00

Screw
110 39000000051 2.51 3.04

Screw
120 39000000050 2.71 3.28

Screw
130 39000000111 2.71 3.28

Screw
140 39000000099 2.93 3.55

Graphite coating
150 39000005045 19.14 23.16

No longer available, no replacement
160 39000000049

Housing
180 39000000109 452.98 548.11

SCREW
185 39000006212 2.93 3.55

Nut
186 39000000045 2.71 3.28

Cover
190 32422395000 96.80 117.13

Sanding table
200 39000000018 105.91 128.15

Holder
210 39000000019 28.07 33.96

COVER
220 39000000020 102.08 123.52

Flange
230 39000000021 127.60 154.40

Bush
240 39000000024 27.12 32.82

Adjustment unit
250 39000000023 65.08 78.75

Lever
260 39000001208 94.42 114.25

Plate
270 39000000027 102.08 123.52

Workpiece support
280 39000000028 139.08 168.29

Bush
290 39000000032 44.02 53.26

Tensioning arm
300 39000000033 63.80 77.20

COVER
310 39000000034 99.53 120.43

Ring
320 39000000037 14.36 17.38

Handle
340 39000003743 14.67 17.75

Handle
350 39000000086 37.00 44.77

Handle
360 39000000097 6.19 7.49

Nut
370 39000000047 2.51 3.04

Nut
380 39000000046 2.51 3.04

Nut
390 39000000528 2.51 3.04

Nut
400 39000000044 2.71 3.28

Bolt
410 39000000043 8.63 10.44

Locking bar
420 39000000087 28.07 33.96

Nut
430 39000000060 2.71 3.28

Nut
440 39000000061 2.71 3.28

Disc
490 39000004268 5.71 6.91

Disc
500 39000000090 1.67 2.02

Cup spring
510 39000000089 2.71 3.28

Cup spring
520 39000000069 4.32 5.23

Screw
530 39000000041 2.29 2.77

Flat headed screw
540 39000000040 2.71 3.28

Sheet metal screw
550 39000000541 2.71 3.28

Contact wheel
560 39000000311 404.49 489.43

Drive wheel
570 39000000292 227.13 274.83

Screw
580 39000000529 1.88 2.27

Flap switch
590 39000000479 32.54 39.37

Bolt
600 39000000145 2.51 3.04

Screw
610 39000000048 2.71 3.28

Spring washer
620 39000001064 2.51 3.04

Seal
690 39000000540 9.47 11.46

Cable with plug
695 39000001701 84.22 101.91

Screw
700 39000001139 2.71 3.28

Screw
710 39000001138 2.51 3.04

Sign
810 39000006110 4.92 5.95

Sign
820 39000006100 2.93 3.55
