Here you will find all available parts and drawings of the 'Fein 72053700225 (DSkeu636)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

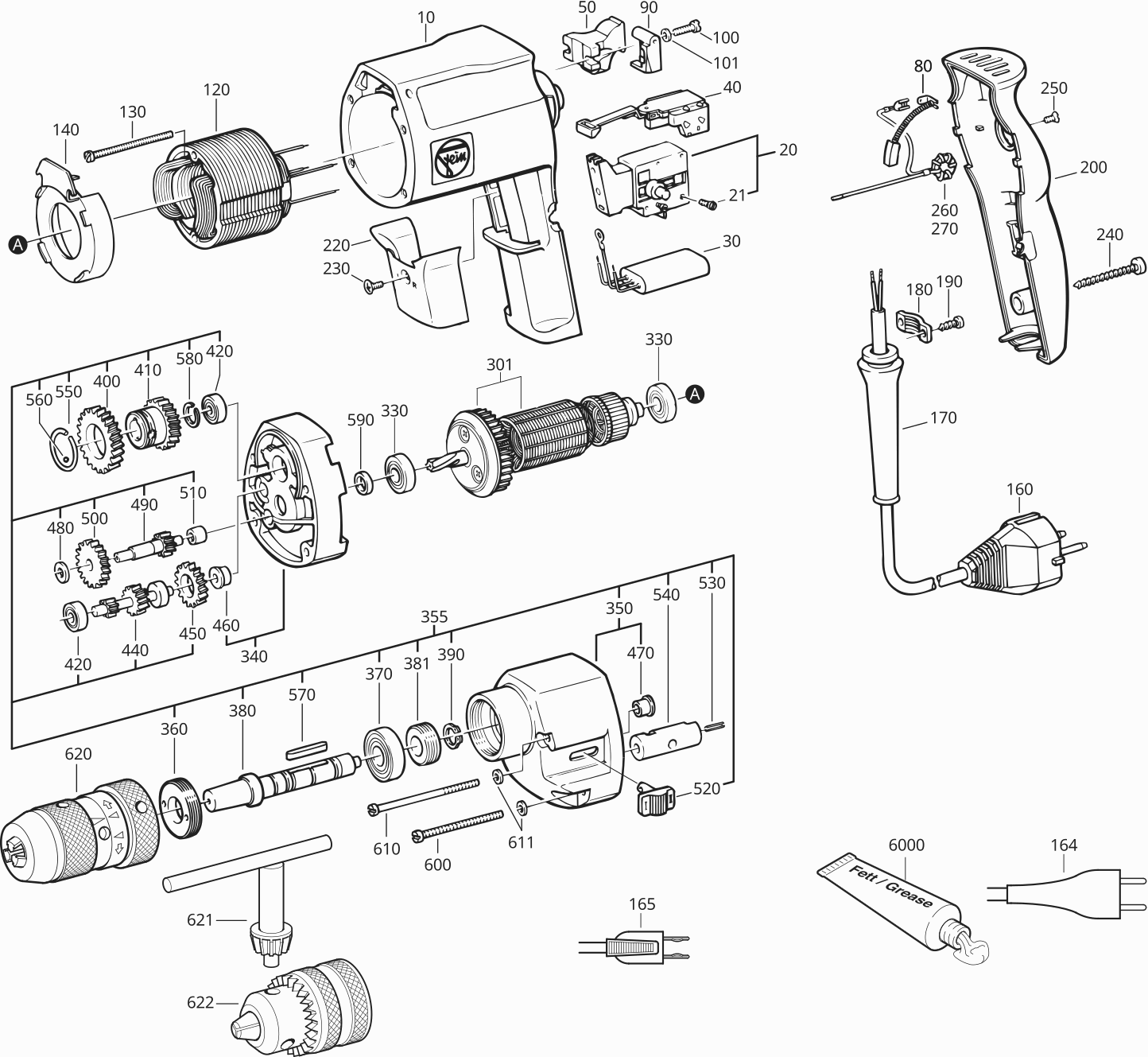

Technical drawing of model Fein 72053700225 (DSkeu636)
Spare parts list of model Fein 72053700225 (DSkeu636)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor housing | ||||
| 10 | 31901117015 | 116.12 | 140.51 | |
| Motor housing | ||||
| 10 | 31901117021 | 107.18 | 129.69 | |
| Switch | ||||
| 20 | 30701228002 | 53.59 | 64.84 | |
| Cylinder head screw | ||||
| 21 | 43013052033 | 1.56 | 1.89 | |
| Countersunk screw | ||||
| 21 | 43066009038 | 1.56 | 1.89 | |
| Capacitor | ||||
| 30 | 30722161013 | 13.08 | 15.83 | |
| Toggle switch | ||||
| 40 | 30701238001 | 13.08 | 15.83 | |
| Brush holder | ||||
| 50 | 30712043001 | 8.08 | 9.78 | |
| Carbon brush | ||||
| 80 | 30711059007 | 7.24 | 8.76 | |
| Cap | ||||
| 90 | 30713010009 | 1.67 | 2.02 | |
| Cylinder head screw | ||||
| 100 | 43002014998 | 1.04 | 1.26 | |
| Circlip | ||||
| 101 | 42443002992 | 1.04 | 1.26 | |
| Stator | ||||
| 120 | 51203003227 | 59.97 | 72.56 | |
| Cylinder head screw | ||||
| 130 | 43002025991 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 140 | 31428004000 | |||
| Assembled cables | ||||
| 160 | 30707263019 | 14.36 | 17.38 | |
| Cable grommet | ||||
| 170 | 31413142009 | 3.34 | 4.04 | |
| Cable clamping piece | ||||
| 180 | 32431021007 | 1.56 | 1.89 | |
| Sheet metal screw | ||||
| 190 | 43046002005 | 1.56 | 1.89 | |
| Cover | ||||
| 200 | 31201066005 | 9.89 | 11.97 | |
| Switch pushbutton | ||||
| 220 | 32805120000 | 3.34 | 4.04 | |
| Countersunk screw | ||||
| 230 | 43066006032 | 1.04 | 1.26 | |
| Sheet metal screw | ||||
| 240 | 43046024005 | 1.04 | 1.26 | |
| Countersunk screw | ||||
| 250 | 43066002992 | 1.04 | 1.26 | |
| Ring core choke | ||||
| 260 | 30764065010 | 3.34 | 4.04 | |
| Armature | ||||
| 301 | 53203009220 | 136.53 | 165.20 | |
| Grooved ball bearing | ||||
| 330 | 41701001172 | 8.21 | 9.93 | |
| Intermediate gear box | ||||
| 340 | 31506162000 | 45.94 | 55.59 | |
| Gearbox housing | ||||
| 350 | 31508110001 | 82.94 | 100.36 | |
| Gearbox housing | ||||
| 355 | 31508110010 | 353.45 | 427.67 | |
| Thread ring | ||||
| 360 | 32618041002 | 7.38 | 8.93 | |
| Grooved ball bearing | ||||
| 370 | 41701007038 | 8.90 | 10.77 | |
| Shaft | ||||
| 380 | 33401063000 | 55.51 | 67.17 | |
| Sealing ring | ||||
| 381 | 32612068002 | 3.97 | 4.80 | |
| Circlip | ||||
| 390 | 42616013001 | 1.56 | 1.89 | |
| Gear-wheel | ||||
| 400 | 33607089006 | 38.92 | 47.09 | |
| Gear-wheel | ||||
| 410 | 33607088002 | 74.01 | 89.55 | |
| Grooved ball bearing | ||||
| 420 | 41701202018 | 5.77 | 6.98 | |
| Shaft, toothed | ||||
| 440 | 33811062001 | 74.01 | 89.55 | |
| Gear-wheel | ||||
| 450 | 33657027008 | 21.69 | 26.24 | |
| Bush | ||||
| 460 | 31602037002 | 3.06 | 3.70 | |
| Bush | ||||
| 470 | 31602037002 | 3.06 | 3.70 | |
| Disc | ||||
| 480 | 32408161002 | 5.71 | 6.91 | |
| Shaft, toothed | ||||
| 490 | 33757017008 | 43.38 | 52.49 | |
| Gear-wheel | ||||
| 500 | 33657011003 | 24.24 | 29.33 | |
| Bush | ||||
| 510 | 41705005003 | 5.15 | 6.23 | |
| Slide switch | ||||
| 520 | 30109056005 | 13.72 | 16.60 | |
| Clamping sleeve | ||||
| 530 | 40238007005 | 1.56 | 1.89 | |
| Bolt | ||||
| 540 | 30217182002 | 31.26 | 37.82 | |
| Circlip | ||||
| 550 | 42615080003 | 0.90 | 1.09 | |
| Ball | ||||
| 560 | 41708015005 | 1.56 | 1.89 | |
| Feather key | ||||
| 570 | 40221010009 | 1.12 | 1.36 | |
| Circlip | ||||
| 580 | 42615081002 | 1.56 | 1.89 | |
| Sealing ring | ||||
| 590 | 32612047006 | 1.46 | 1.77 | |
| Cylinder head screw | ||||
| 600 | 43002025991 | 1.04 | 1.26 | |
| Cylinder head screw | ||||
| 610 | 43002029990 | 2.93 | 3.55 | |
| Circlip | ||||
| 611 | 42443002992 | 1.04 | 1.26 | |
| Quick-action chuck | ||||
| 620 | 63204030004 | 78.21 | 94.63 | |
| No longer available, no replacement | ||||
| 6000 | 32160003014 | |||
| Pin-type face spanner (SW0024) | ||||
| 7024 | 64112007000 | 51.68 | 62.53 | |
| Safety instruction | ||||
| 9020 | 34130054061 | 1.87 | 2.26 | |
