Here you will find all available parts and drawings of the 'Fein 72020900227 ( DSke672 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

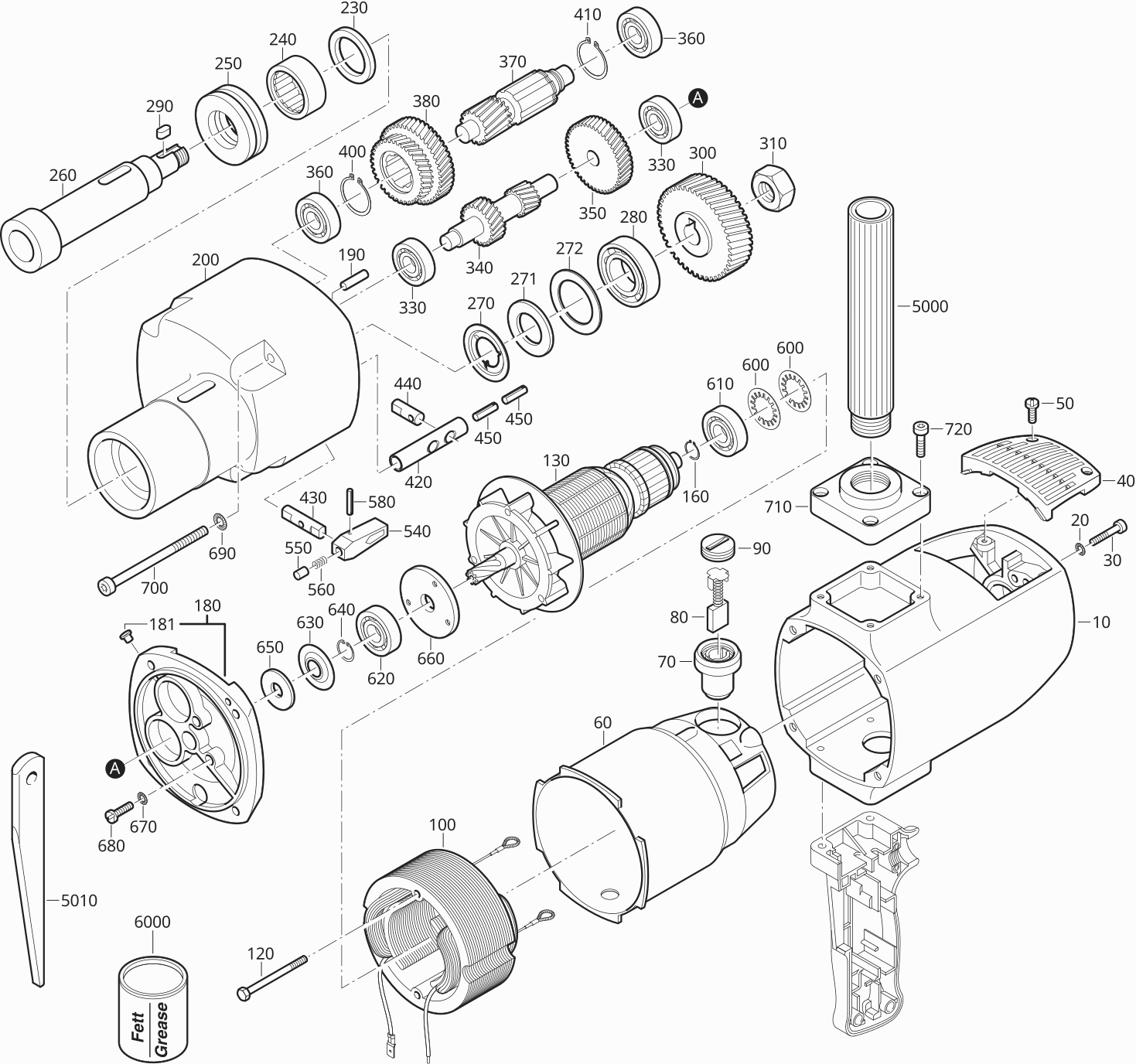

Technical drawing of model Fein 72020900227 ( DSke672 )
Spare parts list of model Fein 72020900227 ( DSke672 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 10 | 31903095007 | 317.72 | 384.44 | |
| Circlip | ||||
| 20 | 42443004057 | 1.04 | 1.26 | |
| Cylinder head screw | ||||
| 30 | 43033014058 | 1.04 | 1.26 | |
| Cover | ||||
| 40 | 32427031001 | 5.99 | 7.25 | |
| Cylinder head screw | ||||
| 50 | 43002033045 | 1.04 | 1.26 | |
| Housing | ||||
| 60 | 31913018009 | 59.33 | 71.79 | |
| Brush holder | ||||
| 70 | 30712048017 | 8.90 | 10.77 | |
| Carbon brush | ||||
| 80 | 30711061008 | 11.87 | 14.36 | |
| Cap | ||||
| 90 | 30713009007 | 2.29 | 2.77 | |
| No longer available, no replacement | ||||
| 100 | 51232004220 | |||
| Hexagon socket screw | ||||
| 120 | 43001007059 | 1.04 | 1.26 | |
| Armature | ||||
| 130 | 53232002220 | 302.41 | 365.92 | |
| Ring | ||||
| 160 | 42628001006 | 1.04 | 1.26 | |
| Intermediate gear box | ||||
| 180 | 31506151008 | 190.12 | 230.05 | |
| Nipple | ||||
| 181 | 32131001002 | 2.71 | 3.28 | |
| Straight pin | ||||
| 190 | 40201050003 | 1.04 | 1.26 | |
| Gearbox housing | ||||
| 200 | 31509054003 | 482.33 | 583.62 | |
| Sealing ring | ||||
| 230 | 40608021007 | 20.10 | 24.32 | |
| Needle bearing | ||||
| 240 | 41706016000 | 25.52 | 30.88 | |
| Grooved ball bearing | ||||
| 250 | 41707011009 | 26.16 | 31.65 | |
| Shaft | ||||
| 260 | 33402037006 | 275.62 | 333.50 | |
| Disc | ||||
| 270 | 32411056009 | 2.29 | 2.77 | |
| Felt ring | ||||
| 271 | 30601062003 | 2.09 | 2.53 | |
| Disc | ||||
| 272 | 32411057003 | 5.15 | 6.23 | |
| Grooved ball bearing | ||||
| 280 | 41701017021 | 12.63 | 15.28 | |
| Feather key | ||||
| 290 | 40221040006 | 1.46 | 1.77 | |
| Gear-wheel | ||||
| 300 | 33667007003 | 113.56 | 137.41 | |
| Hex nut | ||||
| 310 | 42003007005 | 2.29 | 2.77 | |
| Grooved ball bearing | ||||
| 330 | 41701210015 | 7.38 | 8.93 | |
| Gear-wheel | ||||
| 340 | 33811012006 | 142.91 | 172.92 | |
| Gear-wheel | ||||
| 350 | 33663019000 | 53.59 | 64.84 | |
| Grooved ball bearing | ||||
| 360 | 41701213011 | 7.80 | 9.44 | |
| Shaft, toothed | ||||
| 370 | 33767005005 | 149.29 | 180.64 | |
| Gear-wheel | ||||
| 380 | 33665007016 | 209.26 | 253.20 | |
| Circlip | ||||
| 400 | 42616043008 | 1.04 | 1.26 | |
| Circlip | ||||
| 410 | 42616044006 | 1.04 | 1.26 | |
| Bolt | ||||
| 420 | 30217171000 | 25.84 | 31.27 | |
| Bolt | ||||
| 430 | 30217192001 | 28.39 | 34.35 | |
| Bolt | ||||
| 440 | 30217173007 | 22.01 | 26.63 | |
| Clamping sleeve | ||||
| 450 | 40238012001 | 1.04 | 1.26 | |
| Lever | ||||
| 540 | 32805045007 | 19.14 | 23.16 | |
| Bolt | ||||
| 550 | 30216086001 | 6.61 | 8.00 | |
| Spiral spring | ||||
| 560 | 30901202001 | 1.04 | 1.26 | |
| Clamping sleeve | ||||
| 580 | 40238007005 | 1.04 | 1.26 | |
| Cup spring | ||||
| 600 | 30905019003 | 1.25 | 1.51 | |
| Grooved ball bearing | ||||
| 610 | 41701210021 | 6.19 | 7.49 | |
| Grooved ball bearing | ||||
| 620 | 41701213027 | 8.50 | 10.28 | |
| Disc | ||||
| 630 | 32411052000 | 4.52 | 5.47 | |
| Circlip | ||||
| 640 | 42643001007 | 1.04 | 1.26 | |
| Felt ring | ||||
| 650 | 30601055000 | 1.04 | 1.26 | |
| Plate | ||||
| 660 | 32410046001 | 14.04 | 16.99 | |
| Circlip | ||||
| 670 | 42443003043 | 1.04 | 1.26 | |
| Cylinder head screw | ||||
| 680 | 43002035047 | 1.04 | 1.26 | |
| Circlip (SW0018, S 6) | ||||
| 690 | 42443005064 | 1.04 | 1.26 | |
| Cylinder head screw | ||||
| 700 | 43033043060 | 2.71 | 3.28 | |
| Flange | ||||
| 710 | 32420020005 | 33.18 | 40.15 | |
| Cylinder head screw | ||||
| 720 | 43033012056 | 1.04 | 1.26 | |
| Housing | ||||
| 730 | 31207204008 | 57.42 | 69.48 | |
| Sleeve | ||||
| 740 | 31406031002 | 4.52 | 5.47 | |
| Cylinder head screw M5X80 | ||||
| 750 | 43035027056 | 2.51 | 3.04 | |
| Insulating hose | ||||
| 790 | 31413138001 | 1.04 | 1.26 | |
| Switch | ||||
| 800 | 30701073005 | 36.37 | 44.01 | |
| Cable clamping piece | ||||
| 810 | 32431021007 | 1.04 | 1.26 | |
| Fillister head screw | ||||
| 820 | 43041001994 | 1.04 | 1.26 | |
| Cable grommet | ||||
| 830 | 31413090003 | 3.48 | 4.21 | |
| Capacitor | ||||
| 840 | 30722122026 | 19.14 | 23.16 | |
| Connecting Cable | ||||
| 841 | 30719164018 | 3.48 | 4.21 | |
| Insulating hose | ||||
| 842 | 31413188006 | 1.46 | 1.77 | |
| Cable with plug | ||||
| 850 | 30707105011 | 14.67 | 17.75 | |
| Speed setting switch | ||||
| 1760 | 30762010019 | 266.68 | 322.68 | |
| Housing insert | ||||
| 1770 | 32414042003 | 4.94 | 5.98 | |
| Lever | ||||
| 1780 | 32805054002 | 10.16 | 12.29 | |
| Handle half shell | ||||
| 2000 | 31204161004 | 37.64 | 45.54 | |
| Handle | ||||
| 2005 | 31204064047 | 127.60 | 154.40 | |
| Handle half shell | ||||
| 2010 | 31204163001 | 40.83 | 49.40 | |
| Fillister head screw | ||||
| 2020 | 43041027045 | 1.04 | 1.26 | |
| RFID Transponder | ||||
| 2500 | 32217517000 | 1.25 | 1.51 | |
| Handle | ||||
| 5000 | 32119153010 | 76.56 | 92.64 | |
| SPIE UITDRYF MC3-4 | ||||
| 5010 | 63305004001 | 9.84 | 11.91 | |
| No longer available, no replacement | ||||
| 6000 | 32132007011 | |||
| Operating instructions | ||||
| 9000 | 34101095060 | 3.28 | 3.97 | |
| Safety instruction | ||||
| 9020 | 34130054061 | 1.86 | 2.25 | |
