Here you will find all available parts and drawings of the 'Fein 72020300224 (DS648)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

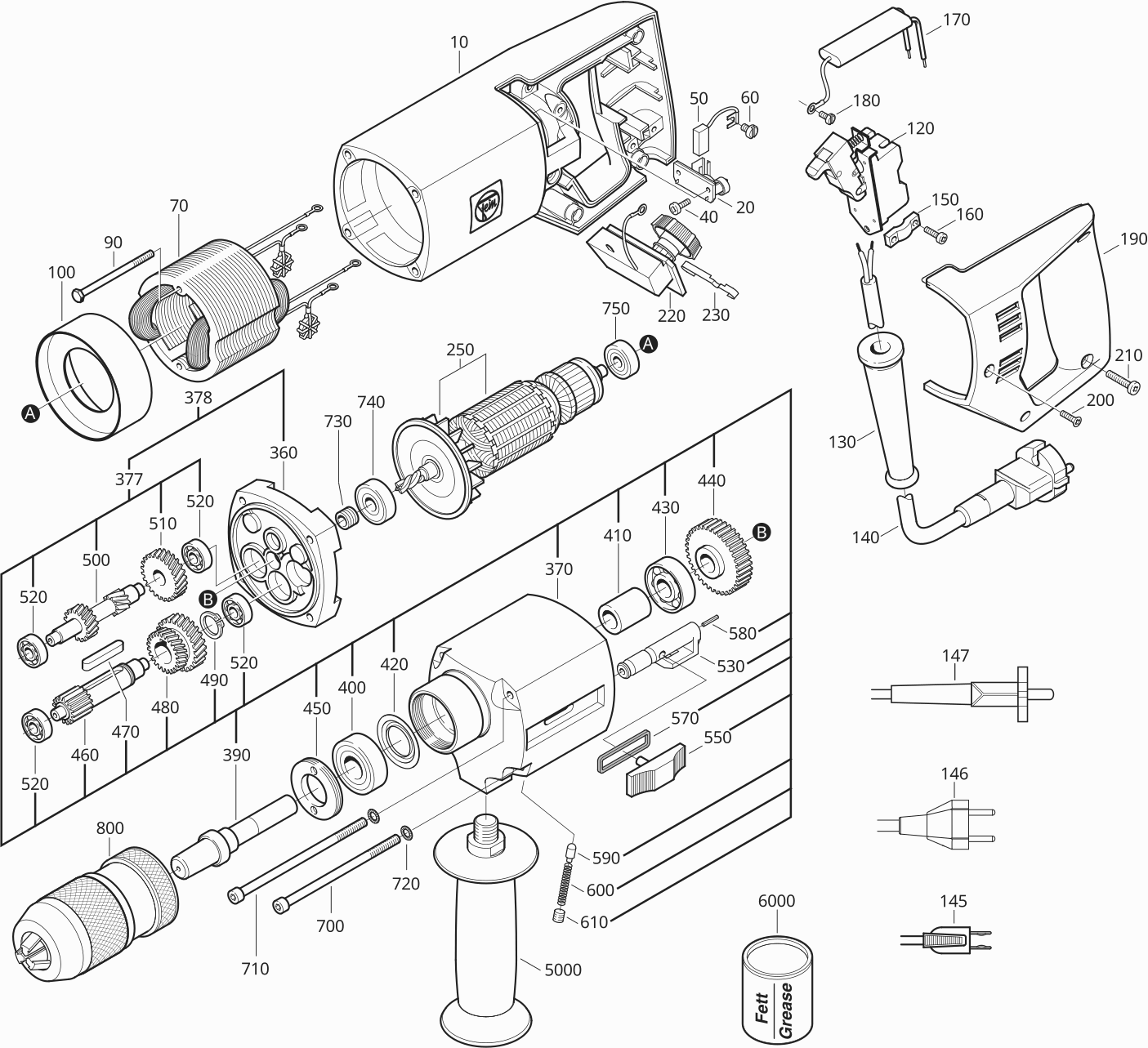

Technical drawing of model Fein 72020300224 (DS648)
Spare parts list of model Fein 72020300224 (DS648)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 10 | 31902022007 | 131.43 | 159.03 | |
| Brush holder | ||||
| 20 | 30712067017 | 9.74 | 11.79 | |
| Fillister head screw | ||||
| 40 | 43041001994 | 1.56 | 1.89 | |
| Carbon brush | ||||
| 50 | 30711067004 | 7.10 | 8.59 | |
| Flat headed screw | ||||
| 60 | 43003029048 | 1.56 | 1.89 | |
| Stator | ||||
| 70 | 51213001229 | 119.94 | 145.13 | |
| Hexagon socket screw | ||||
| 90 | 43001004042 | 2.51 | 3.04 | |
| Air guide ring | ||||
| 100 | 31428010005 | 6.82 | 8.25 | |
| Switch | ||||
| 120 | 30701073005 | 36.37 | 44.01 | |
| Cable grommet | ||||
| 130 | 31413090003 | 3.48 | 4.21 | |
| Assembled cables | ||||
| 140 | 30707133016 | 13.08 | 15.83 | |
| Cable clamping piece | ||||
| 150 | 32431021007 | 1.56 | 1.89 | |
| Fillister head screw | ||||
| 160 | 43041011993 | 1.04 | 1.26 | |
| Capacitor | ||||
| 170 | 30722057002 | 12.63 | 15.28 | |
| Flat headed screw | ||||
| 180 | 43003013991 | 1.04 | 1.26 | |
| Handle half shell | ||||
| 190 | 32428050007 | 10.86 | 13.14 | |
| Countersunk screw | ||||
| 200 | 43066003996 | 3.34 | 4.04 | |
| Fillister head screw | ||||
| 210 | 43041013047 | 1.56 | 1.89 | |
| Armature | ||||
| 250 | 53213004226 | 204.16 | 247.03 | |
| Intermediate gear box | ||||
| 360 | 31506173003 | 51.04 | 61.76 | |
| Gearbox housing | ||||
| 370 | 31508125008 | 172.26 | 208.43 | |
| Gearbox housing | ||||
| 377 | 31508125017 | 701.80 | 849.18 | |
| Gearbox housing | ||||
| 378 | 31508125023 | 740.08 | 895.50 | |
| Shaft | ||||
| 390 | 33401064008 | 51.68 | 62.53 | |
| Grooved ball bearing | ||||
| 400 | 41701218024 | 7.80 | 9.44 | |
| Sleeve | ||||
| 410 | 30501223007 | 4.94 | 5.98 | |
| Sealing ring | ||||
| 420 | 42639005000 | 2.93 | 3.55 | |
| Grooved ball bearing | ||||
| 430 | 41701213011 | 7.80 | 9.44 | |
| Gear-wheel | ||||
| 440 | 33613067001 | 48.49 | 58.67 | |
| Thread ring | ||||
| 450 | 32618032006 | 13.40 | 16.21 | |
| Gear-wheel | ||||
| 460 | 33713046008 | 88.04 | 106.53 | |
| Feather key | ||||
| 470 | 40221033003 | 1.67 | 2.02 | |
| Gear-wheel | ||||
| 480 | 33811033008 | 121.22 | 146.68 | |
| Circlip | ||||
| 490 | 42616036004 | 1.56 | 1.89 | |
| Gear-wheel | ||||
| 500 | 33811010004 | 88.04 | 106.53 | |
| Gear-wheel | ||||
| 510 | 33657033008 | 33.81 | 40.91 | |
| Grooved ball bearing | ||||
| 520 | 41701001010 | 6.19 | 7.49 | |
| Bolt | ||||
| 530 | 30217194012 | 80.39 | 97.27 | |
| Slide switch | ||||
| 550 | 30109058007 | 13.08 | 15.83 | |
| Felt ring | ||||
| 570 | 30604039003 | 1.04 | 1.26 | |
| Clamping sleeve | ||||
| 580 | 40238007005 | 1.56 | 1.89 | |
| Bolt | ||||
| 590 | 30216079008 | 4.52 | 5.47 | |
| Spiral spring | ||||
| 600 | 30901001003 | 1.04 | 1.26 | |
| Set screw | ||||
| 610 | 43010015064 | 1.04 | 1.26 | |
| Cylinder head screw | ||||
| 700 | 43035091053 | 2.71 | 3.28 | |
| Cylinder head screw | ||||
| 710 | 43035092056 | 9.47 | 11.46 | |
| Circlip | ||||
| 720 | 42443004057 | 1.56 | 1.89 | |
| Sealing ring | ||||
| 730 | 32612060009 | 9.89 | 11.97 | |
| Grooved ball bearing | ||||
| 740 | 41701207096 | 15.63 | 18.91 | |
| Grooved ball bearing | ||||
| 750 | 41701204131 | 7.80 | 9.44 | |
| Quick-action chuck | ||||
| 800 | 63204025003 | 126.39 | 152.93 | |
| Handle | ||||
| 5000 | 32119032002 | 10.08 | 12.20 | |
| No longer available, no replacement | ||||
| 6000 | 32132007011 | |||
| Safety instruction | ||||
| 9020 | 34130054061 | 1.87 | 2.26 | |
