Here you will find all available parts and drawings of the 'Fein 72020600048 ( DDSK672 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

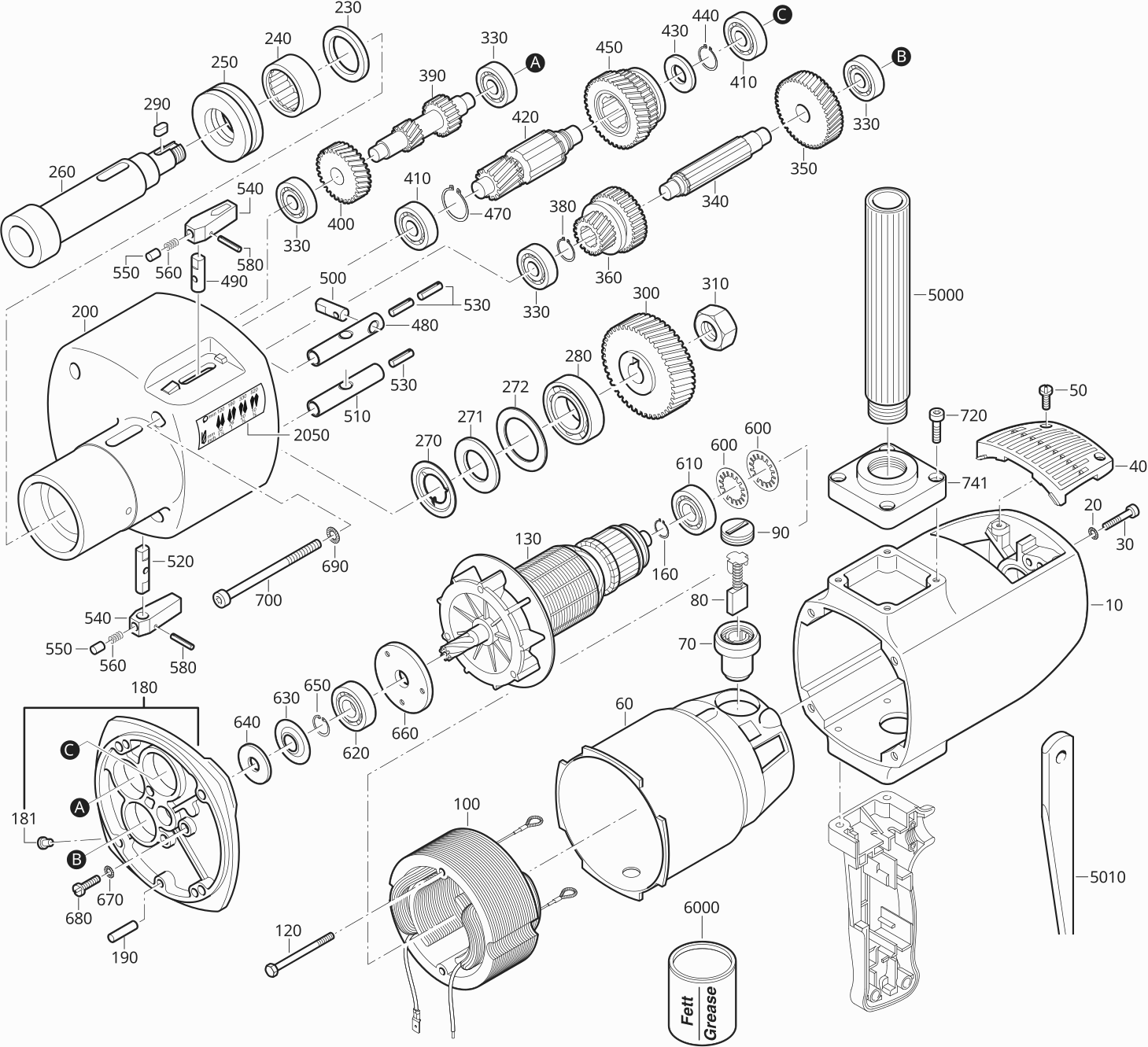

Technical drawing of model Fein 72020600048 ( DDSK672 )
Spare parts list of model Fein 72020600048 ( DDSK672 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 10 | 31903095007 | 317.72 | 384.44 | |
| Circlip | ||||
| 20 | 42443004057 | 1.04 | 1.26 | |
| Cylinder head screw | ||||
| 30 | 43033014058 | 1.04 | 1.26 | |
| Cover | ||||
| 40 | 32427031001 | 5.99 | 7.25 | |
| Cylinder head screw | ||||
| 50 | 43002033045 | 1.04 | 1.26 | |
| Housing | ||||
| 60 | 31913018009 | 59.33 | 71.79 | |
| No information available, not orderable | ||||
| 70 | 30712047031 | |||
| Carbon brush | ||||
| 80 | 30711097001 | 16.59 | 20.07 | |
| Cap | ||||
| 90 | 30713009007 | 2.29 | 2.77 | |
| No information available, not orderable | ||||
| 100 | 51232006046 | |||
| Hexagon socket screw | ||||
| 120 | 43001007059 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 130 | 53232003043 | |||
| Ring | ||||
| 160 | 42628001006 | 1.04 | 1.26 | |
| Intermediate gear box | ||||
| 180 | 31506153005 | 202.88 | 245.48 | |
| Nipple | ||||
| 181 | 32131001002 | 2.71 | 3.28 | |
| Straight pin | ||||
| 190 | 40201050003 | 1.04 | 1.26 | |
| Gearbox housing | ||||
| 200 | 31509058002 | 543.58 | 657.73 | |
| Sealing ring | ||||
| 230 | 40608021007 | 20.10 | 24.32 | |
| Needle bearing | ||||
| 240 | 41706016000 | 25.52 | 30.88 | |
| Grooved ball bearing | ||||
| 250 | 41707011009 | 26.16 | 31.65 | |
| Shaft | ||||
| 260 | 33402037006 | 275.62 | 333.50 | |
| Disc | ||||
| 270 | 32411056009 | 2.29 | 2.77 | |
| Felt ring | ||||
| 271 | 30601062003 | 2.09 | 2.53 | |
| Disc | ||||
| 272 | 32411057003 | 5.15 | 6.23 | |
| Grooved ball bearing | ||||
| 280 | 41701017021 | 12.63 | 15.28 | |
| Feather key | ||||
| 290 | 40221040006 | 1.46 | 1.77 | |
| Gear-wheel | ||||
| 300 | 33667007003 | 113.56 | 137.41 | |
| Hex nut | ||||
| 310 | 42003007005 | 2.29 | 2.77 | |
| Grooved ball bearing | ||||
| 330 | 41701210015 | 7.38 | 8.93 | |
| Selector shaft | ||||
| 340 | 33416005005 | 112.29 | 135.87 | |
| Gear-wheel | ||||
| 350 | 33663019000 | 53.59 | 64.84 | |
| Gear-wheel | ||||
| 360 | 33665010010 | 186.30 | 225.42 | |
| Circlip | ||||
| 380 | 42616023000 | 1.04 | 1.26 | |
| Gear-wheel | ||||
| 390 | 33811013000 | 135.26 | 163.66 | |
| Gear-wheel | ||||
| 400 | 33665009009 | 52.95 | 64.07 | |
| Grooved ball bearing | ||||
| 410 | 41701213011 | 7.80 | 9.44 | |
| Shaft, toothed | ||||
| 420 | 33767005005 | 149.29 | 180.64 | |
| Disc | ||||
| 430 | 42401007142 | 1.04 | 1.26 | |
| Circlip | ||||
| 440 | 42643003004 | 1.04 | 1.26 | |
| Gear-wheel | ||||
| 450 | 33615025015 | 232.23 | 281.00 | |
| Circlip | ||||
| 470 | 42616043008 | 1.04 | 1.26 | |
| Bolt | ||||
| 480 | 30217174005 | 23.92 | 28.94 | |
| Bolt | ||||
| 490 | 30217193005 | 23.61 | 28.57 | |
| Bolt | ||||
| 500 | 30217173007 | 22.01 | 26.63 | |
| Bolt | ||||
| 510 | 30217177006 | 21.69 | 26.24 | |
| Bolt | ||||
| 520 | 30217192001 | 28.39 | 34.35 | |
| Clamping sleeve | ||||
| 530 | 40238012001 | 1.04 | 1.26 | |
| Lever | ||||
| 540 | 32805045007 | 19.14 | 23.16 | |
| Bolt | ||||
| 550 | 30216086001 | 6.61 | 8.00 | |
| Spiral spring | ||||
| 560 | 30901202001 | 1.04 | 1.26 | |
| Clamping sleeve | ||||
| 580 | 40238007005 | 1.04 | 1.26 | |
| Cup spring | ||||
| 600 | 30905019003 | 1.25 | 1.51 | |
| Grooved ball bearing | ||||
| 610 | 41701210021 | 6.19 | 7.49 | |
| Grooved ball bearing | ||||
| 620 | 41701213027 | 8.50 | 10.28 | |
| Disc | ||||
| 630 | 32411052000 | 4.52 | 5.47 | |
| Felt ring | ||||
| 640 | 30601055000 | 1.04 | 1.26 | |
| Circlip | ||||
| 650 | 42643001007 | 1.04 | 1.26 | |
| Plate | ||||
| 660 | 32410046001 | 14.04 | 16.99 | |
| Circlip | ||||
| 670 | 42443003043 | 1.04 | 1.26 | |
| Cylinder head screw | ||||
| 680 | 43033006040 | 1.04 | 1.26 | |
| Circlip (SW0018, S 6) | ||||
| 690 | 42443005064 | 1.04 | 1.26 | |
| Cylinder head screw | ||||
| 700 | 43035043068 | 2.29 | 2.77 | |
| Cylinder head screw | ||||
| 710 | 43033014058 | 1.04 | 1.26 | |
| Cylinder head screw | ||||
| 720 | 43033012056 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 730 | 31413100001 | |||
| No information available, not orderable | ||||
| 731 | 31413101000 | |||
| Flange | ||||
| 741 | 32420020005 | 33.18 | 40.15 | |
| Switch | ||||
| 800 | 30701093003 | 43.38 | 52.49 | |
| Cable clamping piece | ||||
| 810 | 32431021007 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 820 | 43041014998 | |||
| Cable grommet | ||||
| 830 | 31413052009 | 5.57 | 6.74 | |
| Capacitor | ||||
| 840 | 30722032001 | 13.40 | 16.21 | |
| No information available, not orderable | ||||
| 850 | 30706140009 | |||
| Handle half shell | ||||
| 2000 | 31204161004 | 37.64 | 45.54 | |
| No information available, not orderable | ||||
| 2007 | 31204064269 | |||
| Handle half shell | ||||
| 2010 | 31204163001 | 40.83 | 49.40 | |
| Fillister head screw | ||||
| 2020 | 43041027045 | 1.04 | 1.26 | |
| Handle | ||||
| 5000 | 32119153010 | 76.56 | 92.64 | |
| No information available, not orderable | ||||
| 5010 | 63305004001 | |||
| No longer available, no replacement | ||||
| 6000 | 32132007033 | |||
| Safety instruction | ||||
| 9020 | 34130054061 | 1.86 | 2.25 | |
