Here you will find all available parts and drawings of the 'Fein 71220700940 ( CCG18-125-7AS )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

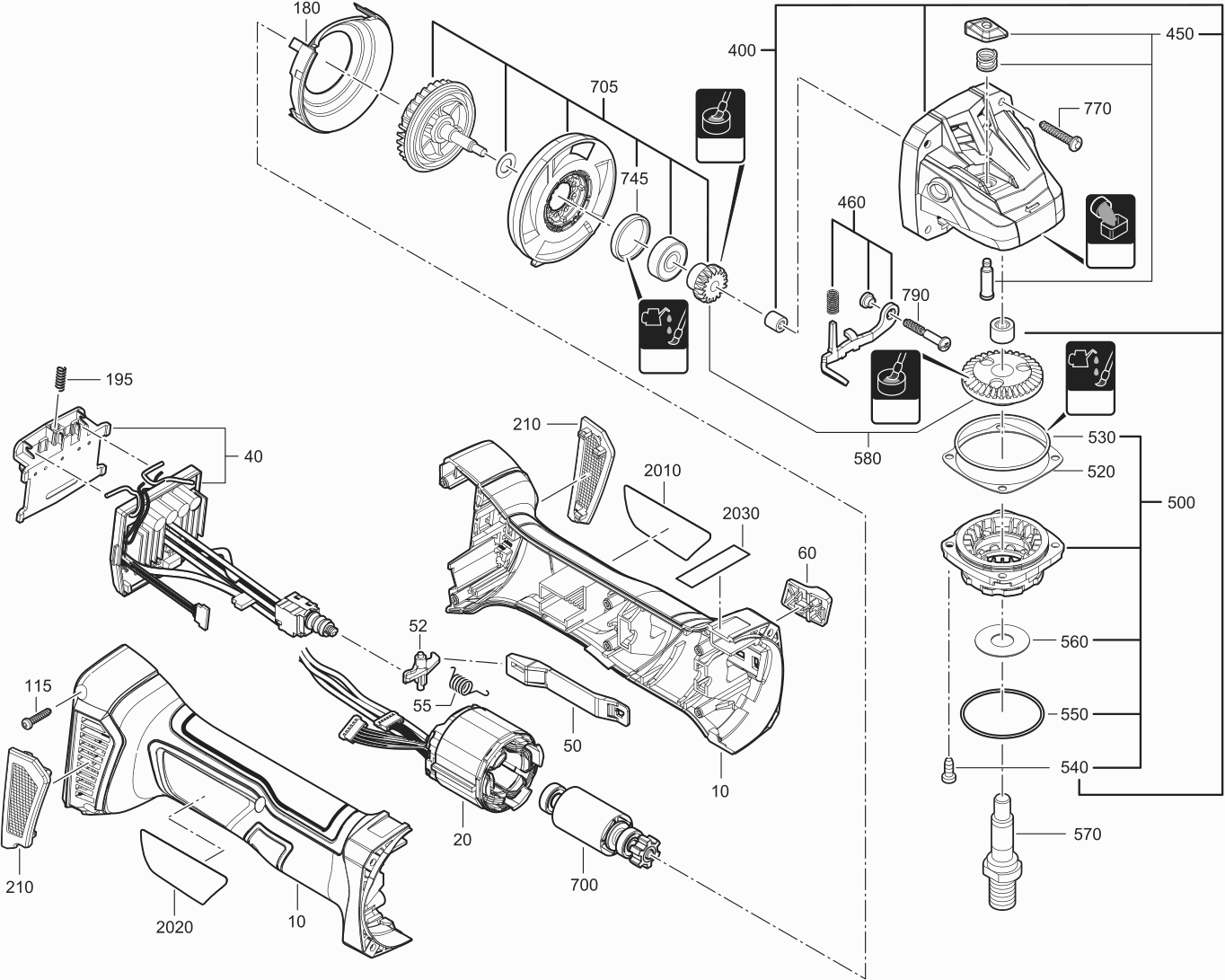

Technical drawing of model Fein 71220700940 ( CCG18-125-7AS )
Spare parts list of model Fein 71220700940 ( CCG18-125-7AS )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor housing | ||||
| 10 | 31324000352 | 14.58 | 17.64 | |
| Stator | ||||
| 20 | 31324000354 | 53.90 | 65.22 | |
| Electronics | ||||
| 40 | 31324000357 | 138.60 | 167.71 | |
| Control rod | ||||
| 50 | 31324000362 | 5.70 | 6.90 | |
| Lever | ||||
| 52 | 31324000364 | 5.40 | 6.53 | |
| Spring | ||||
| 55 | 31324000365 | 5.40 | 6.53 | |
| Slide switch | ||||
| 60 | 31324000367 | 4.14 | 5.01 | |
| Countersunk screw | ||||
| 115 | 31324000369 | 5.40 | 6.53 | |
| Air guide ring | ||||
| 180 | 31324000371 | 5.70 | 6.90 | |
| Spring | ||||
| 195 | 31324000291 | 5.58 | 6.75 | |
| Filter | ||||
| 210 | 31324000373 | 14.58 | 17.64 | |
| Gearbox housing | ||||
| 400 | 31324000374 | 36.85 | 44.59 | |
| Pushbutton | ||||
| 450 | 31324000382 | 5.40 | 6.53 | |
| Lever | ||||
| 460 | 31324000385 | 9.84 | 11.91 | |
| Bearing plate | ||||
| 500 | 31324000386 | 14.58 | 17.64 | |
| Washer | ||||
| 520 | 31324000390 | 5.40 | 6.53 | |
| Sealing ring | ||||
| 530 | 31324000392 | 5.10 | 6.17 | |
| Screw | ||||
| 540 | 31324000394 | 5.10 | 6.17 | |
| Sealing ring | ||||
| 550 | 31324000395 | 5.10 | 6.17 | |
| Disc | ||||
| 560 | 31324000396 | 5.10 | 6.17 | |
| Shaft | ||||
| 570 | 31324000397 | 9.84 | 11.91 | |
| Bevel gear | ||||
| 580 | 31324000398 | 13.20 | 15.97 | |
| Rotor | ||||
| 700 | 31324000401 | 51.15 | 61.89 | |
| Shaft | ||||
| 705 | 31324000403 | 29.15 | 35.27 | |
| Ring | ||||
| 745 | 31324000095 | 6.61 | 8.00 | |
| Fillister head screw | ||||
| 770 | 31324000407 | 4.14 | 5.01 | |
| Fillister head screw | ||||
| 790 | 31324000408 | 4.14 | 5.01 | |
| Safety hood | ||||
| 900 | 31324000409 | 9.84 | 11.91 | |
| Safety hood | ||||
| 905 | 31324000351 | 25.85 | 31.28 | |
| Flange | ||||
| 910 | 31324000104 | 15.31 | 18.53 | |
| Sealing ring | ||||
| 912 | 31324000106 | 5.77 | 6.98 | |
| SNELSPANMOER M14 | ||||
| 930 | 63802197000 | 20.62 | 24.95 | |
| HANDGREEP CG | ||||
| 940 | 31324000110 | 23.65 | 28.62 | |
| Company nameplate | ||||
| 2010 | 31324000410 | 6.24 | 7.55 | |
| Type plate | ||||
| 2020 | 31324000414 | 6.24 | 7.55 | |
| Sticker | ||||
| 2030 | 31324000418 | 6.24 | 7.55 | |
| SLEUTEL STIFT DUBBEL | ||||
| 5000 | 62910022002 | 5.58 | 6.75 | |
| KOFFER | ||||
| 5300 | 33901680000 | 63.80 | 77.20 | |
| Case insert | ||||
| 5310 | 33904669000 | 18.42 | 22.29 | |
| ACCU | ||||
| 5500 | 92604342020 | 215.60 | 260.88 | |
| ACCULADER | ||||
| 5550 | 92604339010 | 148.50 | 179.68 | |
| STARTSET | ||||
| 5600 | 92604229010 | 491.70 | 594.96 | |
| No information available, not orderable | ||||
| 6000 | 04014200000 | |||
| No information available, not orderable | ||||
| 6001 | 04014200000 | |||
| No information available, not orderable | ||||
| 6010 | 31324000211 | |||
