Here you will find all available parts and drawings of the 'Fein 71220200940 ( CCG18-125-10AS )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

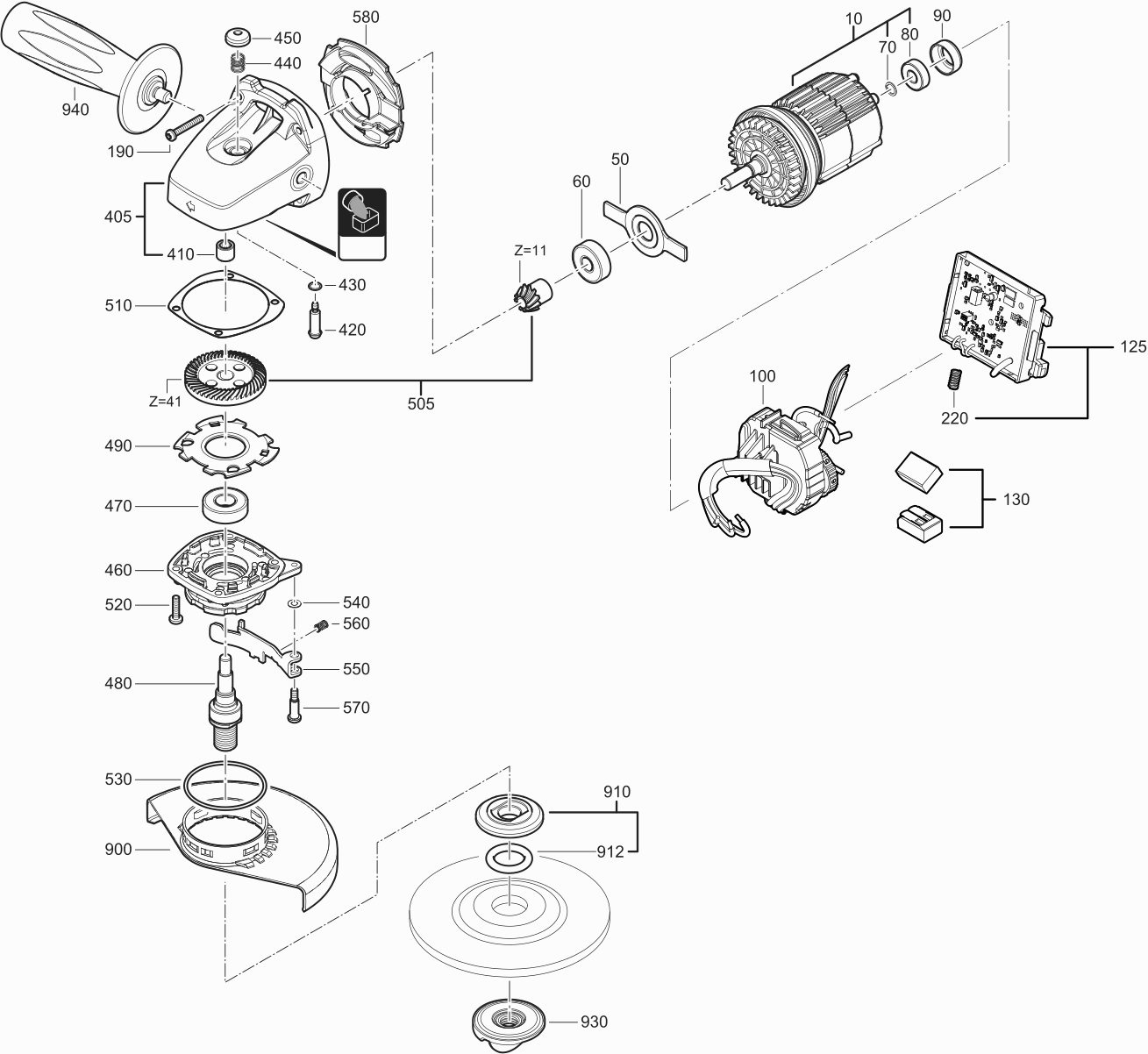

Technical drawing of model Fein 71220200940 ( CCG18-125-10AS )

Spare parts list of model Fein 71220200940 ( CCG18-125-10AS )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT

Motor
10 54113016800 204.16 247.03

Plate
50 32416117000 2.29 2.77

Grooved ball bearing
60 41701207260 6.19 7.49

Circlip
70 42615090002 1.04 1.26

Grooved ball bearing
80 41701001260 5.77 6.98

Bearing bush
90 30507236000 2.93 3.55

Electronics
100 30762666990 116.60 141.09

Motor housing
105 31901256990 38.50 46.58

Pressure piece
110 31415183000 1.04 1.26

Adapter
125 30767168980 46.75 56.57

Terminal
130 30728445000 3.34 4.04

Control rod
140 32816716000 3.34 4.04

Spring
150 30901416000 1.50 1.82

Screw
190 43074012000 1.04 1.26

Screw
200 43074010000 1.04 1.26

Slide switch
210 32805241000 3.68 4.45

Spring
220 30901421000 1.38 1.67

Gearbox housing
405 31206163030 42.11 50.95

Needle sleeve
410 41705006006 4.52 5.47

Bolt
420 30217335005 6.61 8.00

Sealing ring
430 40612137008 1.04 1.26

Spiral spring
440 30901357005 1.67 2.02

Pushbutton
450 32805200008 2.71 3.28

Bearing plate
460 32419157000 24.24 29.33

Grooved ball bearing
470 41701000030 4.52 5.47

Shaft
480 33406299001 17.86 21.61

Plate
490 32416115000 2.29 2.77

Bevel gear
505 33809238020 33.18 40.15

Washer
510 32624122060 1.88 2.27

Washer
510 32624122020 1.46 1.77

Screw
520 43064024043 1.04 1.26

Sealing ring
530 40612000003 1.04 1.26

Disc
540 32408450000 1.04 1.26

Lever
550 30240331000 7.38 8.93

Spring
560 30901403000 1.04 1.26

Screw
570 33024077000 1.46 1.77

Air guide ring
580 31428180000 4.10 4.96

Safety hood
900 31810300000 17.23 20.85

Grinding disc flange
910 63801182010 12.25 14.82

Sealing ring
912 40612000007 1.04 1.26

SNELSPANMOER M14
930 63802197000 20.62 24.95

Handle
940 32119159030 16.22 19.63

ANTI-VIBRATIE HANDGREEP KLEIN
940 32119124010 13.20 15.97

Information sign
2020 32217560000 2.10 2.54

RFID Transponder
2500 32217517000 1.25 1.51

SLEUTEL STIFT DUBBEL
5000 62910022002 5.58 6.75

Handle
5200 32119122000 7.66 9.27

Wire clamp
5210 30232050000 8.63 10.44

Case insert
5220 33904590000 24.24 29.33

Case (L-BOXX 238, ORANGE)
5300 33901690000 83.60 101.16

EPP insert
5310 33904662000 30.80 37.27

KOFFER
5320 33906420000 10.56 12.78

ACCU
5500 92604342020 215.60 260.88

ACCULADER
5550 92604339010 148.50 179.68

STARTSET
5600 92604229010 491.70 594.96

No information available, not orderable
6010 04010101004
