Here you will find all available parts and drawings of the 'Fein 72302400234 ( BLS4.2 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

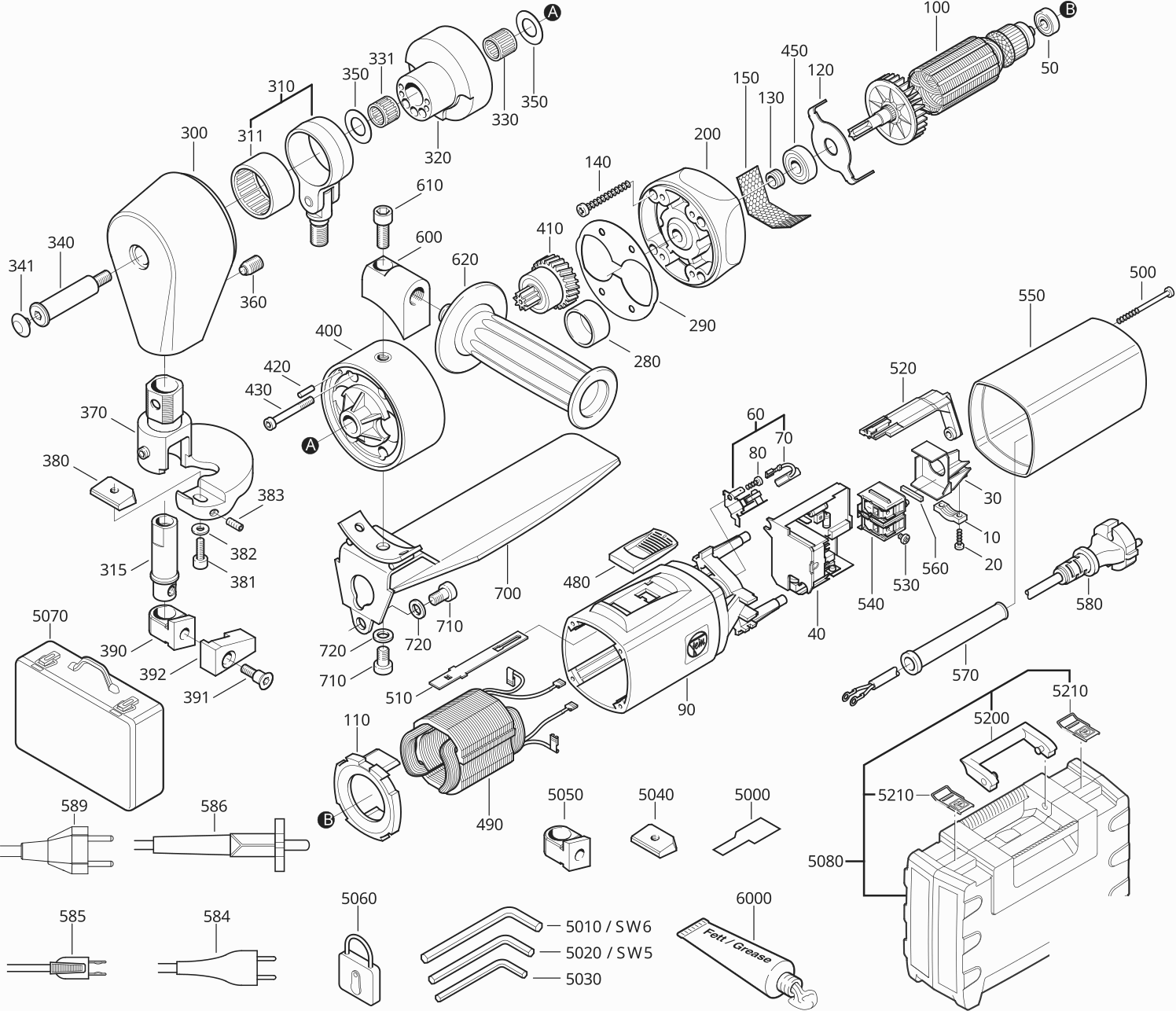

Technical drawing of model Fein 72302400234 ( BLS4.2 )
Spare parts list of model Fein 72302400234 ( BLS4.2 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cable clamping piece | ||||
| 10 | 32431021007 | 1.04 | 1.26 | |
| Screw | ||||
| 20 | 43070001006 | 1.04 | 1.26 | |
| Cable clamping piece | ||||
| 30 | 32431040006 | 2.71 | 3.28 | |
| Electronics | ||||
| 40 | 30762206997 | 108.46 | 131.24 | |
| Grooved ball bearing | ||||
| 50 | 41701001260 | 5.77 | 6.98 | |
| Brush holder | ||||
| 60 | 30712088013 | 13.40 | 16.21 | |
| Carbon brush | ||||
| 70 | 30711132003 | 9.47 | 11.46 | |
| Screw | ||||
| 80 | 43070018009 | 1.04 | 1.26 | |
| Motor Housing | ||||
| 90 | 31901114014 | 44.66 | 54.04 | |
| Armature | ||||
| 100 | 53273002236 | 155.67 | 188.36 | |
| Air guide ring | ||||
| 110 | 31428118007 | 6.19 | 7.49 | |
| Plate | ||||
| 120 | 32416098005 | 1.67 | 2.02 | |
| Sealing ring | ||||
| 130 | 32612123008 | 22.97 | 27.79 | |
| Screw | ||||
| 140 | 43070007002 | 1.04 | 1.26 | |
| Protective grille | ||||
| 150 | 32901046006 | 7.80 | 9.44 | |
| Intermediate gear box | ||||
| 200 | 31506352003 | 76.56 | 92.64 | |
| Plug | ||||
| 280 | 31420110009 | 3.90 | 4.72 | |
| Seal | ||||
| 290 | 30610030004 | 4.73 | 5.72 | |
| Housing | ||||
| 300 | 31309084002 | 266.68 | 322.68 | |
| Con rod | ||||
| 310 | 31308088019 | 366.21 | 443.11 | |
| Needle sleeve | ||||
| 311 | 41705031001 | 37.64 | 45.54 | |
| Plunger | ||||
| 315 | 31308094000 | 121.22 | 146.68 | |
| Hollow wheel | ||||
| 320 | 31308089004 | 630.34 | 762.71 | |
| Needle cage | ||||
| 330 | 41715047005 | 27.12 | 32.82 | |
| Needle cage | ||||
| 331 | 41715043006 | 21.05 | 25.47 | |
| Shaft | ||||
| 340 | 31309089005 | 89.32 | 108.08 | |
| Cap | ||||
| 341 | 31309103001 | 1.25 | 1.51 | |
| Disc | ||||
| 350 | 31309090007 | 1.67 | 2.02 | |
| Bolt | ||||
| 360 | 31308090006 | 45.94 | 55.59 | |
| Cutting table | ||||
| 370 | 31308091014 | 160.78 | 194.54 | |
| Blade | ||||
| 380 | 31308092008 | 84.70 | 102.49 | |
| Cylinder head screw | ||||
| 381 | 43035130062 | 1.04 | 1.26 | |
| Disc (SW0014, OD 12 MM, ID 6.4 MM) | ||||
| 382 | 42401018069 | 1.04 | 1.26 | |
| Set screw | ||||
| 383 | 43058005056 | 5.99 | 7.25 | |
| Blade | ||||
| 390 | 31308096007 | 141.90 | 171.70 | |
| Screw | ||||
| 391 | 33024067007 | 29.99 | 36.29 | |
| Pressure Piece | ||||
| 392 | 32423004005 | 55.51 | 67.17 | |
| Intermediate gear box | ||||
| 400 | 31309085006 | 287.10 | 347.39 | |
| Gear-wheel | ||||
| 410 | 31309086018 | 311.34 | 376.72 | |
| Pin | ||||
| 420 | 40242053007 | 1.04 | 1.26 | |
| Cylinder head screw | ||||
| 430 | 43064019053 | 1.04 | 1.26 | |
| Grooved ball bearing | ||||
| 450 | 41701210224 | 10.72 | 12.97 | |
| Slide switch | ||||
| 480 | 32805156008 | 4.10 | 4.96 | |
| Stator | ||||
| 490 | 51273001231 | 89.32 | 108.08 | |
| Screw | ||||
| 500 | 43070017001 | 1.04 | 1.26 | |
| Control rod | ||||
| 510 | 32816055000 | 2.93 | 3.55 | |
| Control rod | ||||
| 520 | 32816052004 | 2.93 | 3.55 | |
| Fillister head screw | ||||
| 530 | 43041039999 | 1.04 | 1.26 | |
| Switch | ||||
| 540 | 30701285000 | 14.36 | 17.38 | |
| Cover | ||||
| 550 | 31201100009 | 8.90 | 10.77 | |
| Pressure piece | ||||
| 560 | 31415082004 | 1.25 | 1.51 | |
| Cable grommet | ||||
| 570 | 31413007007 | 2.51 | 3.04 | |
| Cable with plug | ||||
| 580 | 30707386018 | 15.63 | 18.91 | |
| Holder | ||||
| 600 | 30240193002 | 29.35 | 35.51 | |
| Cylinder head screw | ||||
| 610 | 43035074085 | 1.04 | 1.26 | |
| Handle | ||||
| 620 | 32119032002 | 10.44 | 12.63 | |
| Hand guard | ||||
| 700 | 30229300001 | 141.64 | 171.38 | |
| Cylinder head screw | ||||
| 710 | 43033046087 | 1.04 | 1.26 | |
| Disc | ||||
| 720 | 42401019085 | 1.04 | 1.26 | |
| RFID Transponder | ||||
| 2500 | 32217517000 | 1.25 | 1.51 | |
| Testing fixture | ||||
| 5000 | 64001010002 | 19.25 | 23.29 | |
| SLEUTEL STIFT | ||||
| 5010 | 62907004005 | 2.70 | 3.27 | |
| SLEUTEL STIFT SW 5 | ||||
| 5020 | 62907011009 | 2.82 | 3.41 | |
| SLEUTEL STIFT | ||||
| 5030 | 62907015008 | 2.82 | 3.41 | |
| SYSTEEMKOF.KUNSTST.480X315X135 | ||||
| 5080 | 33901118010 | 61.60 | 74.54 | |
| Handle | ||||
| 5200 | 32119122000 | 7.66 | 9.27 | |
| Wire clamp | ||||
| 5210 | 30232050000 | 8.63 | 10.44 | |
| No longer available, no replacement | ||||
| 6000 | 32160003182 | |||
| Safety instruction | ||||
| 9020 | 34130054061 | 1.86 | 2.25 | |
