Here you will find all available parts and drawings of the 'Fein 90801025003 (Balancer5_)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

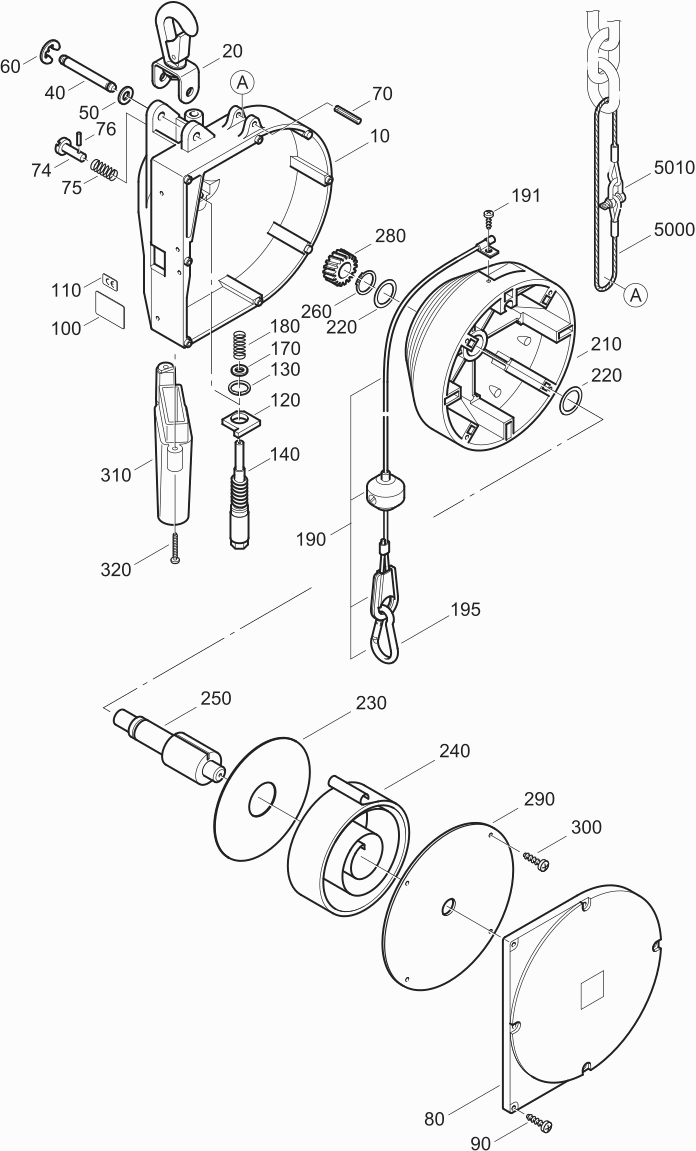

Technical drawing of model Fein 90801025003 (Balancer5_)
Spare parts list of model Fein 90801025003 (Balancer5_)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 10 | 31207134009 | 58.06 | 70.25 | |
| Carabiner | ||||
| 20 | 30232031016 | 59.33 | 71.79 | |
| Bolt | ||||
| 40 | 30217328001 | 2.09 | 2.53 | |
| Disc | ||||
| 50 | 42401019085 | 1.56 | 1.89 | |
| Circlip | ||||
| 60 | 42634010006 | 1.56 | 1.89 | |
| Clamping sleeve | ||||
| 70 | 40238052007 | 1.04 | 1.26 | |
| Bolt | ||||
| 74 | 30217273003 | 6.41 | 7.76 | |
| Spiral spring | ||||
| 75 | 30901025000 | 1.88 | 2.27 | |
| Clamping sleeve | ||||
| 76 | 40238042008 | 1.04 | 1.26 | |
| Cover | ||||
| 80 | 32429077010 | 19.78 | 23.93 | |
| Sheet metal screw | ||||
| 90 | 43046020001 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 100 | 32217219005 | |||
| Information sign | ||||
| 110 | 32217371007 | 0.90 | 1.09 | |
| Lug | ||||
| 120 | 30229215002 | 2.51 | 3.04 | |
| Circlip | ||||
| 130 | 42643003004 | 1.56 | 1.89 | |
| WORM | ||||
| 140 | 33806008007 | 46.57 | 56.35 | |
| Disc | ||||
| 170 | 32402032007 | 1.04 | 1.26 | |
| Spiral spring | ||||
| 180 | 30901284005 | 11.28 | 13.65 | |
| Rope | ||||
| 190 | 30231023010 | 51.04 | 61.76 | |
| Sheet metal screw | ||||
| 191 | 43046001002 | 1.56 | 1.89 | |
| Carabiner | ||||
| 195 | 30232026000 | 16.59 | 20.07 | |
| Rope drum | ||||
| 210 | 32102028002 | 46.57 | 56.35 | |
| Disc | ||||
| 220 | 32624030028 | 1.80 | 2.18 | |
| Disc | ||||
| 230 | 32408283003 | 8.90 | 10.77 | |
| Spiral spring | ||||
| 240 | 30903026008 | 72.73 | 88.00 | |
| Bolt | ||||
| 250 | 33413052001 | 53.59 | 64.84 | |
| Circlip | ||||
| 260 | 42616009003 | 1.56 | 1.89 | |
| Gear-wheel | ||||
| 280 | 33663114006 | 35.09 | 42.46 | |
| Disc | ||||
| 290 | 32408284001 | 13.72 | 16.60 | |
| Sheet metal screw | ||||
| 300 | 43046020001 | 1.56 | 1.89 | |
| Guide | ||||
| 310 | 30240256007 | 24.24 | 29.33 | |
| Screw | ||||
| 320 | 43070013002 | 1.56 | 1.89 | |
| Rope | ||||
| 5000 | 30231030004 | 9.89 | 11.97 | |
| Shackle | ||||
| 5010 | 30232025007 | 8.90 | 10.77 | |
| Operating instructions Balancer | ||||
| 9000 | 34101225060 | 1.96 | 2.37 | |
