Here you will find all available parts and drawings of the 'Fein 90801057000 (Balancer45_)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

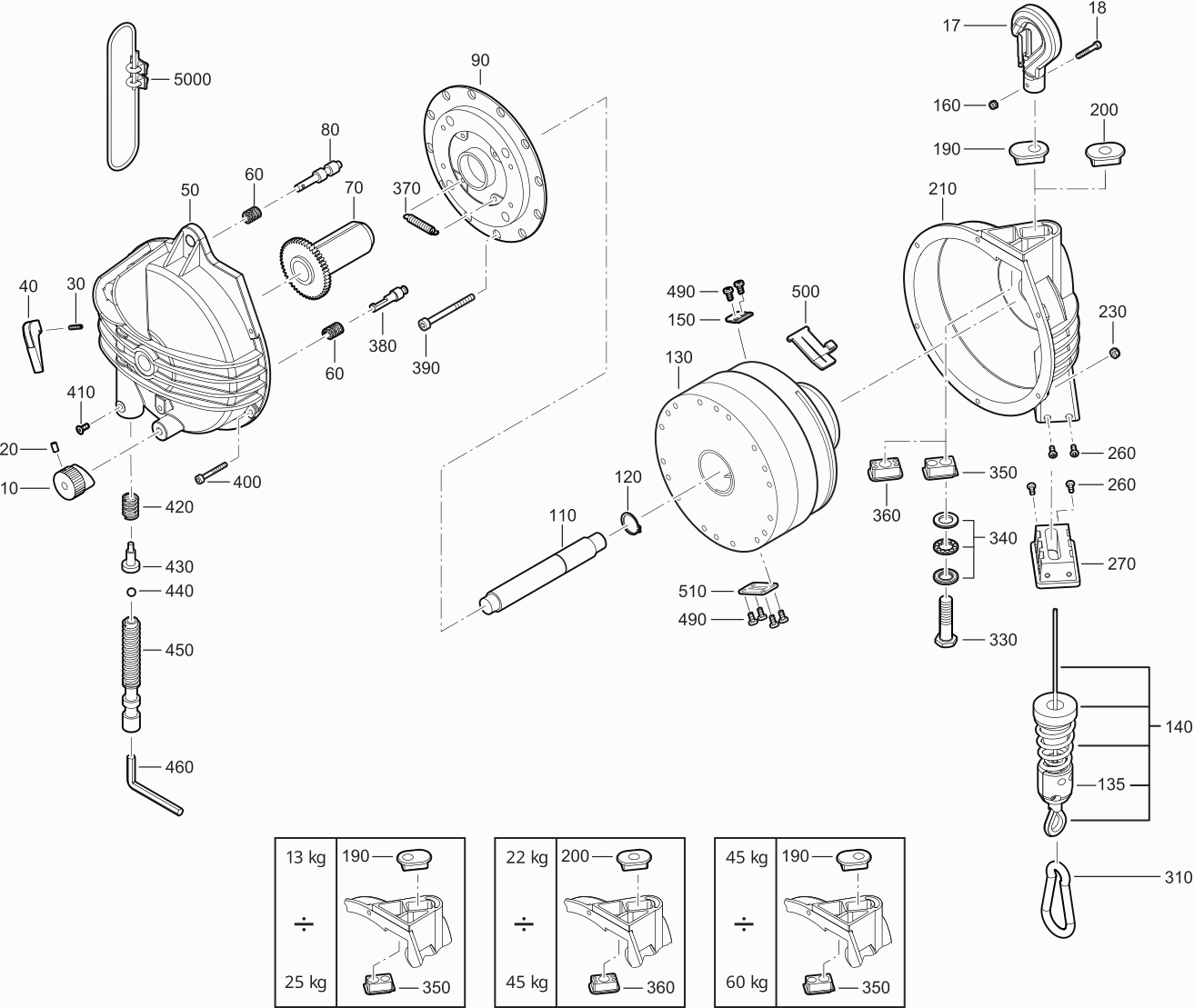

Technical drawing of model Fein 90801057000 (Balancer45_)
Spare parts list of model Fein 90801057000 (Balancer45_)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Rotary knob | ||||
| 10 | 31334001006 | 22.97 | 27.79 | |
| Hook | ||||
| 17 | 31334014000 | 58.06 | 70.25 | |
| Cylinder head screw | ||||
| 18 | 43035072042 | 1.56 | 1.89 | |
| Set screw | ||||
| 20 | 43045014067 | 3.48 | 4.21 | |
| Clamping sleeve | ||||
| 30 | 40238012001 | 1.56 | 1.89 | |
| Lever | ||||
| 40 | 31334002009 | 4.32 | 5.23 | |
| Housing | ||||
| 50 | 31334003003 | 230.96 | 279.46 | |
| Spring | ||||
| 60 | 31334004001 | 4.52 | 5.47 | |
| Gear-wheel | ||||
| 70 | 31334005005 | 81.66 | 98.81 | |
| Bolt | ||||
| 80 | 31334006008 | 13.40 | 16.21 | |
| Circlip | ||||
| 90 | 31334007002 | 174.81 | 211.52 | |
| Shaft | ||||
| 110 | 31334008000 | 39.56 | 47.87 | |
| Circlip | ||||
| 120 | 42616014009 | 1.56 | 1.89 | |
| Rope drum | ||||
| 130 | 31334041000 | 1006.76 | 1218.18 | |
| Terminal | ||||
| 135 | 31334048000 | 55.51 | 67.17 | |
| Rope | ||||
| 140 | 31334043000 | 145.46 | 176.01 | |
| Plate | ||||
| 150 | 31334044000 | 8.50 | 10.28 | |
| Nut | ||||
| 160 | 42019012049 | 1.56 | 1.89 | |
| Hook | ||||
| 170 | 31334014000 | 58.06 | 70.25 | |
| Cylinder head screw | ||||
| 180 | 43035072042 | 1.56 | 1.89 | |
| Plug | ||||
| 200 | 31334016007 | 6.26 | 7.57 | |
| Housing | ||||
| 210 | 31334017001 | 228.40 | 276.36 | |
| Circlip | ||||
| 220 | 42616009003 | 1.56 | 1.89 | |
| Nut | ||||
| 230 | 42019009051 | 1.04 | 1.26 | |
| Countersunk screw | ||||
| 260 | 31334031003 | 1.04 | 1.26 | |
| Guide | ||||
| 270 | 31334018009 | 28.07 | 33.96 | |
| Carabiner | ||||
| 310 | 31334021004 | 45.30 | 54.81 | |
| Screw | ||||
| 330 | 31334033000 | 16.59 | 20.07 | |
| Grooved ball bearing | ||||
| 340 | 31334034008 | 14.36 | 17.38 | |
| Plug | ||||
| 360 | 31334023001 | 5.15 | 6.23 | |
| Spring | ||||
| 370 | 31334024009 | 6.61 | 8.00 | |
| Bolt | ||||
| 380 | 31334025003 | 28.07 | 33.96 | |
| Screw | ||||
| 390 | 31334049000 | 1.26 | 1.52 | |
| Screw | ||||
| 400 | 31334036005 | 1.04 | 1.26 | |
| Countersunk screw | ||||
| 410 | 31334029002 | 1.04 | 1.26 | |
| Spring | ||||
| 420 | 31334026006 | 5.57 | 6.74 | |
| Bolt | ||||
| 430 | 31334027000 | 10.16 | 12.29 | |
| Ball | ||||
| 440 | 31334037009 | 1.04 | 1.26 | |
| Screw | ||||
| 450 | 31334028008 | 79.11 | 95.72 | |
| No information available, not orderable | ||||
| 460 | 62907006002 | |||
| No information available, not orderable | ||||
| 480 | 30240239014 | |||
| Screw | ||||
| 490 | 31334047000 | 1.67 | 2.02 | |
| Plate | ||||
| 500 | 31334045000 | 11.74 | 14.21 | |
| Plate | ||||
| 510 | 31334046000 | 6.61 | 8.00 | |
| Rope | ||||
| 5000 | 31334038016 | 28.07 | 33.96 | |
| Operating instructions Balancer | ||||
| 9000 | 34101225060 | 1.96 | 2.37 | |
| Safety instruction | ||||
| 9020 | 34130054061 | 1.87 | 2.26 | |
