Here you will find all available parts and drawings of the 'Fein 71126600940 ( ASW18-6-PC )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

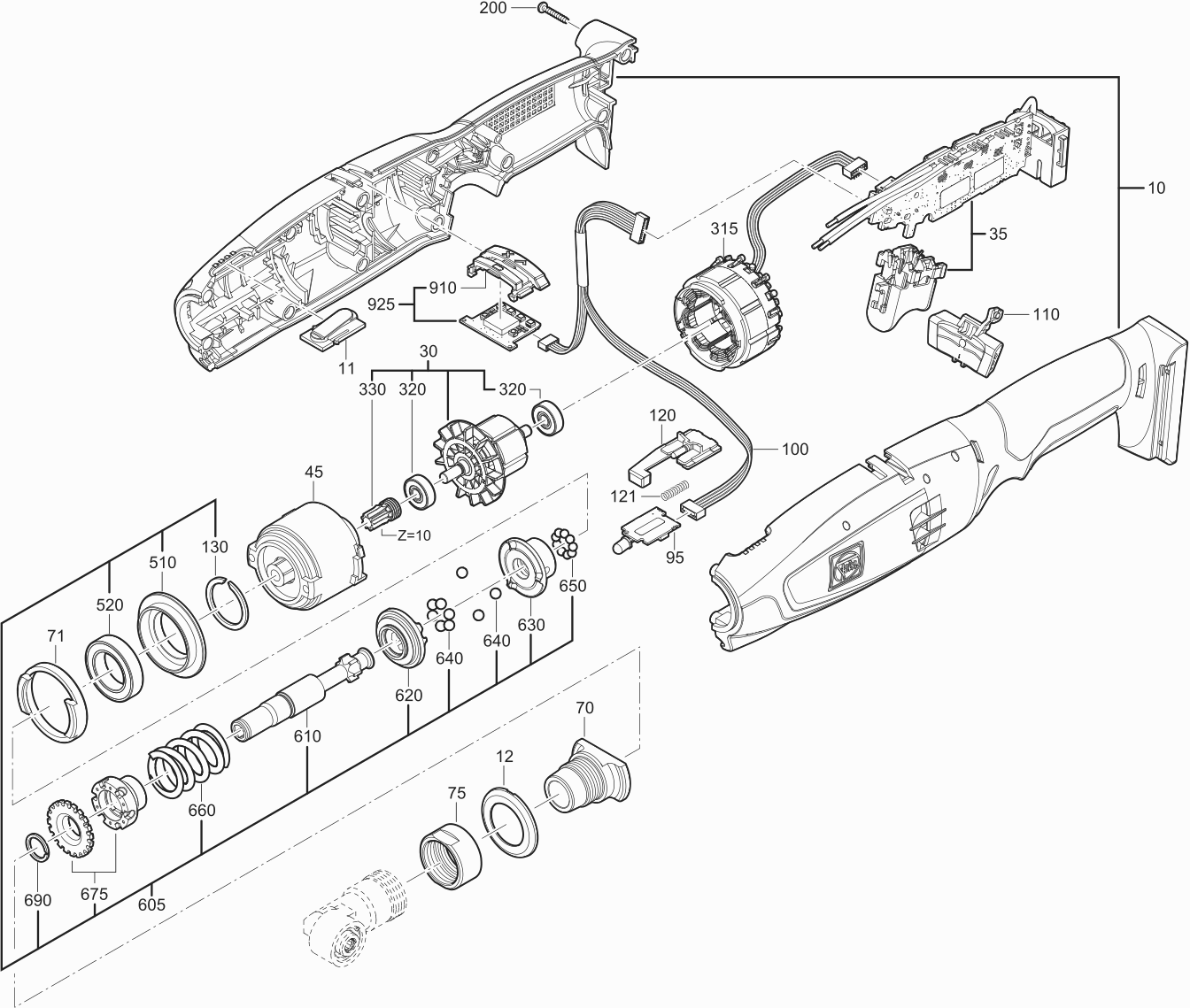

Technical drawing of model Fein 71126600940 ( ASW18-6-PC )
Spare parts list of model Fein 71126600940 ( ASW18-6-PC )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor housing | ||||
| 10 | 31901197010 | 66.35 | 80.28 | |
| Cover | ||||
| 11 | 32424025004 | 9.32 | 11.28 | |
| Sleeve | ||||
| 12 | 30501352000 | 3.34 | 4.04 | |
| Sleeve | ||||
| 20 | 30501352000 | 3.34 | 4.04 | |
| Rotor | ||||
| 30 | 33101013010 | 144.19 | 174.47 | |
| Electronics | ||||
| 35 | 30762621990 | 200.20 | 242.24 | |
| Gearbox | ||||
| 45 | 30109195990 | 123.77 | 149.76 | |
| Flange | ||||
| 70 | 32436080000 | 34.45 | 41.68 | |
| Ring | ||||
| 71 | 32601279000 | 29.35 | 35.51 | |
| Thread ring | ||||
| 75 | 30509048000 | 22.01 | 26.63 | |
| Electronics | ||||
| 95 | 30762526990 | 24.24 | 29.33 | |
| Cable harness | ||||
| 100 | 30719933010 | 28.39 | 34.35 | |
| Toggle switch | ||||
| 110 | 30701310010 | 3.34 | 4.04 | |
| Slide switch | ||||
| 120 | 32804002010 | 11.10 | 13.43 | |
| Spiral spring | ||||
| 121 | 30901370000 | 3.48 | 4.21 | |
| Circlip | ||||
| 130 | 42615000002 | 1.04 | 1.26 | |
| Screw | ||||
| 200 | 43072015000 | 1.04 | 1.26 | |
| Stator | ||||
| 315 | 51113017800 | 75.28 | 91.09 | |
| Grooved ball bearing | ||||
| 320 | 41701000012 | 6.41 | 7.76 | |
| Gear-wheel | ||||
| 330 | 33605011000 | 29.35 | 35.51 | |
| Flange | ||||
| 510 | 32436079000 | 16.59 | 20.07 | |
| Grooved ball bearing | ||||
| 520 | 41701108222 | 14.04 | 16.99 | |
| Clutch | ||||
| 605 | 30104144050 | 215.60 | 260.88 | |
| Clutch | ||||
| 605 | 99100000977 | 138.60 | 167.71 | |
| Tool holder | ||||
| 610 | 30104152000 | 54.87 | 66.39 | |
| Clutch ring | ||||
| 620 | 30103052000 | 100.80 | 121.97 | |
| Clutch ring | ||||
| 630 | 30102108000 | 98.25 | 118.88 | |
| Ball | ||||
| 640 | 41708018000 | 1.04 | 1.26 | |
| Ball | ||||
| 650 | 41708017002 | 1.04 | 1.26 | |
| Spiral spring | ||||
| 660 | 30901408000 | 16.91 | 20.46 | |
| Pressure piece Set | ||||
| 675 | 32602092010 | 38.92 | 47.09 | |
| Circlip | ||||
| 690 | 42615110009 | 1.04 | 1.26 | |
| Cover | ||||
| 910 | 31201148000 | 6.61 | 8.00 | |
| Electronics | ||||
| 925 | 30762527990 | 45.30 | 54.81 | |
| RFID Transponder | ||||
| 2500 | 32217517000 | 1.25 | 1.51 | |
| ACCUTEC SLEUTEL | ||||
| 5000 | 32123002006 | 11.34 | 13.72 | |
| Circlip | ||||
| 5011 | 42615000004 | 1.04 | 1.26 | |
| Bolt | ||||
| 5020 | 30216171020 | 33.00 | 39.93 | |
| Bolt | ||||
| 5021 | 30216171000 | 16.27 | 19.69 | |
| Spiral spring | ||||
| 5022 | 30901410000 | 11.52 | 13.94 | |
| Plug | ||||
| 5023 | 30218037000 | 14.30 | 17.30 | |
| Bolt | ||||
| 5030 | 30217340015 | 27.12 | 32.82 | |
| Spiral spring | ||||
| 5031 | 30901360009 | 11.16 | 13.50 | |
| Bolt | ||||
| 5032 | 30217340006 | 13.75 | 16.64 | |
| Tool holder | ||||
| 5040 | 30102109010 | 17.88 | 21.63 | |
| Ball | ||||
| 5041 | 41708015005 | 1.04 | 1.26 | |
| Sleeve | ||||
| 5042 | 30503144002 | 9.47 | 11.46 | |
| Spiral spring | ||||
| 5043 | 30901315002 | 3.48 | 4.21 | |
| Ring | ||||
| 5044 | 32601242005 | 5.99 | 7.25 | |
| Circlip | ||||
| 5045 | 42615081002 | 1.04 | 1.26 | |
| Angled head | ||||
| 5110 | 90102020020 | 513.70 | 621.58 | |
| Angled head | ||||
| 5120 | 90102019020 | 513.70 | 621.58 | |
| Angled head | ||||
| 5130 | 90102018020 | 513.70 | 621.58 | |
| Angled head | ||||
| 5140 | 90102021020 | 513.70 | 621.58 | |
| RECHTAANDRIJVING 1/4 1/4IN | ||||
| 5160 | 90106001020 | 204.60 | 247.57 | |
| RECHTAANDRIJVING 3/8 INW. | ||||
| 5170 | 90106002020 | 204.60 | 247.57 | |
| KOFFER | ||||
| 5300 | 33901680000 | 63.80 | 77.20 | |
| No information available, not orderable | ||||
| 5310 | 33904664000 | |||
| KOFFER | ||||
| 5320 | 33906420000 | 10.56 | 12.78 | |
| ACCU 18V 6.0 AH LI-ION | ||||
| 5500 | 92604175020 | 138.60 | 167.71 | |
| ACCU 18V 3.0 AH LI-ION | ||||
| 5500 | 92604182020 | 99.00 | 119.79 | |
| SNELLADER ALG80 | ||||
| 5550 | 92604180010 | 78.10 | 94.50 | |
| No information available, not orderable | ||||
| 6000 | 04012301000 | |||
| No information available, not orderable | ||||
| 6010 | 04012301000 | |||
| PROGRAMMEER ADAPTER PC ACCUTEC | ||||
| 7000 | 92604163020 | 566.50 | 685.46 | |
| Extractor tool (SW0032, DI 16 MM) | ||||
| 7010 | 64114037000 | 12.92 | 15.63 | |
| Chuck cone (SW0020, ID 32 MM, M 8) | ||||
| 7020 | 64107032000 | 139.72 | 169.06 | |
| Extractor tool (SW0016, L 130 MM, M 12) | ||||
| 7030 | 64104150008 | 116.75 | 141.27 | |
| Assembly aid (SW0065, KONUS, 8 ... 11 MM) | ||||
| 7040 | 64122135010 | 20.35 | 24.62 | |
| No information available, not orderable | ||||
| 9000 | 34101305060 | |||
| Safety instruction | ||||
| 9020 | 34130465060 | 4.02 | 4.86 | |
