Here you will find all available parts and drawings of the 'Fein 71124100920 (ASW10-6-2ST)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

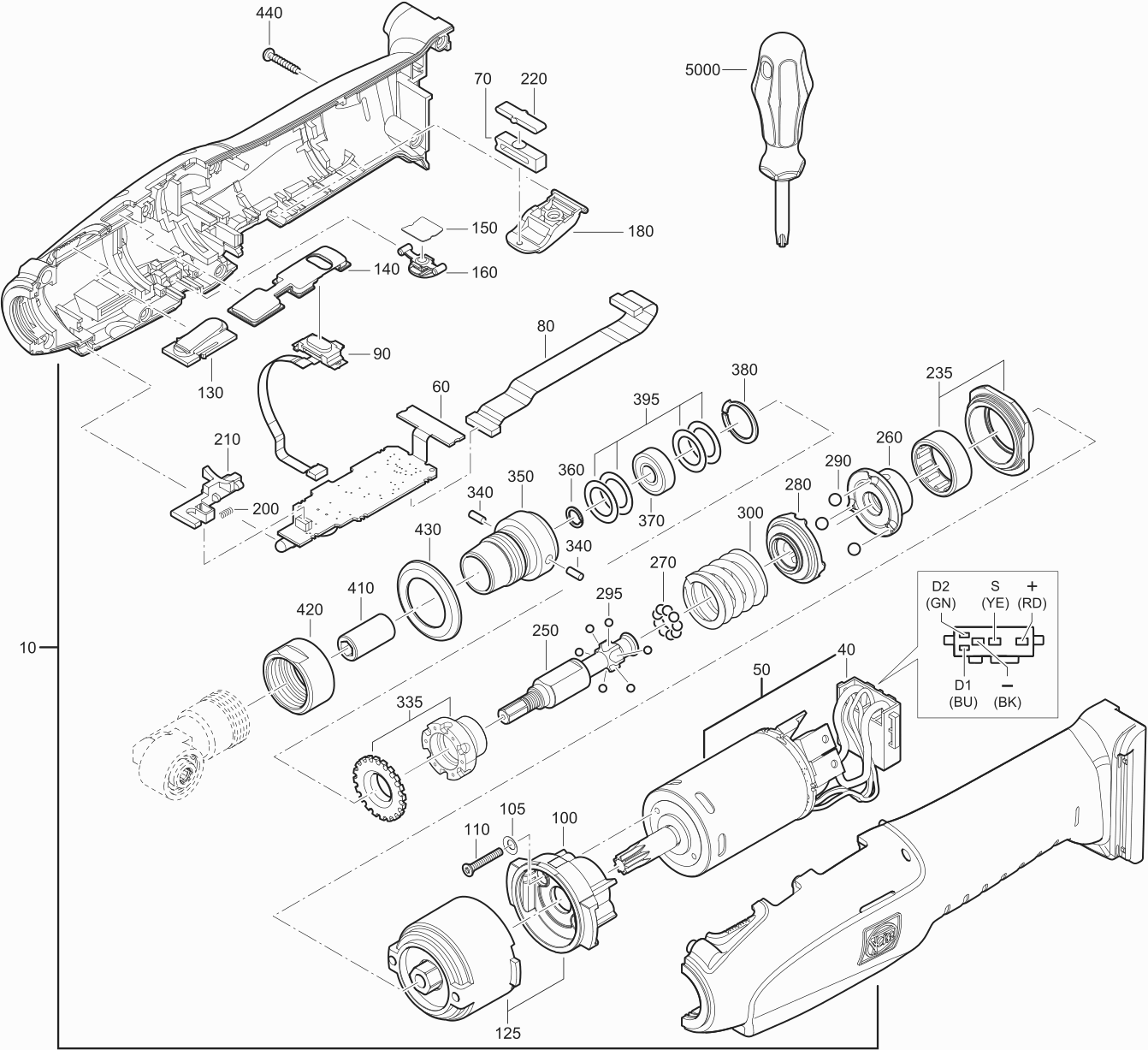

Technical drawing of model Fein 71124100920 (ASW10-6-2ST)
Spare parts list of model Fein 71124100920 (ASW10-6-2ST)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor housing | ||||
| 10 | 31912105010 | 67.63 | 81.83 | |
| MOTOR | ||||
| 50 | 54199040800 | 371.32 | 449.30 | |
| Electronics | ||||
| 60 | 30762433990 | 229.68 | 277.91 | |
| Pressure piece | ||||
| 70 | 30220065000 | 8.08 | 9.78 | |
| Connecting cable | ||||
| 80 | 30719845010 | 19.46 | 23.55 | |
| Foil conductor | ||||
| 90 | 30762377020 | 56.10 | 67.88 | |
| Flange | ||||
| 100 | 32436074000 | 23.29 | 28.18 | |
| Circlip | ||||
| 105 | 42443003043 | 1.56 | 1.89 | |
| Countersunk screw | ||||
| 110 | 43075001030 | 1.04 | 1.26 | |
| Planetary gear | ||||
| 125 | 30109195030 | 158.22 | 191.45 | |
| Cover | ||||
| 130 | 32424027000 | 10.58 | 12.80 | |
| Cover | ||||
| 140 | 32424026000 | 10.86 | 13.14 | |
| Leaf spring | ||||
| 150 | 30904043000 | 2.93 | 3.55 | |
| Switch pushbutton | ||||
| 160 | 32805221000 | 7.80 | 9.44 | |
| Switch pushbutton | ||||
| 180 | 32805220000 | 7.80 | 9.44 | |
| Spiral spring | ||||
| 200 | 30901379000 | 2.09 | 2.53 | |
| Slide switch | ||||
| 210 | 32804003010 | 14.36 | 17.38 | |
| Switch pushbutton | ||||
| 220 | 32816710000 | 7.80 | 9.44 | |
| Bush | ||||
| 235 | 30508040010 | 27.43 | 33.19 | |
| Tool holder | ||||
| 250 | 30104143000 | 84.22 | 101.91 | |
| Clutch ring | ||||
| 260 | 30103051001 | 116.12 | 140.51 | |
| Ball | ||||
| 270 | 41708017002 | 1.56 | 1.89 | |
| Clutch ring | ||||
| 280 | 30103052000 | 100.80 | 121.97 | |
| Clutch ring | ||||
| 280 | 30103064000 | 89.10 | 107.81 | |
| Ball | ||||
| 290 | 41708018000 | 1.56 | 1.89 | |
| Ball | ||||
| 295 | 41708018000 | 1.56 | 1.89 | |
| Spiral spring | ||||
| 300 | 30901388000 | 9.32 | 11.28 | |
| Pressure piece Set | ||||
| 335 | 32602092010 | 38.92 | 47.09 | |
| Straight pin | ||||
| 340 | 40201022008 | 1.56 | 1.89 | |
| Flange | ||||
| 350 | 32436073000 | 22.97 | 27.79 | |
| Circlip | ||||
| 360 | 42615090002 | 1.56 | 1.89 | |
| Grooved ball bearing | ||||
| 370 | 41701001260 | 5.77 | 6.98 | |
| Circlip | ||||
| 380 | 42616033009 | 1.56 | 1.89 | |
| Disc | ||||
| 395 | 32624192990 | 9.60 | 11.62 | |
| Clutch part | ||||
| 410 | 30101038000 | 29.35 | 35.51 | |
| Thread ring | ||||
| 420 | 30509048000 | 22.01 | 26.63 | |
| Sleeve | ||||
| 430 | 30501354000 | 3.48 | 4.21 | |
| Screw | ||||
| 440 | 43072015000 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 777 | 99100001831 | |||
| Socket wrench | ||||
| 5000 | 32123002006 | 11.88 | 14.37 | |
| No information available, not orderable | ||||
| 5010 | 90102012010 | |||
| Circlip | ||||
| 5011 | 42615000004 | 1.56 | 1.89 | |
| Angled head Basic | ||||
| 5020 | 90102014010 | 437.00 | 528.77 | |
| Bolt | ||||
| 5020 | 30216171020 | 33.00 | 39.93 | |
| Bolt | ||||
| 5021 | 30216171000 | 16.27 | 19.69 | |
| Spiral spring | ||||
| 5022 | 30901410000 | 11.52 | 13.94 | |
| Plug | ||||
| 5023 | 30218037000 | 14.30 | 17.30 | |
| Bolt | ||||
| 5030 | 30217340015 | 27.12 | 32.82 | |
| Spiral spring | ||||
| 5031 | 30901360009 | 11.16 | 13.50 | |
| Bolt | ||||
| 5032 | 30217340006 | 13.75 | 16.64 | |
| Tool holder | ||||
| 5040 | 30102109010 | 17.88 | 21.63 | |
| Ball | ||||
| 5041 | 41708015005 | 1.56 | 1.89 | |
| Sleeve | ||||
| 5042 | 30503144002 | 9.47 | 11.46 | |
| Spiral spring | ||||
| 5043 | 30901315002 | 3.48 | 4.21 | |
| Ring | ||||
| 5044 | 32601242005 | 5.99 | 7.25 | |
| Circlip | ||||
| 5045 | 42615081002 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 6000 | 04012301000 | |||
| Assembly aid (SW0065, KONUS, 8 ... 11 MM) | ||||
| 7065 | 64122135010 | 21.01 | 25.42 | |
| No information available, not orderable | ||||
| 9000 | 34101172060 | |||
| Safety instruction | ||||
| 9020 | 34130054061 | 1.87 | 2.26 | |
