Here you will find all available parts and drawings of the 'Fein 72108800113 (ASSE636II-28BT)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

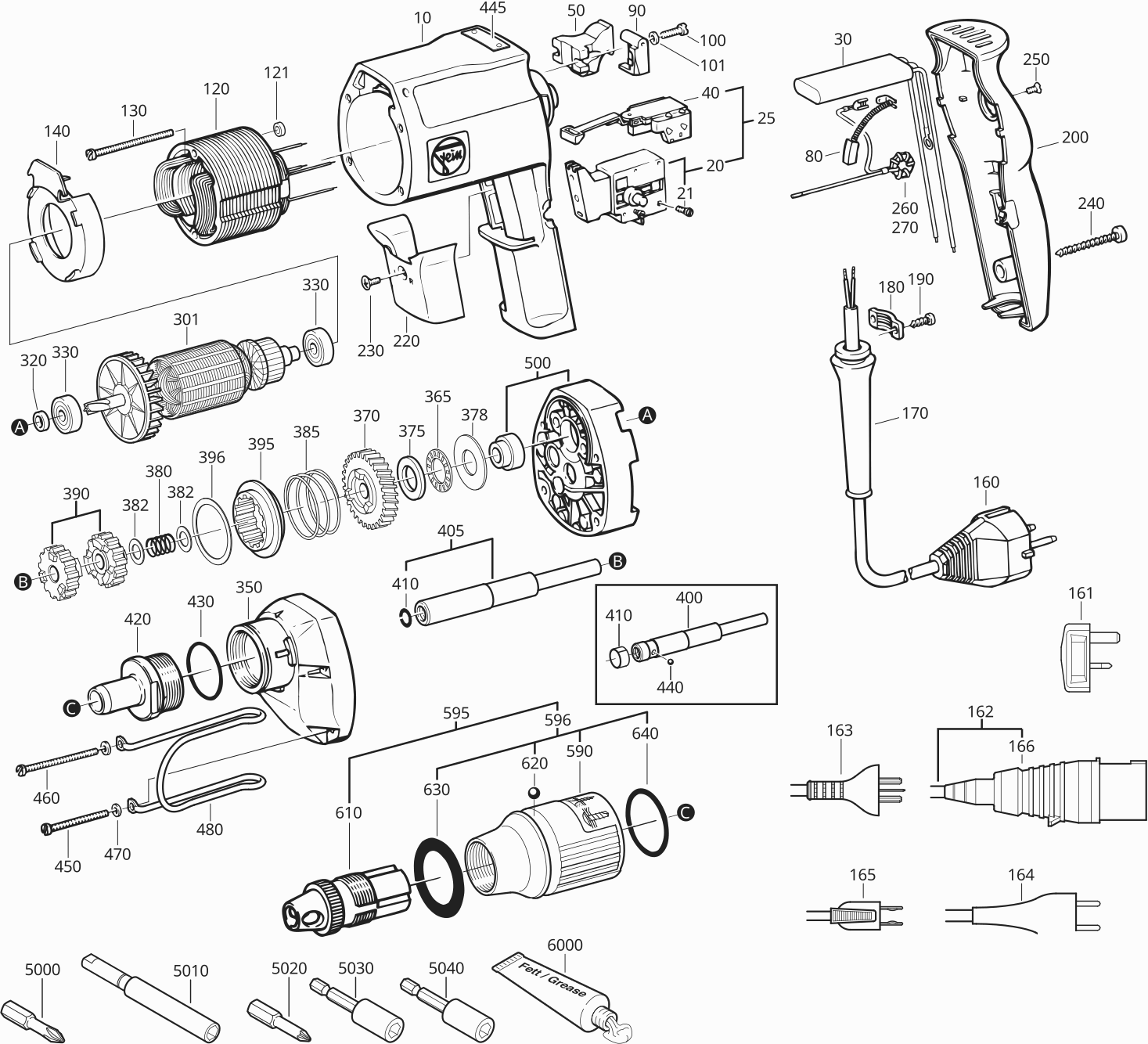

Technical drawing of model Fein 72108800113 (ASSE636II-28BT)
Spare parts list of model Fein 72108800113 (ASSE636II-28BT)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor housing | ||||
| 10 | 31901117021 | 107.18 | 129.69 | |
| Speed setting switch | ||||
| 20 | 30701234002 | 67.63 | 81.83 | |
| Cylinder head screw | ||||
| 21 | 43013052033 | 1.56 | 1.89 | |
| No longer available, no replacement | ||||
| 25 | 30701234011 | |||
| No longer available, no replacement | ||||
| 30 | 30722179010 | |||
| Toggle switch | ||||
| 40 | 30701238001 | 13.08 | 15.83 | |
| Brush holder | ||||
| 50 | 30712043001 | 8.08 | 9.78 | |
| Carbon brush | ||||
| 80 | 30711059007 | 7.24 | 8.76 | |
| Cap | ||||
| 90 | 30713010009 | 1.67 | 2.02 | |
| Cylinder head screw | ||||
| 100 | 43002014998 | 1.04 | 1.26 | |
| Circlip | ||||
| 101 | 42443002992 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 120 | 51274007118 | |||
| No information available, not orderable | ||||
| 121 | 32601267006 | |||
| Cylinder head screw | ||||
| 130 | 43002024997 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 140 | 31428122005 | |||
| No information available, not orderable | ||||
| 160 | 30706322014 | |||
| Cable grommet | ||||
| 170 | 31413142009 | 3.34 | 4.04 | |
| Cable clamping piece | ||||
| 180 | 32431021007 | 1.56 | 1.89 | |
| Sheet metal screw | ||||
| 190 | 43046002005 | 1.56 | 1.89 | |
| Cover | ||||
| 200 | 31201066005 | 9.89 | 11.97 | |
| Switch pushbutton | ||||
| 220 | 32805120000 | 3.34 | 4.04 | |
| Countersunk screw | ||||
| 230 | 43066006032 | 1.04 | 1.26 | |
| Sheet metal screw | ||||
| 240 | 43046024005 | 1.04 | 1.26 | |
| Countersunk screw | ||||
| 250 | 43066002992 | 1.04 | 1.26 | |
| Connecting cable | ||||
| 260 | 30719117014 | 3.68 | 4.45 | |
| Connecting cable | ||||
| 270 | 30719118012 | 3.68 | 4.45 | |
| No information available, not orderable | ||||
| 301 | 53274003111 | |||
| Sealing ring | ||||
| 320 | 32612084001 | 3.13 | 3.79 | |
| Grooved ball bearing | ||||
| 330 | 41701001172 | 8.21 | 9.93 | |
| Gearbox housing | ||||
| 350 | 31508235003 | 9.89 | 11.97 | |
| No information available, not orderable | ||||
| 355 | 41709040005 | |||
| Needle cage | ||||
| 365 | 41715041009 | 13.72 | 16.60 | |
| No longer available, no replacement | ||||
| 370 | 33657161007 | |||
| Shaft disc | ||||
| 375 | 41719027001 | 15.95 | 19.30 | |
| Disc | ||||
| 378 | 41719026007 | 2.51 | 3.04 | |
| Spiral spring | ||||
| 380 | 30901139007 | 1.56 | 1.89 | |
| Disc | ||||
| 382 | 32624094032 | 1.56 | 1.89 | |
| Spiral spring | ||||
| 385 | 30901339009 | 1.25 | 1.51 | |
| Clutch ring | ||||
| 390 | 30102101013 | 51.04 | 61.76 | |
| Clutch part | ||||
| 395 | 30101037004 | 29.03 | 35.13 | |
| No information available, not orderable | ||||
| 396 | 32408375002 | |||
| No longer available, no replacement | ||||
| 405 | 30104110011 | |||
| Sealing ring | ||||
| 410 | 40612112007 | 1.56 | 1.89 | |
| Bush | ||||
| 420 | 31603014004 | 45.94 | 55.59 | |
| Sealing ring | ||||
| 430 | 40612093004 | 1.56 | 1.89 | |
| Cylinder head screw | ||||
| 450 | 43002021992 | 1.04 | 1.26 | |
| Cylinder head screw | ||||
| 460 | 43002024997 | 1.04 | 1.26 | |
| Circlip | ||||
| 470 | 42443002992 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 480 | 30232038001 | |||
| Intermediate gear box | ||||
| 500 | 31506307026 | 34.45 | 41.68 | |
| No information available, not orderable | ||||
| 590 | 30505061004 | |||
| No information available, not orderable | ||||
| 595 | 32127057017 | |||
| No information available, not orderable | ||||
| 596 | 30505061013 | |||
| No information available, not orderable | ||||
| 610 | 32127057008 | |||
| Ball | ||||
| 620 | 41708019004 | 1.56 | 1.89 | |
| Sealing ring | ||||
| 630 | 40612071009 | 3.48 | 4.21 | |
| Sealing ring | ||||
| 640 | 40612068004 | 3.68 | 4.45 | |
| No information available, not orderable | ||||
| 5000 | 62712109012 | |||
| No information available, not orderable | ||||
| 5010 | 60110210018 | |||
| No information available, not orderable | ||||
| 5020 | 62712112007 | |||
| No longer available, no replacement | ||||
| 6000 | 32160003217 | |||
