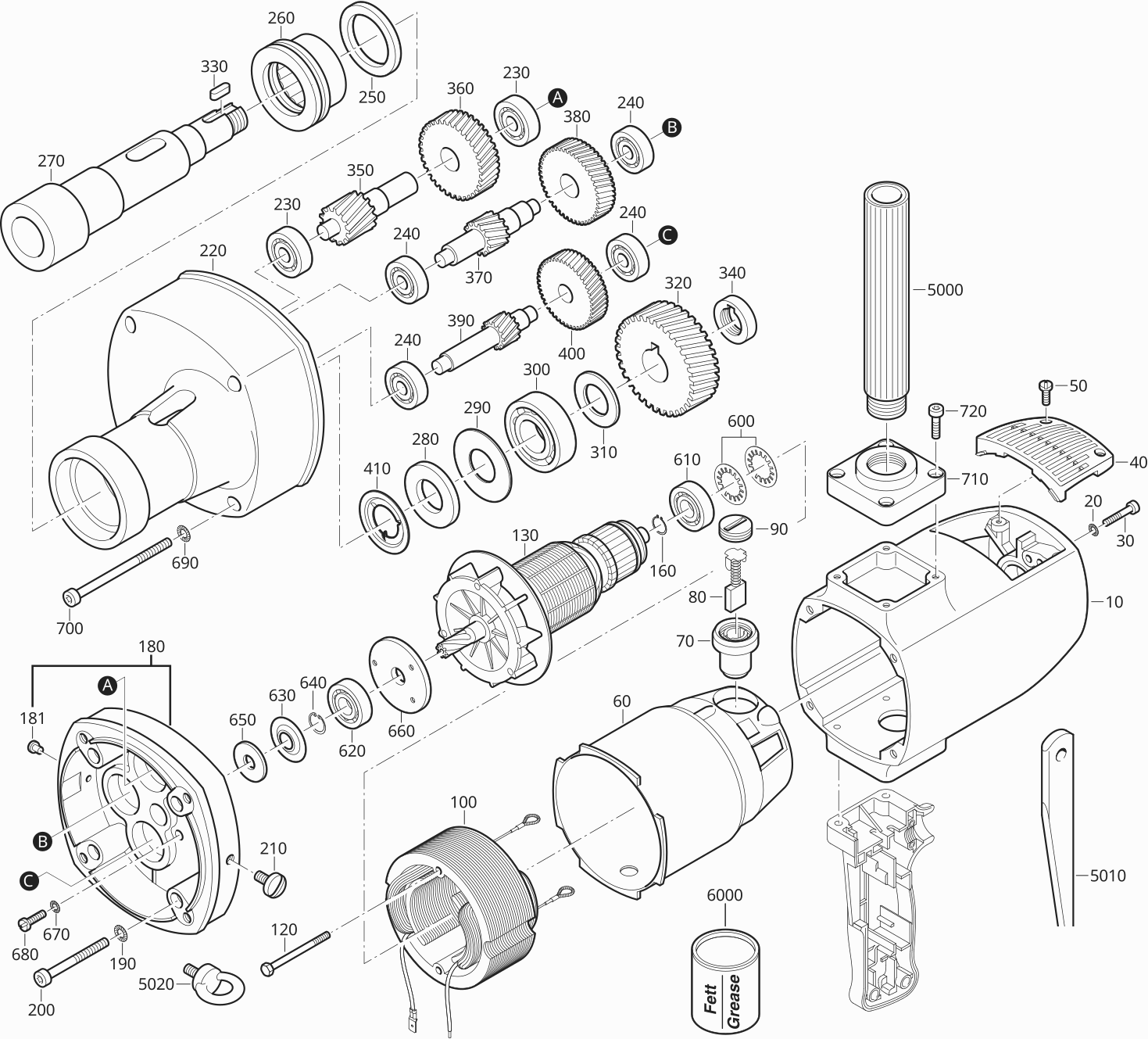

Technical drawing of model Fein 72050300624 (ASq672-1)
Spare parts list of model Fein 72050300624 (ASq672-1)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 10 | 31903095007 | 317.72 | 384.44 | |
| Circlip | ||||
| 20 | 42443004057 | 1.56 | 1.89 | |
| Cylinder head screw | ||||
| 30 | 43033014058 | 1.04 | 1.26 | |
| Cover | ||||
| 40 | 32427031001 | 5.99 | 7.25 | |
| Cylinder head screw | ||||
| 50 | 43002033045 | 1.56 | 1.89 | |
| Housing | ||||
| 60 | 31913018009 | 59.33 | 71.79 | |
| Brush holder | ||||
| 70 | 30712047047 | 15.31 | 18.53 | |
| Carbon brush | ||||
| 80 | 30711061008 | 11.87 | 14.36 | |
| Cap | ||||
| 90 | 30713009007 | 2.29 | 2.77 | |
| Stator | ||||
| 100 | 51232003222 | 156.95 | 189.91 | |
| Hexagon socket screw | ||||
| 120 | 43001007059 | 1.04 | 1.26 | |
| Armature | ||||
| 130 | 53232001227 | 322.83 | 390.62 | |
| Ring | ||||
| 160 | 42628001006 | 1.56 | 1.89 | |
| Intermediate gear box | ||||
| 180 | 31506180006 | 410.87 | 497.15 | |
| Nipple | ||||
| 181 | 32131001002 | 2.71 | 3.28 | |
| Circlip (SW0018, S 6) | ||||
| 190 | 42443005064 | 1.56 | 1.89 | |
| Cylinder head screw | ||||
| 200 | 43033037060 | 1.25 | 1.51 | |
| Flat headed screw | ||||
| 210 | 43003069085 | 1.67 | 2.02 | |
| Gearbox housing | ||||
| 220 | 31509059006 | 694.14 | 839.91 | |
| Grooved ball bearing | ||||
| 230 | 41701213011 | 7.80 | 9.44 | |
| Grooved ball bearing | ||||
| 240 | 41701210015 | 7.38 | 8.93 | |
| Felt ring | ||||
| 250 | 30601065009 | 6.41 | 7.76 | |
| Needle bearing | ||||
| 260 | 41720002022 | 262.86 | 318.06 | |
| Shaft | ||||
| 270 | 33402039008 | 352.18 | 426.14 | |
| Felt ring | ||||
| 280 | 30601066002 | 5.77 | 6.98 | |
| Disc | ||||
| 290 | 32411061006 | 12.25 | 14.82 | |
| Grooved ball bearing | ||||
| 300 | 41701229027 | 52.32 | 63.31 | |
| Disc | ||||
| 310 | 32408178005 | 15.31 | 18.53 | |
| Gear-wheel | ||||
| 320 | 33669001005 | 141.64 | 171.38 | |
| Feather key | ||||
| 330 | 40221041005 | 6.19 | 7.49 | |
| Nut | ||||
| 340 | 42011028005 | 22.33 | 27.02 | |
| Gear-wheel | ||||
| 350 | 33769001004 | 109.74 | 132.79 | |
| Gear-wheel | ||||
| 360 | 33667008001 | 102.08 | 123.52 | |
| Gear-wheel | ||||
| 370 | 33767006008 | 104.63 | 126.60 | |
| Gear-wheel | ||||
| 380 | 33665015009 | 79.11 | 95.72 | |
| Shaft, toothed | ||||
| 390 | 33765006002 | 103.36 | 125.07 | |
| Gear-wheel | ||||
| 400 | 33663019000 | 53.59 | 64.84 | |
| Disc | ||||
| 410 | 32408199007 | 8.08 | 9.78 | |
| Cup spring | ||||
| 600 | 30905019003 | 1.25 | 1.51 | |
| Grooved ball bearing | ||||
| 610 | 41701210021 | 6.19 | 7.49 | |
| Grooved ball bearing | ||||
| 620 | 41701213027 | 8.50 | 10.28 | |
| Disc | ||||
| 630 | 32411052000 | 4.52 | 5.47 | |
| Circlip | ||||
| 640 | 42643001007 | 1.56 | 1.89 | |
| Felt ring | ||||
| 650 | 30601055000 | 1.04 | 1.26 | |
| Plate | ||||
| 660 | 32410048003 | 36.37 | 44.01 | |
| Circlip | ||||
| 670 | 42443003043 | 1.56 | 1.89 | |
| Cylinder head screw | ||||
| 680 | 43002035047 | 1.04 | 1.26 | |
| Circlip (SW0018, S 6) | ||||
| 690 | 42443005064 | 1.56 | 1.89 | |
| Cylinder head screw | ||||
| 700 | 43033040064 | 2.09 | 2.53 | |
| Flange | ||||
| 710 | 32420020005 | 33.18 | 40.15 | |
| Cylinder head screw | ||||
| 720 | 43033012056 | 1.04 | 1.26 | |
| Housing | ||||
| 730 | 31207204008 | 57.42 | 69.48 | |
| Sleeve | ||||
| 740 | 31406031002 | 4.52 | 5.47 | |
| Cylinder head screw | ||||
| 750 | 43035027056 | 2.51 | 3.04 | |
| Switch | ||||
| 800 | 30701073005 | 36.37 | 44.01 | |
| Cable clamping piece | ||||
| 810 | 32431021007 | 1.56 | 1.89 | |
| Fillister head screw | ||||
| 820 | 43041001994 | 1.56 | 1.89 | |
| Cable grommet | ||||
| 830 | 31413090003 | 3.48 | 4.21 | |
| Capacitor | ||||
| 840 | 30722122026 | 19.14 | 23.16 | |
| Connecting Cable | ||||
| 841 | 30719164018 | 3.48 | 4.21 | |
| Insulating hose | ||||
| 842 | 31413188006 | 1.46 | 1.77 | |
| Assembled cables | ||||
| 850 | 30707105011 | 14.67 | 17.75 | |
| Toggle switch | ||||
| 860 | 30701210019 | 56.78 | 68.70 | |
| Switch insert | ||||
| 890 | 32414105002 | 8.90 | 10.77 | |
| Handle half shell | ||||
| 2000 | 31204161004 | 37.64 | 45.54 | |
| Handle | ||||
| 2005 | 31204064047 | 127.60 | 154.40 | |
| Handle half shell | ||||
| 2010 | 31204163001 | 40.83 | 49.40 | |
| Fillister head screw | ||||
| 2020 | 43041027045 | 1.04 | 1.26 | |
| RFID Transponder | ||||
| 2500 | 32217517000 | 1.56 | 1.89 | |
| Handle | ||||
| 5000 | 32119153010 | 76.56 | 92.64 | |
| Wedge | ||||
| 5010 | 63305004001 | 9.60 | 11.62 | |
| Ring bolt | ||||
| 5020 | 43027006081 | 8.90 | 10.77 | |
| No longer available, no replacement | ||||
| 6000 | 32132007033 | |||
| Safety instruction | ||||
| 9020 | 34130054061 | 1.87 | 2.26 | |
