Here you will find all available parts and drawings of the 'Fein 71121000980 (ASM9-4-2ST)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

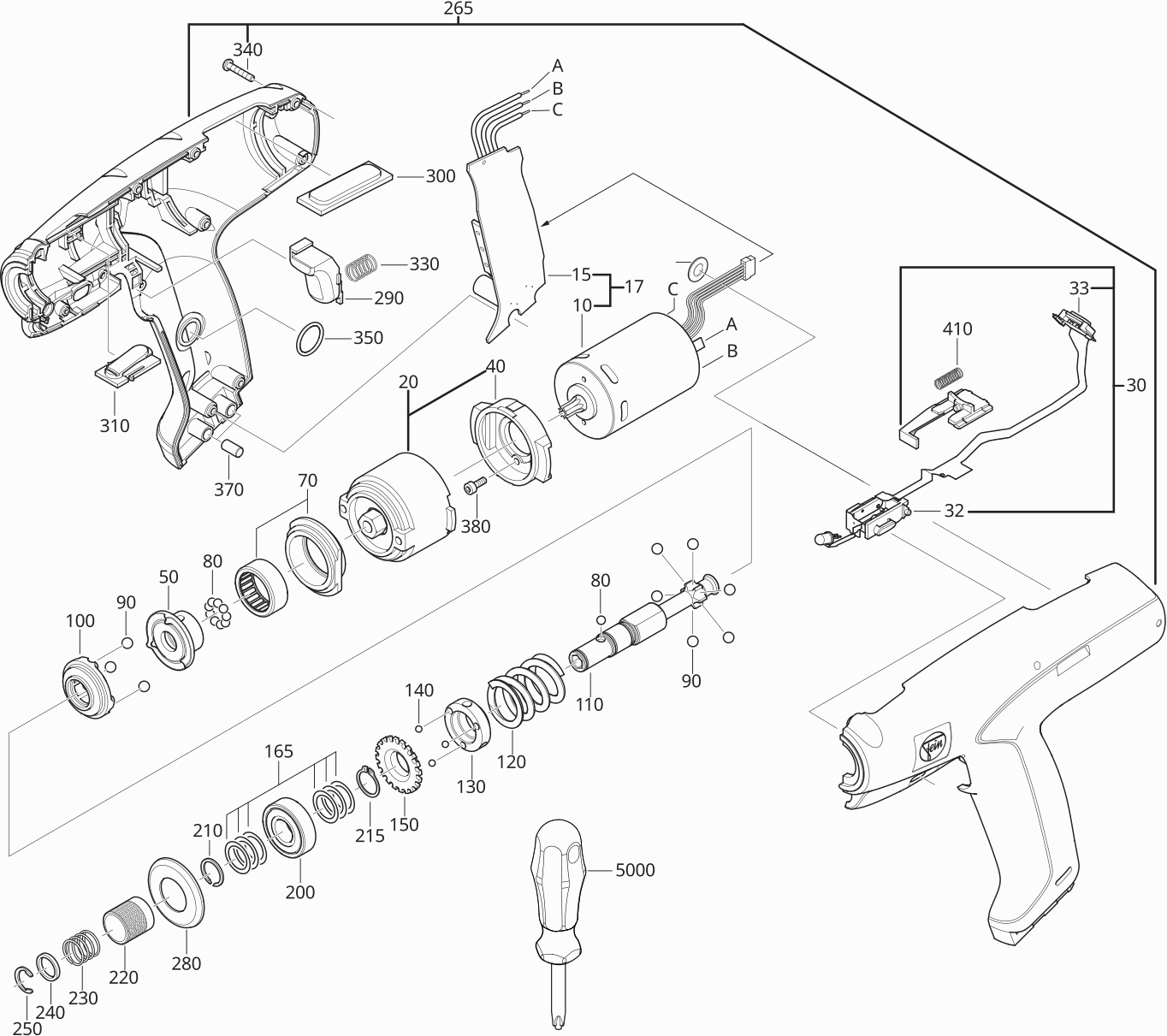

Technical drawing of model Fein 71121000980 (ASM9-4-2ST)
Spare parts list of model Fein 71121000980 (ASM9-4-2ST)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| MOTOR | ||||
| 10 | 54199012020 | 207.99 | 251.67 | |
| Leaf spring | ||||
| 14 | 30904046099 | 9.32 | 11.28 | |
| No longer available, no replacement | ||||
| 15 | 30762379990 | |||
| No longer available, no replacement | ||||
| 17 | 54199027800 | |||
| Planetary gear | ||||
| 20 | 30109175028 | 140.36 | 169.84 | |
| Foil conductor | ||||
| 30 | 30762426980 | 102.30 | 123.78 | |
| Switch pushbutton | ||||
| 32 | 32805204002 | 4.52 | 5.47 | |
| Holder | ||||
| 33 | 30240264009 | 5.36 | 6.49 | |
| Flange | ||||
| 40 | 32436070001 | 5.57 | 6.74 | |
| Clutch ring | ||||
| 50 | 30103051001 | 116.12 | 140.51 | |
| Bush | ||||
| 70 | 30508040010 | 27.43 | 33.19 | |
| Ball | ||||
| 80 | 41708017002 | 1.56 | 1.89 | |
| Ball | ||||
| 90 | 41708018000 | 1.56 | 1.89 | |
| Clutch ring | ||||
| 100 | 30103052000 | 100.80 | 121.97 | |
| Clutch ring | ||||
| 100 | 30103064000 | 89.10 | 107.81 | |
| Tool holder | ||||
| 110 | 30104135008 | 117.39 | 142.04 | |
| Spiral spring | ||||
| 120 | 30901368002 | 7.66 | 9.27 | |
| No information available, not orderable | ||||
| 130 | 32602092000 | |||
| Pressure piece Set | ||||
| 135 | 32602092010 | 38.92 | 47.09 | |
| Ball | ||||
| 140 | 41708014001 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 150 | 31419075000 | |||
| Disc | ||||
| 165 | 32408310990 | 17.54 | 21.22 | |
| Grooved ball bearing | ||||
| 200 | 41701010054 | 7.24 | 8.76 | |
| Circlip | ||||
| 210 | 42615110009 | 1.56 | 1.89 | |
| Circlip | ||||
| 215 | 42616006007 | 1.87 | 2.26 | |
| Sleeve | ||||
| 220 | 30503154000 | 10.58 | 12.80 | |
| Spiral spring | ||||
| 230 | 30901315002 | 3.48 | 4.21 | |
| Ring | ||||
| 240 | 32601242005 | 5.99 | 7.25 | |
| Circlip | ||||
| 250 | 42615081002 | 1.56 | 1.89 | |
| Motor housing | ||||
| 265 | 31912070030 | 46.57 | 56.35 | |
| Sleeve | ||||
| 280 | 30501350000 | 11.04 | 13.36 | |
| Switch pushbutton | ||||
| 290 | 32805203004 | 3.68 | 4.45 | |
| Housing insert | ||||
| 300 | 32414115000 | 9.89 | 11.97 | |
| Cover | ||||
| 310 | 32424027000 | 10.58 | 12.80 | |
| Slide switch | ||||
| 320 | 32804002010 | 11.10 | 13.43 | |
| Spiral spring | ||||
| 330 | 30901357005 | 1.67 | 2.02 | |
| Screw | ||||
| 340 | 43072015000 | 1.56 | 1.89 | |
| Sealing ring | ||||
| 350 | 40612142004 | 1.88 | 2.27 | |
| Pressure piece | ||||
| 370 | 31415061003 | 1.56 | 1.89 | |
| Cylinder head screw | ||||
| 380 | 43035117034 | 1.56 | 1.89 | |
| Spiral spring | ||||
| 410 | 30901370000 | 3.48 | 4.21 | |
| Disc | ||||
| 420 | 42402016990 | 1.04 | 1.26 | |
| Socket wrench | ||||
| 5000 | 32123002006 | 11.88 | 14.37 | |
