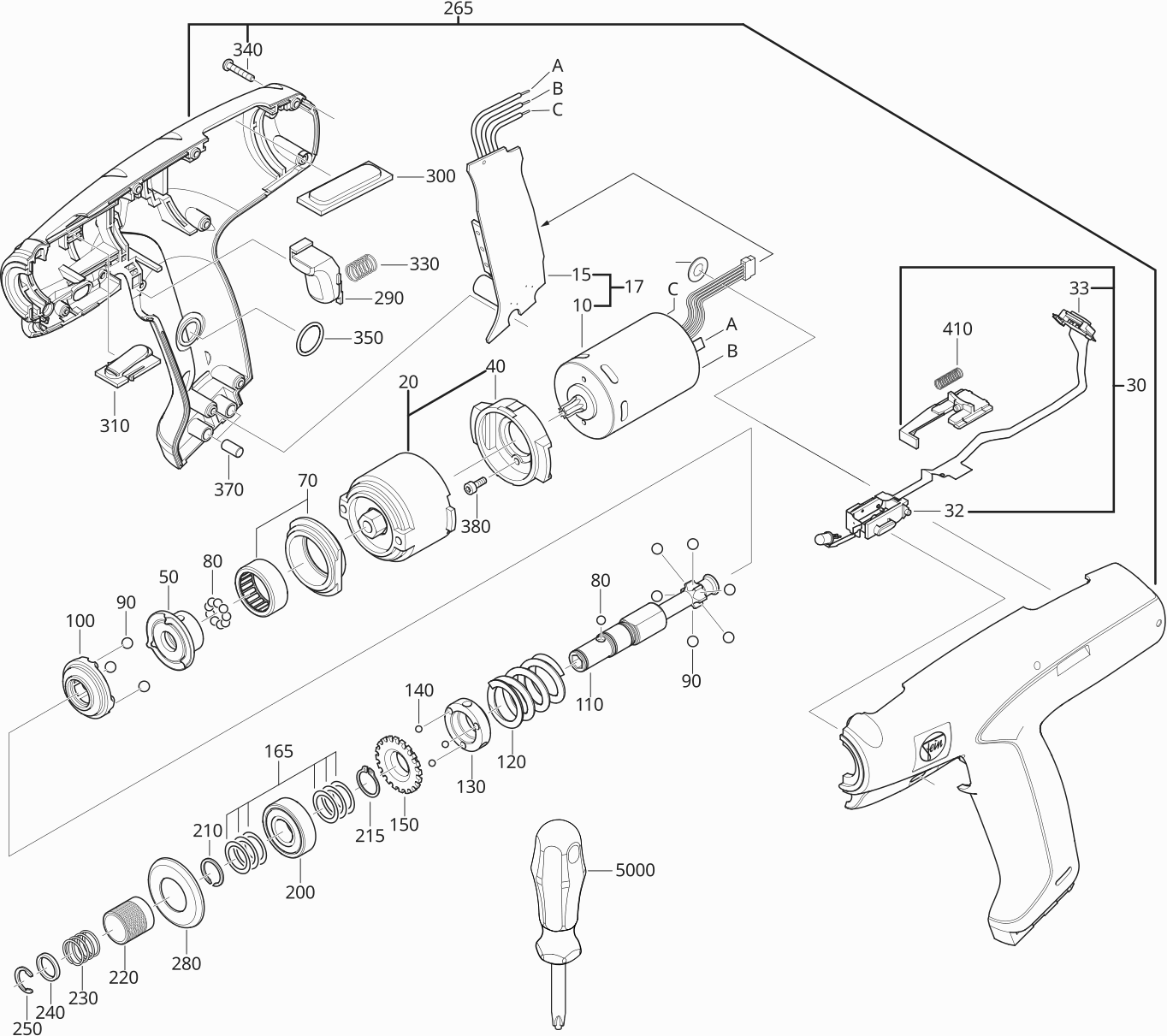

Technical drawing of model Fein 71120200028 ( ASM12-9 )
Spare parts list of model Fein 71120200028 ( ASM12-9 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| MOTOR | ||||
| 10 | 54199012020 | 207.99 | 251.67 | |
| Electronics | ||||
| 15 | 30762270990 | 287.10 | 347.39 | |
| MOTOR | ||||
| 17 | 54199014800 | 421.08 | 509.51 | |
| Planetary gear | ||||
| 20 | 30109174024 | 158.22 | 191.45 | |
| No information available, not orderable | ||||
| 30 | 30762426980 | |||
| Switch pushbutton | ||||
| 32 | 32805204002 | 4.52 | 5.47 | |
| Holder | ||||
| 33 | 30240264009 | 5.36 | 6.49 | |
| Flange | ||||
| 40 | 32436070001 | 5.57 | 6.74 | |
| Clutch ring | ||||
| 50 | 30103051001 | 116.12 | 140.51 | |
| Bush | ||||
| 70 | 30508040010 | 27.43 | 33.19 | |
| Ball | ||||
| 80 | 41708017002 | 1.04 | 1.26 | |
| Ball | ||||
| 90 | 41708018000 | 1.04 | 1.26 | |
| Clutch ring | ||||
| 100 | 30103052000 | 100.80 | 121.97 | |
| Tool holder | ||||
| 110 | 30104135008 | 117.39 | 142.04 | |
| Spiral spring | ||||
| 120 | 30901372000 | 7.24 | 8.76 | |
| Pressure piece Set | ||||
| 135 | 32602092010 | 38.92 | 47.09 | |
| Disc Set | ||||
| 165 | 32408310990 | 17.54 | 21.22 | |
| Grooved ball bearing | ||||
| 200 | 41701010054 | 7.24 | 8.76 | |
| Circlip | ||||
| 210 | 42615110009 | 1.04 | 1.26 | |
| Circlip | ||||
| 215 | 42616006007 | 1.04 | 1.26 | |
| Sleeve | ||||
| 220 | 30503154000 | 10.58 | 12.80 | |
| Spiral spring | ||||
| 230 | 30901315002 | 3.48 | 4.21 | |
| Ring | ||||
| 240 | 32601242005 | 5.99 | 7.25 | |
| Circlip | ||||
| 250 | 42615081002 | 1.04 | 1.26 | |
| Motor housing | ||||
| 265 | 31912070020 | 53.59 | 64.84 | |
| Sleeve | ||||
| 280 | 30501348000 | 3.48 | 4.21 | |
| Switch pushbutton | ||||
| 290 | 32805203004 | 3.68 | 4.45 | |
| Housing insert | ||||
| 300 | 32414115000 | 9.89 | 11.97 | |
| Cover | ||||
| 310 | 32424025004 | 9.32 | 11.28 | |
| Slide switch | ||||
| 320 | 32804002010 | 11.10 | 13.43 | |
| Spiral spring | ||||
| 330 | 30901357005 | 1.67 | 2.02 | |
| Screw | ||||
| 340 | 43072015000 | 1.04 | 1.26 | |
| Sealing ring | ||||
| 350 | 40612142004 | 1.88 | 2.27 | |
| Pressure piece | ||||
| 370 | 31415061003 | 1.04 | 1.26 | |
| Cylinder head screw | ||||
| 380 | 43035117034 | 1.04 | 1.26 | |
| Spiral spring | ||||
| 410 | 30901370000 | 3.48 | 4.21 | |
| Disc | ||||
| 420 | 42402016990 | 1.04 | 1.26 | |
