Here you will find all available parts and drawings of the 'Fein 71131600940 (ASCT18)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

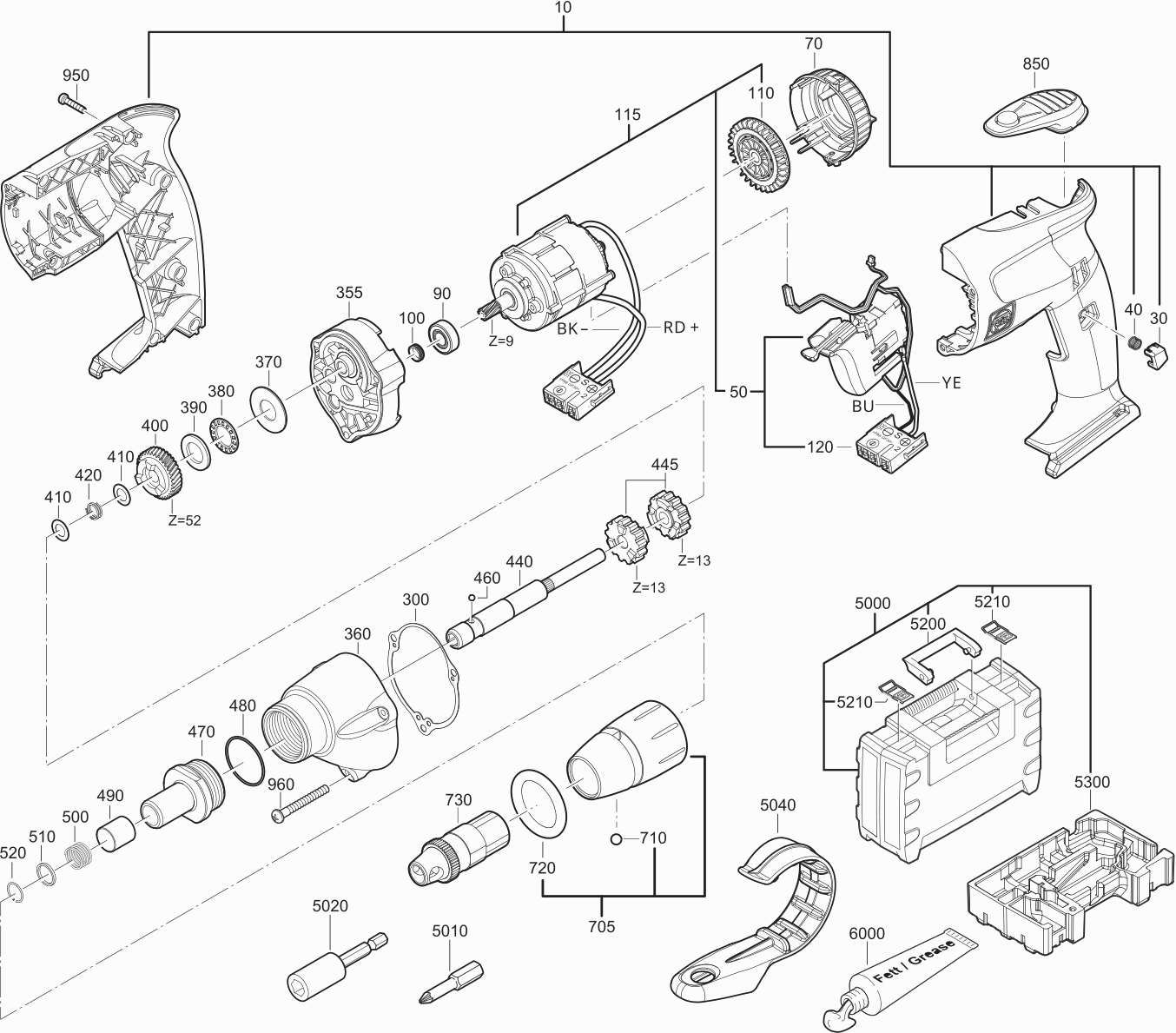

Technical drawing of model Fein 71131600940 (ASCT18)
Spare parts list of model Fein 71131600940 (ASCT18)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 10 | 31912104020 | 39.56 | 47.87 | |
| Stop button | ||||
| 30 | 32816063000 | 3.34 | 4.04 | |
| Spiral spring | ||||
| 40 | 30901387000 | 1.56 | 1.89 | |
| Switch | ||||
| 50 | 30701318990 | 46.57 | 56.35 | |
| Air guide ring | ||||
| 70 | 31428172000 | 6.41 | 7.76 | |
| Grooved ball bearing | ||||
| 90 | 41701119250 | 9.32 | 11.28 | |
| Sealing ring | ||||
| 100 | 32612129000 | 4.52 | 5.47 | |
| Fan wheel | ||||
| 110 | 31004051000 | 7.38 | 8.93 | |
| Motor | ||||
| 115 | 54113028800 | 191.40 | 231.59 | |
| Plug | ||||
| 120 | 30703054000 | 5.36 | 6.49 | |
| Seal | ||||
| 300 | 30610041000 | 3.13 | 3.79 | |
| Intermediate gear box | ||||
| 355 | 31506367014 | 17.86 | 21.61 | |
| Gearbox housing | ||||
| 360 | 31508251002 | 14.99 | 18.14 | |
| Disc | ||||
| 370 | 41719026007 | 2.51 | 3.04 | |
| Needle cage | ||||
| 380 | 41715029009 | 5.15 | 6.23 | |
| Disc | ||||
| 390 | 32408395000 | 9.89 | 11.97 | |
| Gear-wheel | ||||
| 400 | 33653001000 | 32.54 | 39.37 | |
| Disc | ||||
| 410 | 32624094032 | 1.56 | 1.89 | |
| Spiral spring | ||||
| 420 | 30901139007 | 1.56 | 1.89 | |
| Tool holder | ||||
| 440 | 30104133006 | 77.84 | 94.19 | |
| Clutch ring | ||||
| 445 | 30102101013 | 51.04 | 61.76 | |
| Ball | ||||
| 460 | 41708014001 | 1.56 | 1.89 | |
| Bush | ||||
| 470 | 31603045005 | 36.37 | 44.01 | |
| Sealing ring | ||||
| 480 | 40612093004 | 1.56 | 1.89 | |
| Sleeve | ||||
| 490 | 30503151006 | 5.99 | 7.25 | |
| Spiral spring | ||||
| 500 | 30901362001 | 1.67 | 2.02 | |
| Ring | ||||
| 510 | 32601274004 | 4.52 | 5.47 | |
| Circlip | ||||
| 520 | 42615147001 | 1.56 | 1.89 | |
| Sleeve | ||||
| 705 | 30505069011 | 29.59 | 35.80 | |
| Ball | ||||
| 710 | 41708019004 | 1.56 | 1.89 | |
| Sealing ring | ||||
| 720 | 40612071009 | 3.48 | 4.21 | |
| Sleeve | ||||
| 730 | 32127068000 | 27.43 | 33.19 | |
| Holder | ||||
| 850 | 30240285000 | 10.30 | 12.46 | |
| Screw (16 MM, 3.5 MM, TX15, EJOT) | ||||
| 950 | 43074010000 | 1.56 | 1.89 | |
| Screw | ||||
| 960 | 43072010009 | 1.56 | 1.89 | |
| RFID Transponder | ||||
| 2500 | 32217517000 | 1.56 | 1.89 | |
| Case | ||||
| 5000 | 33901131080 | 67.54 | 81.72 | |
| Screwdriver insert | ||||
| 5010 | 62712109034 | 11.44 | 13.84 | |
| Screwdriver insert | ||||
| 5020 | 60510215003 | 33.99 | 41.13 | |
| Hook | ||||
| 5040 | 64203001000 | 7.32 | 8.86 | |
| Handle | ||||
| 5200 | 32119122000 | 7.66 | 9.27 | |
| Wire clamp | ||||
| 5210 | 30232050000 | 8.63 | 10.44 | |
| Case insert | ||||
| 5300 | 33904432000 | 27.43 | 33.19 | |
| Battery pack (Akku-Pack, 18 V, 6 AH, LITHIUM-ION, | ||||
| 5500 | 92604175020 | 133.87 | 161.98 | |
| Battery pack (Akku-Pack, 18 V, 3 AH, LITHIUM-ION, | ||||
| 5500 | 92604182020 | 95.59 | 115.66 | |
| Charger (ALG 80_, EU, 12 V - 18 V, 8 A, FEIN) | ||||
| 5550 | 92604180010 | 75.13 | 90.91 | |
| No longer available, no replacement | ||||
| 6000 | 32160003217 | |||
| No information available, not orderable | ||||
| 6010 | 04010601001 | |||
| Extractor tool (SW0016, L 130 MM, M 12) | ||||
| 7016 | 64104150008 | 116.75 | 141.27 | |
| Chuck cone (SW0020, ID 28 MM, M 6) | ||||
| 7020 | 64107028002 | 151.84 | 183.73 | |
| Chuck cone (SW0081, ID 19 MM, M 6) | ||||
| 7081 | 64107019007 | 96.98 | 117.35 | |
| Safety instruction | ||||
| 9020 | 34130054061 | 1.87 | 2.26 | |
