Here you will find all available parts and drawings of the 'Fein 71160200950 (ASCM14QX)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

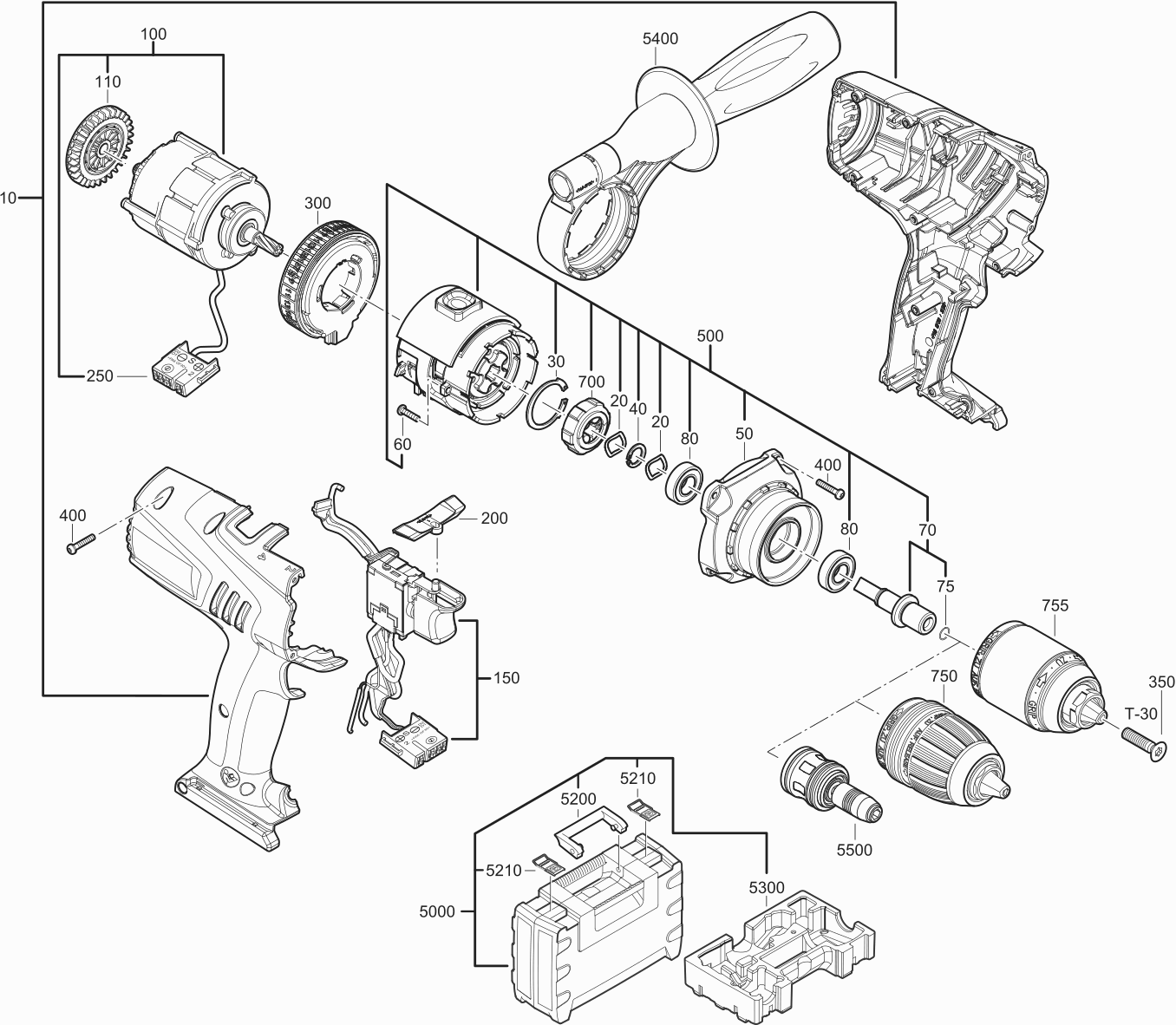

Technical drawing of model Fein 71160200950 (ASCM14QX)
Spare parts list of model Fein 71160200950 (ASCM14QX)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor housing | ||||
| 10 | 31912117010 | 36.37 | 44.01 | |
| Disc | ||||
| 20 | 30235026000 | 1.67 | 2.02 | |
| Circlip | ||||
| 30 | 31305457000 | 1.56 | 1.89 | |
| Circlip | ||||
| 40 | 42616013001 | 1.56 | 1.89 | |
| Housing | ||||
| 50 | 32436075000 | 28.07 | 33.96 | |
| Screw | ||||
| 60 | 33024075000 | 1.56 | 1.89 | |
| Shaft | ||||
| 70 | 33403120000 | 17.54 | 21.22 | |
| Circlip | ||||
| 75 | 30240382000 | 1.56 | 1.89 | |
| Grooved ball bearing | ||||
| 80 | 31305456000 | 7.10 | 8.59 | |
| Motor | ||||
| 100 | 54113002810 | 204.16 | 247.03 | |
| Fan wheel | ||||
| 110 | 31004051000 | 7.38 | 8.93 | |
| Switch | ||||
| 150 | 30701318960 | 46.57 | 56.35 | |
| Toggle switch | ||||
| 200 | 32805308000 | 2.93 | 3.55 | |
| Plug | ||||
| 250 | 30703055000 | 5.15 | 6.23 | |
| Adjusting ring | ||||
| 300 | 32816074010 | 52.32 | 63.31 | |
| Screw | ||||
| 400 | 43072015000 | 1.56 | 1.89 | |
| Gearbox | ||||
| 500 | 30109210010 | 135.26 | 163.66 | |
| Spindle lock | ||||
| 700 | 30240309000 | 16.59 | 20.07 | |
| Quick-action chuck | ||||
| 750 | 63208001020 | 62.37 | 75.47 | |
| Case | ||||
| 5000 | 33901128580 | 54.45 | 65.88 | |
| Handle | ||||
| 5200 | 32119122000 | 7.66 | 9.27 | |
| Wire clamp | ||||
| 5210 | 30232050000 | 8.63 | 10.44 | |
| Case insert | ||||
| 5300 | 33904580000 | 16.27 | 19.69 | |
| Handle | ||||
| 5400 | 31204189000 | 16.59 | 20.07 | |
| Tool holder | ||||
| 5500 | 60510219010 | 28.38 | 34.34 | |
| test PCB (SW0058) | ||||
| 7058 | 64134001010 | 59.97 | 72.56 | |
| Safety instruction | ||||
| 9020 | 34130054061 | 1.87 | 2.26 | |
