Here you will find all available parts and drawings of the 'Fein 71150800940 ( ASCD18-1000W34 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

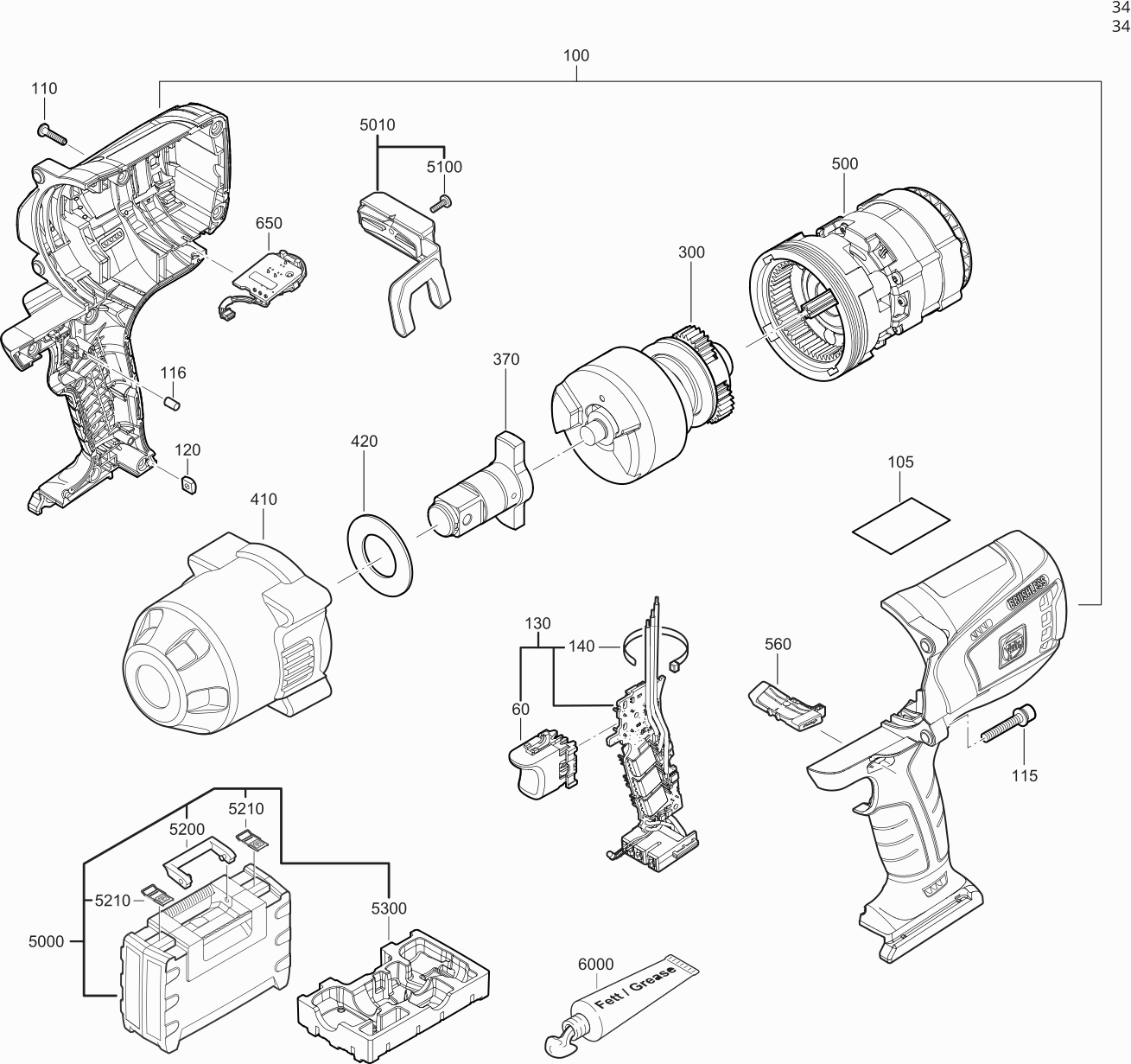

Technical drawing of model Fein 71150800940 ( ASCD18-1000W34 )
Spare parts list of model Fein 71150800940 ( ASCD18-1000W34 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Switch | ||||
| 60 | 30732025010 | 11.28 | 13.65 | |
| Motor housing | ||||
| 100 | 31347055020 | 91.30 | 110.47 | |
| Motor housing | ||||
| 100 | 31347030010 | 26.34 | 31.87 | |
| Information sign | ||||
| 105 | 32224000802 | 5.57 | 6.74 | |
| Screw | ||||
| 110 | 31347037000 | 2.04 | 2.47 | |
| Screw | ||||
| 115 | 31347041000 | 2.22 | 2.69 | |
| Pressure piece | ||||
| 116 | 31415061003 | 1.04 | 1.26 | |
| Nut | ||||
| 120 | 42017000000 | 1.04 | 1.26 | |
| Electronics with switch | ||||
| 130 | 30762618990 | 154.40 | 186.82 | |
| Cable tie | ||||
| 140 | 30234026008 | 1.04 | 1.26 | |
| Gearbox | ||||
| 300 | 31347054000 | 191.40 | 231.59 | |
| Tool holder | ||||
| 370 | 31347053000 | 61.25 | 74.11 | |
| Gearbox housing | ||||
| 410 | 31347051000 | 40.19 | 48.63 | |
| Disc | ||||
| 420 | 31347052000 | 1.67 | 2.02 | |
| Motor | ||||
| 500 | 31347044010 | 204.16 | 247.03 | |
| Toggle switch | ||||
| 560 | 30701310010 | 3.34 | 4.04 | |
| Motor housing | ||||
| 650 | 31347055020 | 91.30 | 110.47 | |
| Speed setting switch | ||||
| 650 | 30762617990 | 25.11 | 30.38 | |
| Case | ||||
| 5000 | 33901607010 | 66.00 | 79.86 | |
| Holder | ||||
| 5010 | 34011610020 | 14.36 | 17.38 | |
| Screw | ||||
| 5100 | 31347024000 | 1.04 | 1.26 | |
| Handle | ||||
| 5200 | 32119122000 | 7.66 | 9.27 | |
| Wire clamp | ||||
| 5210 | 30232050000 | 8.63 | 10.44 | |
| Case insert | ||||
| 5300 | 33904622000 | 22.55 | 27.29 | |
| Insert | ||||
| 5300 | 33904493000 | 20.10 | 24.32 | |
| ACCU 18V 6.0 AH LI-ION | ||||
| 5500 | 92604175020 | 138.60 | 167.71 | |
| ACCU 18V 3.0 AH LI-ION | ||||
| 5500 | 92604182020 | 99.00 | 119.79 | |
| SNELLADER ALG80 | ||||
| 5550 | 92604180010 | 78.10 | 94.50 | |
| Lubricant tube (SM0018) | ||||
| 6000 | 32160007000 | 8.99 | 10.88 | |
