Here you will find all available parts and drawings of the 'Fein 72150800116 ( ASBE648 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

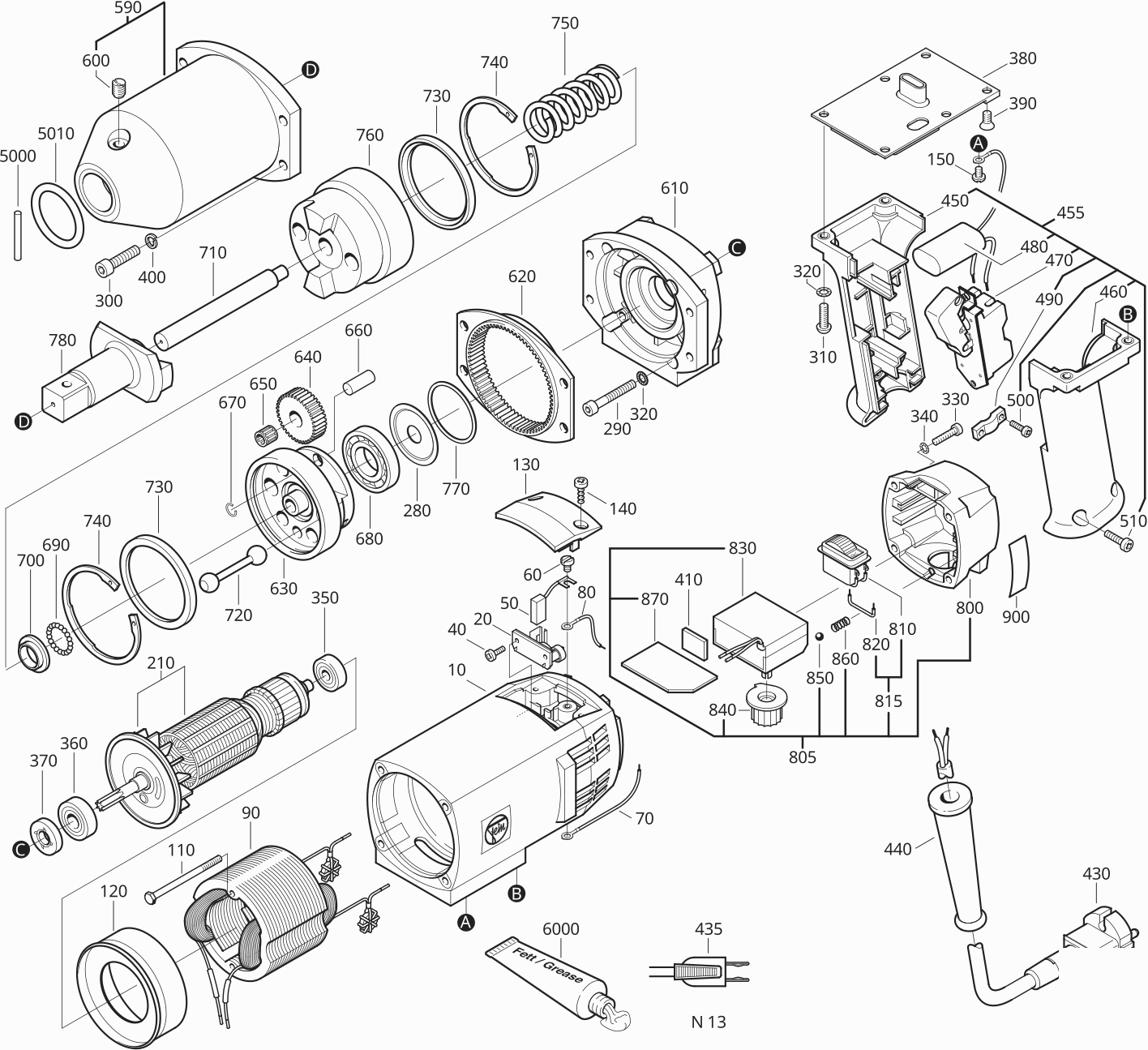

Technical drawing of model Fein 72150800116 ( ASBE648 )
Spare parts list of model Fein 72150800116 ( ASBE648 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 10 | 31903119003 | 190.12 | 230.05 | |
| Brush holder | ||||
| 20 | 30712067017 | 9.74 | 11.79 | |
| Fillister head screw M3,5X10 | ||||
| 40 | 43041001994 | 1.04 | 1.26 | |
| Carbon brush | ||||
| 50 | 30711067004 | 7.10 | 8.59 | |
| Flat headed screw | ||||
| 60 | 43003029048 | 1.04 | 1.26 | |
| Connecting Cable | ||||
| 70 | 30719062017 | 1.25 | 1.51 | |
| No longer available, no replacement | ||||
| 80 | 30719065013 | |||
| No information available, not orderable | ||||
| 90 | 51214001116 | |||
| Hexagon socket screw | ||||
| 110 | 43001004042 | 2.51 | 3.04 | |
| Air guide ring | ||||
| 120 | 31428018008 | 10.16 | 12.29 | |
| Cover | ||||
| 130 | 32427040001 | 3.34 | 4.04 | |
| Sheet metal screw | ||||
| 140 | 43046001002 | 1.04 | 1.26 | |
| Flat headed screw | ||||
| 150 | 43003029048 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 210 | 53214001118 | |||
| Disc | ||||
| 280 | 32411070006 | 5.99 | 7.25 | |
| Cylinder head screw | ||||
| 290 | 43035020051 | 1.04 | 1.26 | |
| Cylinder head screw | ||||
| 300 | 43035034067 | 1.04 | 1.26 | |
| Fillister head screw | ||||
| 310 | 43014042053 | 1.04 | 1.26 | |
| Circlip M5 | ||||
| 320 | 42443004057 | 1.04 | 1.26 | |
| Cylinder head screw | ||||
| 330 | 43033005047 | 1.04 | 1.26 | |
| Circlip M4 | ||||
| 340 | 42443003043 | 1.04 | 1.26 | |
| Grooved ball bearing | ||||
| 350 | 41701204131 | 7.80 | 9.44 | |
| Grooved ball bearing | ||||
| 360 | 41701020130 | 10.16 | 12.29 | |
| Sealing ring | ||||
| 370 | 30602010000 | 13.72 | 16.60 | |
| Plate | ||||
| 380 | 32422094005 | 11.74 | 14.21 | |
| Countersunk screw | ||||
| 390 | 43042005050 | 1.04 | 1.26 | |
| Spring washer | ||||
| 400 | 42445003060 | 1.04 | 1.26 | |
| Stop | ||||
| 410 | 31415023004 | 2.09 | 2.53 | |
| Cable with plug | ||||
| 430 | 30707387012 | 16.27 | 19.69 | |
| Cable grommet | ||||
| 440 | 31413090003 | 3.48 | 4.21 | |
| Handle half shell | ||||
| 450 | 31204090003 | 28.07 | 33.96 | |
| Handle | ||||
| 455 | 31204090012 | 108.46 | 131.24 | |
| Handle half shell | ||||
| 460 | 31204091002 | 18.82 | 22.77 | |
| Switch | ||||
| 470 | 30701068003 | 32.54 | 39.37 | |
| Capacitor | ||||
| 480 | 30722074009 | 12.63 | 15.28 | |
| Cable clamping piece | ||||
| 490 | 32431021007 | 1.04 | 1.26 | |
| Fillister head screw | ||||
| 500 | 43041011993 | 1.04 | 1.26 | |
| Fillister head screw | ||||
| 510 | 43041023046 | 1.04 | 1.26 | |
| Gearbox housing | ||||
| 590 | 31508145015 | 165.88 | 200.71 | |
| Nipple | ||||
| 600 | 32131037005 | 14.67 | 17.75 | |
| Intermediate gear box | ||||
| 610 | 31506198008 | 126.32 | 152.85 | |
| Gear-wheel | ||||
| 620 | 33804013003 | 213.09 | 257.84 | |
| Drive block | ||||
| 630 | 30110008005 | 325.38 | 393.71 | |
| Gear-wheel | ||||
| 640 | 33613066007 | 39.56 | 47.87 | |
| Needle cage | ||||
| 650 | 41715014007 | 5.57 | 6.74 | |
| Bolt | ||||
| 660 | 30216054007 | 4.10 | 4.96 | |
| Spring ring | ||||
| 670 | 42615062007 | 2.71 | 3.28 | |
| Grooved ball bearing | ||||
| 680 | 41701604011 | 14.36 | 17.38 | |
| Ball | ||||
| 690 | 41708014001 | 1.04 | 1.26 | |
| Ring | ||||
| 700 | 31710024007 | 9.05 | 10.95 | |
| Shaft | ||||
| 710 | 33406079008 | 46.57 | 56.35 | |
| Ball pin | ||||
| 720 | 30111006002 | 46.57 | 56.35 | |
| Washer with attachment | ||||
| 730 | 32602031002 | 42.11 | 50.95 | |
| Circlip | ||||
| 740 | 42616019002 | 2.29 | 2.77 | |
| Spiral spring | ||||
| 750 | 30901177001 | 23.29 | 28.18 | |
| Striking body | ||||
| 760 | 30112010004 | 353.45 | 427.67 | |
| Disc | ||||
| 770 | 32624039031 | 4.10 | 4.96 | |
| Tool holder | ||||
| 780 | 30104039008 | 233.51 | 282.55 | |
| Cover | ||||
| 800 | 31207067008 | 23.29 | 28.18 | |
| No information available, not orderable | ||||
| 805 | 31207067039 | |||
| Toggle switch | ||||
| 815 | 30701085021 | 35.73 | 43.23 | |
| Speed setting switch | ||||
| 830 | 30762016010 | 211.82 | 256.30 | |
| Lever | ||||
| 840 | 32805061006 | 5.99 | 7.25 | |
| Ball | ||||
| 850 | 41708018000 | 1.04 | 1.26 | |
| Spiral spring | ||||
| 860 | 30901003000 | 1.25 | 1.51 | |
| Plate | ||||
| 870 | 32422095009 | 11.87 | 14.36 | |
| Information sign | ||||
| 900 | 32217084000 | 2.29 | 2.77 | |
| Locking pin | ||||
| 5000 | 30235007005 | 5.57 | 6.74 | |
| No longer available, no replacement | ||||
| 5010 | 40612028008 | |||
| No longer available, no replacement | ||||
| 6000 | 32160003014 | |||
| No information available, not orderable | ||||
| 9020 | 34130054061 | |||
