Here you will find all available parts and drawings of the 'Fein 72152800623 (ASBE642)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

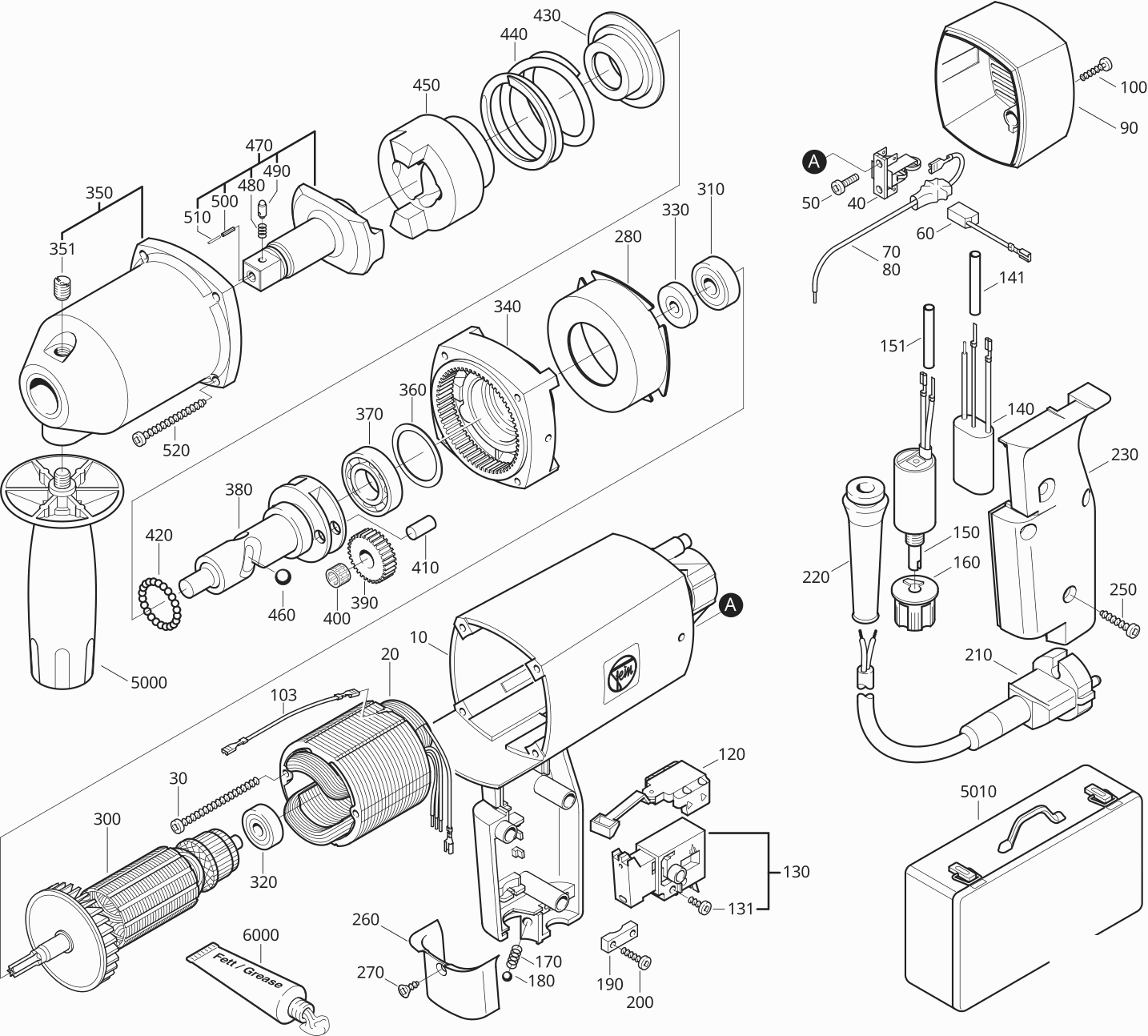

Technical drawing of model Fein 72152800623 (ASBE642)
Spare parts list of model Fein 72152800623 (ASBE642)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor housing | ||||
| 10 | 31902041002 | 66.35 | 80.28 | |
| Stator | ||||
| 20 | 51250007220 | 123.77 | 149.76 | |
| Sheet metal screw | ||||
| 30 | 43046027006 | 1.04 | 1.26 | |
| Brush holder | ||||
| 40 | 30712073008 | 20.74 | 25.10 | |
| Fillister head screw | ||||
| 50 | 43041011993 | 1.04 | 1.26 | |
| Carbon brush | ||||
| 60 | 30711084001 | 10.16 | 12.29 | |
| Ring core choke | ||||
| 70 | 30764089017 | 10.16 | 12.29 | |
| Ring core choke | ||||
| 80 | 30764084014 | 10.16 | 12.29 | |
| Cover | ||||
| 90 | 32427076009 | 11.48 | 13.89 | |
| Sheet metal screw | ||||
| 100 | 43046016003 | 1.56 | 1.89 | |
| Connecting cable | ||||
| 103 | 30719417012 | 1.46 | 1.77 | |
| Toggle switch | ||||
| 120 | 30701238001 | 13.08 | 15.83 | |
| No longer available, no replacement | ||||
| 130 | 30701167013 | |||
| Cylinder head screw | ||||
| 131 | 43013051030 | 1.04 | 1.26 | |
| Capacitor | ||||
| 140 | 30722153011 | 12.63 | 15.28 | |
| Insulating hose | ||||
| 141 | 31413162007 | 1.56 | 1.89 | |
| Speed setting switch | ||||
| 150 | 30762047002 | 199.06 | 240.86 | |
| Insulating hose | ||||
| 151 | 31413162007 | 1.56 | 1.89 | |
| Rotary knob | ||||
| 160 | 32805096005 | 8.90 | 10.77 | |
| Spiral spring | ||||
| 170 | 30901003000 | 1.25 | 1.51 | |
| Ball | ||||
| 180 | 41708018000 | 1.56 | 1.89 | |
| Cable clamping piece | ||||
| 190 | 32431026009 | 1.87 | 2.26 | |
| Screw | ||||
| 200 | 43070006008 | 1.56 | 1.89 | |
| Assembled cables | ||||
| 210 | 30707204013 | 13.72 | 16.60 | |
| Cable grommet | ||||
| 220 | 31413142009 | 3.34 | 4.04 | |
| Cover | ||||
| 230 | 32428071013 | 14.04 | 16.99 | |
| Sheet metal screw | ||||
| 250 | 43046005001 | 1.04 | 1.26 | |
| Switch pushbutton | ||||
| 260 | 32805094008 | 7.66 | 9.27 | |
| Screw | ||||
| 270 | 43070003003 | 1.04 | 1.26 | |
| Air guide ring | ||||
| 280 | 31428057006 | 7.24 | 8.76 | |
| Armature | ||||
| 300 | 53250008220 | 262.86 | 318.06 | |
| Grooved ball bearing | ||||
| 310 | 41701207033 | 8.50 | 10.28 | |
| Grooved ball bearing | ||||
| 320 | 41701204026 | 6.41 | 7.76 | |
| Sealing ring | ||||
| 330 | 30602010000 | 13.72 | 16.60 | |
| Intermediate gear box | ||||
| 340 | 31506271002 | 304.96 | 369.00 | |
| Gearbox housing | ||||
| 350 | 31508210007 | 121.22 | 146.68 | |
| Nipple | ||||
| 351 | 32131037005 | 14.67 | 17.75 | |
| Disc | ||||
| 360 | 32624046034 | 4.52 | 5.47 | |
| Disc | ||||
| 360 | 32624046028 | 1.88 | 2.27 | |
| Grooved ball bearing | ||||
| 370 | 41701603013 | 11.14 | 13.48 | |
| Shaft | ||||
| 380 | 30110035007 | 312.62 | 378.27 | |
| Gear-wheel | ||||
| 390 | 33607039001 | 49.13 | 59.45 | |
| Needle cage | ||||
| 400 | 41715009001 | 5.77 | 6.98 | |
| Roller | ||||
| 410 | 41709006000 | 2.09 | 2.53 | |
| Ball | ||||
| 420 | 41708015005 | 1.56 | 1.89 | |
| Ring | ||||
| 430 | 31710032004 | 35.73 | 43.23 | |
| Spiral spring | ||||
| 440 | 30901303001 | 14.04 | 16.99 | |
| Striking body | ||||
| 450 | 30112027008 | 185.02 | 223.87 | |
| Ball | ||||
| 460 | 41708025004 | 1.56 | 1.89 | |
| Tool holder | ||||
| 470 | 30104094024 | 301.14 | 364.38 | |
| Spiral spring | ||||
| 480 | 30901074001 | 1.04 | 1.26 | |
| Bolt | ||||
| 490 | 30219031003 | 3.90 | 4.72 | |
| Clamping sleeve | ||||
| 500 | 40238004004 | 1.04 | 1.26 | |
| Clamping sleeve | ||||
| 510 | 40238002002 | 1.04 | 1.26 | |
| Sheet metal screw | ||||
| 520 | 43046026002 | 1.25 | 1.51 | |
| No longer available, no replacement | ||||
| 5000 | 32119107016 | |||
| No longer available, no replacement | ||||
| 6000 | 32160003014 | |||
