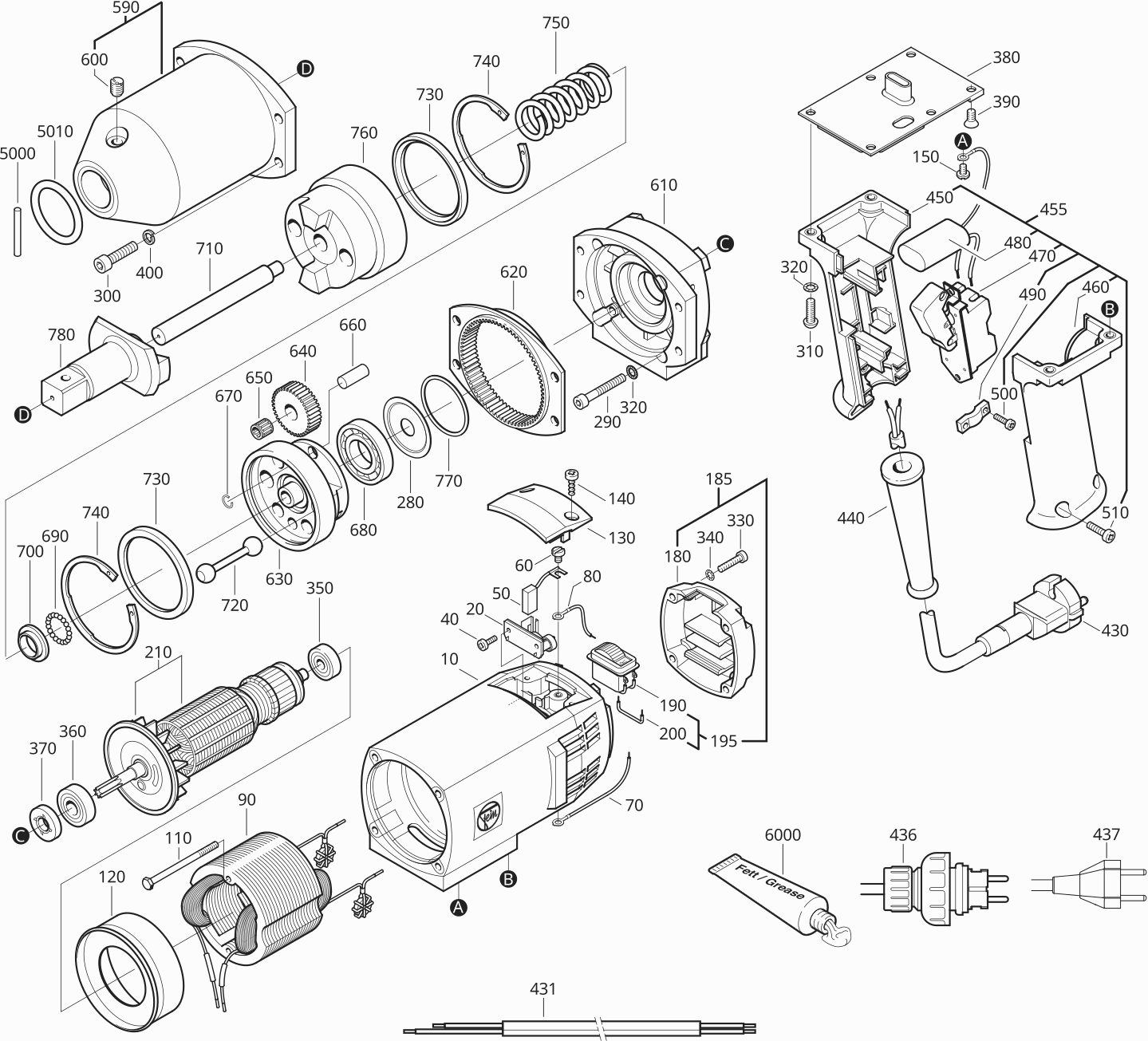

Technical drawing of model Fein 72150798224 (ASb648)
Spare parts list of model Fein 72150798224 (ASb648)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 10 | 31903119003 | 190.12 | 230.05 | |
| Brush holder | ||||
| 20 | 30712067017 | 9.74 | 11.79 | |
| Fillister head screw | ||||
| 40 | 43041001994 | 1.56 | 1.89 | |
| Carbon brush | ||||
| 50 | 30711067004 | 7.10 | 8.59 | |
| Flat headed screw | ||||
| 60 | 43003029048 | 1.56 | 1.89 | |
| Connecting Cable | ||||
| 70 | 30719062017 | 1.25 | 1.51 | |
| No longer available, no replacement | ||||
| 80 | 30719065013 | |||
| Stator | ||||
| 90 | 51214001226 | 151.84 | 183.73 | |
| Hexagon socket screw | ||||
| 110 | 43001004042 | 2.51 | 3.04 | |
| Air guide ring | ||||
| 120 | 31428018008 | 10.16 | 12.29 | |
| Cover | ||||
| 130 | 32427040001 | 3.34 | 4.04 | |
| Sheet metal screw | ||||
| 140 | 43046001002 | 1.56 | 1.89 | |
| Flat headed screw | ||||
| 150 | 43003029048 | 1.56 | 1.89 | |
| Cover | ||||
| 180 | 31207066004 | 13.72 | 16.60 | |
| Cover | ||||
| 185 | 31207066013 | 58.06 | 70.25 | |
| Toggle switch | ||||
| 195 | 30701085015 | 39.56 | 47.87 | |
| Armature | ||||
| 210 | 53214001228 | 287.10 | 347.39 | |
| Disc | ||||
| 280 | 32411070006 | 5.99 | 7.25 | |
| Cylinder head screw | ||||
| 290 | 43035020051 | 1.56 | 1.89 | |
| Cylinder head screw (SW0018, HEX 5, M 6, L 25 MM) | ||||
| 300 | 43035034067 | 1.56 | 1.89 | |
| Fillister head screw | ||||
| 310 | 43014042053 | 1.04 | 1.26 | |
| Circlip | ||||
| 320 | 42443004057 | 1.56 | 1.89 | |
| Cylinder head screw | ||||
| 330 | 43033005047 | 1.04 | 1.26 | |
| Circlip | ||||
| 340 | 42443003043 | 1.56 | 1.89 | |
| Grooved ball bearing | ||||
| 350 | 41701204131 | 7.80 | 9.44 | |
| Grooved ball bearing | ||||
| 360 | 41701020130 | 10.16 | 12.29 | |
| Sealing ring | ||||
| 370 | 30602010000 | 13.72 | 16.60 | |
| Plate | ||||
| 380 | 32422094005 | 11.74 | 14.21 | |
| Countersunk screw | ||||
| 390 | 43042005050 | 1.04 | 1.26 | |
| Spring washer | ||||
| 400 | 42445003060 | 1.56 | 1.89 | |
| Assembled cables | ||||
| 430 | 30707387012 | 16.27 | 19.69 | |
| Cable with plug | ||||
| 436 | 30707197019 | 82.94 | 100.36 | |
| Cable grommet | ||||
| 440 | 31413090003 | 3.48 | 4.21 | |
| Handle half shell | ||||
| 450 | 31204090003 | 28.07 | 33.96 | |
| Handle | ||||
| 455 | 31204090012 | 108.46 | 131.24 | |
| Handle half shell | ||||
| 460 | 31204091002 | 18.82 | 22.77 | |
| Switch | ||||
| 470 | 30701068003 | 32.54 | 39.37 | |
| Capacitor | ||||
| 480 | 30722074009 | 12.63 | 15.28 | |
| Cable clamping piece | ||||
| 490 | 32431021007 | 1.56 | 1.89 | |
| Fillister head screw | ||||
| 500 | 43041011993 | 1.04 | 1.26 | |
| Fillister head screw | ||||
| 510 | 43041023046 | 1.56 | 1.89 | |
| Gearbox housing | ||||
| 590 | 31508145015 | 165.88 | 200.71 | |
| Nipple | ||||
| 600 | 32131037005 | 14.67 | 17.75 | |
| Intermediate gear box | ||||
| 610 | 31506198008 | 126.32 | 152.85 | |
| Gear-wheel | ||||
| 620 | 33804013003 | 213.09 | 257.84 | |
| Drive block | ||||
| 630 | 30110008005 | 325.38 | 393.71 | |
| Gear-wheel | ||||
| 640 | 33613066007 | 39.56 | 47.87 | |
| Needle cage | ||||
| 650 | 41715014007 | 5.57 | 6.74 | |
| Bolt | ||||
| 660 | 30216054007 | 4.10 | 4.96 | |
| Circlip | ||||
| 670 | 42615062007 | 2.71 | 3.28 | |
| Grooved ball bearing | ||||
| 680 | 41701604011 | 14.36 | 17.38 | |
| Ball | ||||
| 690 | 41708014001 | 1.56 | 1.89 | |
| Ring | ||||
| 700 | 31710024007 | 9.05 | 10.95 | |
| Shaft | ||||
| 710 | 33406079008 | 46.57 | 56.35 | |
| Ball pin | ||||
| 720 | 30111006002 | 46.57 | 56.35 | |
| Ring | ||||
| 730 | 32602031002 | 42.11 | 50.95 | |
| Circlip | ||||
| 740 | 42616019002 | 2.29 | 2.77 | |
| Spiral spring | ||||
| 750 | 30901177001 | 23.29 | 28.18 | |
| Striking body | ||||
| 760 | 30112010004 | 353.45 | 427.67 | |
| Disc | ||||
| 770 | 32624039031 | 4.10 | 4.96 | |
| Tool holder | ||||
| 780 | 30104039008 | 233.51 | 282.55 | |
| Information sign | ||||
| 900 | 32217084000 | 2.29 | 2.77 | |
| Straight pin | ||||
| 5000 | 30235007005 | 5.57 | 6.74 | |
| No longer available, no replacement | ||||
| 5010 | 40612028008 | |||
| No longer available, no replacement | ||||
| 6000 | 32160003014 | |||
| Safety instruction | ||||
| 9020 | 34130054061 | 1.87 | 2.26 | |
