Here you will find all available parts and drawings of the 'Fein 71293600940 ( AMM700MAXAS )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

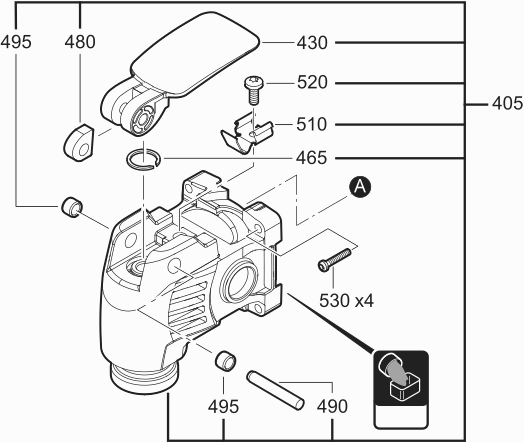

Technical drawing of model Fein 71293600940 ( AMM700MAXAS )
Spare parts list of model Fein 71293600940 ( AMM700MAXAS )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor housing | ||||
| 10 | 31901245040 | 39.05 | 47.25 | |
| Guide strip | ||||
| 11 | 34300000061 | 1.86 | 2.25 | |
| Guide strip | ||||
| 12 | 34300000062 | 1.86 | 2.25 | |
| Slide switch | ||||
| 30 | 32805324010 | 5.64 | 6.82 | |
| Air guide ring | ||||
| 70 | 31428193000 | 7.10 | 8.59 | |
| ELECTRONICS | ||||
| 100 | 30762657990 | 130.15 | 157.48 | |
| Adapter | ||||
| 115 | 30767168990 | 48.95 | 59.23 | |
| Housing | ||||
| 120 | 31428192000 | 17.54 | 21.22 | |
| Pressure piece | ||||
| 125 | 31415181000 | 3.34 | 4.04 | |
| Spring | ||||
| 150 | 30901421000 | 1.38 | 1.67 | |
| Pressure piece | ||||
| 155 | 31415110000 | 2.51 | 3.04 | |
| Pressure piece | ||||
| 160 | 31415160000 | 2.71 | 3.28 | |
| Bearing bush | ||||
| 225 | 31603052010 | 10.30 | 12.46 | |
| Rotor | ||||
| 250 | 33102009030 | 164.60 | 199.17 | |
| ROTOR | ||||
| 250 | 33102010030 | 164.60 | 199.17 | |
| Grooved ball bearing | ||||
| 260 | 41701000012 | 6.41 | 7.76 | |
| Sealing ring | ||||
| 270 | 40612000005 | 1.04 | 1.26 | |
| Disc | ||||
| 275 | 42446008006 | 1.04 | 1.26 | |
| Sealing ring | ||||
| 290 | 40612000004 | 1.04 | 1.26 | |
| Needle bearing | ||||
| 300 | 41706000001 | 41.47 | 50.18 | |
| Needle bearing | ||||
| 300 | 41706000004 | 35.73 | 43.23 | |
| Stator | ||||
| 350 | 51113013940 | 76.56 | 92.64 | |
| Tool head | ||||
| 405 | 31508299030 | 202.88 | 245.48 | |
| Lever | ||||
| 430 | 34300000013 | 13.08 | 15.83 | |
| Circlip | ||||
| 465 | 42615110009 | 1.04 | 1.26 | |
| Eccentric ring | ||||
| 480 | 33218150000 | 3.34 | 4.04 | |
| Pin | ||||
| 490 | 40242043008 | 2.29 | 2.77 | |
| Bush | ||||
| 495 | 30507220000 | 2.51 | 3.04 | |
| Locking spring | ||||
| 510 | 30907069000 | 4.52 | 5.47 | |
| Fillister head screw | ||||
| 520 | 43064023045 | 0.90 | 1.09 | |
| Screw | ||||
| 530 | 43074000004 | 1.04 | 1.26 | |
| Screw | ||||
| 535 | 43074010000 | 1.04 | 1.26 | |
| Terminal | ||||
| 930 | 30728445000 | 3.34 | 4.04 | |
| RFID Transponder | ||||
| 2500 | 32217517000 | 1.25 | 1.51 | |
| Allen key (Winkel, HEX4, HEX2.5) | ||||
| 5100 | 62907039000 | 4.92 | 5.95 | |
| Cylinder head screw | ||||
| 5110 | 43033093060 | 1.04 | 1.26 | |
| Suction unit (Oszillierer, antistatic) | ||||
| 5120 | 32133029020 | 31.35 | 37.93 | |
| KOFFER | ||||
| 5300 | 33901680000 | 63.80 | 77.20 | |
| Case insert | ||||
| 5310 | 33904666000 | 16.27 | 19.69 | |
| KOFFER | ||||
| 5320 | 33906420000 | 10.56 | 12.78 | |
| ACCU AS 18V 5.0AH | ||||
| 5500 | 92604346020 | 116.60 | 141.09 | |
| ACCU AS 18V 4.0AH | ||||
| 5500 | 92604345020 | 105.60 | 127.78 | |
| SNELLADER GAL 1880 CV AS | ||||
| 5550 | 92604335010 | 115.50 | 139.76 | |
| STARTSET AS 18V 5.0AH | ||||
| 5600 | 92604246010 | 282.70 | 342.07 | |
| No information available, not orderable | ||||
| 6010 | 04010101004 | |||
| No information available, not orderable | ||||
| 6020 | 04012803000 | |||
| No information available, not orderable | ||||
| 6030 | 04012400000 | |||
| Extractor tool (SW0016, L 130 MM, M 12) | ||||
| 7000 | 64104150008 | 116.75 | 141.27 | |
| Chuck cone (SW0019, ID 16 MM) | ||||
| 7001 | 64107016001 | 103.36 | 125.07 | |
| Extractor tool (SW0030, M 56 x 1.5 MM, ID 48.25 MM | ||||
| 7002 | 64114034000 | 52.80 | 63.89 | |
| Press-in fixture (SW0047) | ||||
| 7003 | 64122127000 | 137.81 | 166.75 | |
| Sleeve (SW0031) | ||||
| 7004 | 64114035000 | 25.20 | 30.49 | |
| Arbor (SW0044) | ||||
| 7005 | 64122129000 | 34.77 | 42.07 | |
| Assembly aid (SW0043, QUICKIN) | ||||
| 7006 | 64122122000 | 8.08 | 9.78 | |
