Here you will find all available parts and drawings of the 'Fein 71300400940 (ABLS18-1.6E)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

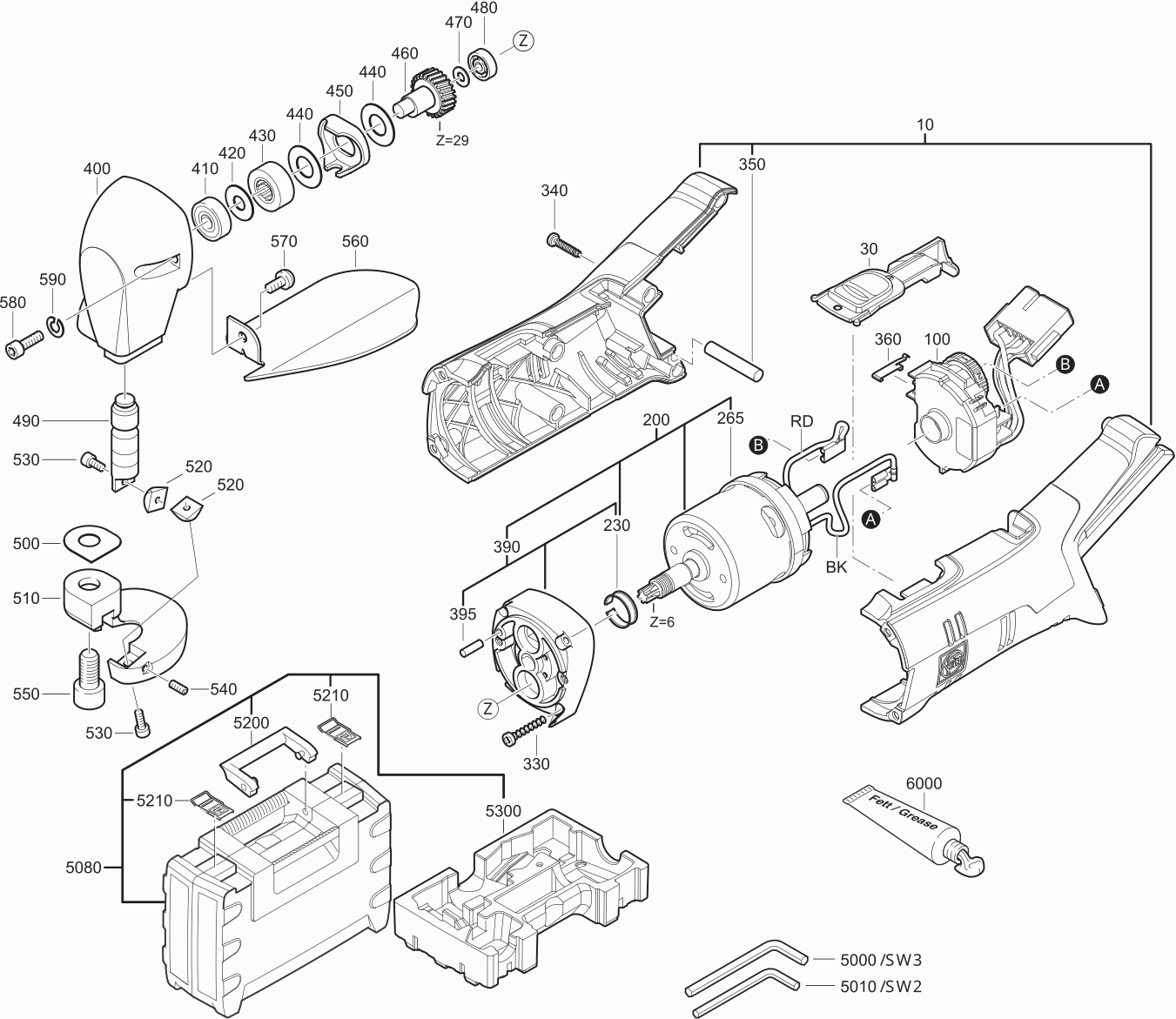

Technical drawing of model Fein 71300400940 (ABLS18-1.6E)
Spare parts list of model Fein 71300400940 (ABLS18-1.6E)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 10 | 31901156020 | 45.94 | 55.59 | |
| Slide switch (BLACK) | ||||
| 30 | 32805237000 | 3.13 | 3.79 | |
| Speed setting switch | ||||
| 100 | 30762569990 | 90.60 | 109.63 | |
| Motor | ||||
| 200 | 54112010950 | 164.60 | 199.17 | |
| Ring | ||||
| 230 | 32636044000 | 3.34 | 4.04 | |
| Motor bearing ring | ||||
| 265 | 30610038010 | 9.47 | 11.46 | |
| Screw | ||||
| 330 | 43074004000 | 1.56 | 1.89 | |
| Screw (16 MM, 3.5 MM, TX15, EJOT) | ||||
| 340 | 43074010000 | 1.56 | 1.89 | |
| Pressure piece | ||||
| 350 | 31415108000 | 1.56 | 1.89 | |
| Locking spring | ||||
| 360 | 30907070000 | 4.10 | 4.96 | |
| Flange | ||||
| 390 | 31506395020 | 77.84 | 94.19 | |
| Pin (SW0017, DO 4 MM, L 12 MM) | ||||
| 395 | 40242006007 | 1.87 | 2.26 | |
| Housing | ||||
| 400 | 31308167003 | 210.54 | 254.75 | |
| Grooved ball bearing | ||||
| 410 | 41701004021 | 10.16 | 12.29 | |
| Shim | ||||
| 420 | 31308177002 | 1.56 | 1.89 | |
| Roller | ||||
| 430 | 41724001005 | 33.18 | 40.15 | |
| Shim | ||||
| 440 | 31308178000 | 1.56 | 1.89 | |
| Holder | ||||
| 450 | 31308168001 | 15.31 | 18.53 | |
| Eccentric shaft | ||||
| 460 | 31308169014 | 121.22 | 146.68 | |
| Disc | ||||
| 470 | 31308170007 | 1.88 | 2.27 | |
| Grooved ball bearing | ||||
| 480 | 41701202018 | 5.77 | 6.98 | |
| Plunger | ||||
| 490 | 31308171006 | 65.08 | 78.75 | |
| Disc | ||||
| 500 | 31308173003 | 2.71 | 3.28 | |
| Disc | ||||
| 500 | 31308174001 | 2.51 | 3.04 | |
| Disc | ||||
| 500 | 31308172009 | 2.09 | 2.53 | |
| Cutting table | ||||
| 510 | 31308175005 | 104.63 | 126.60 | |
| Blade | ||||
| 520 | 31308072000 | 39.49 | 47.78 | |
| Cylinder head screw | ||||
| 530 | 43035004041 | 1.56 | 1.89 | |
| Set screw | ||||
| 540 | 43058013047 | 5.57 | 6.74 | |
| Cylinder head screw | ||||
| 550 | 43035123102 | 2.93 | 3.55 | |
| Hand guard | ||||
| 560 | 31308176008 | 58.70 | 71.03 | |
| Fillister head screw | ||||
| 570 | 43064017051 | 1.67 | 2.02 | |
| Cylinder head screw | ||||
| 580 | 43035016053 | 1.56 | 1.89 | |
| Spring washer | ||||
| 590 | 42445002053 | 1.67 | 2.02 | |
| RFID Transponder | ||||
| 2500 | 32217517000 | 1.56 | 1.89 | |
| Allen key (HEX 3) | ||||
| 5000 | 62907013006 | 2.64 | 3.19 | |
| Allen key | ||||
| 5010 | 62907029006 | 3.48 | 4.21 | |
| Case | ||||
| 5080 | 33901128820 | 55.88 | 67.61 | |
| Handle | ||||
| 5200 | 32119122000 | 7.66 | 9.27 | |
| Wire clamp | ||||
| 5210 | 30232050000 | 8.63 | 10.44 | |
| EPP insert | ||||
| 5300 | 33904492000 | 30.30 | 36.66 | |
| Battery pack (Akku-Pack, 18 V, 6 AH, LITHIUM-ION, | ||||
| 5500 | 92604175020 | 133.87 | 161.98 | |
| Battery pack (Akku-Pack, 18 V, 3 AH, LITHIUM-ION, | ||||
| 5500 | 92604182020 | 95.59 | 115.66 | |
| Charger (ALG 80_, EU, 12 V - 18 V, 8 A, FEIN) | ||||
| 5550 | 92604180010 | 75.13 | 90.91 | |
| No longer available, no replacement | ||||
| 6000 | 32160003083 | |||
| Extractor tool (SW0016, L 130 MM, M 12) | ||||
| 7016 | 64104150008 | 116.75 | 141.27 | |
| Chuck cone (SW0079, ID 16 MM) | ||||
| 7079 | 64107016001 | 103.36 | 125.07 | |
| Chuck cone (SW0084, ID 26 MM, M 6) | ||||
| 7084 | 64107026000 | 111.01 | 134.32 | |
| No information available, not orderable | ||||
| 9000 | 34101335060 | |||
| Safety instruction | ||||
| 9020 | 34130054061 | 1.87 | 2.26 | |
