Here you will find all available parts and drawings of the 'Dewalt DWSL18CAP'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

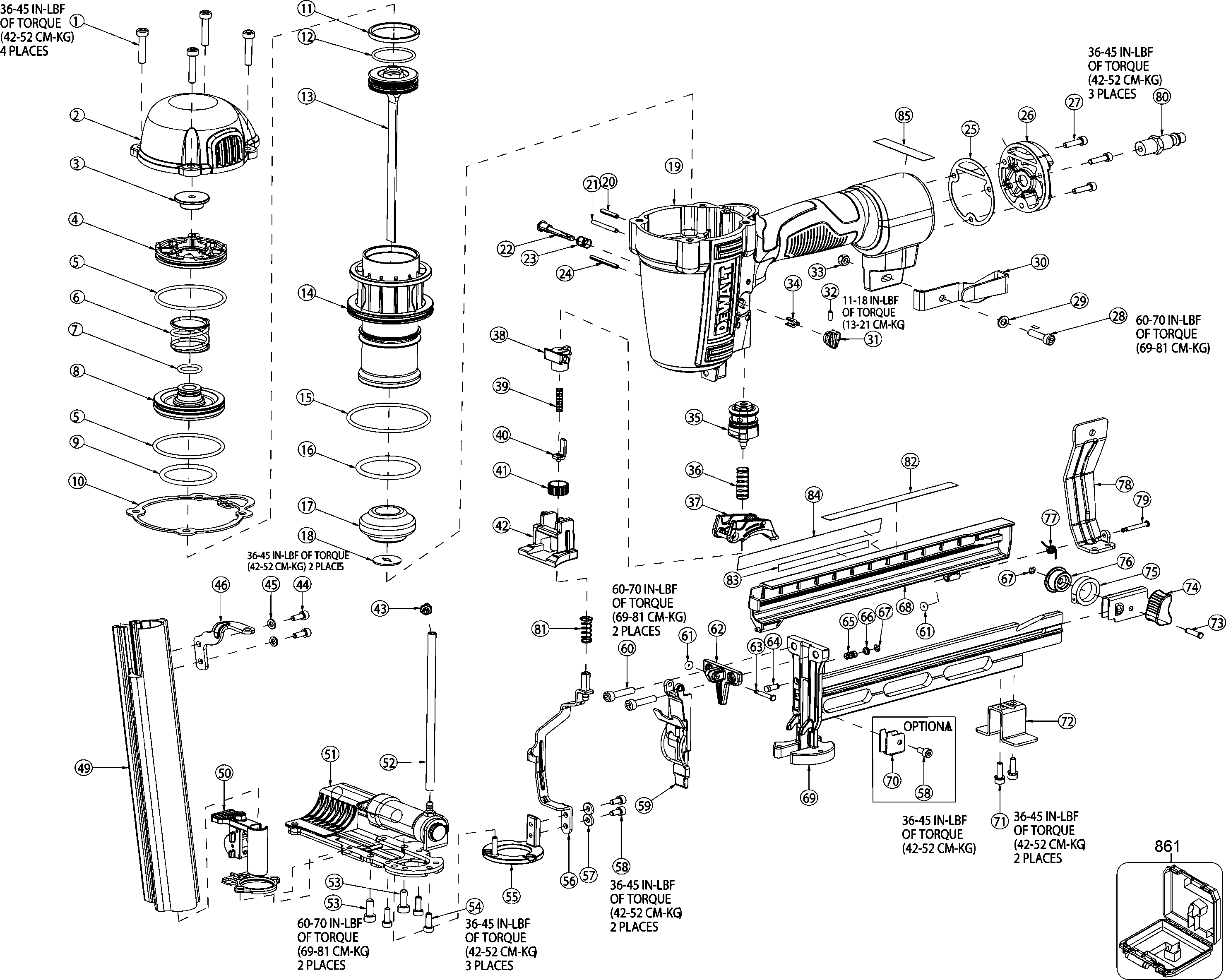

Technical drawing of model Dewalt DWSL18CAP
Spare parts list of model Dewalt DWSL18CAP
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SCREW | ||||
| 1 | MSC5080-25 | 1.08 | 1.31 | |
| END CAP | ||||
| 2 | 9R205674 | 18.84 | 22.80 | |
| SEAL | ||||
| 3 | 180533 | 1.29 | 1.56 | |
| No information available, not orderable | ||||
| 4 | 180230 | |||
| O RING | ||||
| 5 | 850605 | 1.08 | 1.31 | |
| SPRING | ||||
| 6 | 180532 | 1.29 | 1.56 | |
| O RING | ||||
| 7 | 100843 | 1.08 | 1.31 | |
| VALVE | ||||
| 8 | 180537 | 3.52 | 4.26 | |
| O RING | ||||
| 9 | 182253 | 1.08 | 1.31 | |
| GASKET | ||||
| 10 | 9R203809 | 4.49 | 5.43 | |
| PISTON RING | ||||
| 11 | 180543 | 2.87 | 3.47 | |
| O RING | ||||
| 12 | 180544 | 1.08 | 1.31 | |
| No information available, not orderable | ||||
| 13 | 9R204185 | |||
| SLEEVE | ||||
| 14 | 180538 | 5.74 | 6.95 | |
| O RING | ||||
| 15 | 166047 | 1.29 | 1.56 | |
| O RING | ||||
| 16 | 180540 | 1.08 | 1.31 | |
| BUMPER | ||||
| 17 | 180549 | 4.18 | 5.06 | |
| No information available, not orderable | ||||
| 18 | 9R204212 | |||
| No information available, not orderable | ||||
| 19 | 9R204182 | |||
| SPIROL PIN | ||||
| 20 | 107583 | 1.08 | 1.31 | |
| PIN | ||||
| 21 | 174345 | 1.08 | 1.31 | |
| PIN | ||||
| 22 | 184507 | 5.16 | 6.24 | |
| SPRING | ||||
| 23 | 9R188850 | 1.08 | 1.31 | |
| PIN | ||||
| 24 | 100298 | 1.08 | 1.31 | |
| GASKET | ||||
| 25 | 180463 | 2.09 | 2.53 | |
| CAP | ||||
| 26 | 180465 | 6.77 | 8.19 | |
| SCREW | ||||
| 27 | MSC4070-16 | 1.93 | 2.34 | |
| No information available, not orderable | ||||
| 28 | N494651 | |||
| WASHER | ||||
| 29 | 180569 | 1.08 | 1.31 | |
| No information available, not orderable | ||||
| 30 | 9R204208 | |||
| BUTTON | ||||
| 31 | 184506 | 1.08 | 1.31 | |
| SCREW | ||||
| 32 | 180484 | 1.08 | 1.31 | |
| LOCK NUT | ||||
| 33 | MHE5080-100 | 1.08 | 1.31 | |
| BUSHING | ||||
| 34 | 184508 | 2.29 | 2.77 | |
| VALVE | ||||
| 35 | 9R202265-TW | 6.77 | 8.19 | |
| SPRING | ||||
| 36 | 180476 | 1.08 | 1.31 | |
| TRIGGER | ||||
| 37 | 184513 | 7.19 | 8.70 | |
| GUIDE | ||||
| 38 | 180514 | 2.09 | 2.53 | |
| SPRING | ||||
| 39 | 180513 | 1.08 | 1.31 | |
| ARM | ||||
| 40 | 180510 | 1.93 | 2.34 | |
| KNOB | ||||
| 41 | 9R195663 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 42 | 9R204206 | |||
| No information available, not orderable | ||||
| 43 | 188636 | |||
| SCREW | ||||
| 44 | MSC4070-10 | 1.08 | 1.31 | |
| No information available, not orderable | ||||
| 45 | 180504 | |||
| No information available, not orderable | ||||
| 46 | 9R204209 | |||
| MAGAZINE | ||||
| 49 | 188699 | 17.13 | 20.73 | |
| SLIDER SA | ||||
| 50 | 188650 | 7.19 | 8.70 | |
| CYLINDER SA | ||||
| 51 | 188660 | 27.60 | 33.40 | |
| No information available, not orderable | ||||
| 52 | 9R204211 | |||
| No information available, not orderable | ||||
| 53 | 188625 | |||
| SCREW | ||||
| 54 | MSC4070-12 | 1.08 | 1.31 | |
| CONTACT PLATE | ||||
| 55 | 188592 | 10.49 | 12.69 | |
| No information available, not orderable | ||||
| 56 | 9R204199 | |||
| No information available, not orderable | ||||
| 57 | 188706 | |||
| SCREW | ||||
| 58 | MSC4070-8 | 1.08 | 1.31 | |
| No information available, not orderable | ||||
| 59 | 9R204198 | |||
| SCREW | ||||
| 60 | MSC5080-22 | 1.08 | 1.31 | |
| O RING | ||||
| 61 | 174073 | 1.08 | 1.31 | |
| No information available, not orderable | ||||
| 62 | 9R204189 | |||
| PIN | ||||
| 63 | 188628 | 1.08 | 1.31 | |
| LOCK PIN | ||||
| 64 | 188594 | 2.09 | 2.53 | |
| SPRING | ||||
| 65 | 180492 | 1.08 | 1.31 | |
| SPACER | ||||
| 66 | 180493 | 1.08 | 1.31 | |
| CIRCLIP | ||||
| 67 | 180494 | 1.08 | 1.31 | |
| COVER | ||||
| 68 | 188638 | 4.18 | 5.06 | |
| No information available, not orderable | ||||
| 69 | 9R204196 | |||
| No information available, not orderable | ||||
| 70 | 188605 | |||
| No information available, not orderable | ||||
| 71 | 188705 | |||
| PLATE | ||||
| 72 | 188637 | 2.29 | 2.77 | |
| No information available, not orderable | ||||
| 73 | 188634 | |||
| No information available, not orderable | ||||
| 74 | 9R204216 | |||
| SPRING COMPRESSION | ||||
| 75 | 188632 | 2.29 | 2.77 | |
| BUSHING | ||||
| 76 | 188633 | 1.08 | 1.31 | |
| SPRING TORSION | ||||
| 77 | 188696 | 1.08 | 1.31 | |
| No information available, not orderable | ||||
| 78 | 9R204207 | |||
| PIN | ||||
| 79 | 188704 | 1.08 | 1.31 | |
| Connector Male | ||||
| 80 | 152183 | 2.74 | 3.32 | |
| No information available, not orderable | ||||
| 81 | 188667 | |||
| No information available, not orderable | ||||
| 82 | 9R208223 | |||
| No information available, not orderable | ||||
| 83 | 9R208227 | |||
| No information available, not orderable | ||||
| 84 | 9R208258 | |||
| No information available, not orderable | ||||
| 85 | 9R209283 | |||
| No information available, not orderable | ||||
| 861 | 9R208209 | |||
