Here you will find all available parts and drawings of the 'Dewalt DWFP12232'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

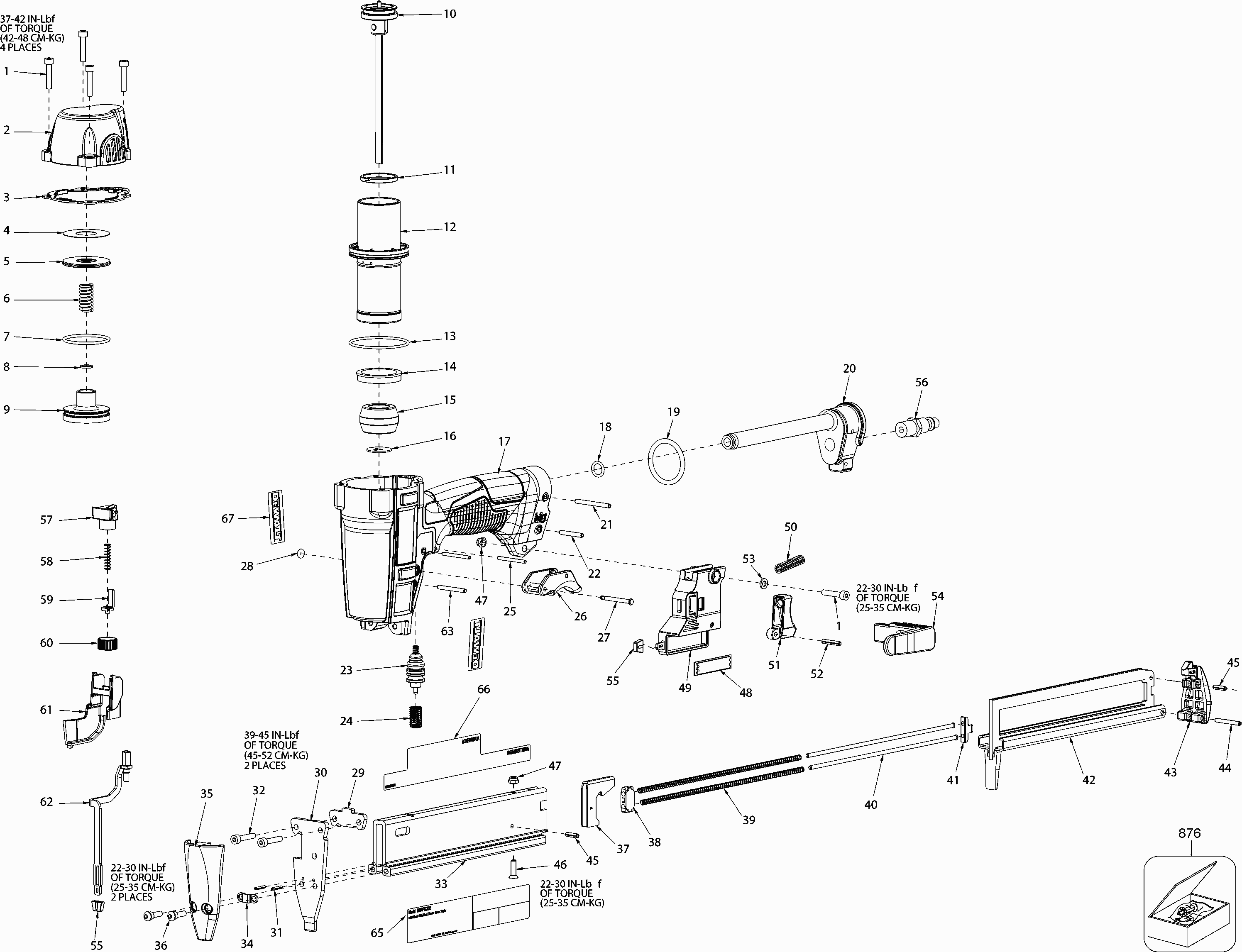

Technical drawing of model Dewalt DWFP12232
Spare parts list of model Dewalt DWFP12232
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SCREW | ||||
| 1 | 182237 | 1.34 | 1.62 | |
| END CAP | ||||
| 2 | 9R195614 | 18.10 | 21.90 | |
| GASKET | ||||
| 3 | 9R195626 | 3.61 | 4.37 | |
| No information available, not orderable | ||||
| 4 | 180445 | |||
| SEAL | ||||
| 5 | 180446 | 1.61 | 1.95 | |
| SPRING | ||||
| 6 | 180447 | 1.34 | 1.62 | |
| O RING | ||||
| 7 | 180448 | 1.34 | 1.62 | |
| WASHER | ||||
| 8 | 180449 | 1.34 | 1.62 | |
| BODY | ||||
| 9 | 180450-S | 3.42 | 4.14 | |
| DRIVER SA | ||||
| 10 | 180205-K | 9.88 | 11.95 | |
| No information available, not orderable | ||||
| 11 | 180457 | |||
| CYLINDER | ||||
| 12 | 9R195284 | 7.23 | 8.75 | |
| O RING | ||||
| 13 | 174044 | 1.34 | 1.62 | |
| SEAL | ||||
| 14 | 180460 | 1.34 | 1.62 | |
| BUMPER | ||||
| 15 | 180461 | 3.58 | 4.33 | |
| No information available, not orderable | ||||
| 16 | 180462 | |||
| FRAME | ||||
| 17 | 9R195612 | 64.75 | 78.35 | |
| O RING | ||||
| 18 | MRG008819 | 4.67 | 5.65 | |
| O RING | ||||
| 19 | 9R195332 | 1.63 | 1.97 | |
| END CAP | ||||
| 20 | 9R195281 | 5.96 | 7.21 | |
| SPIROL PIN | ||||
| 21 | 9R195285 | 1.37 | 1.66 | |
| PIN | ||||
| 22 | 180503 | 1.34 | 1.62 | |
| VALVE | ||||
| 23 | 9R195308 | 7.23 | 8.75 | |
| SPRING | ||||
| 24 | 9R195329 | 1.37 | 1.66 | |
| PIN | ||||
| 25 | 9R195317 | 1.63 | 1.97 | |
| No information available, not orderable | ||||
| 26 | 9R195660SV | |||
| PIN | ||||
| 27 | 9R195317 | 1.63 | 1.97 | |
| O RING | ||||
| 28 | 174073 | 1.34 | 1.62 | |
| PLATE | ||||
| 29 | 180208 | 1.61 | 1.95 | |
| NOSE | ||||
| 30 | 9R195369 | 12.31 | 14.90 | |
| PIN | ||||
| 31 | 180490 | 1.34 | 1.62 | |
| SCREW | ||||
| 32 | 100260 | 1.34 | 1.62 | |
| MAGAZINE | ||||
| 33 | 9R195362 | 21.59 | 26.12 | |
| BRACKET | ||||
| 34 | 180207 | 1.34 | 1.62 | |
| COVER | ||||
| 35 | 9R195368 | 2.89 | 3.50 | |
| SCREW | ||||
| 36 | 180587 | 1.34 | 1.62 | |
| PUSHER | ||||
| 37 | 9R195363 | 3.45 | 4.17 | |
| GUIDE | ||||
| 38 | 180199 | 1.34 | 1.62 | |
| SPRING | ||||
| 39 | 180527 | 1.34 | 1.62 | |
| ROD | ||||
| 40 | 180526 | 1.61 | 1.95 | |
| SUPPORT | ||||
| 41 | 180200 | 1.61 | 1.95 | |
| MAGAZINE SA | ||||
| 42 | 180206 | 12.00 | 14.52 | |
| END CAP | ||||
| 43 | 180201 | 2.44 | 2.95 | |
| PIN | ||||
| 44 | 180567 | 1.37 | 1.66 | |
| PIN | ||||
| 45 | MPG030012 | 1.37 | 1.66 | |
| SCREW | ||||
| 46 | 174307 | 1.34 | 1.62 | |
| NUT | ||||
| 47 | MHE4070-100 | 1.34 | 1.62 | |
| LABEL | ||||
| 48 | 120927 | 1.55 | 1.88 | |
| BRACKET | ||||
| 49 | 9R195619 | 5.27 | 6.38 | |
| SPRING | ||||
| 50 | 180528 | 1.34 | 1.62 | |
| LATCH | ||||
| 51 | 9R195735 | 2.44 | 2.95 | |
| SPIROL PIN | ||||
| 52 | 107583 | 1.34 | 1.62 | |
| No information available, not orderable | ||||
| 53 | 180504 | |||
| HOOK | ||||
| 54 | 9R195620 | 3.61 | 4.37 | |
| FOOT | ||||
| 55 | 9R195734 | 1.37 | 1.66 | |
| Connector Male | ||||
| 56 | 152183 | 3.29 | 3.98 | |
| GUIDE | ||||
| 57 | 180514 | 2.51 | 3.04 | |
| SPRING | ||||
| 58 | 180513 | 1.34 | 1.62 | |
| ARM | ||||
| 59 | 180510 | 2.32 | 2.81 | |
| KNOB | ||||
| 60 | 9R195663 | 1.63 | 1.97 | |
| GUIDE | ||||
| 61 | 9R195365 | 2.44 | 2.95 | |
| TRIP SA | ||||
| 62 | 195366 | 6.50 | 7.86 | |
| PIN | ||||
| 63 | 174345 | 1.34 | 1.62 | |
| No information available, not orderable | ||||
| 65 | 9R195776 | |||
| No information available, not orderable | ||||
| 66 | 9R195606 | |||
| BRAND LABEL | ||||
| 67 | 9R195863 | 1.37 | 1.66 | |
| KIT | ||||
| 876 | DWFP12232-DK | 19.78 | 23.93 | |
| KIT | ||||
| 876 | DWFP12231-OK | 18.10 | 21.90 | |
| VALVE KIT | ||||
| 876 | DWFP12231-TVK | 12.12 | 14.67 | |
| KIT | ||||
| 876 | DWFP12231-CTK | 10.88 | 13.16 | |
