Here you will find all available parts and drawings of the 'Dewalt DW66C-1'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

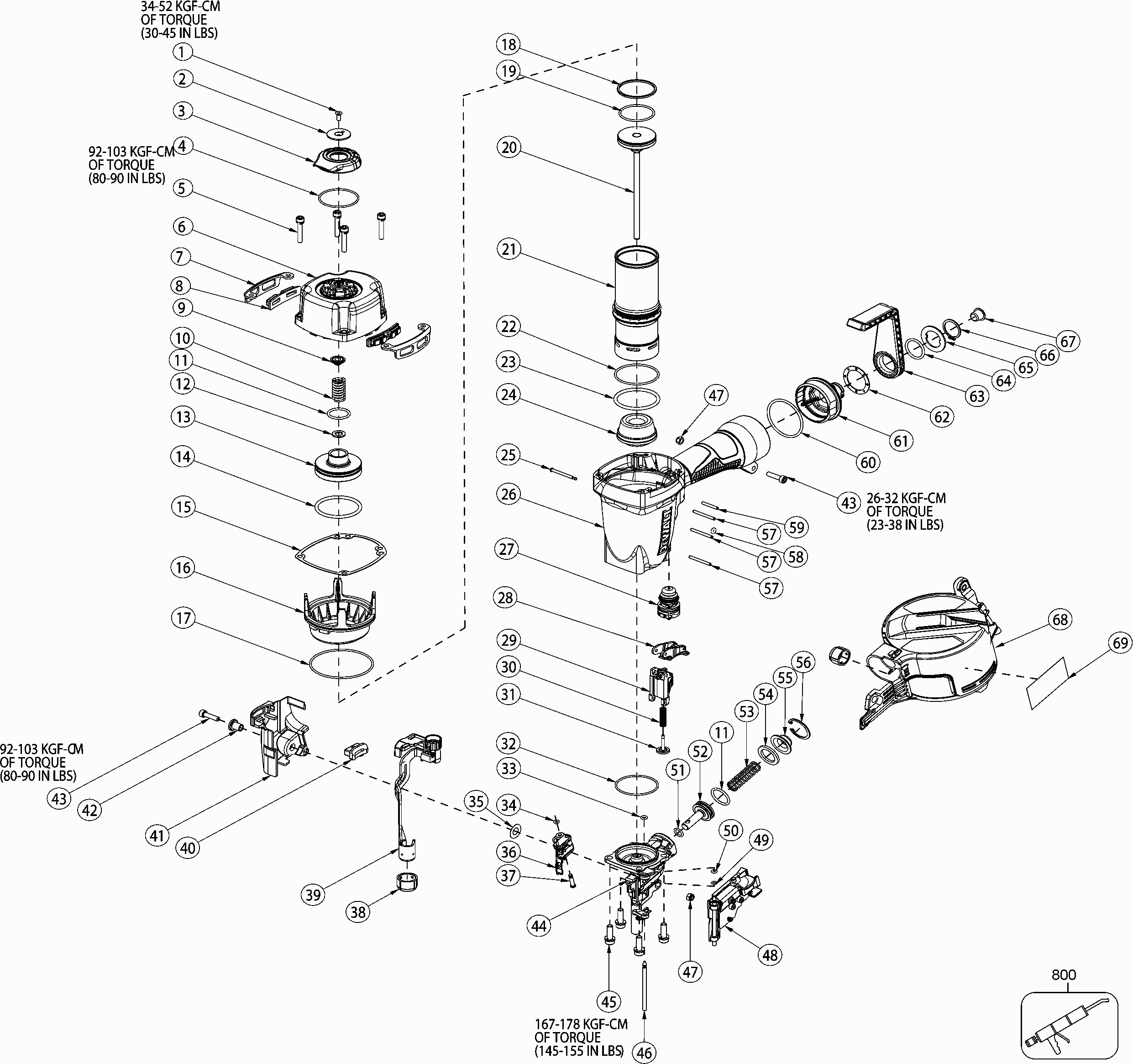

Technical drawing of model Dewalt DW66C-1
Spare parts list of model Dewalt DW66C-1
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SCREW | ||||
| 1 | 174041 | 1.34 | 1.62 | |
| SPACER | ||||
| 2 | 174042 | 2.41 | 2.92 | |
| COVER | ||||
| 3 | 174043 | 3.42 | 4.14 | |
| O RING | ||||
| 4 | 174044 | 1.34 | 1.62 | |
| SCREW | ||||
| 5 | 175554 | 1.30 | 1.57 | |
| CAP | ||||
| 6 | 9R207485 | 18.10 | 21.90 | |
| BRACKET | ||||
| 7 | 174046 | 4.02 | 4.86 | |
| RUBBER PAD | ||||
| 8 | 174045 | 1.61 | 1.95 | |
| SEAL | ||||
| 9 | 174049 | 1.34 | 1.62 | |
| SPRING COMPRESSION | ||||
| 10 | 174051 | 1.61 | 1.95 | |
| O RING | ||||
| 11 | 174053 | 1.34 | 1.62 | |
| WASHER SPECIAL | ||||
| 12 | 174052 | 1.34 | 1.62 | |
| VALVE | ||||
| 13 | 174054 | 5.90 | 7.14 | |
| O RING | ||||
| 14 | 174055 | 1.34 | 1.62 | |
| GASKET | ||||
| 15 | 174050 | 6.44 | 7.79 | |
| COLLAR | ||||
| 16 | 174057 | 3.58 | 4.33 | |
| O RING | ||||
| 17 | 174056 | 1.61 | 1.95 | |
| SEAL | ||||
| 18 | P2320006600 | 2.86 | 3.46 | |
| O RING | ||||
| 19 | S06S003600 | 1.34 | 1.62 | |
| DRIVER | ||||
| 20 | G0209200 | 87.91 | 106.37 | |
| COLLAR | ||||
| 21 | 9R213301 | 9.88 | 11.95 | |
| O RING | ||||
| 22 | 174058 | 1.34 | 1.62 | |
| O RING | ||||
| 23 | 86460 | 4.39 | 5.31 | |
| BUMPER | ||||
| 24 | 174075 | 10.78 | 13.04 | |
| PIN | ||||
| 25 | 174062 | 1.34 | 1.62 | |
| FRAME | ||||
| 26 | 9R207421 | 59.76 | 72.31 | |
| No information available, not orderable | ||||
| 28 | 107581 | |||
| GUIDE | ||||
| 29 | 9R199740 | 2.60 | 3.15 | |
| SPRING | ||||
| 30 | P2325202662 | 1.34 | 1.62 | |
| HOLDER | ||||
| 31 | P2845203062 | 5.90 | 7.14 | |
| O RING | ||||
| 32 | 851483-S | 1.34 | 1.62 | |
| O RING | ||||
| 33 | S06P000400 | 1.34 | 1.62 | |
| O RING | ||||
| 34 | S06A000500 | 1.34 | 1.62 | |
| WASHER | ||||
| 35 | P3490000200 | 1.61 | 1.95 | |
| JAW | ||||
| 36 | G7600200 | 16.12 | 19.51 | |
| ROLLPIN | ||||
| 37 | P2325207562 | 1.61 | 1.95 | |
| FOOT | ||||
| 38 | 9R213318 | 1.61 | 1.95 | |
| CONTACT | ||||
| 39 | 9R207475 | 16.28 | 19.70 | |
| RUBBER PAD | ||||
| 40 | P2320005400 | 2.41 | 2.92 | |
| GUARD | ||||
| 41 | P2320005500 | 4.67 | 5.65 | |
| SPACER | ||||
| 42 | P2325205662 | 1.61 | 1.95 | |
| BOLT | ||||
| 43 | S2710520100 | 1.34 | 1.62 | |
| NOSE | ||||
| 44 | P2840001065 | 81.42 | 98.52 | |
| SCREW | ||||
| 45 | 9R195545 | 1.34 | 1.62 | |
| PIVOT | ||||
| 46 | P2325203662 | 2.41 | 2.92 | |
| No information available, not orderable | ||||
| 47 | 174065 | |||
| DOOR | ||||
| 48 | 188721 | 29.95 | 36.24 | |
| O RING | ||||
| 49 | 184434 | 1.34 | 1.62 | |
| O RING | ||||
| 50 | S06P000300 | 4.67 | 5.65 | |
| O RING | ||||
| 51 | S06P000900 | 1.34 | 1.62 | |
| PISTON | ||||
| 52 | P2325504962 | 8.45 | 10.22 | |
| SPRING | ||||
| 53 | P2325205062 | 1.61 | 1.95 | |
| BUMPER | ||||
| 54 | P2322005100 | 1.55 | 1.88 | |
| COVER | ||||
| 55 | P2325205262 | 2.41 | 2.92 | |
| RING | ||||
| 56 | S15202800 | 1.34 | 1.62 | |
| PIN | ||||
| 57 | 174071 | 1.34 | 1.62 | |
| O RING | ||||
| 58 | 174073 | 1.34 | 1.62 | |
| PIN | ||||
| 59 | 174070 | 1.34 | 1.62 | |
| No information available, not orderable | ||||
| 60 | 850242 | |||
| END CAP | ||||
| 61 | 9R209578 | 8.98 | 10.87 | |
| SEAL | ||||
| 62 | 175582 | 1.61 | 1.95 | |
| HOOK | ||||
| 63 | 175583 | 4.02 | 4.86 | |
| O RING | ||||
| 64 | 175557 | 1.34 | 1.62 | |
| CAP | ||||
| 65 | 175585 | 1.61 | 1.95 | |
| RING | ||||
| 66 | 175586 | 1.34 | 1.62 | |
| PLUG | ||||
| 67 | 86352 | 1.34 | 1.62 | |
| No information available, not orderable | ||||
| 68 | 9R204213 | |||
| No information available, not orderable | ||||
| 69 | 9R209321 | |||
| GREASE | ||||
| 800 | 100679 | 64.13 | 77.60 | |
| LUBE (2CC) | ||||
| 800 | 9R206705 | 4.02 | 4.86 | |
