Here you will find all available parts and drawings of the 'Bosch 3603C41000 ( VENTARO1400 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

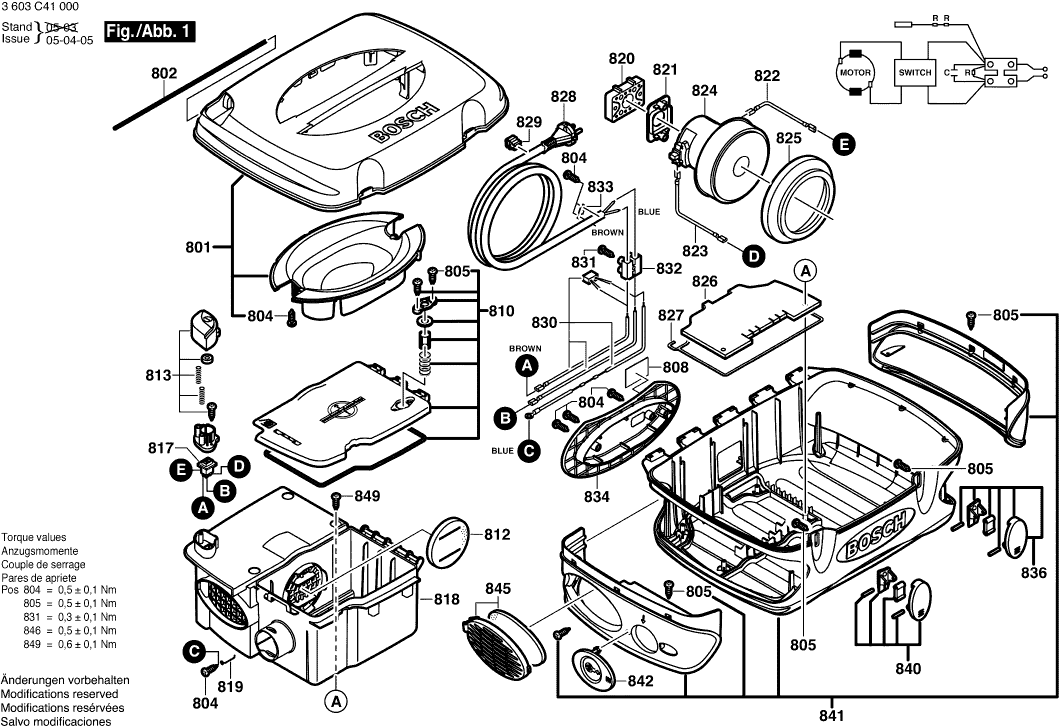

Technical drawing of model Bosch 3603C41000 ( VENTARO1400 )
Spare parts list of model Bosch 3603C41000 ( VENTARO1400 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Cover | ||||
| 801 | 2609200326 | 33.45 | 40.47 | |
| Hinge Bolt | ||||
| 802 | 2609200327 | 1.18 | 1.43 | |
| Screw | ||||
| 804 | 2609200328 | 0.83 | 1.00 | |
| Screw | ||||
| 805 | 2609200357 | 0.83 | 1.00 | |
| Marking Plate | ||||
| 808 | 2601116920 | 2.71 | 3.28 | |
| Dust-Protection Cover | ||||
| 810 | 2609200361 | 7.58 | 9.17 | |
| Suction Filter | ||||
| 812 | 2609200330 | 0.83 | 1.00 | |
| Switch-Pawl | ||||
| 813 | 2609200331 | 5.33 | 6.45 | |
| On-Off Switch | ||||
| 817 | 2609200349 | 4.70 | 5.69 | |
| Motor Housing | ||||
| 818 | 2609200332 | 36.85 | 44.59 | |
| Anti-Static Set | ||||
| 819 | 2609200333 | 1.18 | 1.43 | |
| Motor Cradle | ||||
| 820 | 2609200334 | 2.24 | 2.71 | |
| Motor Flange | ||||
| 821 | 2609200335 | 0.83 | 1.00 | |
| Motor Cable | ||||
| 822 | 2609200336 | 0.83 | 1.00 | |
| Motor Cable | ||||
| 823 | 2609200337 | 0.83 | 1.00 | |
| Motor | ||||
| 824 | 2609200338 | 67.25 | 81.37 | |
| Motor Flange | ||||
| 825 | 2609200339 | 7.58 | 9.17 | |
| Insulating Part | ||||
| 826 | 2609200340 | 2.24 | 2.71 | |
| Seal Fastener | ||||
| 827 | 2609200341 | 0.83 | 1.00 | |
| Power supply cord | ||||
| 828 | 2609200342 | 8.45 | 10.22 | |
| No longer available, no replacement | ||||
| 829 | 2609200343 | |||
| Suppression Capacitor | ||||
| 830 | 2609200344 | 5.33 | 6.45 | |
| Screw | ||||
| 831 | 2609200345 | 0.83 | 1.00 | |
| connecting terminal | ||||
| 832 | 2609200346 | 1.18 | 1.43 | |
| Cable Clip | ||||
| 833 | 2609200347 | 0.83 | 1.00 | |
| Cable Coiler | ||||
| 834 | 2609200348 | 5.33 | 6.45 | |
| Locking Set | ||||
| 836 | 2609200350 | 1.94 | 2.35 | |
| Locking Set | ||||
| 840 | 2609200354 | 1.94 | 2.35 | |
| Housing Base | ||||
| 841 | 2609200351 | 40.61 | 49.14 | |
| Adapter Insert | ||||
| 842 | 2609200352 | 0.83 | 1.00 | |
| Filter Unit | ||||
| 845 | 2609200353 | 0.83 | 1.00 | |
| Screw | ||||
| 849 | 2609200358 | 0.83 | 1.00 | |
