Here you will find all available parts and drawings of the 'Bosch 0611304003 (USH27)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

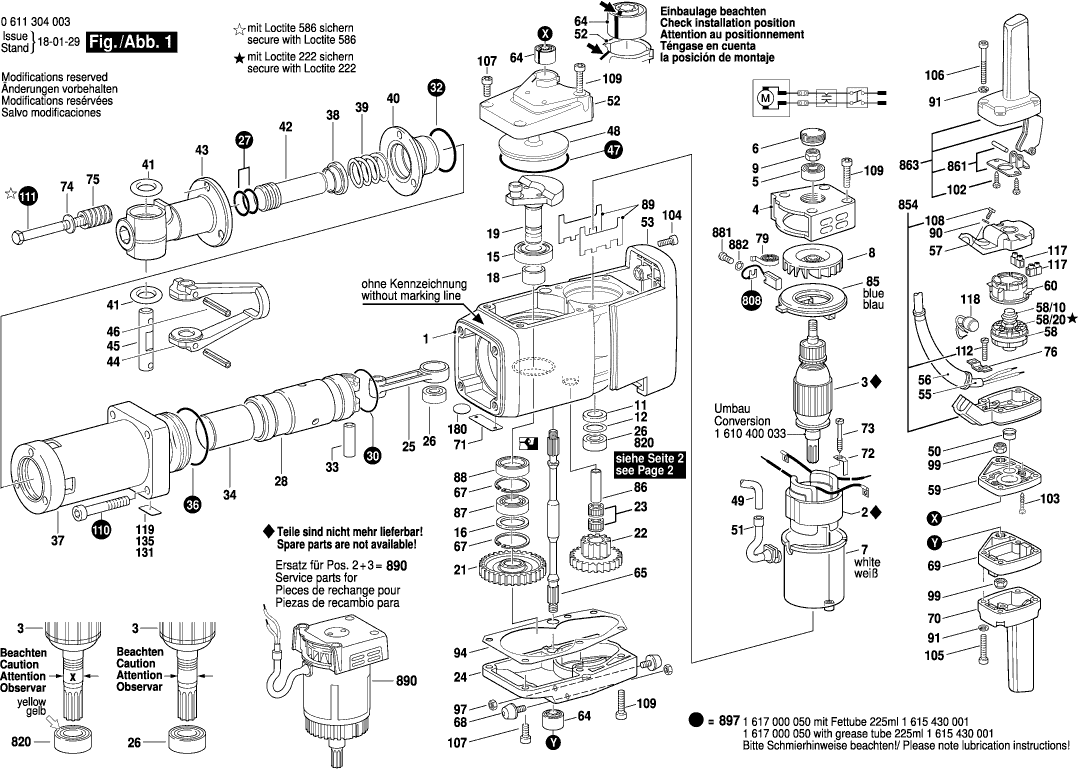

Technical drawing of model Bosch 0611304003 (USH27)
Spare parts list of model Bosch 0611304003 (USH27)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1617000851 | 847.77 | 1025.80 | |
| Field | ||||
| 2 | 1614220059 | 179.65 | 217.38 | |
| No longer available, no replacement | ||||
| 3 | 2610991398 | |||
| Bearing cover | ||||
| 4 | 1615805068 | 91.33 | 110.51 | |
| groove ball bearing | ||||
| 5 | 1610900015 | 23.90 | 28.92 | |
| Screw Plug | ||||
| 6 | 1615500214 | 21.30 | 25.77 | |
| Insulating Housing | ||||
| 7 | 1615108006 | 28.56 | 34.56 | |
| Fan | ||||
| 8 | 1616610056 | 11.94 | 14.45 | |
| Hex Nut | ||||
| 9 | 1613313000 | 2.86 | 3.46 | |
| Felt Washer | ||||
| 11 | 1610108013 | 2.08 | 2.52 | |
| Supporting Disc | ||||
| 12 | 1610102616 | 2.86 | 3.46 | |
| Cyl. Roller Bearing | ||||
| 15 | 1610910012 | 124.07 | 150.12 | |
| Shim | ||||
| 16 | 1610102010 | 2.52 | 3.05 | |
| Spacer Bushing | ||||
| 18 | 1610300034 | 33.33 | 40.33 | |
| Eccentric Shaft | ||||
| 19 | 1616110027 | 199.59 | 241.50 | |
| Cylindrical Gear | ||||
| 21 | 1616318009 | 155.51 | 188.17 | |
| Cylindrical Gear | ||||
| 22 | 1616328036 | 219.55 | 265.66 | |
| Needle-Roller Assembly | ||||
| 23 | 1610913005 | 8.35 | 10.10 | |
| Gear Cover | ||||
| 24 | 1615500323 | 141.37 | 171.06 | |
| Connecting Rod | ||||
| 25 | 1612001040 | 82.63 | 99.98 | |
| Needle-Roller Bearing | ||||
| 26 | 1610910035 | 22.88 | 27.68 | |
| O-Ring | ||||
| 27 | 1610210033 | 2.18 | 2.64 | |
| Hammer Piston | ||||
| 28 | 1618700043 | 383.36 | 463.87 | |
| Retaining ring | ||||
| 30 | 1614601039 | 1.90 | 2.30 | |
| O-Ring | ||||
| 32 | 1900210156 | 7.32 | 8.86 | |
| Piston Pin | ||||
| 33 | 3613101500 | 6.53 | 7.90 | |
| Striker | ||||
| 34 | 1618710039 | 67.98 | 82.26 | |
| O-Ring | ||||
| 36 | 1900210166 | 4.58 | 5.54 | |
| Guide Tube | ||||
| 37 | 1615806029 | 360.29 | 435.95 | |
| Guide Bushing | ||||
| 38 | 1610220009 | 20.39 | 24.67 | |
| Compression Spring | ||||
| 39 | 1614619005 | 5.96 | 7.21 | |
| Intermediate Flange | ||||
| 40 | 1615700017 | 146.07 | 176.74 | |
| O-Ring | ||||
| 41 | 1610210008 | 5.81 | 7.03 | |
| Striker Pin | ||||
| 42 | 1613123003 | 126.98 | 153.65 | |
| Toolholder | ||||
| 43 | 1617000428 | 495.00 | 598.95 | |
| Retaining Bracket | ||||
| 44 | 1618045026 | 197.62 | 239.12 | |
| Locking Bolt | ||||
| 45 | 1613103004 | 55.56 | 67.23 | |
| Slotted Spring Pin | ||||
| 46 | 2917760187 | 2.52 | 3.05 | |
| O-Ring | ||||
| 47 | 1900210172 | 9.67 | 11.70 | |
| Sealing cap | ||||
| 48 | 1610516007 | 11.94 | 14.45 | |
| Insulation Tubing | ||||
| 49 | 1610707000 | 1.24 | 1.50 | |
| Protection Sleeve | ||||
| 50 | 3600421500 | 2.40 | 2.90 | |
| Cord guard | ||||
| 51 | 1610703019 | 4.12 | 4.99 | |
| Fan Cover | ||||
| 52 | 1615500324 | 67.98 | 82.26 | |
| Covering hood | ||||
| 53 | 1600A00C0N | 82.63 | 99.98 | |
| Power supply cord | ||||
| 55 | 1617000723 | 27.81 | 33.65 | |
| Grommet | ||||
| 56 | 1610703011 | 12.21 | 14.77 | |
| Switch Cover | ||||
| 57 | 1615500212 | 9.47 | 11.46 | |
| Switch | ||||
| 58 | 1617200108 | 61.93 | 74.94 | |
| Protective Cap | ||||
| 58/10 | 1610591001 | 17.60 | 21.30 | |
| Pan head screw | ||||
| 58/20 | 2910091118 | 1.00 | 1.21 | |
| Intermediate Plate | ||||
| 59 | 1615700041 | 102.63 | 124.18 | |
| Insulating Cap | ||||
| 60 | 1615500330 | 3.71 | 4.49 | |
| Rubber Torsion-Bar | ||||
| 64 | 1616334000 | 26.62 | 32.21 | |
| Toothed Shaft | ||||
| 65 | 1613060005 | 58.03 | 70.22 | |
| Spring retaining ring | ||||
| 67 | 2916660023 | 4.94 | 5.98 | |
| Rubber Buffer | ||||
| 68 | 1613465001 | 5.81 | 7.03 | |
| Intermediate Plate | ||||
| 69 | 1615700042 | 114.26 | 138.25 | |
| Handle | ||||
| 70 | 1615132011 | 37.50 | 45.38 | |
| Nameplate | ||||
| 71 | 160111A3H3 | 2.40 | 2.90 | |
| Holding Bracket | ||||
| 72 | 1601331032 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 73 | 1603435008 | 1.49 | 1.80 | |
| Disc Spring | ||||
| 74 | 2916160009 | 3.04 | 3.68 | |
| Compression Spring | ||||
| 75 | 3614640501 | 8.48 | 10.26 | |
| Fastening Clamp | ||||
| 76 | 1611302011 | 5.96 | 7.21 | |
| Spiral Spring | ||||
| 79 | 1614652001 | 3.44 | 4.16 | |
| Brush Holder | ||||
| 85 | 1614336002 | 25.28 | 30.59 | |
| Bearing bolt | ||||
| 86 | 1610300033 | 18.94 | 22.92 | |
| groove ball bearing | ||||
| 87 | 1900900307 | 28.56 | 34.56 | |
| No longer available, no replacement | ||||
| 88 | 1610283004 | |||
| Insulating Plate | ||||
| 89 | 1611099004 | 1.00 | 1.21 | |
| Spring Lock Washer | ||||
| 90 | 2916681005 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 91 | 2916690005 | |||
| Sealing Plate | ||||
| 94 | 1611015021 | 2.86 | 3.46 | |
| Hex Nut | ||||
| 97 | 2915011007 | 1.00 | 1.21 | |
| Hex Nut | ||||
| 99 | 3613313500 | 2.86 | 3.46 | |
| Tapping Screw | ||||
| 102 | 2910211025 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 103 | 2910211022 | 1.00 | 1.21 | |
| Hex Socket Head Cap Screw | ||||
| 104 | 2910141201 | 2.40 | 2.90 | |
| Hex Socket Head Cap Screw | ||||
| 105 | 2910141205 | 2.18 | 2.64 | |
| Hex Socket Head Cap Screw | ||||
| 106 | 2910141215 | 3.04 | 3.68 | |
| Hex Socket Head Cap Screw | ||||
| 107 | 2910141242 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 108 | 2910211220 | 1.49 | 1.80 | |
| Hex Socket Head Cap Screw | ||||
| 109 | 2910141248 | 1.49 | 1.80 | |
| Hex Socket Head Cap Screw | ||||
| 110 | 2910141356 | 2.40 | 2.90 | |
| Microencapsulated Screw | ||||
| 111 | 2914550034 | 3.04 | 3.68 | |
| Tapping Screw | ||||
| 112 | 2910211236 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 114 | 3603435503 | 1.73 | 2.09 | |
| Strip Terminal | ||||
| 117 | 1901091110 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 118 | 1617328002 | |||
| Reference Plate | ||||
| 135 | 3611119512 | 2.87 | 3.47 | |
| Offset Screwdriver | ||||
| 650 | 1907950006 | 3.71 | 4.49 | |
| Hexagon Socket Screw Key | ||||
| 650 | 2610364015 | 3.44 | 4.16 | |
| Pointed Chisel | ||||
| 700 | 1618660000 | 0.83 | 1.00 | |
| Wide chisel | ||||
| 701 | 1618661000 | 0.83 | 1.00 | |
| Broad chisel | ||||
| 702 | 1618662000 | 0.83 | 1.00 | |
| Modification Set | ||||
| 800 | 1617000852 | 738.05 | 893.04 | |
| Carbon-Brush Set | ||||
| 808 | 1617014111 | 17.60 | 21.30 | |
| Needle-Roller Bearing | ||||
| 820 | 1610910094 | 28.56 | 34.56 | |
| Switch Housing | ||||
| 854 | 1617000858 | 33.33 | 40.33 | |
| fixing plate | ||||
| 861 | 1617000429 | 10.68 | 12.92 | |
| Parts Set | ||||
| 863 | 1617000A10 | 50.23 | 60.78 | |
| Torx Oval-Head Screw | ||||
| 881 | 1613490005 | 2.40 | 2.90 | |
| Spring Lock Washer | ||||
| 882 | 1610151007 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 890 | 1617000849 | |||
| Grease | ||||
| 895 | 1615430007 | 75.38 | 91.21 | |
| No longer available, no replacement | ||||
| 897 | 1617000050 | |||
| Grease Tube | ||||
| 898 | 1615430001 | 22.88 | 27.68 | |
