Here you will find all available parts and drawings of the 'Bosch 0611305003 (USH10)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

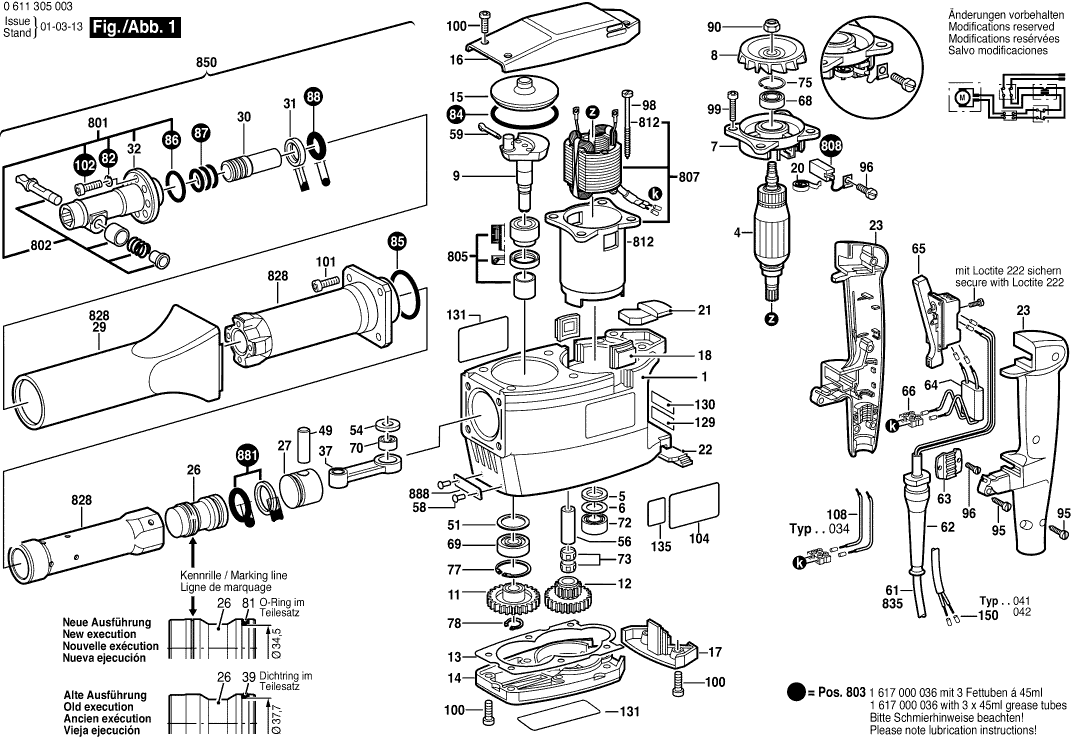

Technical drawing of model Bosch 0611305003 (USH10)
Spare parts list of model Bosch 0611305003 (USH10)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1615106021 | 314.42 | 380.45 | |
| Armature | ||||
| 4 | 1614011019 | 619.86 | 750.03 | |
| Sealing disk | ||||
| 5 | 1610108012 | 1.49 | 1.80 | |
| Shim | ||||
| 6 | 1610102013 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 7 | 1615805060 | |||
| No longer available, no replacement | ||||
| 8 | 1616610047 | |||
| Eccentric Shaft | ||||
| 9 | 1616110032 | 58.03 | 70.22 | |
| Cylindrical Gear | ||||
| 11 | 1616317015 | 80.26 | 97.11 | |
| Cylindrical Gear | ||||
| 12 | 1616328025 | 71.68 | 86.73 | |
| Sealing Plate | ||||
| 13 | 1611015012 | 1.49 | 1.80 | |
| Gear Cover | ||||
| 14 | 1615808039 | 39.14 | 47.36 | |
| Sealing cap | ||||
| 15 | 1615500168 | 2.08 | 2.52 | |
| Fan Cover | ||||
| 16 | 1615500276 | 58.03 | 70.22 | |
| Switch Cover | ||||
| 17 | 1615500261 | 6.73 | 8.14 | |
| Sealing cap | ||||
| 18 | 1615500282 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 20 | 1614652000 | |||
| No longer available, no replacement | ||||
| 21 | 1612392001 | |||
| No longer available, no replacement | ||||
| 22 | 1612392000 | |||
| Handle | ||||
| 23 | 1615133021 | 18.94 | 22.92 | |
| Striker | ||||
| 26 | 1618710058 | 43.12 | 52.18 | |
| Hammer Piston | ||||
| 27 | 1618700047 | 27.81 | 33.65 | |
| Protective Tube | ||||
| 29 | 1615190020 | 14.94 | 18.08 | |
| No longer available, no replacement | ||||
| 30 | 1613120015 | |||
| Stop Disc | ||||
| 31 | 3606100101 | 11.37 | 13.76 | |
| No longer available, no replacement | ||||
| 32 | 1618597033 | |||
| No longer available, no replacement | ||||
| 37 | 1612001029 | |||
| Clamping Band | ||||
| 41 | 1611316005 | 8.48 | 10.26 | |
| Hex Screw | ||||
| 42 | 2911061246 | 1.00 | 1.21 | |
| Hex Nut | ||||
| 43 | 2915051107 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 44 | 1613349015 | |||
| Piston Pin | ||||
| 49 | 1610300058 | 2.86 | 3.46 | |
| Shim | ||||
| 51 | 1610102014 | 1.49 | 1.80 | |
| Cover Disc | ||||
| 54 | 1610113005 | 1.49 | 1.80 | |
| Bearing bolt | ||||
| 56 | 1610300057 | 6.73 | 8.14 | |
| Round-Head Grooved Pin | ||||
| 58 | 2917721034 | 1.00 | 1.21 | |
| Split Pin | ||||
| 59 | 1904681350 | 1.49 | 1.80 | |
| Grommet | ||||
| 62 | 3600703011 | 2.86 | 3.46 | |
| Fastening Clamp | ||||
| 63 | 1611302006 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 64 | 1617328019 | |||
| No longer available, no replacement | ||||
| 65 | 1617200021 | |||
| connecting terminal | ||||
| 66 | 1611091002 | 1.00 | 1.21 | |
| groove ball bearing | ||||
| 68 | 1610905001 | 13.13 | 15.89 | |
| groove ball bearing | ||||
| 69 | 1610900013 | 10.90 | 13.19 | |
| Needle-Roller Bearing | ||||
| 70 | 1610910049 | 39.14 | 47.36 | |
| Needle-Roller Bearing | ||||
| 72 | 1610910007 | 21.30 | 25.77 | |
| Needle-Roller Assembly | ||||
| 73 | 1610913001 | 10.90 | 13.19 | |
| Retaining clip | ||||
| 75 | 2916660013 | 2.08 | 2.52 | |
| Spring retaining ring | ||||
| 77 | 2916660018 | 2.40 | 2.90 | |
| Locking washer | ||||
| 78 | 2916080014 | 1.00 | 1.21 | |
| Spring Lock Washer | ||||
| 82 | 2916690007 | 1.00 | 1.21 | |
| O-Ring | ||||
| 84 | 1900210160 | 5.81 | 7.03 | |
| O-Ring | ||||
| 85 | 1900210152 | 3.44 | 4.16 | |
| O-Ring | ||||
| 86 | 1900210130 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 87 | 1610210041 | |||
| O-Ring | ||||
| 88 | 1610210042 | 1.49 | 1.80 | |
| Hex Nut | ||||
| 90 | 2915061005 | 2.40 | 2.90 | |
| Tapping Screw | ||||
| 95 | 2910211220 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 95 | 2910211011 | 1.00 | 1.21 | |
| Oval-Head Screw | ||||
| 95 | 2914201506 | 1.00 | 1.21 | |
| Socket head cap screw | ||||
| 96 | 2910021118 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 98 | 1613412001 | 1.49 | 1.80 | |
| Microencapsulated Screw | ||||
| 99 | 2914551114 | 2.40 | 2.90 | |
| Socket head cap screw | ||||
| 99 | 2910021204 | 1.00 | 1.21 | |
| Hex Socket Head Cap Screw | ||||
| 100 | 2910141199 | 3.44 | 4.16 | |
| Hex Socket Head Cap Screw | ||||
| 100 | 2910141201 | 2.40 | 2.90 | |
| Hex Socket Head Cap Screw | ||||
| 101 | 2910141244 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 102 | 1613414009 | |||
| Manufacturer's nameplate | ||||
| 104 | 1611110491 | 2.38 | 2.88 | |
| Manufacturer's nameplate | ||||
| 131 | 1611110500 | 2.38 | 2.88 | |
| Reference Plate | ||||
| 135 | 1611110387 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 650/1 | 1618630015 | |||
| Protective Cap | ||||
| 650/2 | 2600508019 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 801 | 1617000037 | |||
| No longer available, no replacement | ||||
| 802 | 1617000014 | |||
| No longer available, no replacement | ||||
| 803 | 1617000036 | |||
| No longer available, no replacement | ||||
| 805 | 1617031004 | |||
| No longer available, no replacement | ||||
| 807 | 1617031009 | |||
| Carbon-Brush Set | ||||
| 808 | 1617014110 | 16.79 | 20.32 | |
| No longer available, no replacement | ||||
| 810 | 1612025027 | |||
| Pole housing | ||||
| 812 | 1617000059 | 16.79 | 20.32 | |
| Hammer Pipe | ||||
| 828 | 1617000918 | 450.79 | 545.46 | |
| Power supply cord | ||||
| 835 | 1607000228 | 23.90 | 28.92 | |
| Impact Mechanism | ||||
| 850 | 1617000917 | 746.53 | 903.30 | |
| No longer available, no replacement | ||||
| 881 | 1617000172 | |||
| Nameplate | ||||
| 888 | 160111A3H3 | 2.40 | 2.90 | |
