Here you will find all available parts and drawings of the 'Bosch 3603CD1100 ( UNIVERSALVAC15 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

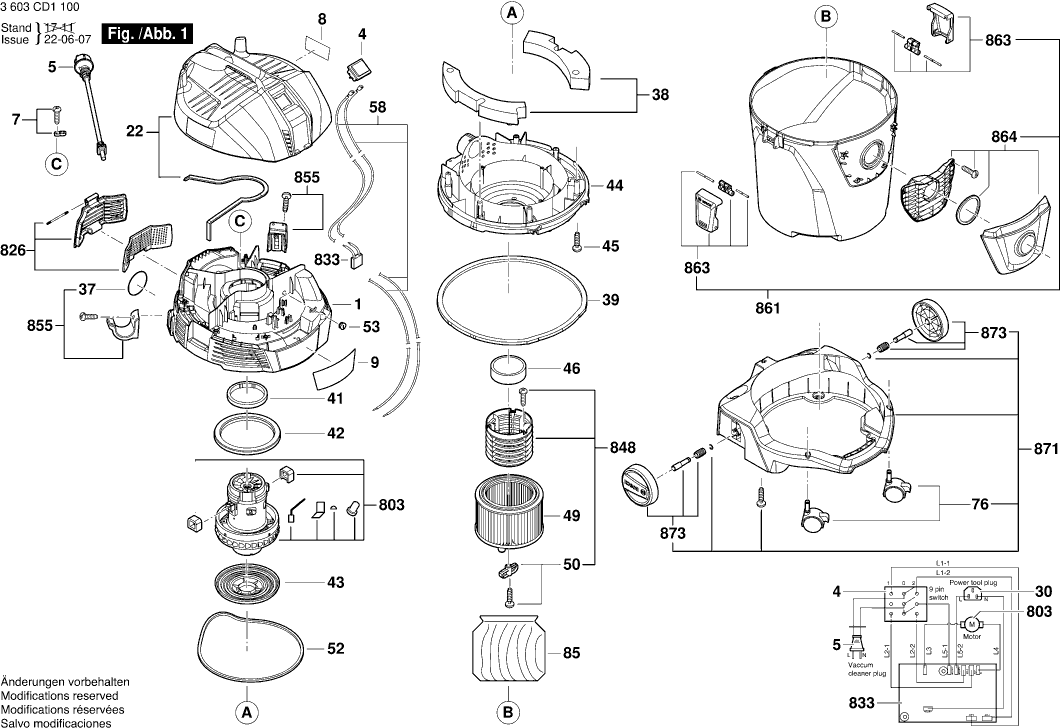

Technical drawing of model Bosch 3603CD1100 ( UNIVERSALVAC15 )
Spare parts list of model Bosch 3603CD1100 ( UNIVERSALVAC15 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1619PB0825 | 13.93 | 16.86 | |
| On-Off Switch | ||||
| 4 | 1619PB0798 | 5.83 | 7.05 | |
| Power supply cord | ||||
| 5 | 1619PB0801 | 10.73 | 12.98 | |
| Clamping Piece | ||||
| 7 | 1619PB0808 | 0.83 | 1.00 | |
| Nameplate | ||||
| 8 | 1619PB0775 | 1.94 | 2.35 | |
| Manufacturer's nameplate UniversalVac 15 | ||||
| 9 | 1619PB0789 | 1.94 | 2.35 | |
| Covering hood | ||||
| 22 | 1619PB0809 | 11.88 | 14.37 | |
| Rubber band | ||||
| 37 | 1619PB0828 | 1.18 | 1.43 | |
| Sponge | ||||
| 38 | 1619PB0831 | 1.70 | 2.06 | |
| Seal | ||||
| 39 | 1619PB0837 | 2.24 | 2.71 | |
| Seal | ||||
| 41 | 1619PB0832 | 1.18 | 1.43 | |
| Seal | ||||
| 42 | 1619PB0833 | 2.24 | 2.71 | |
| Motor cover | ||||
| 43 | 1619PB0834 | 3.31 | 4.01 | |
| Motor Bracket | ||||
| 44 | 1619PB0836 | 12.41 | 15.02 | |
| Tapping Screw | ||||
| 45 | 1619PB0839 | 0.83 | 1.00 | |
| Float | ||||
| 46 | 1619PB0840 | 0.83 | 1.00 | |
| Filter | ||||
| 49 | 1619PB0841 | 11.88 | 14.37 | |
| Locking element | ||||
| 50 | 1619PB0844 | 0.83 | 1.00 | |
| Seal | ||||
| 52 | 1619PB0846 | 0.83 | 1.00 | |
| Seal | ||||
| 53 | 1619PB0847 | 0.83 | 1.00 | |
| Cable | ||||
| 58 | 1619PB0782 | 2.71 | 3.28 | |
| Caster Wheel | ||||
| 76 | 1619PB0864 | 5.83 | 7.05 | |
| Hose | ||||
| 81 | 1619PB0784 | 20.42 | 24.71 | |
| Clamping Ring | ||||
| 82 | 1619PB0872 | 1.18 | 1.43 | |
| Filter | ||||
| 85 | 1619PB1594 | 3.31 | 4.01 | |
| Adapter | ||||
| 651 | 1619PB0871 | 2.24 | 2.71 | |
| Suction Pipe | ||||
| 652 | 1619PB0868 | 2.71 | 3.28 | |
| Suction Pipe | ||||
| 653 | 1619PB0869 | 11.88 | 14.37 | |
| Crevice Nozzle | ||||
| 654 | 1619PB0870 | 2.71 | 3.28 | |
| floor nozzle | ||||
| 657 | 1619PB0873 | 13.93 | 16.86 | |
| Brush | ||||
| 657/2 | 1619PB0875 | 3.31 | 4.01 | |
| Flat Brush | ||||
| 657/3 | 1619PB0874 | 4.70 | 5.69 | |
| floor nozzle | ||||
| 658 | 1619PB0787 | 12.41 | 15.02 | |
| Flat Brush | ||||
| 658/2 | 1619PB0785 | 4.10 | 4.96 | |
| floor nozzle | ||||
| 660 | 1619PB0788 | 1.70 | 2.06 | |
| Dust Bag | ||||
| 661 | 1619PB0876 | 4.10 | 4.96 | |
| Motor | ||||
| 803 | 1619PB0795 | 49.56 | 59.97 | |
| Cover | ||||
| 826 | 1619PB0811 | 1.94 | 2.35 | |
| Suppression Capacitor | ||||
| 833 | 1619PB0819 | 4.10 | 4.96 | |
| Suction Basket | ||||
| 848 | 1619PB0842 | 3.31 | 4.01 | |
| Hose Holder | ||||
| 855 | 1619PB0827 | 2.71 | 3.28 | |
| Container | ||||
| 861 | 1619PB0850 | 28.01 | 33.89 | |
| Container | ||||
| 861 | 1607000EM8 | 23.75 | 28.74 | |
| Latch | ||||
| 863 | 1619PB0854 | 4.10 | 4.96 | |
| Connection Housing | ||||
| 864 | 1607000EM5 | 4.10 | 4.96 | |
| Connection Housing | ||||
| 864 | 1619PB0855 | 3.85 | 4.66 | |
| Housing Base | ||||
| 871 | 1619PB0861 | 26.84 | 32.48 | |
| Wheel | ||||
| 873 | 1619PB0863 | 5.83 | 7.05 | |
