Here you will find all available parts and drawings of the 'Bosch 3600HB9500 ( UNIVERSALROTAK36-550 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

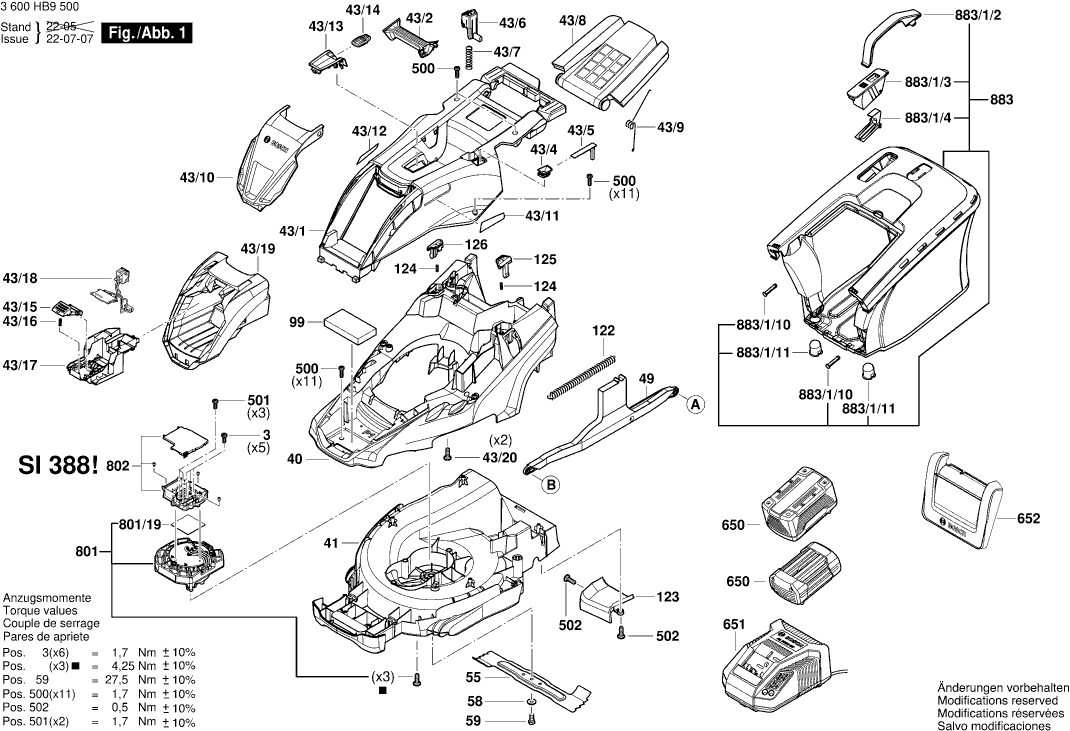

Technical drawing of model Bosch 3600HB9500 ( UNIVERSALROTAK36-550 )
Spare parts list of model Bosch 3600HB9500 ( UNIVERSALROTAK36-550 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Thread-forming tap. Screw M4x8 | ||||
| 3 | 2603410048 | 1.18 | 1.43 | |
| Torx head screw | ||||
| 32 | F016L69108 | 0.83 | 1.00 | |
| Cable Clip ROTAK II | ||||
| 39/16 | F016L66895 | 0.83 | 1.00 | |
| Clamping Lever | ||||
| 39/801 | F016105363 | 3.31 | 4.01 | |
| Mower deck | ||||
| 40 | F016L90981 | 20.42 | 24.71 | |
| Housing 36 cm | ||||
| 41 | F016L69357 | 29.75 | 36.00 | |
| Motor Hood | ||||
| 43/1 | F016L90017 | 13.93 | 16.86 | |
| grille | ||||
| 43/10 | F016L91059 | 13.93 | 16.86 | |
| Sticker ProSilence L | ||||
| 43/11 | F016L90076 | 1.94 | 2.35 | |
| Sticker PowerDrive L | ||||
| 43/11 | 160111C3G3 | 1.94 | 2.35 | |
| Sticker PowerDrive R | ||||
| 43/12 | 160111C3G4 | 1.94 | 2.35 | |
| Sticker ProSilence R | ||||
| 43/12 | F016L90077 | 1.94 | 2.35 | |
| Cover Panel | ||||
| 43/13 | F016L90021 | 1.70 | 2.06 | |
| Key | ||||
| 43/14 | F016L90054 | 5.83 | 7.05 | |
| Release Lever | ||||
| 43/15 | F016L90773 | 5.33 | 6.45 | |
| Button Spring | ||||
| 43/16 | F016L90701 | 0.83 | 1.00 | |
| Switch Support | ||||
| 43/17 | F016L90777 | 5.33 | 6.45 | |
| Wiring Harness | ||||
| 43/18 | F016L90833 | 15.71 | 19.01 | |
| Battery Housing | ||||
| 43/19 | F016L90057 | 9.53 | 11.53 | |
| Carrying Handle | ||||
| 43/2 | F016L90018 | 1.18 | 1.43 | |
| Transparent Cover | ||||
| 43/4 | F016L90432 | 1.18 | 1.43 | |
| Indicator | ||||
| 43/5 | F016L90434 | 0.83 | 1.00 | |
| Button | ||||
| 43/6 | 1600A022AC | 2.30 | 2.78 | |
| Button Spring | ||||
| 43/7 | F016L91168 | 0.83 | 1.00 | |
| Guard Flap | ||||
| 43/8 | F016L90022 | 5.83 | 7.05 | |
| Spring | ||||
| 43/9 | F016L90868 | 1.18 | 1.43 | |
| Linkage part | ||||
| 49 | F016L90027 | 6.54 | 7.91 | |
| Axle | ||||
| 52/1 | F016L90005 | 4.10 | 4.96 | |
| Link Piece | ||||
| 52/2 | F016L90033 | 1.18 | 1.43 | |
| Link Piece | ||||
| 52/3 | F016L90037 | 1.18 | 1.43 | |
| Wheel | ||||
| 52/805 | F016105108 | 6.54 | 7.91 | |
| Cutter Blade 36 cm | ||||
| 55 | F016L90158 | 13.93 | 16.86 | |
| Spring Washer 1/2" | ||||
| 58 | F016L66173 | 1.18 | 1.43 | |
| Bolt M10x30 | ||||
| 59 | F016L66141 | 1.94 | 2.35 | |
| Axle | ||||
| 61/1 | F016L90004 | 3.31 | 4.01 | |
| Link Piece | ||||
| 61/2 | F016L90032 | 1.18 | 1.43 | |
| Spacer | ||||
| 61/3 | F016L90036 | 0.83 | 1.00 | |
| Ratchet Cap | ||||
| 61/4 | F016L68095 | 1.18 | 1.43 | |
| Wheel | ||||
| 61/805 | F016105110 | 5.83 | 7.05 | |
| Handle | ||||
| 75/1 | F016L90608 | 12.41 | 15.02 | |
| wiring unit | ||||
| 75/3 | F016L90849 | 13.93 | 16.86 | |
| Connector Housing | ||||
| 75/3/1 | F016L67218 | 4.10 | 4.96 | |
| No longer available, no replacement | ||||
| 75/3/2 | F016L90847 | |||
| Switch Kit | ||||
| 75/3/803 | F016104163 | 11.88 | 14.37 | |
| Cable Guide | ||||
| 75/3/804 | F016104213 | 6.54 | 7.91 | |
| Nut Holder | ||||
| 75/802 | F016105314 | 1.70 | 2.06 | |
| Switch assembly | ||||
| 75/804 | F016105448 | 23.75 | 28.74 | |
| Sleeve | ||||
| 75/805 | F016104361 | 3.31 | 4.01 | |
| Bracket | ||||
| 78/1 | F016L91163 | 1.18 | 1.43 | |
| Handle | ||||
| 78/2 | F016L90890 | 7.58 | 9.17 | |
| Bracket | ||||
| 79/1 | F016L91164 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 79/2 | F016L90891 | |||
| Screw M5x8 Csk Hd. | ||||
| 79/3 | F016L36542 | 1.94 | 2.35 | |
| Balance Weights | ||||
| 99 | F016L69400 | 15.71 | 19.01 | |
| Clip | ||||
| 121 | F016L91066 | 0.83 | 1.00 | |
| Spring | ||||
| 122 | F016L59327 | 2.24 | 2.71 | |
| Plastic Insert | ||||
| 123 | F016L90553 | 1.94 | 2.35 | |
| Button Spring | ||||
| 124 | F016L90701 | 0.83 | 1.00 | |
| Button | ||||
| 125 | F016L90197 | 1.70 | 2.06 | |
| Button | ||||
| 126 | F016L90198 | 1.70 | 2.06 | |
| Cover Ø59 mm | ||||
| 131 | F016L91046 | 1.18 | 1.43 | |
| Cover Ø 71 mm | ||||
| 132 | F016L91047 | 1.70 | 2.06 | |
| Torx head screw | ||||
| 500 | F016L68124 | 0.83 | 1.00 | |
| Thread-forming tap. Screw M4x8 | ||||
| 501 | 2603410048 | 1.18 | 1.43 | |
| Self-Cutting Screw | ||||
| 502 | F016L37433 | 0.83 | 1.00 | |
| Battery Pack GBA 36V 6.0Ah H-C | ||||
| 650 | 1607A350RC | 304.19 | 368.07 | |
| Battery Pack A 36V 6,0AH UNI | ||||
| 650 | 1607A3504P | 286.44 | 346.59 | |
| Battery Pack GBA 36V 4,0Ah H-C | ||||
| 650 | 1607A350R2 | 233.78 | 282.87 | |
| Battery Pack 36V 2,0 Ah Li | ||||
| 650 | 2607336913 | 187.62 | 227.02 | |
| Fast Charger EU AL 36V-20/36V | ||||
| 651 | 2607226273 | 55.25 | 66.85 | |
| Deflector Plate | ||||
| 652 | F016L90829 | 13.93 | 16.86 | |
| DC motor | ||||
| 801 | 1607000E85 | 130.32 | 157.69 | |
| Thermal Conduction Foil | ||||
| 801/19 | 1600A01Z1R | 6.54 | 7.91 | |
| Electronics Module | ||||
| 802 | F016105439 | 49.56 | 59.97 | |
| Collection box | ||||
| 883 | F016105377 | 49.56 | 59.97 | |
| Pin | ||||
| 883/1/10 | F016L91107 | 2.24 | 2.71 | |
| Socket insert | ||||
| 883/1/11 | F016L91108 | 2.24 | 2.71 | |
| Handle | ||||
| 883/1/2 | F016L90040 | 1.18 | 1.43 | |
| Cover | ||||
| 883/1/3 | F016L90557 | 1.70 | 2.06 | |
| Pivot Plate | ||||
| 883/1/4 | F016L91038 | 0.83 | 1.00 | |
