Here you will find all available parts and drawings of the 'Bosch 3603A31401 ( UNIVERSALIMPACT7500 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

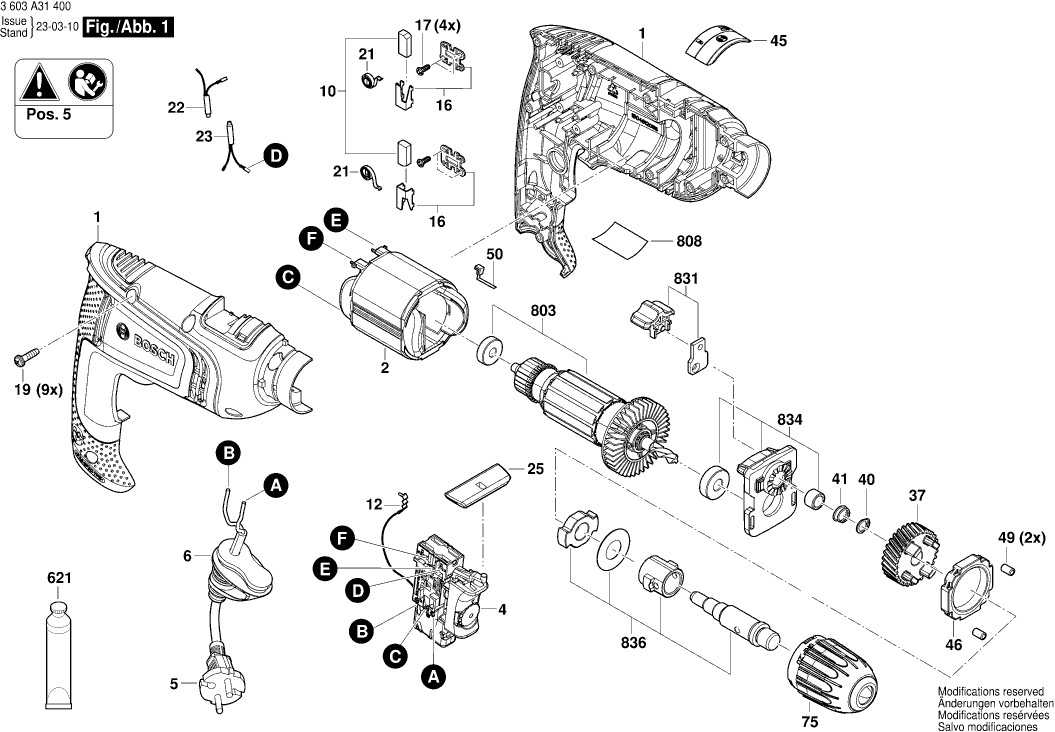

Technical drawing of model Bosch 3603A31401 ( UNIVERSALIMPACT7500 )
Spare parts list of model Bosch 3603A31401 ( UNIVERSALIMPACT7500 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 1607000F3K | 15.71 | 19.01 | |
| Field | ||||
| 2 | 16042205A2 | 11.88 | 14.37 | |
| Switch | ||||
| 4 | 160720038K | 13.93 | 16.86 | |
| Power supply cord | ||||
| 5 | 16044607AE | 6.54 | 7.91 | |
| Grommet | ||||
| 6 | 160070305H | 0.83 | 1.00 | |
| Carbon-Brush Set | ||||
| 10 | 1607014193 | 2.71 | 3.28 | |
| No longer available, no replacement | ||||
| 12 | 160720038R | |||
| Brush Holder | ||||
| 16 | 1600A02D10 | 5.33 | 6.45 | |
| Screw | ||||
| 17 | 16034300B3 | 0.83 | 1.00 | |
| Screw | ||||
| 19 | 16034300B2 | 0.83 | 1.00 | |
| Spiral Spring | ||||
| 21 | 1600A02D11 | 0.83 | 1.00 | |
| Inductor | ||||
| 22 | 1600A02D14 | 1.18 | 1.43 | |
| Inductor | ||||
| 23 | 1600A02D15 | 1.18 | 1.43 | |
| Lever | ||||
| 25 | 1600A02D13 | 0.83 | 1.00 | |
| Toothed Gear | ||||
| 37 | 160630001P | 11.88 | 14.37 | |
| Spring retaining ring | ||||
| 40 | 1600150041 | 0.83 | 1.00 | |
| Compression Spring | ||||
| 41 | 1604612055 | 0.83 | 1.00 | |
| Cover | ||||
| 45 | 1600A02D0V | 1.18 | 1.43 | |
| Retaining snap ring | ||||
| 46 | 1600A02D0U | 3.31 | 4.01 | |
| Cylindrical Roller | ||||
| 49 | 1600A02D0T | 0.83 | 1.00 | |
| Measuring Prod | ||||
| 50 | 1600A02D12 | 1.70 | 2.06 | |
| Key Chuck | ||||
| 75 | 2609000990 | 18.19 | 22.01 | |
| Grease Tube Albida | ||||
| 621 | 3605430003 | 23.75 | 28.74 | |
| Depth-Gauge | ||||
| 651 | 1600A02D17 | 1.70 | 2.06 | |
| Auxiliary Handle | ||||
| 652 | 16020250B0 | 4.70 | 5.69 | |
| Armature | ||||
| 803 | 1604010BT6 | 15.71 | 19.01 | |
| Nameplate | ||||
| 808 | 160111AA38 | 1.94 | 2.35 | |
| Change-Over Switch | ||||
| 831 | 1600A02P7U | 1.18 | 1.43 | |
| Bearing Bracket | ||||
| 834 | 1600A02P7V | 5.83 | 7.05 | |
| Spindle | ||||
| 836 | 1600A02P7W | 10.73 | 12.98 | |
