Here you will find all available parts and drawings of the 'Bosch 3603A31000 ( UNIVERSALIMPACT700 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

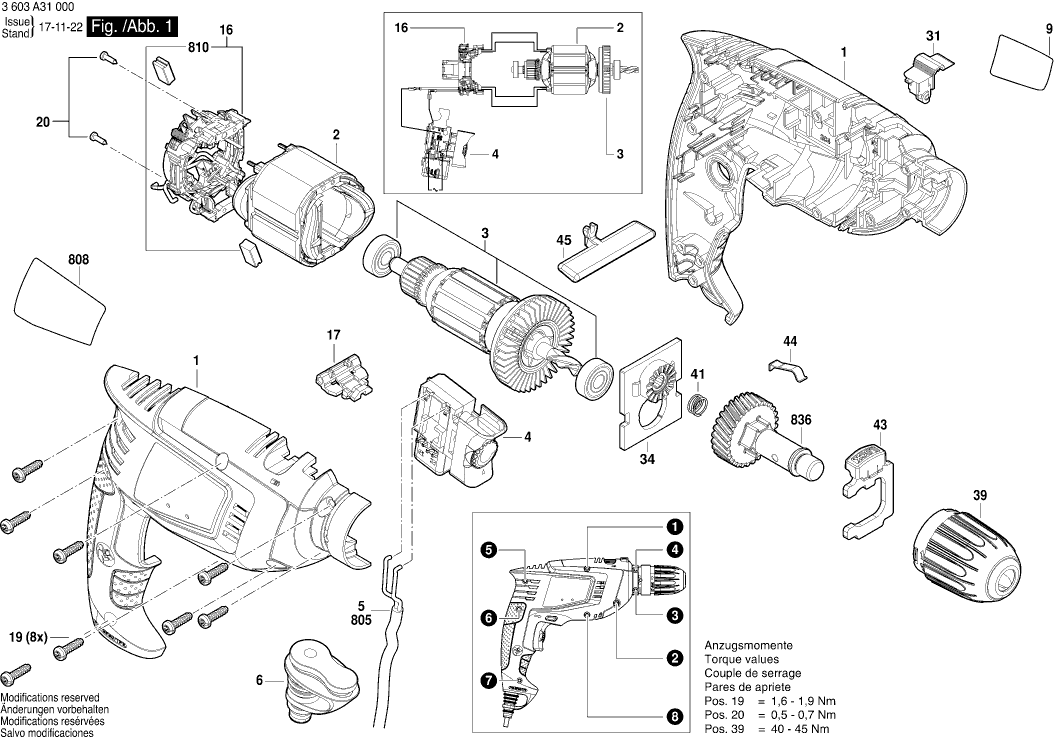

Technical drawing of model Bosch 3603A31000 ( UNIVERSALIMPACT700 )
Spare parts list of model Bosch 3603A31000 ( UNIVERSALIMPACT700 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 16051082C4 | 13.93 | 16.86 | |
| Field 220-240V | ||||
| 2 | 2609005073 | 13.93 | 16.86 | |
| Armature | ||||
| 3 | 2609007819 | 23.75 | 28.74 | |
| Switch | ||||
| 4 | 2609007834 | 12.41 | 15.02 | |
| Grommet Ø6,4-Ø7,2x76 MM | ||||
| 6 | 2609006376 | 0.83 | 1.00 | |
| Manufacturer's nameplate UniversalImpact 700 | ||||
| 9 | 160111C0PF | 1.94 | 2.35 | |
| Manufacturer's nameplate PSB Universal | ||||
| 9 | 160111C1VZ | 1.94 | 2.35 | |
| Manufacturer's nameplate UniversalImpact 7000 | ||||
| 9 | 160111C1W1 | 1.94 | 2.35 | |
| Manufacturer's nameplate UniversalImpact 6700 | ||||
| 9 | 160111C1W2 | 1.94 | 2.35 | |
| Manufacturer's nameplate UniversalImpact 790 | ||||
| 9 | 160111C1W3 | 1.94 | 2.35 | |
| Manufacturer's nameplate Universalimpact 7500 | ||||
| 9 | 160111C28U | 1.94 | 2.35 | |
| Brush Holder | ||||
| 16 | 1600A00B66 | 8.45 | 10.22 | |
| Turn Element | ||||
| 17 | 1600A004KK | 0.83 | 1.00 | |
| Screw 4x16 | ||||
| 19 | 2603490022 | 0.83 | 1.00 | |
| Tapping Screw DIN 7981-ST2,2x9,5-C-H | ||||
| 20 | 2910611002 | 0.83 | 1.00 | |
| Change-Over Switch | ||||
| 31 | 1600A00D25 | 1.94 | 2.35 | |
| Bearing Bracket | ||||
| 34 | 1600A004SA | 7.58 | 9.17 | |
| Chuck | ||||
| 39 | 1600A02A90 | 17.13 | 20.73 | |
| Compression Spring | ||||
| 41 | 2604616006 | 1.18 | 1.43 | |
| Knob | ||||
| 43 | 1600A00MW7 | 2.24 | 2.71 | |
| Leaf Spring | ||||
| 44 | 2609003176 | 0.83 | 1.00 | |
| Change-Over Switch | ||||
| 45 | 1600A00DC0 | 1.18 | 1.43 | |
| Carrying Case S | ||||
| 650 | 1600A013NM | 29.75 | 36.00 | |
| Auxiliary Handle | ||||
| 654 | 160202508W | 9.53 | 11.53 | |
| Depth-Gauge | ||||
| 655 | 2609005615 | 3.31 | 4.01 | |
| drill assistant | ||||
| 656 | 1600A00AR8 | 29.75 | 36.00 | |
| Power supply cord CN 2,65m 2 x 0,75mm H05 W-F | ||||
| 805 | 1607000387 | 8.45 | 10.22 | |
| Nameplate | ||||
| 808 | 160111A4XC | 1.94 | 2.35 | |
| Carbon-Brush Set 220-240V | ||||
| 810 | 2609003994 | 6.54 | 7.91 | |
| Spindle | ||||
| 836 | 1600A011K9 | 13.93 | 16.86 | |
