Here you will find all available parts and drawings of the 'Bosch 3600HC1E01 ( UNIVERSALGRASSCUT18-26 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

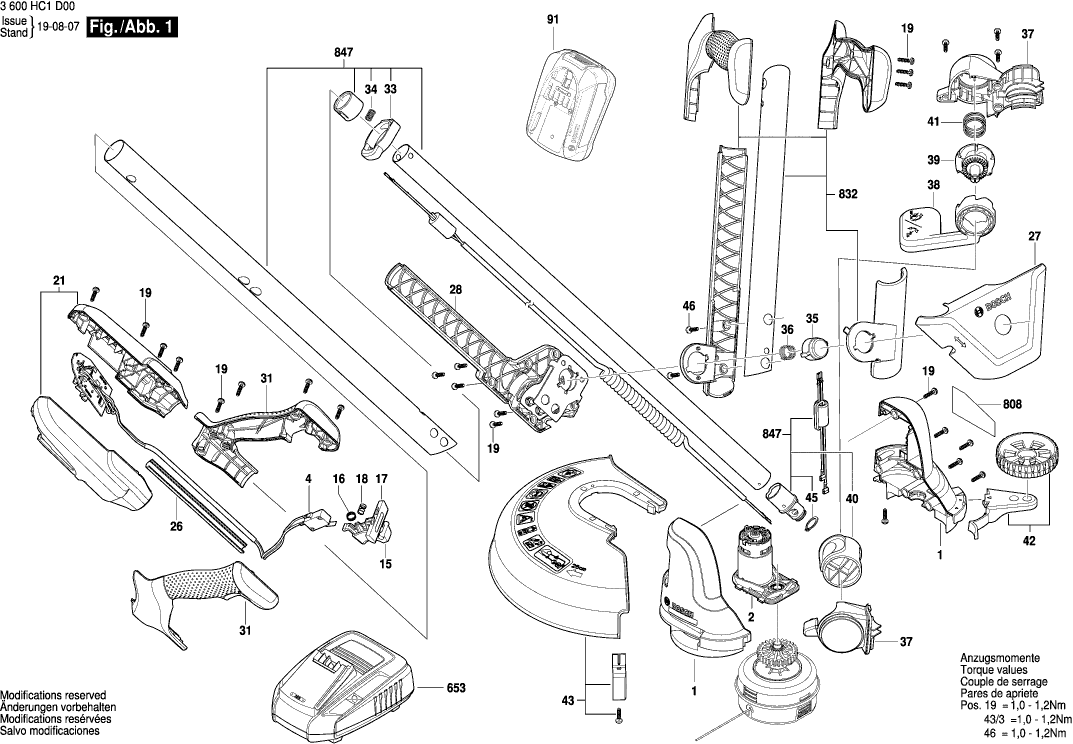

Technical drawing of model Bosch 3600HC1E01 ( UNIVERSALGRASSCUT18-26 )
Spare parts list of model Bosch 3600HC1E01 ( UNIVERSALGRASSCUT18-26 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Base | ||||
| 1 | 1600A027KF | 5.83 | 7.05 | |
| Motor assembly | ||||
| 2 | 1600A0154N | 23.75 | 28.74 | |
| Electronic Assembly | ||||
| 4 | 1600A0154T | 26.84 | 32.48 | |
| Trigger | ||||
| 15 | 1600A027KB | 1.18 | 1.43 | |
| Compression Spring | ||||
| 16 | 1614610012 | 0.83 | 1.00 | |
| Safety Switch | ||||
| 17 | 1600A027KC | 1.18 | 1.43 | |
| Switch Spring | ||||
| 18 | 2609001975 | 0.83 | 1.00 | |
| Screw 4x16 | ||||
| 19 | 2603490022 | 0.83 | 1.00 | |
| Upper Housing | ||||
| 21 | 1600A027KS | 4.70 | 5.69 | |
| Guide Tube | ||||
| 26 | 1600A01555 | 0.83 | 1.00 | |
| Front Housing | ||||
| 27 | 1600A027KL | 4.70 | 5.69 | |
| Rear Housing Section | ||||
| 28 | 1600A027KN | 4.70 | 5.69 | |
| Handle | ||||
| 31 | 1600A027KR | 5.83 | 7.05 | |
| Button | ||||
| 33 | 1600A027KA | 1.18 | 1.43 | |
| Compression Spring | ||||
| 34 | 1604611025 | 1.18 | 1.43 | |
| Compression Spring | ||||
| 34 | 160461205D | 0.83 | 1.00 | |
| Push-Button | ||||
| 35 | 1600A027K9 | 1.18 | 1.43 | |
| Spring | ||||
| 36 | 2609005925 | 0.83 | 1.00 | |
| Supplementary Housing | ||||
| 37 | 1600A0155E | 2.71 | 3.28 | |
| Pedal | ||||
| 38 | 1600A027K8 | 2.71 | 3.28 | |
| Clutch | ||||
| 39 | 1600A0155G | 0.83 | 1.00 | |
| Hub | ||||
| 40 | 1600A0155H | 1.94 | 2.35 | |
| Compression Spring | ||||
| 41 | 1600A0155J | 0.83 | 1.00 | |
| Wheel Set | ||||
| 42 | 1600A0155K | 6.54 | 7.91 | |
| Protective Cover | ||||
| 43 | 1600A01C4F | 15.71 | 19.01 | |
| Cutting line cartridge | ||||
| 44/5 | 1600A0156W | 15.71 | 19.01 | |
| Sleeve assembly | ||||
| 44/5/3 | 1600A025TN | 3.31 | 4.01 | |
| Spool cover | ||||
| 44/6 | 1600A02P6D | 11.18 | 13.53 | |
| Retaining clip DIN 471-15x1-FSt | ||||
| 45 | 2916650006 | 1.18 | 1.43 | |
| Torx Oval-Head Screw 4x12 | ||||
| 46 | 2603490021 | 0.83 | 1.00 | |
| Charger EU AL 18V-20 230V 2A | ||||
| 653 | 2607226517 | 26.84 | 32.48 | |
| Nameplate | ||||
| 808 | 160111A8T0 | 1.94 | 2.35 | |
| Auxiliary Handle | ||||
| 832 | 1607000E7F | 11.88 | 14.37 | |
| Cutting Head | ||||
| 844 | 1607000DC0 | 29.75 | 36.00 | |
| Rocker Switch | ||||
| 844/3 | 1607000DB9 | 7.58 | 9.17 | |
| Connecting Kit | ||||
| 847 | 1607000E7G | 55.25 | 66.85 | |
