Here you will find all available parts and drawings of the 'Bosch 3603JD7000 ( UNIVERSALDRILL18V-60 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

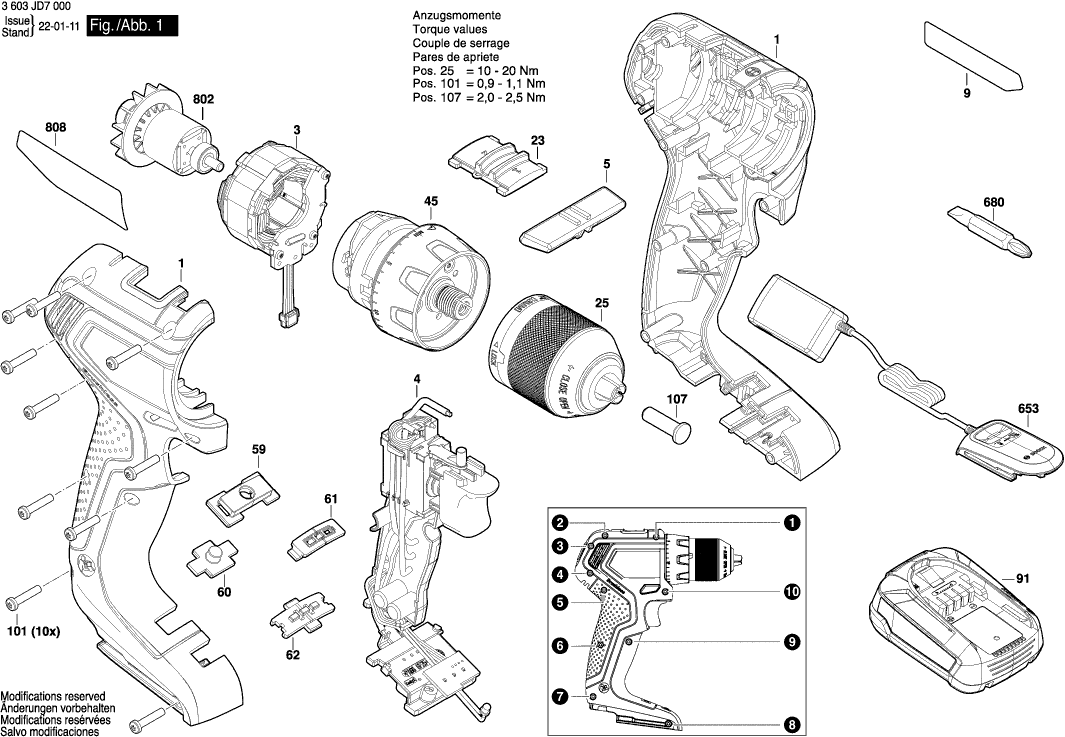

Technical drawing of model Bosch 3603JD7000 ( UNIVERSALDRILL18V-60 )
Spare parts list of model Bosch 3603JD7000 ( UNIVERSALDRILL18V-60 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 1605806698 | 7.58 | 9.17 | |
| Stator | ||||
| 3 | 1619P15696 | 18.19 | 22.01 | |
| Switch assembly | ||||
| 4 | 2607202546 | 33.45 | 40.47 | |
| Lever | ||||
| 5 | 1600A0271L | 0.83 | 1.00 | |
| Manufacturer's nameplate | ||||
| 9 | 160111C4H9 | 1.94 | 2.35 | |
| Switchover Unit | ||||
| 23 | 1600A012MM | 0.83 | 1.00 | |
| Keyless Chuck | ||||
| 25 | 1619X07709 | 18.19 | 22.01 | |
| Planetary Gear Train | ||||
| 45 | 1600A0271N | 18.19 | 22.01 | |
| Cover | ||||
| 59 | 16055002HR | 0.83 | 1.00 | |
| Lens | ||||
| 60 | 1600A022JD | 0.83 | 1.00 | |
| Cover | ||||
| 61 | 1600A026V6 | 0.83 | 1.00 | |
| Lens | ||||
| 62 | 1600A026YF | 0.83 | 1.00 | |
| Battery Pack PBA 18V 2,0 Ah W-B | ||||
| 91 | 2607337211 | 73.72 | 89.20 | |
| Battery Pack PBA 18V 2,5Ah W-B 45Wh | ||||
| 91 | 1607A350RU | 73.72 | 89.20 | |
| Battery Pack PBA 18V/1,5 Ah W-A | ||||
| 91 | 1607A350JM | 55.25 | 66.85 | |
| Torx Flat-Head Screw 3x16 | ||||
| 101 | 2609110201 | 1.70 | 2.06 | |
| Countersunk-Head Screw M6x23 LEFTHAND THREADS | ||||
| 107 | 2603421229 | 1.18 | 1.43 | |
| Charger EU AL 18V-20 230V 2A | ||||
| 653 | 2607226517 | 26.84 | 32.48 | |
| Charger UK AL 18V-20 230V 2A | ||||
| 653 | 2607226519 | 26.84 | 32.48 | |
| Charger AUS AL 18V-20 220-240V 2A | ||||
| 653 | 2607226593 | 26.84 | 32.48 | |
| Screwdriver Bit | ||||
| 680 | 2609160063 | 2.71 | 3.28 | |
| Rotor | ||||
| 802 | 1600A028U6 | 23.75 | 28.74 | |
| Nameplate | ||||
| 808 | 160111A8V1 | 1.94 | 2.35 | |
