Here you will find all available parts and drawings of the 'Bosch 3600HB8001 ( UNIVERSALCHAIN18 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

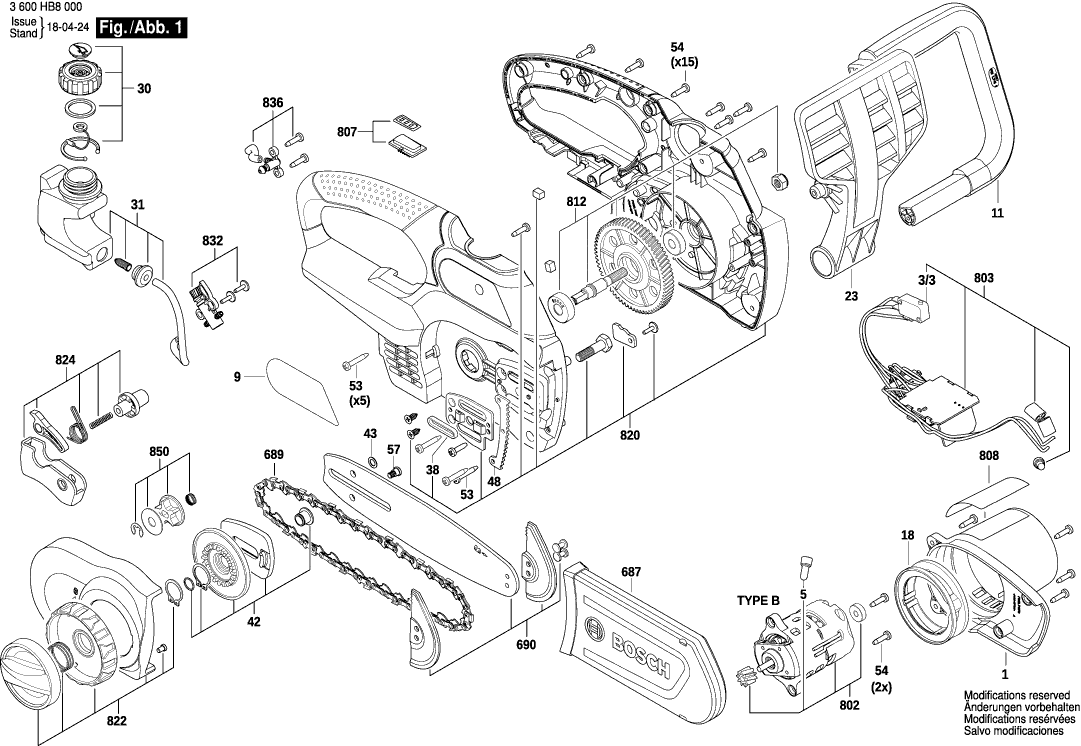

Technical drawing of model Bosch 3600HB8001 ( UNIVERSALCHAIN18 )
Spare parts list of model Bosch 3600HB8001 ( UNIVERSALCHAIN18 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | F016L74178 | 4.70 | 5.69 | |
| Switch | ||||
| 3/3 | 2607202375 | 6.54 | 7.91 | |
| connecting terminal | ||||
| 5 | F016L72733 | 0.83 | 1.00 | |
| Manufacturer's nameplate | ||||
| 9 | F016L74296 | 1.94 | 2.35 | |
| Handle | ||||
| 11 | F016L74181 | 4.70 | 5.69 | |
| Air-Deflector Ring | ||||
| 18 | F016L74179 | 0.83 | 1.00 | |
| Protective Shield | ||||
| 23 | F016L74182 | 4.10 | 4.96 | |
| Cap | ||||
| 30 | F016F05161 | 1.94 | 2.35 | |
| Tank | ||||
| 31 | F016F05162 | 4.10 | 4.96 | |
| Sealing Rubber | ||||
| 38 | F016L74457 | 0.83 | 1.00 | |
| Tensioner Parts Set | ||||
| 42 | F016F05168 | 7.58 | 9.17 | |
| Sealing washer | ||||
| 43 | F016L74462 | 0.83 | 1.00 | |
| Bumper | ||||
| 48 | F016F05785 | 1.18 | 1.43 | |
| Screw | ||||
| 53 | F016L74468 | 0.83 | 1.00 | |
| Screw | ||||
| 54 | F016L74469 | 0.83 | 1.00 | |
| Screw | ||||
| 57 | F016L74467 | 0.83 | 1.00 | |
| Battery Pack PBA 18V 2,5Ah W-B 45Wh | ||||
| 651 | 1607A350RU | 73.72 | 89.20 | |
| Charger GB AL 1830 CV 230/14,4-18V 1h | ||||
| 653 | 2607225967 | 67.25 | 81.37 | |
| Charger AUS AL 1830 CV 230/14,4-18V 1h | ||||
| 653 | 2607225969 | 67.25 | 81.37 | |
| Fast Charger EU AL 1830 CV 230/14,4-18V 1h | ||||
| 653 | 2607225965 | 44.82 | 54.23 | |
| Guide Cover | ||||
| 687 | F016L74192 | 2.24 | 2.71 | |
| Chain | ||||
| 689 | F016F05190 | 23.75 | 28.74 | |
| Guide Rail | ||||
| 690 | F016F05787 | 22.36 | 27.06 | |
| DC motor | ||||
| 802 | F016F05154 | 67.25 | 81.37 | |
| Electronic Module | ||||
| 803 | F016F05155 | 55.25 | 66.85 | |
| plastic covering | ||||
| 807 | F016F05158 | 0.83 | 1.00 | |
| Nameplate | ||||
| 808 | F016F05782 | 1.94 | 2.35 | |
| Output Shaft | ||||
| 812 | F016F05167 | 13.93 | 16.86 | |
| Set Of Handles | ||||
| 820 | F016F05159 | 26.84 | 32.48 | |
| Protective Cover | ||||
| 822 | F016F05166 | 7.58 | 9.17 | |
| Trigger | ||||
| 824 | F016F05786 | 2.24 | 2.71 | |
| Pump | ||||
| 832 | F016F05163 | 3.31 | 4.01 | |
| feeding device | ||||
| 836 | F016F05164 | 0.83 | 1.00 | |
| Sprocket wheel | ||||
| 850 | F016F05165 | 1.18 | 1.43 | |
