Here you will find all available parts and drawings of the 'Bosch 0601101013 (UB(J)75B26)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

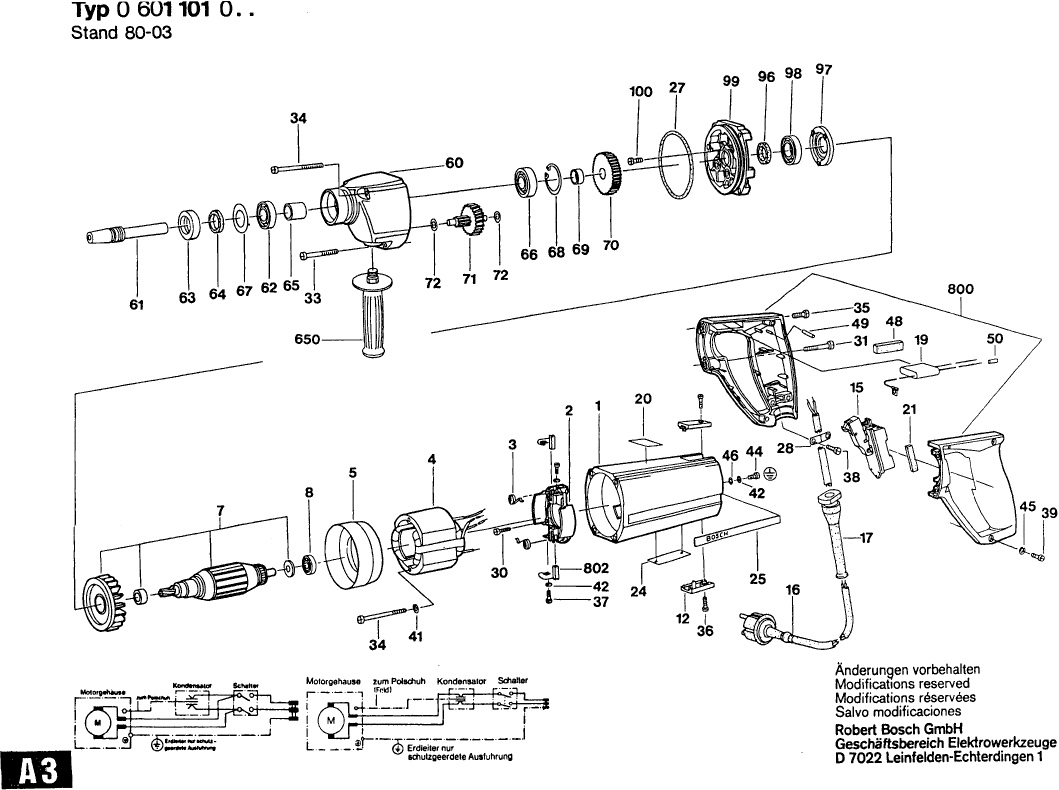

Technical drawing of model Bosch 0601101013 (UB(J)75B26)
Spare parts list of model Bosch 0601101013 (UB(J)75B26)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 3 | 1604652001 | |||
| Air-Deflector Ring | ||||
| 5 | 1600209002 | 4.94 | 5.98 | |
| Ball Bearing | ||||
| 8 | 2600905032 | 4.94 | 5.98 | |
| Switch | ||||
| 15 | 1607200037 | 47.53 | 57.51 | |
| Switch | ||||
| 15 | 1607200078 | 43.12 | 52.18 | |
| Power supply cord | ||||
| 16 | 1607000227 | 23.90 | 28.92 | |
| Grommet | ||||
| 17 | 3600703011 | 2.86 | 3.46 | |
| O-Ring | ||||
| 27 | 1600210006 | 1.49 | 1.80 | |
| Fastening Clamp | ||||
| 28 | 1601302014 | 2.18 | 2.64 | |
| Tapping Screw | ||||
| 30 | 2910211019 | 1.00 | 1.21 | |
| Socket head cap screw | ||||
| 31 | 2910021154 | 1.00 | 1.21 | |
| Screw | ||||
| 33 | 3603415560 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 34 | 1613412001 | 1.49 | 1.80 | |
| Socket head cap screw | ||||
| 36 | 2910021125 | 1.00 | 1.21 | |
| Socket head cap screw | ||||
| 37 | 2910021118 | 1.00 | 1.21 | |
| Socket head cap screw | ||||
| 38 | 2910021116 | 2.08 | 2.52 | |
| Socket head cap screw | ||||
| 39 | 2910021128 | 2.08 | 2.52 | |
| Spring Washer | ||||
| 42 | 1600150006 | 6.73 | 8.14 | |
| Pan head screw | ||||
| 44 | 2910110116 | 1.00 | 1.21 | |
| Spring Lock Washer | ||||
| 45 | 2916690003 | 1.00 | 1.21 | |
| Drilling Spindle | ||||
| 61 | 1603124039 | 43.12 | 52.18 | |
| groove ball bearing | ||||
| 62 | 1900900201 | 27.81 | 33.65 | |
| Retaining snap ring | ||||
| 63 | 3607030355 | 16.79 | 20.32 | |
| Sealing disk | ||||
| 64 | 1600108000 | 1.49 | 1.80 | |
| Spacer Bushing | ||||
| 65 | 1600300026 | 8.35 | 10.10 | |
| groove ball bearing | ||||
| 66 | 1900900303 | 21.30 | 25.77 | |
| Shim | ||||
| 67 | 1600102003 | 1.49 | 1.80 | |
| Spring retaining ring | ||||
| 68 | 2916660014 | 1.49 | 1.80 | |
| Spacer Bushing | ||||
| 69 | 1600300027 | 4.18 | 5.06 | |
| Shim | ||||
| 72 | 1600100631 | 1.49 | 1.80 | |
| Felt Disc | ||||
| 96 | 1600108003 | 1.00 | 1.21 | |
| Socket head cap screw | ||||
| 100 | 2910021125 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 650 | 1602025030 | |||
| Key Chuck | ||||
| 651 | 1608571027 | 98.18 | 118.80 | |
| No longer available, no replacement | ||||
| 800 | 3605133012 | |||
| No longer available, no replacement | ||||
| 802 | 1607014101 | |||
