Here you will find all available parts and drawings of the 'Bosch 0601101001 ( UB(J)75B26 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

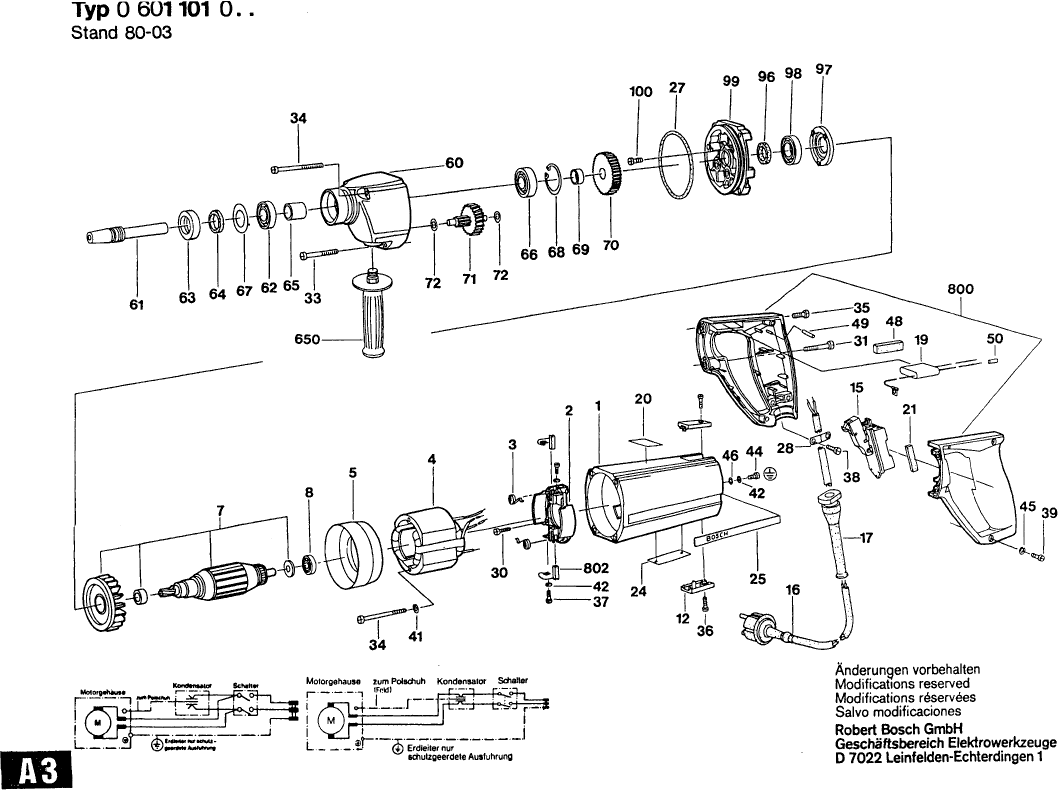

Technical drawing of model Bosch 0601101001 ( UB(J)75B26 )

Spare parts list of model Bosch 0601101001 ( UB(J)75B26 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
No longer available, no replacement
1 3605108094
Brush Holder
2 1604336005 15.71 19.01
No longer available, no replacement
3 1604652001
No longer available, no replacement
4 1604220206
Air-Deflector Ring
5 1600209002 3.31 4.01
No longer available, no replacement
7 1604010026
Ball Bearing 7x19x6
8 2600905032 4.10 4.96
Intermediate Ring
8 1600502011 1.94 2.35
Sealing cap BLUE
12 3605500057 0.83 1.00
Switch
15 1607200037 40.61 49.14
Switch
15 1607200078 36.85 44.59
Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F
16 1607000227 20.42 24.71
Grommet Ø9,2-Ø12x120 MM
17 3600703011 2.24 2.71
No longer available, no replacement
19 1607328012
Reference Plate DOUBLE INSULATION
20 1601110058 1.18 1.43
No longer available, no replacement
21 1602381001
Nameplate
24 160111A3H3 1.94 2.35
Manufacturer's nameplate
25 1601110004 0.83 1.00
O-Ring 74,0x3,0 MM
27 1600210006 1.18 1.43
Fastening Clamp
28 1601302014 1.18 1.43
Tapping Screw DIN 7971-ST3,9x16-F
30 2910211019 0.83 1.00
Socket head cap screw DIN 84-AM5x12-8.8
31 2910021154 0.83 1.00
Socket head cap screw M5x35 DIN 84-5.8
33 2910011168 0.83 1.00
Screw B 4,8x45 MM
33 3603415560 0.83 1.00
Tapping Screw B 4,8x68 MM
34 1613412001 1.18 1.43
No longer available, no replacement
35 2910021163
Socket head cap screw DIN 84-AM4x15-8.8
36 2910021125 0.83 1.00
Socket head cap screw DIN 84-AM4x8-8.8
37 2910021118 0.83 1.00
Socket head cap screw DIN 84-AM4x6-8.8
38 2910021116 1.70 2.06
Socket head cap screw DIN 84-AM4x18-8.8
39 2910021128 1.70 2.06
Tapping Screw DIN 7971-B 3,9x19
39 2910211220 1.18 1.43
Spring Lock Washer DIN 127-B 5
41 2916680006 0.83 1.00
Spring Washer DIN 137-A4
42 1600150006 5.33 6.45
Pan head screw DIN 85 AM 4x6-MS
44 2910110116 0.83 1.00
Spring Lock Washer DIN 128-A4-FST
45 2916690003 0.83 1.00
Plain Washer A 4,3 DIN 125-ST
46 2916010410 0.83 1.00
No longer available, no replacement
60 1605806222
Drilling Spindle
61 1603124039 36.85 44.59
groove ball bearing 15x32x8
62 1900900201 23.75 28.74
Retaining snap ring
63 3607030355 13.93 16.86
Sealing disk
64 1600108000 1.18 1.43
Spacer Bushing
65 1600300026 6.54 7.91
groove ball bearing 15x35x11
66 1900900303 18.19 22.01
Shim 0,5 MM THICK
67 1600102003 1.18 1.43
Spring retaining ring DIN 472 35x1,5 MM
68 2916660014 1.18 1.43
Spacer Bushing
69 1600300027 3.31 4.01
Straight Toothed Gear Z=50
70 1606317045 44.82 54.23
No longer available, no replacement
71 1606328044
Shim 0,5 MM THICK
72 1600100631 1.18 1.43
Felt Disc
96 1600108003 0.83 1.00
Bearing cover
97 1600501019 18.19 22.01
groove ball bearing 17x35x10
98 1600900001 18.19 22.01
Bearing Flange
99 1605820096 168.86 204.32
Socket head cap screw DIN 84-AM4x15-8.8
100 2910021125 0.83 1.00
Auxiliary Handle
650 160202509Z 12.41 15.02
Auxiliary Handle
650 16020250A1 11.88 14.37
No information available, not orderable
651 1608571027
No longer available, no replacement
800 3605133012
No longer available, no replacement
802 1607014101
