Here you will find all available parts and drawings of the 'Bosch 0603230503 (ST350)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

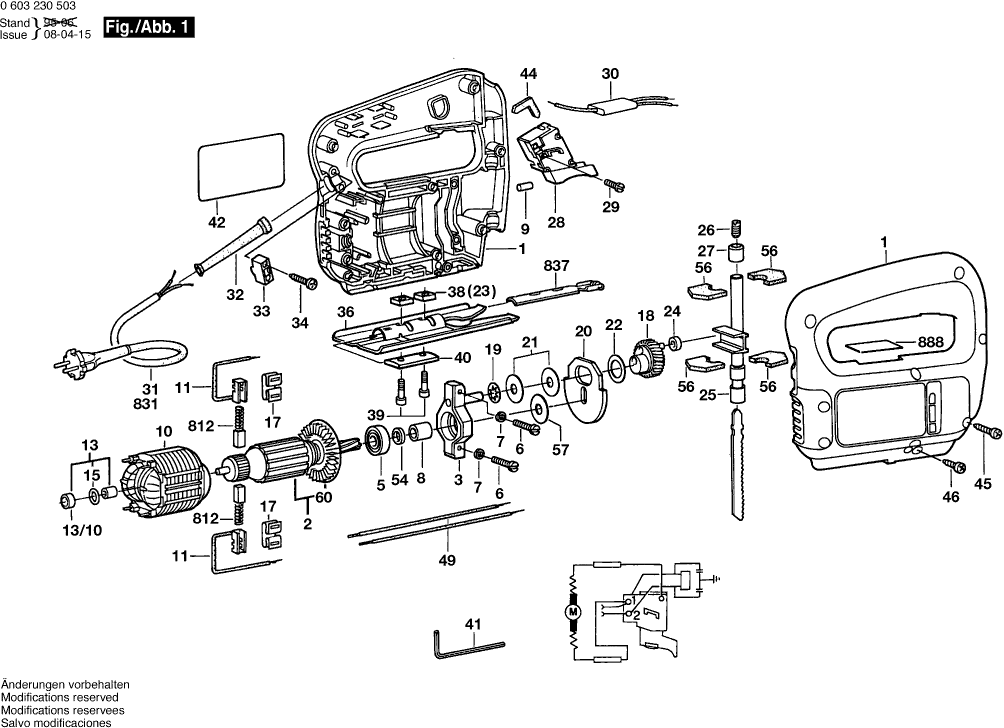

Technical drawing of model Bosch 0603230503 (ST350)
Spare parts list of model Bosch 0603230503 (ST350)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 2605104142 | |||
| No longer available, no replacement | ||||
| 2 | 2604010558 | |||
| Bearing Bracket | ||||
| 3 | 1619P02422 | 12.82 | 15.51 | |
| groove ball bearing | ||||
| 5 | 2600905021 | 8.35 | 10.10 | |
| Screw and washer assembly | ||||
| 6 | 2914500009 | 1.00 | 1.21 | |
| Spring Lock Washer | ||||
| 7 | 2916690003 | 1.00 | 1.21 | |
| Guide Sleeve | ||||
| 8 | 2600400024 | 2.86 | 3.46 | |
| Bearing bolt | ||||
| 9 | 2603201020 | 1.00 | 1.21 | |
| Field | ||||
| 10 | 2604220392 | 23.90 | 28.92 | |
| No longer available, no replacement | ||||
| 11 | 2604465077 | |||
| No longer available, no replacement | ||||
| 13 | 1600301900 | |||
| No longer available, no replacement | ||||
| 13/10 | 1600205023 | |||
| No longer available, no replacement | ||||
| 15 | 1610210014 | |||
| Holding Spring | ||||
| 17 | 1619P09928 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 18 | 2606319073 | |||
| Spring Washer | ||||
| 19 | 2600150050 | 1.49 | 1.80 | |
| Counter Weight | ||||
| 20 | 1619P02421 | 8.35 | 10.10 | |
| Shim | ||||
| 21 | 2600102658 | 1.49 | 1.80 | |
| Shim | ||||
| 21 | 2600102656 | 1.00 | 1.21 | |
| Shim | ||||
| 22 | 2600101673 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 23 | 2601030006 | |||
| Needle bearing | ||||
| 24 | 2600917904 | 7.46 | 9.03 | |
| Lifting Rod | ||||
| 25 | 1619P12589 | 21.30 | 25.77 | |
| Clamp Screw | ||||
| 26 | 2603400000 | 4.18 | 5.06 | |
| Sintered-Metal Bushing | ||||
| 27 | 2600301049 | 1.49 | 1.80 | |
| Switch | ||||
| 28 | 2607200084 | 9.67 | 11.70 | |
| Switch | ||||
| 28 | 2607200260 | 9.67 | 11.70 | |
| Socket head cap screw | ||||
| 29 | 2603410001 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 30 | 2607329101 | |||
| Grommet | ||||
| 32 | 1600703016 | 1.00 | 1.21 | |
| Cable Clip | ||||
| 33 | 2601035001 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 34 | 2910611019 | 2.86 | 3.46 | |
| Base Plate | ||||
| 36 | 2601016012 | 8.35 | 10.10 | |
| Hex Nut | ||||
| 38 | 2603300009 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 39 | 2910141126 | |||
| Profile Beading | ||||
| 40 | 2601032017 | 1.49 | 1.80 | |
| Offset Screwdriver | ||||
| 41 | 1907950004 | 5.81 | 7.03 | |
| Sticker | ||||
| 42 | 2601110367 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 44 | 2601022000 | |||
| Tapping Screw | ||||
| 45 | 2912401020 | 1.90 | 2.30 | |
| Tapping Screw | ||||
| 46 | 2910611417 | 1.00 | 1.21 | |
| Connecting Cable | ||||
| 49 | 2604448012 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 54 | 2600103013 | |||
| Lubricating Felt | ||||
| 56 | 2601020007 | 1.49 | 1.80 | |
| Shim | ||||
| 57 | 2600100624 | 1.00 | 1.21 | |
| Fan | ||||
| 60 | 2606610022 | 3.71 | 4.49 | |
| Carbon-Brush Set | ||||
| 812 | 2604321904 | 9.67 | 11.70 | |
| Power supply cord | ||||
| 831 | 1607000386 | 18.94 | 22.92 | |
| Retaining Bracket | ||||
| 837 | 2608135901 | 10.90 | 13.19 | |
| Nameplate | ||||
| 888 | 160111A3H3 | 2.40 | 2.90 | |
