Here you will find all available parts and drawings of the 'Bosch 0600700103 ( SHO280 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

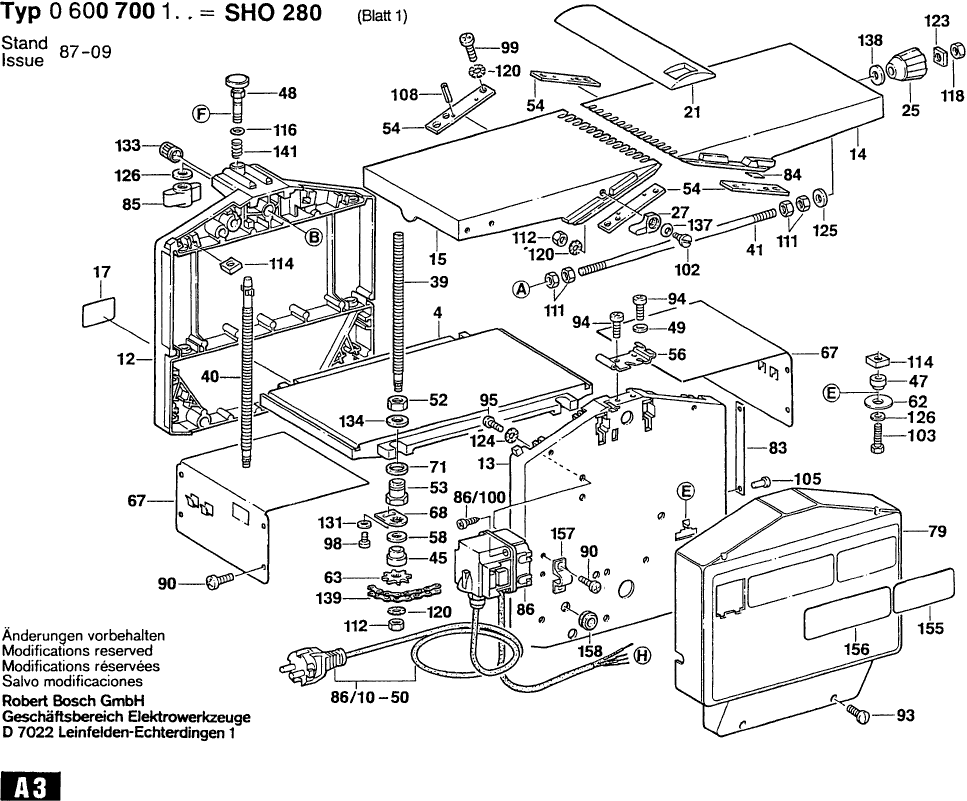

Technical drawing of model Bosch 0600700103 ( SHO280 )

Spare parts list of model Bosch 0600700103 ( SHO280 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Lever Shaft
1 1609202021 0.83 1.00
No longer available, no replacement
2 1609202022
No longer available, no replacement
3 1609202023
No longer available, no replacement
3/20 2917780116
Hex Screw
3/30 1609201825 1.18 1.43
Set screw 5x8 MM
3/40 1609202233 0.83 1.00
No longer available, no replacement
4 1609202024
Nameplate
6 1601110544 0.83 1.00
No longer available, no replacement
7 1609202026
No longer available, no replacement
8 1609202027
Stator 230V
9 1609202028 388.20 469.72
Earth Conductor
10 1609202051 0.83 1.00
Connecting Cable
11 1609202052 0.83 1.00
No longer available, no replacement
12 1609202160
No longer available, no replacement
13 1609202161
No longer available, no replacement
14 1609202162
No longer available, no replacement
15 1609202163
Nameplate
17 160111A3H3 1.94 2.35
No longer available, no replacement
19 1609202173
No longer available, no replacement
20 1609202142
No longer available, no replacement
21 1609202158
No longer available, no replacement
22 1609202143
No longer available, no replacement
23 1609202144
Star Knob
25 1609202067 0.83 1.00
Bearing Sleeve
26 1609202068 0.83 1.00
Tensioning Lever
27 1609202069 0.83 1.00
No longer available, no replacement
29 1609202145
No longer available, no replacement
30 1609202146
No longer available, no replacement
31 1609202147
Capacitor Holder
32 1609202070 0.83 1.00
Pulley
34 1609202071 0.83 1.00
No longer available, no replacement
35 1609202148
No longer available, no replacement
36 1609202149
Strut
37 1609202072 0.83 1.00
Strut
38 1609202073 0.83 1.00
Threaded Spindle
39 1609202074 0.83 1.00
Threaded Spindle
40 1609202075 0.83 1.00
Threaded Spindle
41 1609202076 0.83 1.00
Retaining Pin
42 1609202077 0.83 1.00
Axle
43 1609202078 0.83 1.00
Plain Washer
44 1609202079 0.83 1.00
Bushing
45 1609202080 0.83 1.00
Spacer Ring
46 1609202081 0.83 1.00
Tensioning Roller
47 1609202082 0.83 1.00
Lock Screw
48 1609202083 0.83 1.00
No longer available, no replacement
49 1609202110
Spacer Sleeve
50 1609202084 0.83 1.00
Spacer Sleeve
51 1609202085 0.83 1.00
Hex Nut
52 1609202086 0.83 1.00
Spindle Nut
53 1609202087 0.83 1.00
Guide Rail
54 1609202088 0.83 1.00
No longer available, no replacement
55 1609202150
No longer available, no replacement
56 1609202151
Plain Washer
58 1609202089 0.83 1.00
Sprocket wheel
59 1609202090 0.83 1.00
Safety Catch
60 1609202091 0.83 1.00
No longer available, no replacement
61 1609202152
Tensioning Roller
62 1609202092 0.83 1.00
Sprocket wheel
63 1609202093 0.83 1.00
Gusset
65 1609202095 0.83 1.00
No longer available, no replacement
66 1609202153
No longer available, no replacement
67 1609202159
No longer available, no replacement
68 1609202096
No longer available, no replacement
69 1609202097
No longer available, no replacement
71 1609202139
Headed Bush
72 1609202240 0.83 1.00
No information available, not orderable
73 1609202329
No information available, not orderable
74 1609202328
No longer available, no replacement
78 1609202164
No longer available, no replacement
79 1609202165
No longer available, no replacement
82 1609202098
No longer available, no replacement
83 1609202099
Reference Plate
84 1601110532 0.83 1.00
Hex Nut
85 2610387875 1.94 2.35
No longer available, no replacement
86 1609202154
Tapping Screw DIN 7971-B4,8x19
86/100 2910211234 1.18 1.43
Power supply cord EU 4,15m 2 x 1,5mm H07 RN-F
86/60 1607000228 20.42 24.71
Hex Socket Head Cap Screw DIN 912-M8x25-10.9
87 2910151244 0.83 1.00
Set screw DIN 916-M6x25-45H
89 2912061203 0.83 1.00
Thread-forming tap. Screw DIN 7500 CM 5x8
90 2914411056 0.83 1.00
Set screw DIN 913-M5x20-45H
91 2912041162 0.83 1.00
Hex Screw DIN 933-M8x25-8.8
92 2911061244 0.83 1.00
Oval-Head Screw M5x15 MM
93 1609201870 0.83 1.00
Thread-forming tap. Screw DIN 7500-CM4x8-ST
94 2914411245 0.83 1.00
No longer available, no replacement
95 2910611420
Hex Socket Head Cap Screw DIN 912-M8x20-8.8
96 2910141242 1.18 1.43
Pan head screw DIN 85-AM4x8-MS
97 2910110118 1.18 1.43
Thread-forming tap. Screw DIN 7500-M5x10MM
98 2914411257 0.83 1.00
Oval-Head Screw M6x20 DIN 7985-4.8
99 2910641201 0.83 1.00
Tapping Screw DIN 7981-ST 3,9x45-F-H
101 2910611494 0.83 1.00
No longer available, no replacement
102 1609202029
Hex Screw DIN 933-M6x20-10.9
103 2911071201 0.83 1.00
Hex Screw DIN 933-M6x16-10.9
104 2911071197 0.83 1.00
No longer available, no replacement
105 2917721032
Eye Bolt M6
106 1609202030 0.83 1.00
No longer available, no replacement
107 1609202106
Set screw
108 1609202327 0.83 1.00
No longer available, no replacement
109 2915011006
Straight Pin DIN 7-3h6x20-ST
110 2917621149 0.83 1.00
Hex Nut DIN 934-M8-8-A
111 2915011009 1.94 2.35
Hex Nut DIN 934-M6-8-A
112 2915011007 0.83 1.00
Hex Nut LEFTHAND THREADS
113 1609202050 0.83 1.00
Hex Nut DIN 934-M6-8-A
114 2915011007 0.83 1.00
Square Nut DIN 562-M4-04
115 2915121004 0.83 1.00
O-Ring
116 1609202057 0.83 1.00
Locking Washer Ø5 MM
117 1609202066 0.83 1.00
Hex Nut DIN 934-M8-8-A
118 2915011009 1.94 2.35
Plain Washer
119 1609202033 0.83 1.00
Locking Washer Ø6 MM
120 1609202031 0.83 1.00
Locking Washer Ø8 MM
121 1609202032 0.83 1.00
Plain Washer DIN 125-A15-ST
122 2916011022 1.18 1.43
Square Nut DIN 562-M8-04
123 2915121007 0.83 1.00
Locking Washer Ø4 MM
124 1609202034 0.83 1.00
Plain Washer DIN 9021-B 8,4-ST
125 2916011895 0.83 1.00
No longer available, no replacement
126 2916011884
Spring Washer
127 1609202035 0.83 1.00
groove ball bearing 15x35x11
128 1900905279 8.45 10.22
Groove Ball Bearing DIN 625-6302-2 Z
129 1609202036 0.83 1.00
groove ball bearing 17x40x12
130 1900905281 26.84 32.48
Plain Washer DIN 433-5,3-ST
131 2916011011 1.18 1.43
No longer available, no replacement
132 2916011020
Nozzle Socket
133 1609202037 0.83 1.00
Shim ring
134 1609202038 0.83 1.00
No longer available, no replacement
135 1609202107
No longer available, no replacement
136 1609202108
Disc Spring DIN 2093-A16 GR 1
137 2916160055 0.83 1.00
Disc Spring Ø23xØ8,2x0,9 MM
138 1609202039 0.83 1.00
Link Chain
139 1609202040 0.83 1.00
No longer available, no replacement
140 1609202359
No longer available, no replacement
141 1609202109
Spring retaining ring DIN 471-12x1-FSt
142 2916650003 1.18 1.43
Spring retaining ring DIN 471-10x1MM-FSt
143 2916650001 1.94 2.35
Hex Nut DIN 934-M12-m-8
144 2915011011 1.18 1.43
Serrated Lock-Washer DIN 6798-A12,5-FST
145 2916070013 0.83 1.00
Compression Gland
146 1609202043 0.83 1.00
No longer available, no replacement
147 1609202044
V-Belt 9,5x850 MM
148 1609202045 33.45 40.47
groove ball bearing 6x19x6
149 1900905019 11.88 14.37
groove ball bearing 12x32x10
149 1600905007 8.45 10.22
No information available, not orderable
150 1609202046
Socket head cap screw
151 1609202047 0.83 1.00
Round-Head Grooved Pin DIN 1476-3x8-ST
152 2917721075 0.83 1.00
Round-Head Grooved Pin 3x18 MM
153 1609202048 0.83 1.00
No information available, not orderable
154 2911061203
Manufacturer's nameplate
155 1601110542 0.83 1.00
Reference Plate
156 1601110541 0.83 1.00
Cable Sleeve
157 1609202243 0.83 1.00
Cord guard
158 1609202244 0.83 1.00
Serrated Lock-Washer A4,3-FST DIN6798
159 2916079031 0.83 1.00
Plain Washer DIN 433-5,3-ST
160 2916011011 1.18 1.43
Single-Head Eng. Wrench
650 2607950504 1.70 2.06
Crank Handle
651 1609201884 0.83 1.00
Reference Plate
651/10 1601110531 0.83 1.00
No longer available, no replacement
652 1609202346
No longer available, no replacement
652/20 1609202347
Plain Washer DIN 433-5,3-ST
652/50 2916011011 1.18 1.43
No information available, not orderable
652/60 1609202349
No longer available, no replacement
655 1609201816
Offset Screwdriver DIN 911 SW2,5
656 1907950003 1.94 2.35
No longer available, no replacement
700 1609201820
No longer available, no replacement
701 1609201816
No longer available, no replacement
702 1609201815
No longer available, no replacement
703 1609201818
No longer available, no replacement
710 1609201814
